REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED

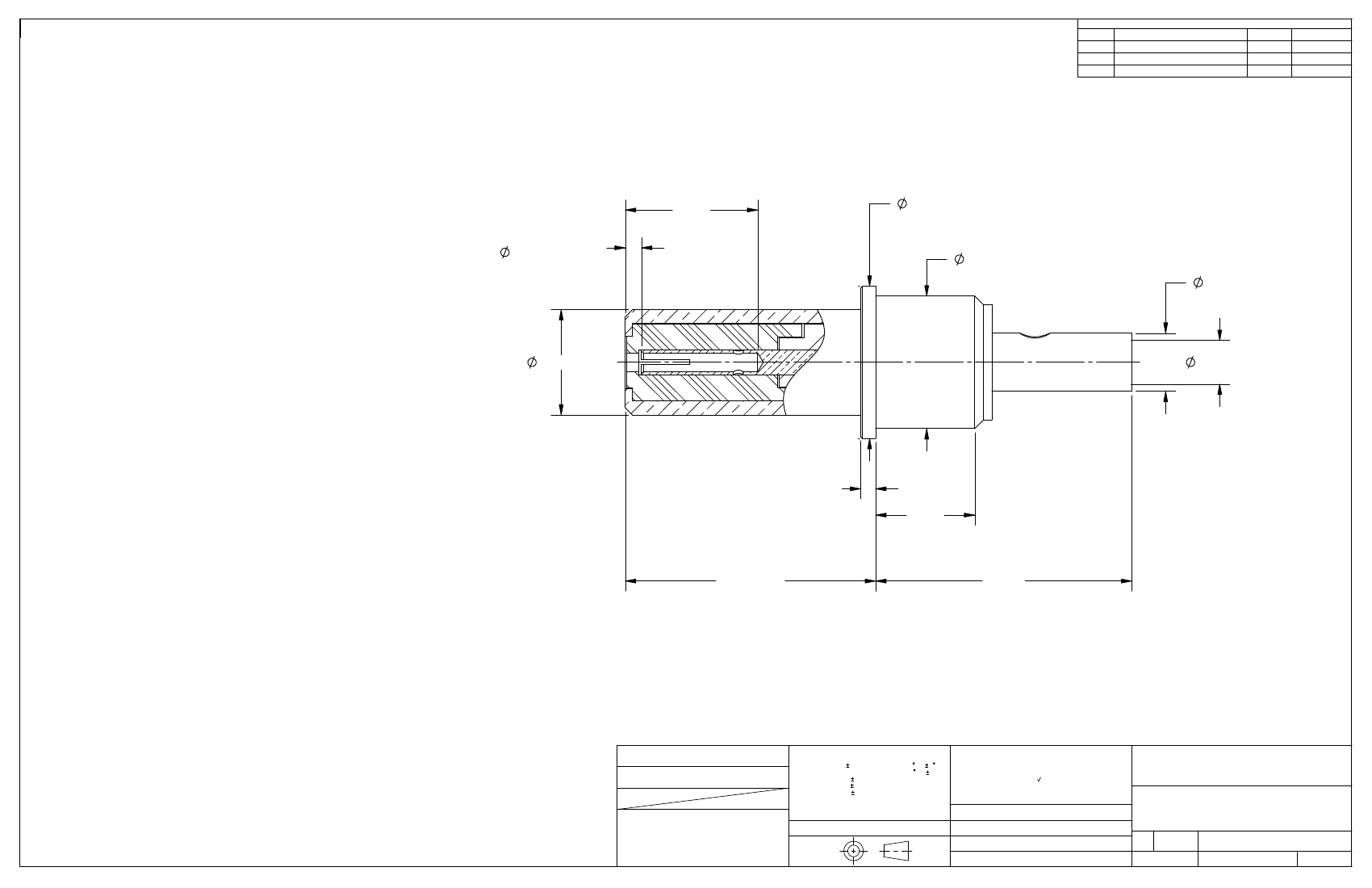

PRODUCT DATA DRAWING
A
REV. DCN 32852
03/05
VMJ
MATERIALS:
INSULATORS:
BODIES:
CONTACT:
PTFE PER ASTM D1710, TYPE 1
GRADE 1, CLASS B.
BRASS PER ASTM B16,
ALLOY UNS C36000, H02
BERYLLIUM COPPER PER ASTM B196,
ALLOY C17300, COND. TD04
.045 MAX TO
ENGAGEMENT WITH
A .0355 BASIC
SQUARE END PIN
.260
MIN.
+.002
.314
- .003
+.002
.274
- .003
.120
.218±.001
.090±.001
SHRINK TUBING: POLYOLEFIN PER SAE-DTL-23053/5-105-0
FINISHES:
BODIES &
CONTACT:
GOLD PER ASTM B488, TYPE II,
GRADE C, CLASS 1.27 OVER NICKEL
PER AMS-QQ-N-290 CLASS 1, .00005" MIN.
.031±.002
.198
MIN.
ELECTRICAL:
IMPEDANCE:
FREQ. RANGE:
INSUL. RES.:
D.W.V:
VSWR:
INSERTION LOSS:
50 OHMS
DC TO 3 GHz
5,000 MEGOHMS MIN.
1,000 VRMS MIN.
1.20 + .04 X F IN GHz
.11 X SQUARE ROOT OF F(GHz)
.517±.003
.562
MAX.
(MAX FREQ. CAN BE LIMITED BY CABLE)
REF. AS39029/60 &
MIL-DTL-38999 SERIES III
MATERIAL:
FINISH:
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
SEE ABOVE
SEE ABOVE
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE AFTER PLATING.
2) BREAK CORNERS & EDGES .005 R. MAX.
3) CHAM. 1ST & LAST THREADS.
4) SURFACE ROUGHNESS 63 MIL-STD-10.
5) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
6) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
DECIMAL: .X
.XX
.XXX
PROPRIETARY
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
DRAWN:
CHECKED:
APPROVED:
VMJ 02/01/05
JMC 02/03/05
JMC 02/03/05
SIZE 8 PIN FOR
T-FLEX 405 CABLE
95077
THIRD ANGLE PROJECTION
SIZE CAGE CODE DWG. NO.
B
8001-4107
SHEET 1 OF 1
E.M. SIMULATION: N/A
SCALE: 6:1
