Barrier Terminal Blocks MAGNUM 1000 SERIES

A10220404 Parametric

Parameter Name	Attribute value
Maker	Eaton
Reach Compliance Code	compliant
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

Single Row Terminal Blocks

A1000 & CB1000

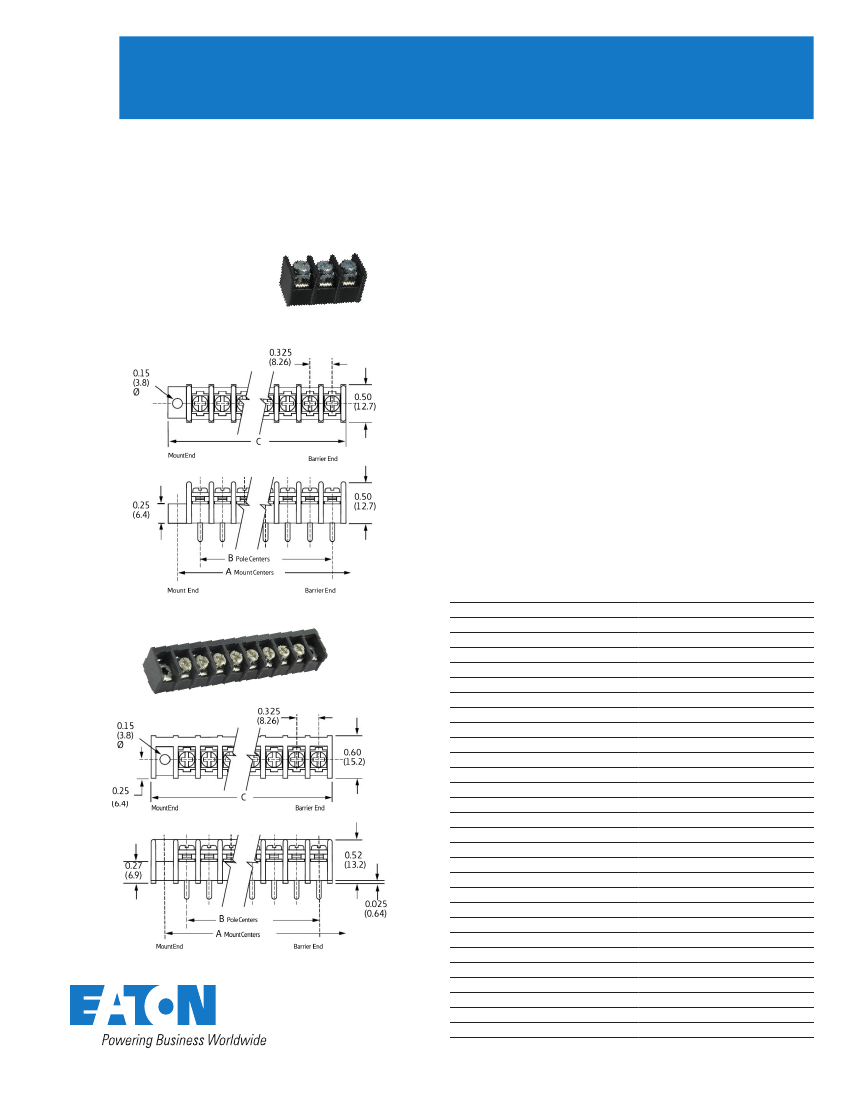

Dimensions

Inches (Millimeters)

A1000

Specifications

Rating:

20A, 250V*

Center Spacing:

0.325” (8.26mm)

Wire Range:

#14-22 AWG Cu

A10220307

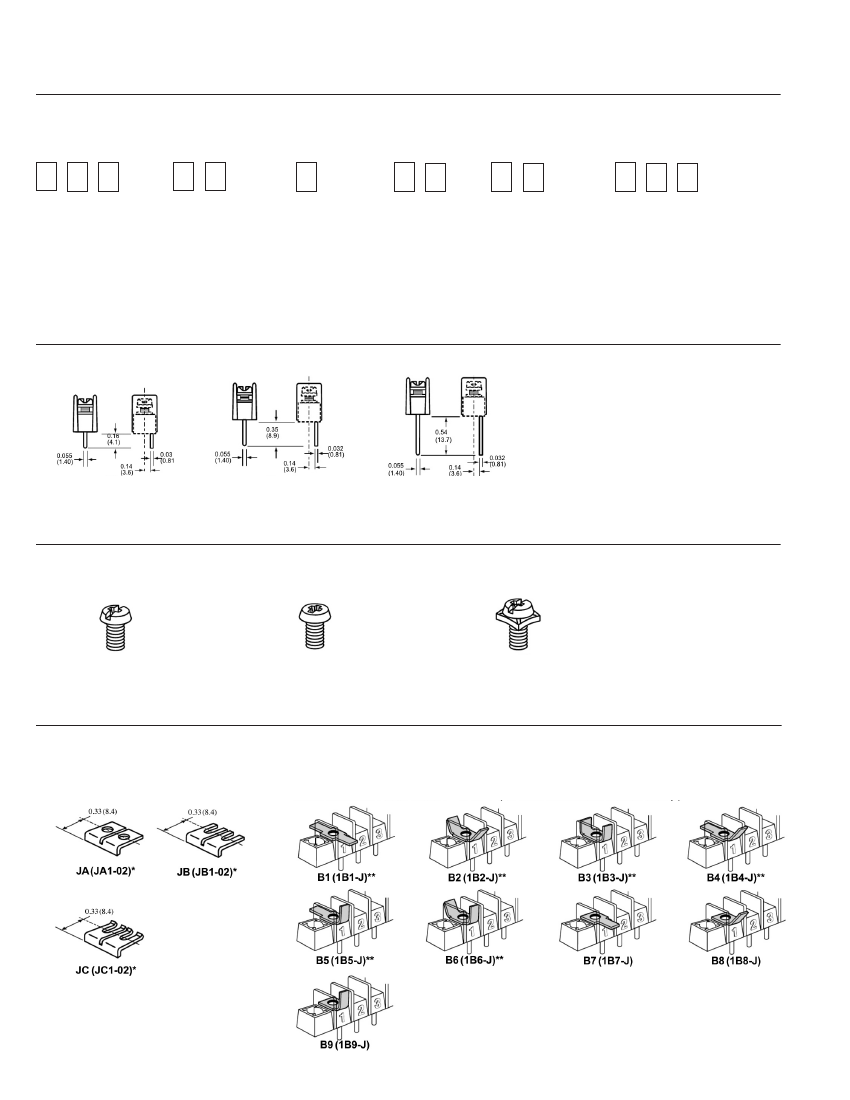

Screw Size:

#6-32 zinc-plated philslot wire-ready screws with a

#2 driving recess.

Torque Rating:

9 lb-in.

Base:

Standoffs are standard on CB1000 for easy flux washing.

Distance Between Barriers:

0.26” (6.6mm)

Recommended PCB Hole Diameter:

0.070” (1.78mm)

Operating Temperature:

105°C (221°F) max., -40°C (-40°F) min.

Molded Material:

Black, UL Rated 94V0 Thermoplastic

Breakdown Voltage:

1600V

Agency Information:

UL/CSA; IEC Compliance; CE Certified;

UL File: E62622, CSA File: 15364

* General industrial applications

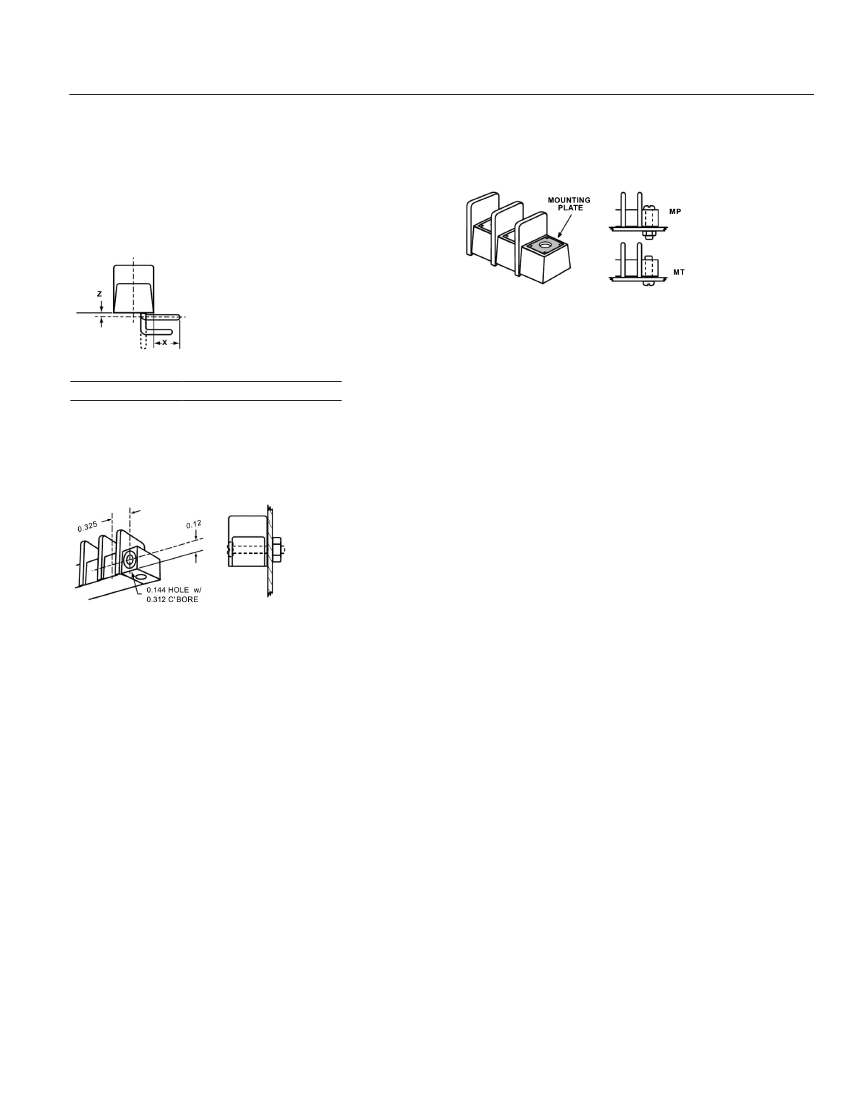

BARRIER &

MOUNTING ENDS

Pole Ctrs.

BARRIER

ENDS ONLY

Length

MOUNTING ENDS ONLY

Poles

Mounting Ctrs.

Length

CB1000

CB102108MP

0.98

1.30

1.63

1.95

2.28

2.60

2.93

3.25

3.58

3.90

4.23

4.55

4.88

5.20

5.53

5.85

6.18

6.50

6.83

7.15

7.48

7.80

8.13

8.45

8.78

9.10

9.43

9.75

10.08

1.37

1.69

2.02

2.34

2.67

2.99

3.32

3.64

3.97

4.29

4.62

4.94

5.27

5.59

5.92

6.24

6.57

6.89

7.22

7.54

7.87

8.19

8.52

8.84

9.17

9.49

9.82

10.14

10.47

0.33

0.65

0.98

1.30

1.63

1.95

2.28

2.60

2.93

3.25

3.58

3.90

4.23

4.55

4.88

5.20

5.53

5.85

6.18

6.50

6.83

7.15

7.48

7.80

8.13

8.45

8.78

9.10

9.43

0.72

1.04

1.37

1.69

2.02

2.34

2.67

2.99

3.32

3.64

3.97

4.29

4.62

4.94

5.27

5.59

5.92

6.24

6.57

6.89

7.22

7.54

7.87

8.19

8.52

8.84

9.17

9.49

9.82

Dimensions in inches. To convert to millimeters, multiply by 25.4.
