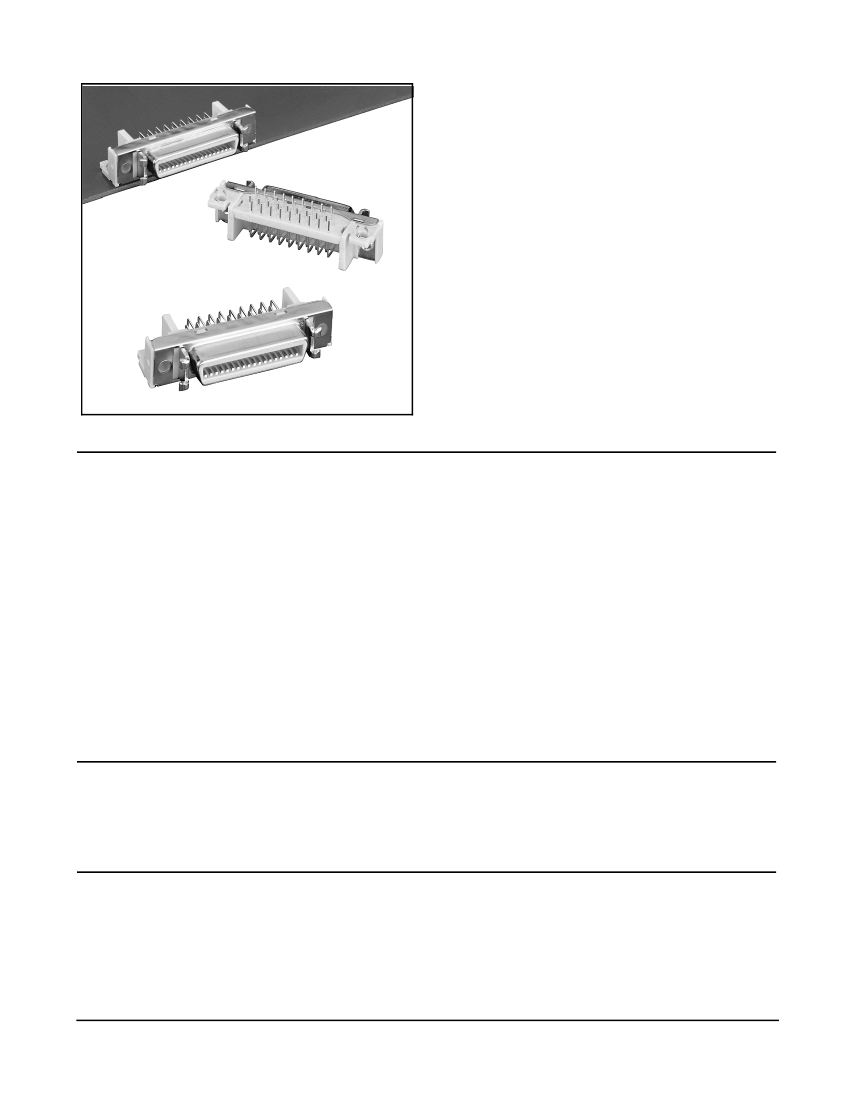

3M
™
Mini D Ribbon (MDR) Connectors
.050″ Boardmount Through-Hole Right Angle Receptacle - Shielded
102 Series
• Wiper-on-wiper contact for reliable repetitive
plugging
• Surface mount compatible PCT insulator
material
• Ground lock PCB retention
• Interface latch design for connection stability
• MDR digital LCD interface as a 20 or 26
contact connector
• Contacts: 14, 20, 26, 36, 40, 50 and 68
• See Regulatory Information Appendix (RIA)
for chemical compliance information.
Date Modified: November 15, 2007
TS-0621-C
Sheet 1 of 3
Physical
Insulation
Material: Glass Reinforced Polyester (PCT)
Flammability: UL 94V-0
Color: See ordering information
Contact Material:
Copper Alloy
Plating
Underplating: See ordering information
Wiping Area: See ordering information
Solder Tail Plating: Gold Flash over Nickel (RIA E1 & C1 apply)
Shroud and Latch Hook
Material:
Plating:
Ground Lock
Material:
Plating:
Steel
Nickel
Copper Alloy
Tin in combination with gold flash plated tail
Marking:
3M Logo and Part Number
Electrical
Current Rating:
1 A
Insulation Resistance:
> 5
×
10
8
Ω
at 500 V
DC
Withstanding Voltage:
500
V
RMS
for 1 Minute
Environmental
Temperature Rating:
-55°C to +105°C
Process Rating:
260°C (profile per J-STD-020C)
UL File No.: E68080
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Mini D Ribbon (MDR) Connectors
.050″ Boardmount Through-Hole Right Angle Receptacle - Shielded
Contact
Quantity
14
20
26
36
40
50
68

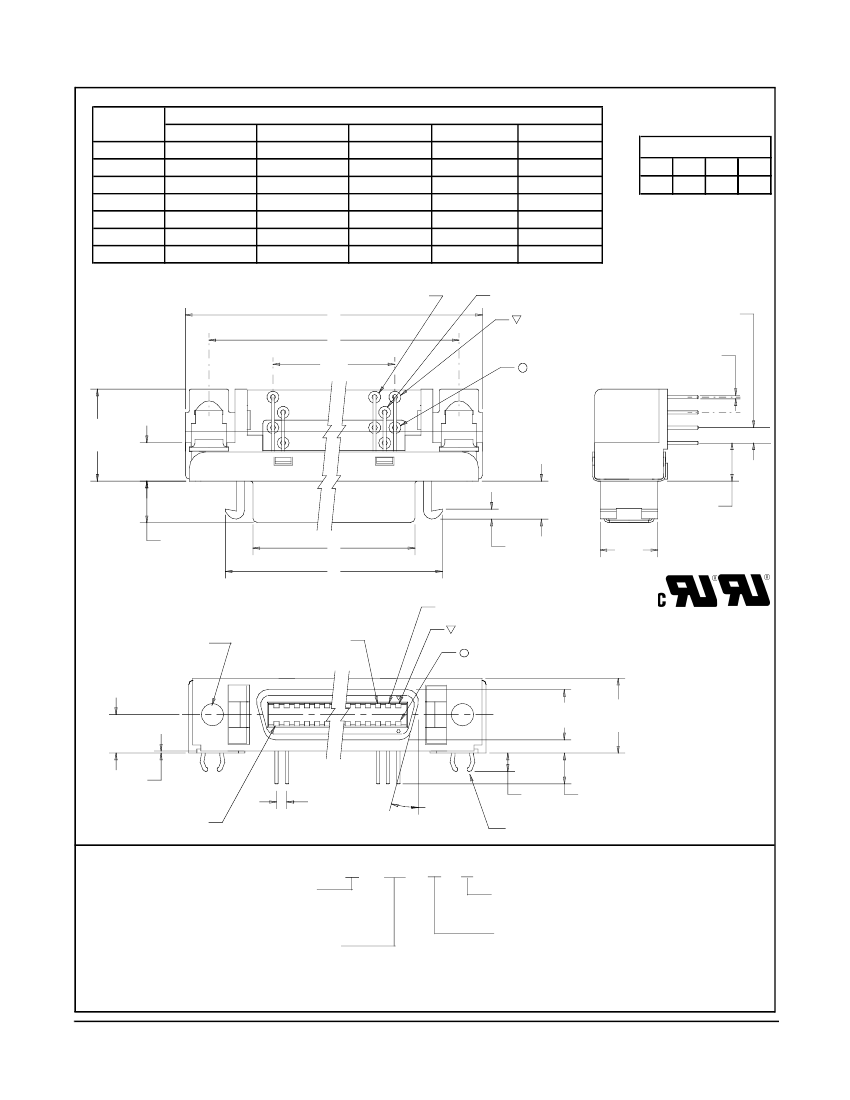

Dimensions
C
1.16 [ 29.5 ]
1.31 [ 33.4 ]
1.46 [ 37.2 ]
1.71 [ 43.5 ]
1.81 [ 46.1 ]
2.06 [ 52.4 ]
2.51 [ 63.8 ]
102 Series
In c h
[m m ]
T o le ra n ce U n le s s N o ted
.0
in c h
± .1
.0 0
.0 00
± .0 1 ± .00 5
A
0.300 [ 7.62 ]
0.450 [ 11.43 ]
0.600 [ 15.24 ]
0.850 [ 21.59 ]
0.950 [ 24.13 ]
1.200 [ 30.48 ]
1.650 [ 41.91 ]
B
0.93 [ 23.6 ]
1.08 [ 27.5 ]
1.23 [ 31.3 ]
1.48 [ 37.6 ]
1.58 [ 40.2 ]
1.83 [ 46.5 ]
2.28 [ 57.9 ]
D
0.50 [ 12.6 ]
0.65 [ 16.4 ]
0.80 [ 20.2 ]
1.05 [ 26.6 ]
1.15 [ 29.1 ]
1.40 [ 35.5 ]
1.85 [ 46.9 ]
E
0.77 [ 19.5 ]
0.92 [ 23.4 ]
1.07 [ 27.2 ]
1.32 [ 33.5 ]
1.42 [ 36.1 ]
1.67 [ 42.4 ]
2.12 [ 53.8 ]
[ ] D im e n sio n s fo r R e fe re nce
O n ly
Position 3
C
B
A
Position 2
Position 1
3X .075
[1.90]
.0157 Sq
[0.399]
Position
.45
[11.4]
.19
[4.8]
.19
[4.8]
.190
[4.83]
.28
[7.2]
.21
[5.3]
D
E
.05
[1.3]
Position 2
(2X) Threaded Hole for Panel
Mounting
(See Note in Ordering
Information)
Position 1
Position 3
Position
.19
[4.8]
.25
[6.3]
.37
[9.4]
.01
[0.3]
.050 Typ
[1.27]
Last Position
15°
.09
[2.3]
.11
[2.8]
Ground Lock (2X)
Ordering Information
Connector Material:
Blank = Beige
D = Black (20 pos. only)
X102XX-55X3PX
Wiping area plating:
L = 8 µ” [ 0.2 µm ] Min. Gold over 50 µ” [ 1.27 µm ] Min. Ni.
C = 30 µ” [ 0.76 µm ] Min. Gold over 100 µ” [ 2.54 µm ] Min. Ni.
Panelmount thread size:
G = M2.5 (14, 20, 26, 36, 40 position)
H = #4-40 (20, 36, 50 & 68 position)
TS-0621-C
Sheet 2 of 3
Contact Quantity:
Note: Must order 3M™ panelmount screws: 3M™ 3344-38 for M2.5, 3M™3344-44 for #4-40.
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Mini D Ribbon (MDR) Connectors
.050″ Boardmount Through-Hole Right Angle Receptacle - Shielded
Contact
Quantity
14
20
26
36
40
50
68
Dimensions
A
.300 [7.62]
.450 [11.43]
.600 [15.24]
.850 [21.59]
.950 [24.13]
1.200 [30.48]
1.650 [41.91]
B
.931 [23.64]
1.081 [27.45]
1.231 [31.26]
1.481 [37.61]
1.581 [40.15]
1.831 [46.50]
2.281 [57.93]
C
.78 [19.9]
.94 [23.8]
1.09 [27.6]
1.33 [33.9]
1.44 [36.5]
1.69 [42.8]
2.13 [54.2]
102 Series
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
.000
±.01 ±.005
[ ] Dimensions for Reference
Only

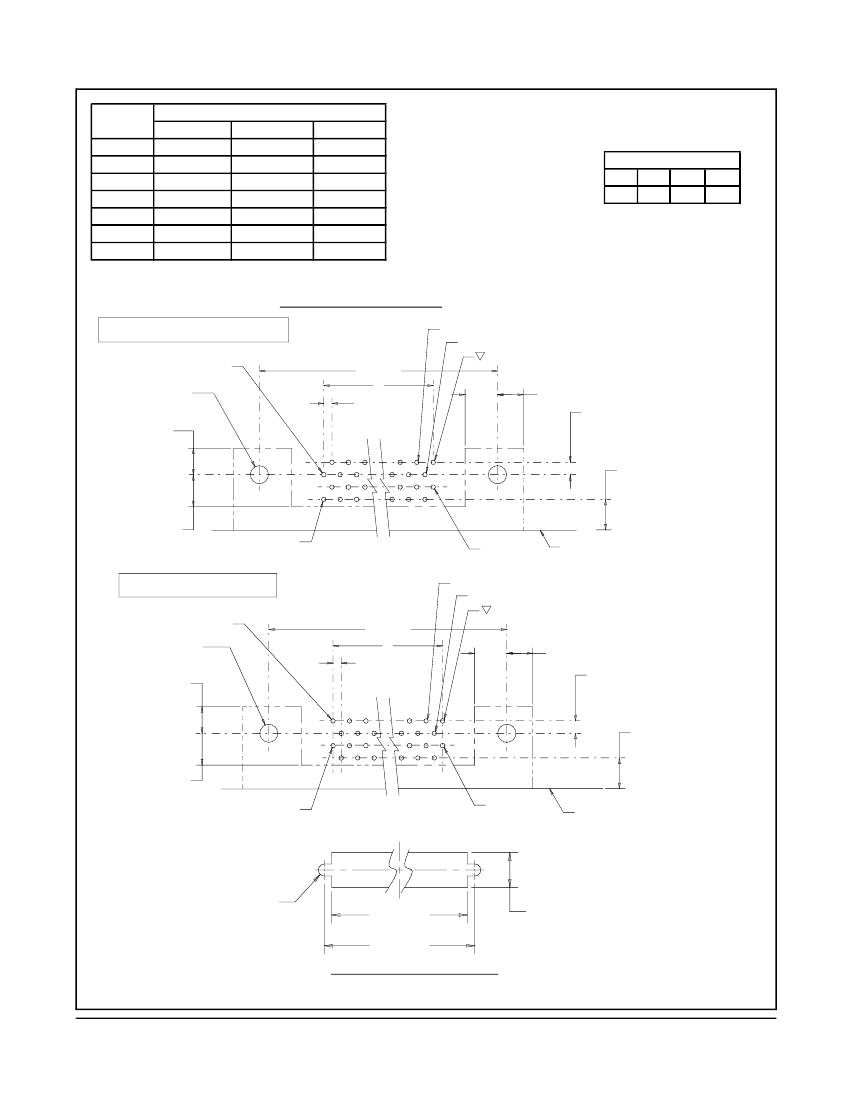

Recommended Board Layout
For 20, 36, 40, & 68 Positions
Ø .028
±
.004
[0.71]
(See Note)*
2X Ø.110
±
.004
[2.80]
2X .16
[4.1]
(Viewed from Connector Side)
Position 3
Position 2
Position 1
B
±
.004
A
.050 Typ
[1.27]
2X .20
[5.0]
2X .16
[4.0]
3X .075
[1.91]
.19 Max
[4.8]
2X .19
[4.8]
Last Position
0
Position
Position 3
Position 2
Position 1
B
±
.004
A
.050 Typ
[1.27]
.2X 20
[5.0]
Edge of PC Board
For 14, 26, & 50 Positions
Ø.028
±
.004
[0.71]
(See Note)*
2X Ø.110
±
.004
[2.80]
2X .16
[4.1]
2X .16
[4.0]
3X .075
[1.91]
.19 Max
[4.8]
.19
[4.8]
Last Position
*Note: Plated-through mounting holes for .062 [1.57] PC board thickness
0
Position
Edge of PC Board
R .060
[ 1.5 ]
C
±
.004
B
±
.004
.319
±
.004
[8.10]
Recommended Panel Cut-Out
Note: Panel thickness .079 [2.00] Max.
TS-0621-C
Sheet 3 of 3
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
