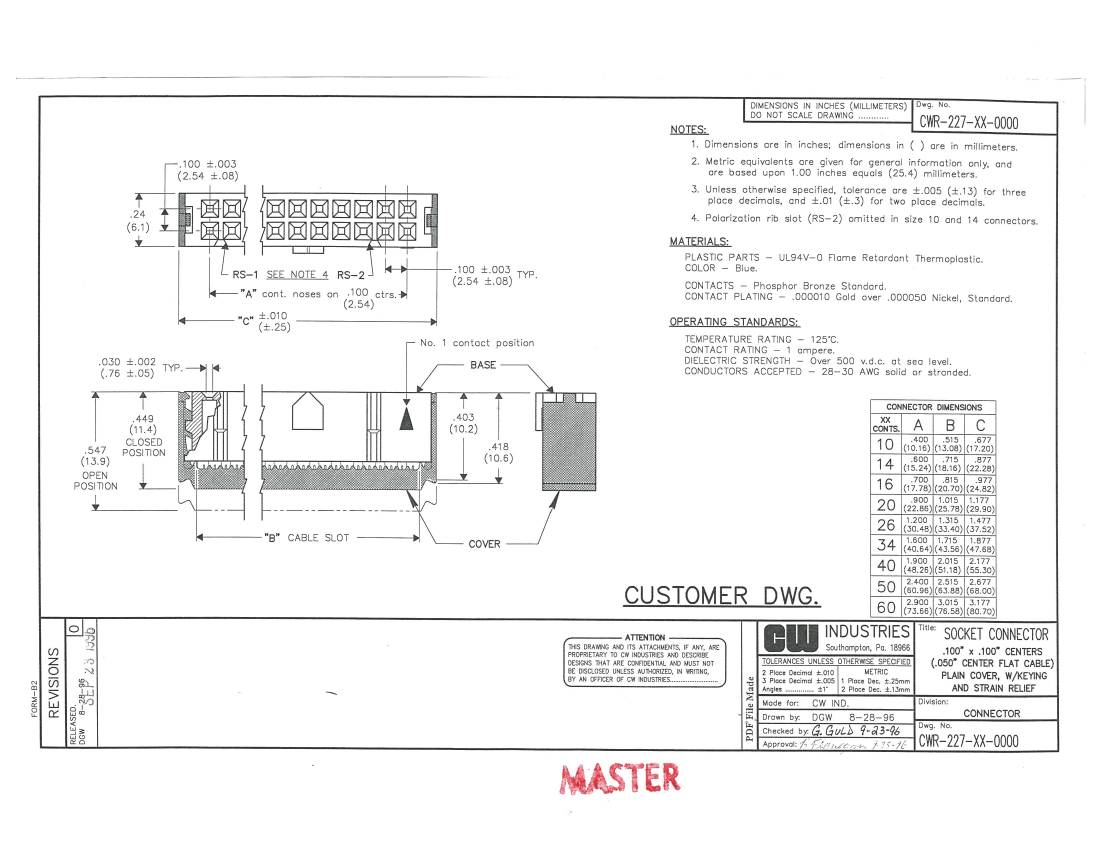

Preview

CWR-227-34-0000: DescriptionHeaders u0026 Wire Housings IDC Commercial Socket; CategoryThe connector The connector; File Size527KB，1 Pages; ManufacturerCW Industries; Websitehttp://www.cwind.com; Environmental Compliance

Download Datasheet Parametric Compare View All

CWR-227-34-0000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CWR-227-34-0000	-	-	View	Buy Now

CWR-227-34-0000 Overview

Headers u0026 Wire Housings IDC Commercial Socket

CWR-227-34-0000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
body width	0.24 inch
body length	1.877 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VDC V
Insulation resistance	5000000000 Ω
Insulator color	BLUE
insulator material	THERMOPLASTIC
Manufacturer's serial number	CWR
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Plating thickness	10u inch
polarization key	POLARIZED RIB(S)
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	34
Maximum wire diameter	28 AWG
Minimum wire diameter	30 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

CWR-227-34-0000 Related Products

	CWR-227-34-0000	CWR-227-26-0000	CWR-227-60-0000	CWR-227-40-0000	C3CEG-2636M
Description	Headers u0026 Wire Housings IDC Commercial Socket		Headers u0026 Wire Housings IDC Commercial Socket	Headers u0026 Wire Housings IDC Commercial Socket	IDC CABLE - CKC26G/AE26M/CKC26G
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	Insert to card edge
Is it Rohs certified?	conform to	conform to	conform to	conform to	-
Reach Compliance Code	compliant	compliant	compliant	compliant	-
body width	0.24 inch	0.24 inch	0.24 inch	0.24 inch	-
body length	1.877 inch	1.477 inch	3.177 inch	2.177 inch	-
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	-
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	-
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	-
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Contact style	RND PIN-SKT	RND PIN-SKT	BELLOWED TYPE	RND PIN-SKT	-
Dielectric withstand voltage	500VDC V	500VDC V	500VDC V	500VDC V	-
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	-
Insulator color	BLUE	BLUE	BLUE	BLUE	-
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	-
Manufacturer's serial number	CWR	CWR	-	CWR	-
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-
Installation option 1	LOCKING	LOCKING	-	LOCKING	-
Installation type	CABLE	CABLE	-	CABLE	-
Number of rows loaded	2	2	2	2	-
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-
Plating thickness	10u inch	10u inch	10u inch	10u inch	-
polarization key	POLARIZED RIB(S)	POLARIZED RIB(S)	MIL TYP & CENTER	POLARIZED RIB(S)	-
Rated current (signal)	1 A	1 A	1 A	1 A	-
Guideline	UL	UL	UL, CSA	UL	-
reliability	COMMERCIAL	COMMERCIAL	MIL-C-83503	COMMERCIAL	-
Termination type	IDC	IDC	-	IDC	-
Total number of contacts	34	26	60	40	-
Maximum wire diameter	28 AWG	28 AWG	-	28 AWG	-
Minimum wire diameter	30 AWG	30 AWG	-	30 AWG	-
