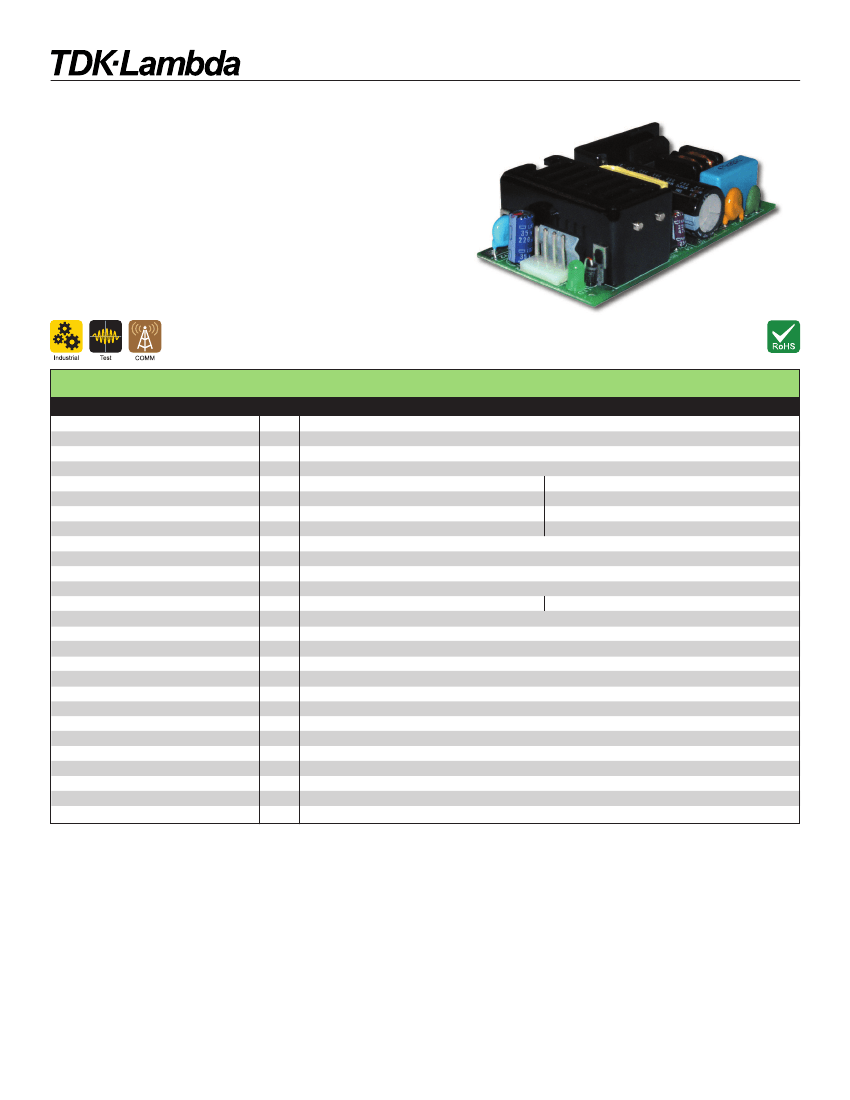

ZP40/60 Series
2 x 4” 40W to 60W AC-DC Power Supplies
Features
u
Single and Multiple Outputs
u
Wide Range AC Input
u
Low profile, Industry Standard Footprint
u
Global Safety Agency Compliance
u
EN61000-4 Immunity
u
Up to 88% efficiency
Key Market Segments & Applications
Specifications
Model
ZPS40
ZPS60
ZPD40
ZPT40
Input Voltage range
-
90 - 264VAC (47 - 440Hz) or 120 - 370VDC
Inrush Current (132/265VAC)
A
25 / 50 (cold start)
Input Current (115/230VAC)
A
1.6 / 1.0
Temperature Coefficient
-
±0.05%/°C
Voltage Accuracy
%
±1%
V1: ±3%, V2: ±4%, V3: ±3%
Minimum Load
A
None
V1: 0.4A, V2: 0.2A
Load Regulation
(1)
%
±1%
V1: ±3%, V2: ±5%, V3: ±1%
Line Regulation
(2)
%
±0.5%
V1: ±1%, V2: ±2%, V3: ±1%
Ripple & Noise
(3)(4)
mV
1% or 50mV whichever is greater
Short Circuit Protection
-
Continuous - hiccup mode
Overvoltage Protection
V
Typically 110-130% of nominal
Hold Up Time (Typ)
ms
8ms at 115VAC input
LED Indicator
-
Green LED = OK
None
Operating Temperature
(5)
0 to +70°C, derate linearly to 50% load from 50°C to 70°C
Storage Temperature
-
-20 to +85°C
Humidity (non condensing)
-
10 - 95% RH
Cooling
-
Convection
Withstand Voltage
Input to Ground 1.5kVAC, Input to Output 3kVAC, Output to Ground 500VAC for 1 min.
Isolation Resistance
>100M at 25C & 70%RH, Output to Ground 500VDC
Vibration (non operating)
23.52m/s
2
(10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
Shock
-
< 196.1 m/s
2
(20G)
Safety Agency Approvals
-
UL60950, CSA60950, EN60950, CE Mark (LVD)
Conducted & Radiated EMI
-
EN55022-B, FCC Class B
Immunity
-
EN61000-4-2,-3,-4,-6,-8
Weight (Typ)
g (oz)
170g (6oz)
Size (WxLxH)
in
2 x 4 x 1.2 (including underside components )
Warranty
yrs
Two Year
Notes:
(1) ZPD, ZPT for a 60% to 100% or 100% to 60% change in load
(2) ZPT40-3512N V2: ±3%, ZPS/ZPD40: 100-240VAC
(3) Measured with 0.1uF ceramic & 10uF electrolytic at 20MHz BW
(4) ZPT40-3512N, V1 & V2 100mV
(5) ZPS40 (3.3V to 9V models), ZPS60 (3.3V to 12V models) derate linearly to 25% load from 40°C to 70°C
ZPS40, 60 Not Recommended
For New Designs - See ZPSA Series
1-800-526-2324 • www.us.tdk-lambda.com/lp/
150
Disclaimer: us.tdk-lambda.com/lp/legal.htm
ZP40/60 Series
2 Output Module Codes
Model
Single Output
ZPS40-3R3
ZPS60-3R3
ZPS40-5
ZPS60-5
ZPS40-9
ZPS60-9
ZPS40-12
ZPS60-12
ZPS40-15
ZPS60-15
ZPS40-24
ZPS60-24
ZPS40-30
ZPS60-30
ZPS40-36
ZPS60-36
ZPS40-48
ZPS60-48
Dual Outputs
ZPD40-512
ZPD40-524
Triple Outputs
ZPT40-5125N
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V2
V1
V2
V1
V2
V3
V1
V2
V3
V1
V2
V3
V1
V2
V3
V1
V2
V3
V1
V2
V3
V1
V2
V3
O/P(V)
3.3
3.3
5.0
5.0
9.0
9.0
12.0
12.0
15.0
15.0
24.0
24.0
30.0
30.0
36.0
36.0
48.0
48.0
+5.0
+12.0
+5.0
+24.0
+5.0
+12.0
-5.0
+5.0
+12.0
-12.0
+5.0
+15.0
-15.0
+5.0
+24.0
-12.0
+5.0
+24.0
-5.0
+5.0
+24.0
+12.0
+3.3
+5.0
-12.0
Max.
O/P(A)
6.0
8.0
6.0
8.0
4.45
6.67
3.34
5.0
2.67
4.0
1.67
2.5
1.33
2.0
1.11
1.67
0.834
1.25
3.2
2.0
3.2
1.0
3.2
2.0
0.3
3.2
2.0
0.3
3.2
1.5
0.3
3.2
1.0
0.3
3.2
1.0
0.3
3.2
1.0
0.3
5.0
2.0
0.3
Peak Output
(A)(6) Pwr(W)
7.2
8.5
7.2
9.0
5.34
8.0
4.0
6.0
3.2
4.8
2.0
3.0
1.6
2.4
1.33
2.0
1.0
1.5
5.0
2.5
5.0
1.5
5.0
2.5
0.5
5.0
2.5
0.5
5.0
2.3
0.5
5.0
1.5
0.5
5.0
1.5
0.5
5.0
1.5
0.5
7.0
3.5
0.5
20.0
26.0
30.0
40.0
40.0
60.0
40.0
60.0
40.0
60.0
40.0
60.0
40.0
60.0
40.0
60.0
40.0
60.0
40.0 (7)
40.0 (7)
Eff.
(%)
74
74
78
78
82
82
84
84
85
85
86
86
86
86
87
87
88
88
77
78
ACN
1
2
3
4
5
6
1.20 (30.48)
4.00 (101.60)
3.70 (94.00)
0.150 (3.80)
LED
ACN
ACL
Vout (+)
Vout (-)

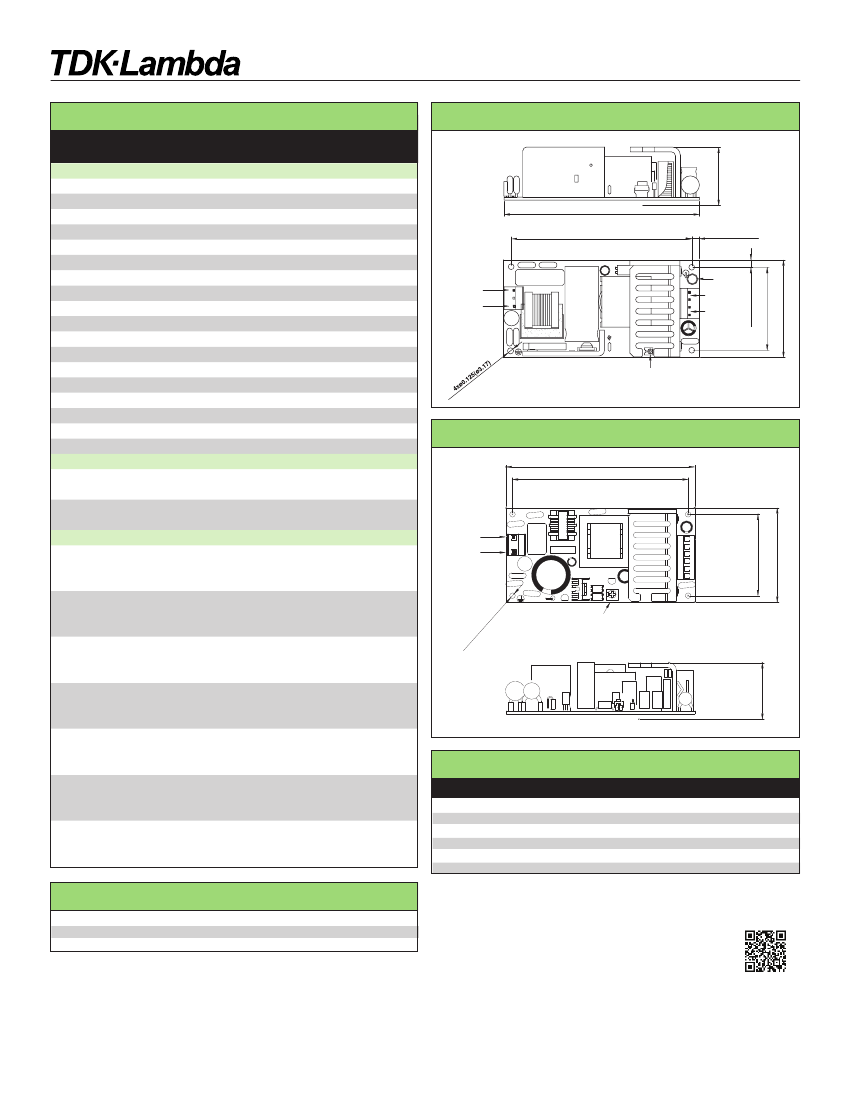

ZPS Outline Drawing
0.150 (3.80)
1.70 (43.20)
VR
ZPD/ZPT Outline Drawing
4.00 [101.60]
3.75[95.3]
40.5 (7)
75
ACL
ZPT40-51212N
42.6 (7)
75
.00
]
0.1
2[
Ø3
VR
ZPT40-51515N
42.0 (7)
75
4-Ø
ZPT40-52412N
42.6 (7)
75
ZPT40-5245N
40.5 (7)
75
Pin Connection (ZPD/ZPT)
42.6 (7)
75
PIN
1
2
3
4
5
6
Note:
ZPT40-52412P
Function
V2
V1
V1
COM
COM
V3
(6) Average not to exceed max power, <30s, 10% duty cycle
(7) 50W with 30CFM forced air cooling, derate linearly to 35W from 50°C to 70°C
ZPT40-3512N
30.0
70
Other Industrial Products
SC40/60
NV175
ZWS
40 to 80W, 3x5”, 1 - 3 outputs
175W, 3x5”, 1-5 outputs
5 to 240W, single output
For Additional Information, please visit
us.tdk-lambda.com/lp/products/zp-series.htm
1-800-526-2324 • www.us.tdk-lambda.com/lp/
151
