U10014 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> U10014

U10014: DescriptionElectronic Battery 3V D CELL LITH MANG; CategoryPower/power management; File Size880KB，2 Pages; ManufacturerUltralife; Websitehttps://www.ultralifecorporation.com/

Download Datasheet Parametric Compare View All

U10014 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	U10014	-	-	View	Buy Now

U10014 Overview

Electronic Battery 3V D CELL LITH MANG

U10014 Parametric

Parameter Name	Attribute value
Product Category	Electronic Battery
Manufacturer	Ultralife
RoHS	Not Applicablezwbfuwdfxzszrvffrzswbswytw
Battery Size	D
Output Voltage	3 V
Capacity	11.1 Ah
Chemistry	Lithium
Termination Style	Pressure Contacts
Rechargeable/Non-Rechargeable	Non-Rechargeable
Diameter	34.01 mm
Height	60.45 mm
Maximum Operating Temperature	+ 72 C
Minimum Operating Temperature	- 40 C
Factory Pack Quantity	25
Type	Electronic Batteries

Preview

Download Datasheet

View All

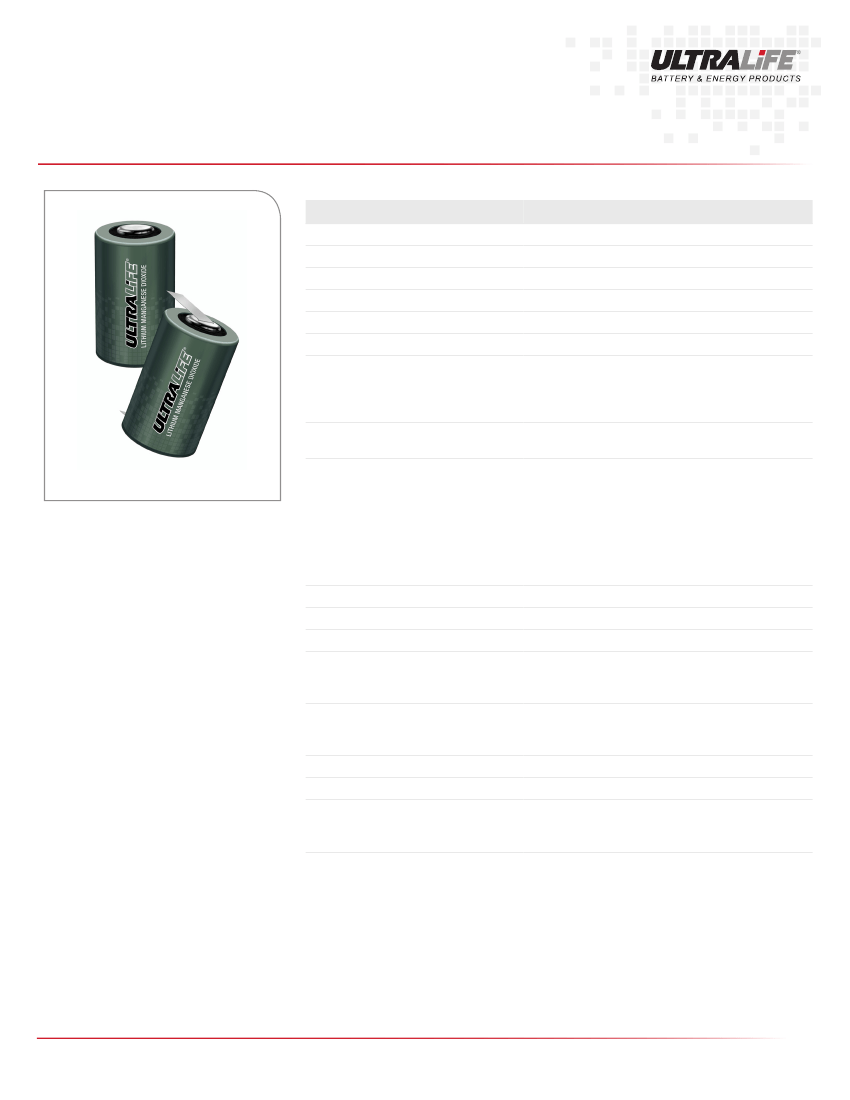

UHR-CR34610

Technical Datasheet

Technical Specifications

Part No.

NSN

Voltage Range

Average Voltage

Nominal Capacity

Max. Discharge

Pulse Capability

U10013, U10014, U10015, U10016

6135-01-554-3803 (U10014 only)

1.5 to 3.3V

3.0V

11.1Ah @ 250mA to 2.0V @ 23°C

3.3A continuous

Up to 7.0A

Varies according to pulse

characteristics, temperature, cell history and the

application. Consult Ultralife.

U10014 and U10016 have PTC (re-settable fuse)

U10013 and U10015 do NOT

U10013 Bare cell: 121.10g

U10013 Completed assembly: 121.12g

U10014 Bare cell: 121.35g

U10014 Completed assembly: 121.37g

U10015 Bare cell: 121.10g

U10015 Completed assembly: 123.18g

U10016 Bare cell: 121.35g

U10016 Completed assembly: 123.43g

-40°C to 72°C

-40°C to 95°C

Hermetic Ni-plated steel can with Mylar sleeve

Flat Ni-plated +/- End Caps: U10013 and U10014

Flat Ni-plated +/- End Caps with Nickel Tabs:

U10015 and U10016

UL component recognized

Material Safety Datasheet - MSDS023

Safety Guide UBM-5135

Class 9 - U.S. and International (see note)

A complete description of transportation

regulations, lithium weights and transportation

classifications is available on the Ultralife website.

PTC

HiRate

™

Weight

Features

•

High energy density

No voltage delay

Wide operating temperature range

Lightweight

Up to 10-year shelf life

Long operating life

Cell is hermetically sealed Ni-plated steel

can

Operating Temperature

Storage Temperature

Exterior/Housing

Terminals/Connector

Applications

•

Consumer telematics

Commercial telematics

Search & rescue devices

Military communications, detectors &

imaging

•

Medical devices

Safety

Transportation

Note

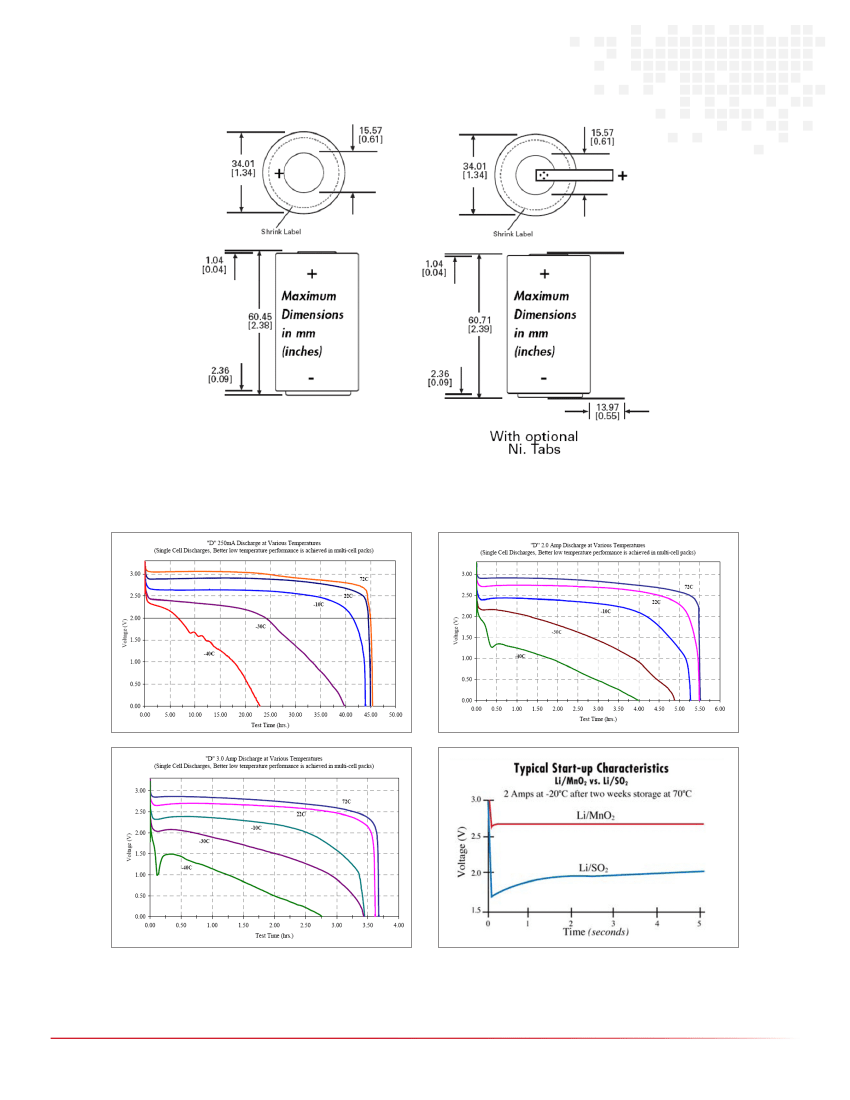

UHR-CR34610

Newark, New York | 315-332-7100 | Fax: 315-331-7800

The information contained herein is for reference only and does not constitute a warranty of performance. •

24 AUG 16 UBM-5099 Rev: K
