RSHN-2030LD: DescriptionDIN Rail Power Supplies 240W 48V 5A; Categorysemiconductor Power management; File Size237KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric View All

RSHN-2030LD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RSHN-2030LD	-	-	View	Buy Now

RSHN-2030LD Overview

DIN Rail Power Supplies 240W 48V 5A

RSHN-2030LD Parametric

Parameter Name	Attribute value
Product Category	Power Line Filters
Manufacturer	TDK Corporation
RoHS	Details
Voltage Rating	250 VAC
Current Rating	30 A
Mounting Style	DIN Rail
Termination Style	Screw
Factory Pack Quantity	1
Unit Weight	14.109585 oz

Preview

Download Datasheet

View All

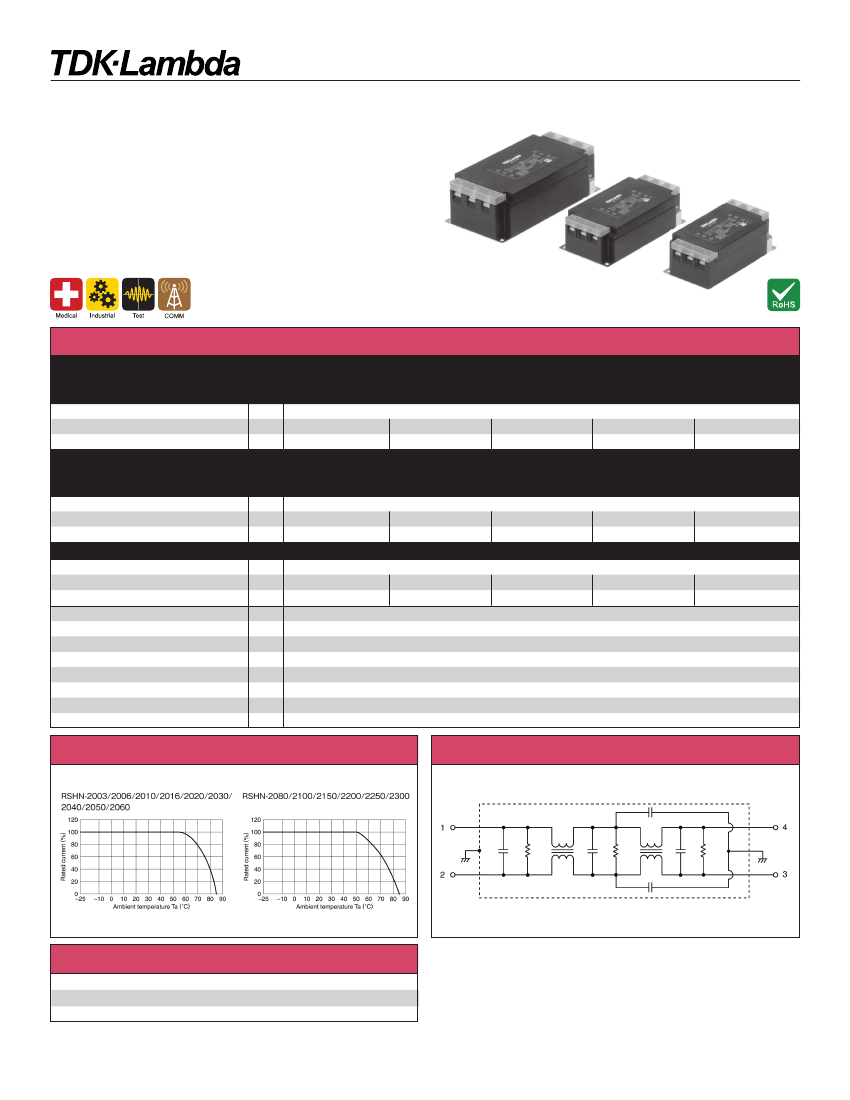

RSHN Series

3A to 300A, 250VAC EMI Filters

Features

u

Two Stage Filter for Better Performance

u

DIN Rail Mount Option (Up 30A)

u

Low Earth Leakage Current Option (Up to 30A)

u

Conforms to UL, CSA and EN Safety Agency Certiﬁcations

Key Market Segments & Applications

Speciﬁcations

Model

Rated Voltage (AC, DC)

Rated Current

DC Resistance (total)

RSHN-2003

RSHN-2003D

RSHN-2003L

V

A

mΩ

3A

350

RSHN-2030

RSHN-2030D

RSHN-2030L

30A

12

RSHN-2100

RSHN-2006

RSHN-2006D

RSHN-2006L

6A

140

RSHN-2040

RSHN-2010

RSHN-2010D

RSHN-2010L

250V

10A

60

RSHN-2050

RSHN-2016

RSHN-2016D

RSHN-2016L

16A

35

RSHN-2060

RSHN-2020

RSHN-2020D

RSHN-2020L

20A

22

RSHN-2080

Model

Rated Voltage (AC, DC)

Rated Current

DC Resistance (total)

Model

Rated Voltage (AC, DC)

Rated Current

DC Resistance (total)

Withstand Voltage

Isolation Resistance

Leakage Current (max)

Operating Temperature

Storage Temperature

Safety Agency Certiﬁcations

Weight

Warranty

V

A

mΩ

V

A

mΩ

V

MΩ

A

°C

-

g

yr

250V

50A

60A

80A

8

6

7

RSHN-2200

RSHN-2250

RSHN-2300

250V

100A

150A

200A

250A

300A

6

4

3

2

1.5

Terminals to Case: 2500VAC (1 Minute)

100MΩ minimum (500VDC, 1 Minute)

RSHN-20xx 1mA; RSHN20xxL 100uA (250VAC, 60Hz)

-25 to +85°C (Derate above 50 / 55°C, see derating curve)

-25 to +85°C

Up to 30A Models - UL1283, CSA C22.2 No.8, EN60939

190g to 13000g model dependant (See weights chart on website)

1 Year

40A

10

RSHN-2150

Derating

Circuit

Options

Chassis Mount & Standard Leakage Current

DIN Rail Mount & Standard Leakage Current

Chassis Mount & Low Leakage Current

RSHN-20xx

RSHN-20xxD

RSHN-20xxL

1-800-526-2324 • www.us.tdk-lambda.com/lp/
