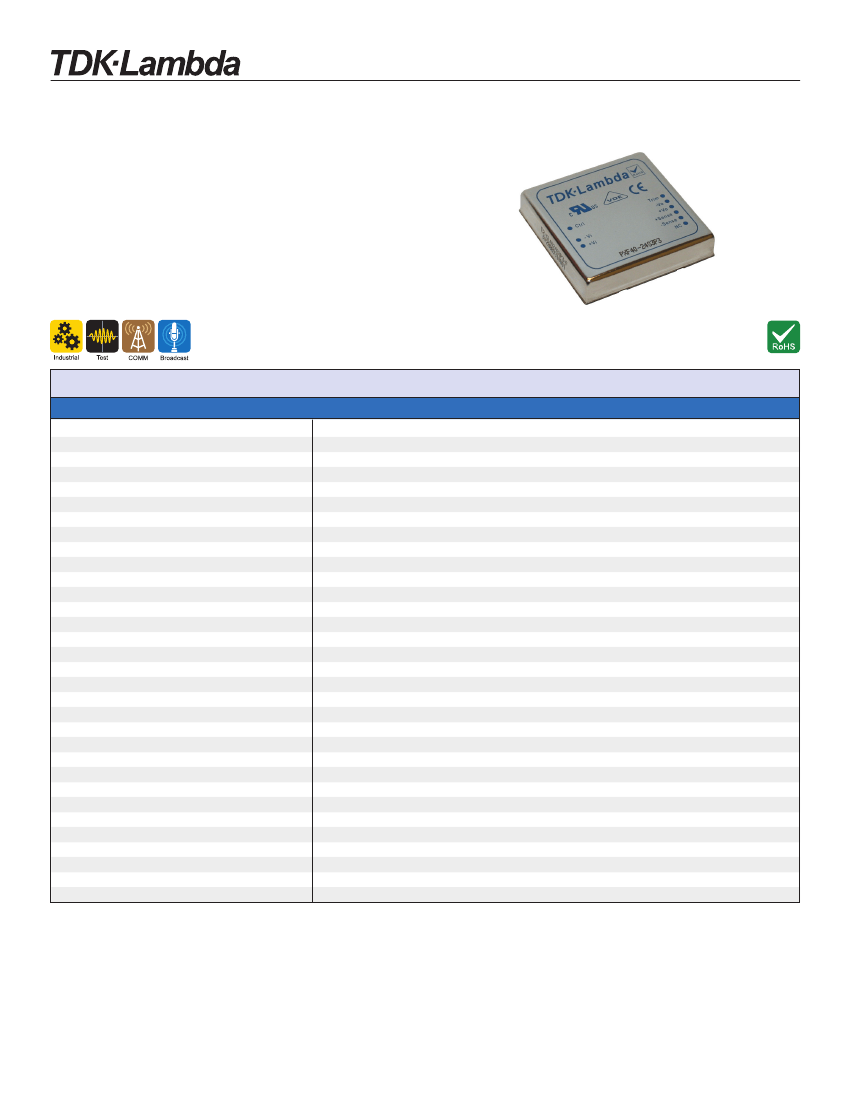

PXF Series
40W & 60W Single, Dual, Triple Output DC-DC Converters
Features
Industry Standard 2” x 2” Footprint
Six Sided Shielding
Agency Approved
12, 24V, and 48V Inputs (including 4:1 ranges)
UL, CSA, EN, CE approvals
Wide range input
Key Market Segments & Applications
Specifications
Model
Maximum Output Power
Voltage Accuracy (Full Load, Nom. Vin)
Voltage Adjustment
(1)
Minimum Load, each output
(2)
Line Regulation
Load Regulation (10% to 100%)
(3)
Cross Regulation (25% to 100%)
(4)
Start up time
Remote on/off (referenced to negative input)
Temperature Coefficient
Operating Temperature
Maximum Case Temperature
Storage Temperature
Thermal Shock
Relative Humidity (non condensing)
Transient Response (25% step load change)
Overvoltage Protection (Zener clamp)
Overcurrent and Short Circuit Protection
Input Surge Voltage (Maximum for 100ms)
Reflected input ripple (peak to peak)
(5)
Isolation Voltage
Isolation Resistance
Isolation Capacitance (max)
Switching Frequency (Fixed)
MTBF (BELLCORE TR-NWT-000332)
Vibration
Conducted and Radiated Emissions
Immunity
Safety Agency Approval
Size (L x W x H)
Weight
Warranty
40W or 60W
Single, Dual and Triple Main ±1%, Triple Auxiliaries ±5%
±10% (Single and Dual Output Only)
Single Output = 0%, Dual and Triple = 10% of full load rating
Single / Dual ±0.5%, Triple (main) ±1%, Triple (auxiliary) ±5%
Single ±0.5%, Dual ±1%, Triple (main) ±2%, Triple (auxiliary) ±5%
Triple (main) ±1%, Dual/Triple (auxiliary) ±5%
PXF40: 25ms typ., PXF40xxW, PXF60: 20ms max.
Positive Logic: ON: Open or 3.0-12V, OFF Short or <1.2V
<±0.02%/°C
See derating curves
PXF40: 100°C, PXF40-xxW 105°C, PXF60 110°C
PXF40: -55 to 105°C, PXF40xxW, PXF60 125°C
MIL-STD-810F
5 to 95%
250us recovery
Typical 3.3V: 3.9V, 5V: 6.2V, 12V: 15V, 15V: 18V
Typically at 150%, hiccup with self recovery
12V input: 36V, 24V input: 50V, 48V input: 100V
PXF40: 40mA, PXF40xxW, PXF60: 20mA
Input - Output, Input to Case: 1600VDC minimum
10
9
Ohms minimum
PXF40, PXF60: 1000pF, PXF40xxW: 2500pF
300kHz (typ.)
PXF40: 1,398,000; PXF40xxW: 1,105,000, PXF60: 1.093,000 hours
10 - 55Hz, 10G, 30 minutes each X, Y, Z axis
See Installation Diagrams
EN61000-4-2, -3, -4, -5, -6
IEC60950-1, UL60950-1, EN60950-1, CE Mark (48V input only)
2 x 2 x 0.4”
2.11 oz (60g)
Two Year
Refer to application notes on website for external circuitry and PCB layout.
(1) Maximum output deviation is 10% inclusive of remote sense and trim. If remote sense is not being used, the +Sense and - Sense should be connected
to their corresponding outputs; + output, -output.
(2) Dual and Triple output models require a minimum load of 10% on the output to maintain specified regulation. No load operation will not damage the device.
(3) Load regulation for triple output: Main output:10-100%, with 10-100% balanced load on auxiliaries. Auxiliary outputs: 10% to 100% balanced on all outputs.
(4) Cross regulation for dual output: asymmetrical load 25% / 100% full load. Cross regulation for triple output: Main output 100% load, auxiliary 100%, other
auxiliary 25% to 100%. Auxiliary outputs: main output 100% load, auxiliary 100%, other auxiliary 25% to 100% or main output 25%, auxiliary 25%, other
auxiliary 25% to 100%.
(5) Simulated Source impedence of 12uH placed in series with + input.
1-800-526-2324 • www.us.tdk-lambda.com/lp/
161
Disclaimer: us.tdk-lambda.com/lp/legal.htm
PXF Series
Model Selector
Output Output
Input
Volt(V) Curr(A) Volt(VDC)
Single Outputs
3.3
8
9 - 18
3.3
10
9 - 36
3.3
8
18 - 36
3.3
10
18 - 75
3.3
14
18 - 36
3.3
8
36 - 75
3.3
14
36 - 75
5
8
9 - 18
5
8
9 - 36
5
8
18 - 36
5
8
18 - 75
5
8
36 - 75
5
12
18 - 36
5
12
36 - 75
12
3.333
9 - 18
12
3.333
9 - 36
12
3.333
18 - 36
12
3.333
18 - 75
12
3.333
36 - 75
12
5
18 - 36
12
5
36 - 75
15
2.666
9 - 18
15
2.666
9 - 36
15
2.666
18 - 36
15
2.666
18 - 75
15
2.666
36 - 75
15
4
18 - 36
15
4
36 - 75
Dual Outputs
±12
±1.667
9 - 36
±12
±1.8
9 - 18
±12
±1.8
18 - 36
±12
±1.667 18 - 75
±12
±1.8
36 - 75
±15
±1.333
9 - 36
±15
±1.4
9 - 18
±15
±1.4
18 - 36
±15
±1.333 18 - 75
±15
±1.4
36 - 75
Triple Outputs
3.3V,±12V6.0,±0.4 9 - 18
3.3V,±12V6.0,±0.4 18 - 36
3.3V,±12V6.0,±0.4 36 - 75
5V,±12V 6.0,±0.4
9 - 18
5V,±12V 6.0,±0.4 18 - 36
5V,±12V 6.0,±0.4 36 - 75
5V, ±15V6.0, ±0.3
9 - 18
5V, ±15V6.0, ±0.3 18 - 36
5V, ±15V6.0, ±0.3 36 - 75
Model
Ripple/Noise
Max Load
(mV) Eff.(%) Cap(uF))
50
50
50
50
75
50
75
50
50
50
50
50
75
75
75
75
75
75
75
100
100
75
75
75
75
75
100
100
120
120
120
120
120
150
150
150
150
150
50 / 75
50 / 75
50 / 75
50 / 75
50 / 75
50 / 75
50/75
50/75
50/75
84
86
87
86
89
88
89
86
87
89
88
90
90
90
86
87
88
87
89
90
90
87
87
89
87
89
90
90
86
85
87
86
87
86
85
87
86
87
83
85
86
85
87
88
86
87
88
21000
25750
21000
25750
36000
21000
36000
13600
13600
13600
13600
13600
20400
20400
2360
2360
2360
2360
2360
3550
3550
1510
1510
1510
1510
1510
2300
2300
±1200
±1200
±1200
±1200
±1200
±750
±750
±750
±750
±750
13000,±330
13000,±330
13000,±330
6800, ±330
6800, ±330
6800, ±330
6800, ±110
6800, ±110
6800, ±110

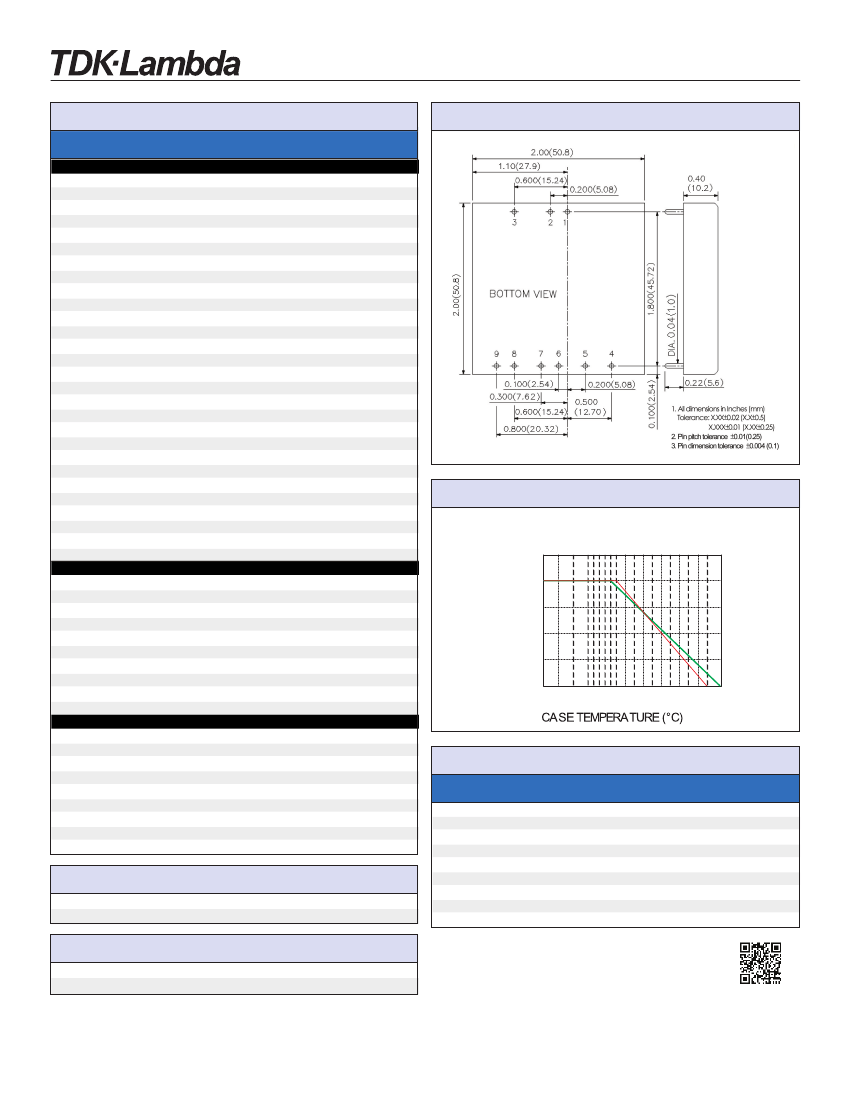

Outline Drawing
PXF40-xx(S,T,D)
PXF40-24WD12
PXF40-12D12
PXF40-24D12
PXF40-48WD12
PXF40-48D12
PXF40-24WD15
PXF40-12D15
PXF40-24D15
PXF40-48WD15
PXF40-48D15
PXF40-12T3312
PXF40-24T3312
PXF40-48T3312
PXF40-12T0512
PXF40-24T0512
PXF40-48T0512
PXF40-12T0515
PXF40-24T0515
PXF40-48T0515
O TP T POW R ( )
PXF40-12S3P3
PXF40-24WS3P3
PXF40-24S3P3
PXF40-48WS3P3
PXF60-24S3P3
PXF40-48S3P3
PXF60-48S3P3
PXF40-12S05
PXF40-24WS05
PXF40-24S05
PXF40-48WS05
PXF40-48S05
PXF60-24S05
PXF60-48S05
PXF40-12S12
PXF40-24WS12
PXF40-24S12
PXF40-48WS12
PXF40-48S12
PXF60-24S12
PXF60-48S12
PXF40-12S15
PXF40-24WS15
PXF40-24S15
PXF40-48WS15
PXF40-48S15
PXF60-24S15
PXF60-48S15
Derating Curves
PXF40-48S05
PXF60-48S05
Derating Curve
1
00
75
50
25
0
-40 -25 -10
0
40 50
60
70
80
90
100 110
Pinout
PIN#
1
2
3
4
5
6
7
8
9
Function
Single Output
+ Input
- Input
Remote on/off
No Connection
- Sense (Note 1)
+ Sense (Note 1)
+ Output
- Output
Trim
PXF40-xx(S,T,D)
Dual Output
+ Input
- Input
Remote on/off
No Pin
+ VO
Common
Common
- VO
Trim
Triple Output
+ Input
- Input
Remote on/off
+ Aux
Common
-Aux
+ Output
- Output (Com)
N/C
Heat Sink (0.22” high)
HAPXF
HAPXFCLIP
(includes thermal adhesive pad)
(two clips required when used)
Other Industrial Products
CC-E
PAQ, PAH, PAF
1.5 - 30W, 5 to 48VDC input
50 - 700W quarter, half & full bricks
For Additional Information, please visit
us.tdk-lambda.com/lp/products/px-series.htm
1-800-526-2324 • www.us.tdk-lambda.com/lp/
162
