60 Watt Universal 2-Wire Input Adapter

PSAC60W Power Adapter Meets Level VI Efficiency Requirements

Features



Low Cost



Efficiency Level VI Compliance



Class B EMI



Ecodesign ErP Directive 2009/125/EC

Compliant

Applications



Portable Equipment



Peripherals

Safety Approvals



cUL/UL

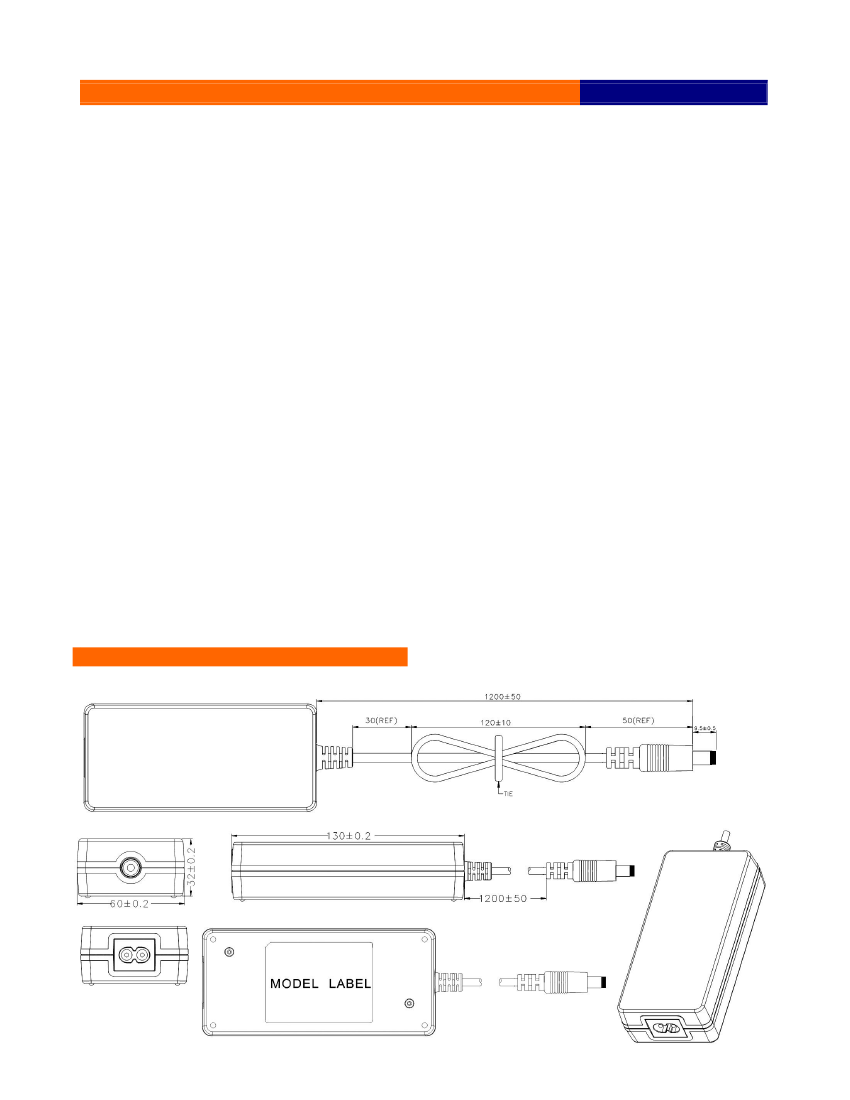

Mechanical Characteristics



Length: 130mm (5.12in)



Width: 60mm (2.36in)

Output Specifications

Model

PSAC60W-120

PSAC60W-180

PSAC60W-240

PSAC60W-480

PSAC60W-560

DC Output

Voltage

+12V

+18V

+24V

+48V

+56V

Load

Min.

0A



Non-vented/Spill-proof Case

No Load Power consumption <0.5W

Low Profile Design

EISA Compliant

Networking

Gaming Machines

CE

Height: 32mm (1.30in)

Weight: 305g (10.76oz)

Ripple

(1)

P-P (max.)

200mV

180mV

350mV

480mV

560mV

Max.

5.0A

3.33A

2.5A

1.25A

1.08A

Regulation

Line & Load

±5%

Efficiency

Level

(1) Measured with a 10uF capacitor and a 0.1uF capacitor at output connector terminal and oscilloscope set at 20MHz.

Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at www.phihong.com for the

most up-to-date specifications and contact information.

Revised 6/18/2015
