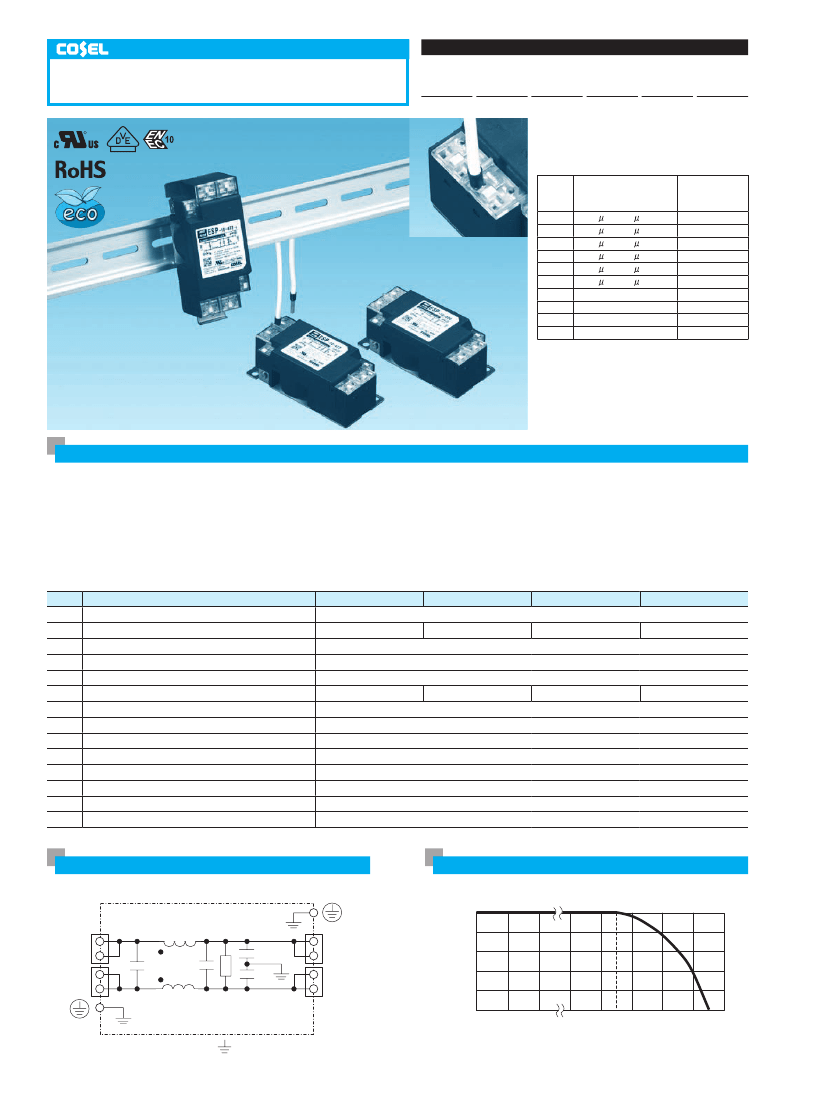

Small,High-voltage pulses common mode EMI/EMC Filters : Screwless terminal type (1-Stage filter)
Ordering information
ESP series
ESP -10 -472
1
2
3
4
-O
R
1
Model Name
2
Rated Current
3
Line to ground capacitor code:See table 1.1.
table1.1 Line to ground capacitor code
Code
000
101
221
331
471
681
102
222
332
472
*
Line to ground
Leakage Current
capacitor
(Input 125/250V 60Hz)
(nominal value)
5
A/ 10 A max
Not Provided
12.5 A/ 25 A max
100pF
25
A/ 50 A max
220pF
37.5 A/ 75 A max
330pF
50
A/100 A max
470pF
75.5 A/150 A max
680pF
0.13mA/0.25mA max
1000pF
0.25mA/0.5 mA max
2200pF
3300pF
0.38mA/0.75mA max
0.5 mA/1.0 mA max
4700pF
When the line to ground capacitor code is
different, the attenuation characteristic is
different.
4
Options
D :DIN rail installation type
DIN rail installation type is option
Electric cable is not appended.
*
The dimensions change when the option is set.
Refer to External view.
Features of ESP series
Small,High-voltage pulses common mode EMI/EMC Filters(1-Stage filter)
-
Small EMI/EMC Filters that change input-output terminal and protection earth terminal of EA series into
screwless terminal type
-Single
Phase 250VAC
-Torque
management is unnecessary with screwless
Specifications
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Items
Rated Voltage[V]
Rated Current[A]
Test Voltage (Terminal-Mounting Plate)
Isolation Resistance (Terminal-Mounting Plate)
Leakage current 125/250V 60Hz
DC registance
Safety agency approval temperatures
Operating temperature
Operating humidity
Storage temperature/humidity
Vibration
Impact
Safety agency approvals
Case size (without projection) /Weight
ESP-03-472
AC 1f 250 / DC250
3
6
10
16
2,500 VAC (Cutoff Current = 20mA), 1minute at room temperature and humidity
500 VDC 500MW min at room temperature and humidity
0.5mA/1.0mA max
180mW max
110mW max
40mW max
20mW max
-25 to +85C (Refer to Derating Curve)
-40 to +85C (Refer to Derating Curve)
20 to 95%RH (Non condensing)
-40 to +85C/20 to 95%RH (Non condensing)
10 to 55Hz, 19.6m/s
2
(2G), 3min. Period, 1hour each X, Y and Z axis
196.1m/s
2
(20G), 11ms Once each X, Y and Z axis
UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil3-1, ENEC (At only AC input)
39X30X85 mm [1.54X1.18X3.35 inches] (WXHXD) /170g max (Option : -D refer to external view)
ESP-06-472
ESP-10-472
ESP-16-472
Circuit Diagram
Case
Derating Curve
100
3
LOAD
4
Load Factor [%]
80
60
40
20
0
-40
CY : Line to ground capacitor
: Mounting Plate
-30
-20
40
50 55 60
70
80
90
1
LINE
2
CY
CY
Ambient Temperature [C]
NF-30
ESC,ESM,ESP series

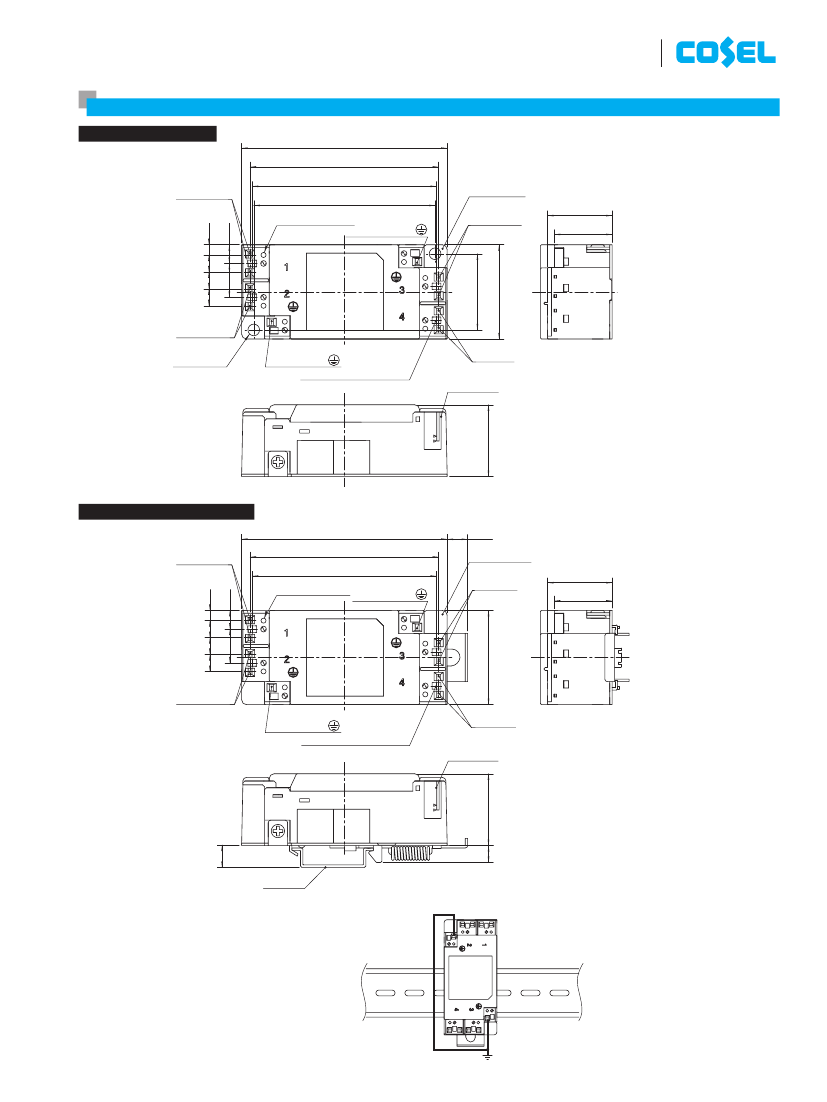

External view
Standard Type
85
[3.35]
[3.07]
78
Screwless
Terminal
Input
Terminal
[0.17]
76.2
[3]
75
7.75
[0.31]
±0.5
Mounting Plate
Screwless
Terminal
Output
Terminal
[1.04]
[0.94]
4.25
6-Check hole
f
2.1
[0.08]
Protection Earth
[2.95]
26.5
24
[0.28] [0.28] [0.28]
7
[0.55]
14
31.5
±0.5
Name Plate
7
[1.24]
Screwless
Terminal
Input
Terminal
2-f4.8
[0.19]
Mounting Hole
Protection Earth
6-Connection/release button
Screwless
Terminal
Output
Terminal
Strip Gauge
¶
Tolerance :
±1
[±0.04]
Strip
[1.54]
7
39
[1.18]
¶
Weight : 170g max
30
¶
Mounting Plate : Iron (surface finishing:nickel plating) t=1.0 [0.04]
¶
Case : PBT
¶
Dimensions in mm, [
]=inches
¶
Refer to instruction manual for details.
DIN rail installation Type
[3.35]
[3.07]
10
12
MAX MIN
85
Screwless
Terminal
Input
Terminal
4.25
7.75
[0.17]
[0.31]
78
[3]
[0.33]
8.5
+2
-1
Mounting Plate
Screwless
Terminal
Output
Terminal
[1.04]
[0.94]
76.2
26.5
24
6-Check hole
f2.1
[0.08]
Protection Earth
[0.28] [0.28] [0.28]
7
[0.55]
Name Plate
[1.54]
14
7
Screwless
Terminal
Input
Terminal
7
Protection Earth
6-Connection/release button
Screwless
Terminal
Output
Terminal
Strip Gauge
¶
Tolerance :
±1
[±0.04]
Strip
39
¶
Weight : 170g max
[1.18]
10
12
MAX MIN
30
¶
Mounting Plate : Iron(surface finishing:nickel plating) t=1.0 [0.04]
¶
Case : PBT
¶
Dimensions in mm, [
]=inches
¶
Refer to instruction manual for details.
[0.35]
DIN rail
¡
Note when installing the EMI/EMC
Filter on a DIN rail.
When the EMI/EMC Filter is grounded through
the DIN rail, the proper noise attenuation may not
be achieved.
Be sure to connect the protection earth (PE) of
the EMI/EMC Filter body to the earth.
It can connect the ground to either one only.
DIN rail
Name Plate
[0.28]
(9)
7
NF-31
