87734-3002

Description
Board to Board u0026 Mezzanine Connectors Pwr Rec Vt THole /Br /BrdLk .76AuLF 31ckt
CategoryThe connector    The connector
File Size34KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

87734-3002 Online Shopping

Suppliers Part Number Price MOQ In stock
87734-3002 - - View Buy Now

87734-3002 Overview

Board to Board u0026 Mezzanine Connectors Pwr Rec Vt THole /Br /BrdLk .76AuLF 31ckt

87734-3002 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact materialNOT SPECIFIED

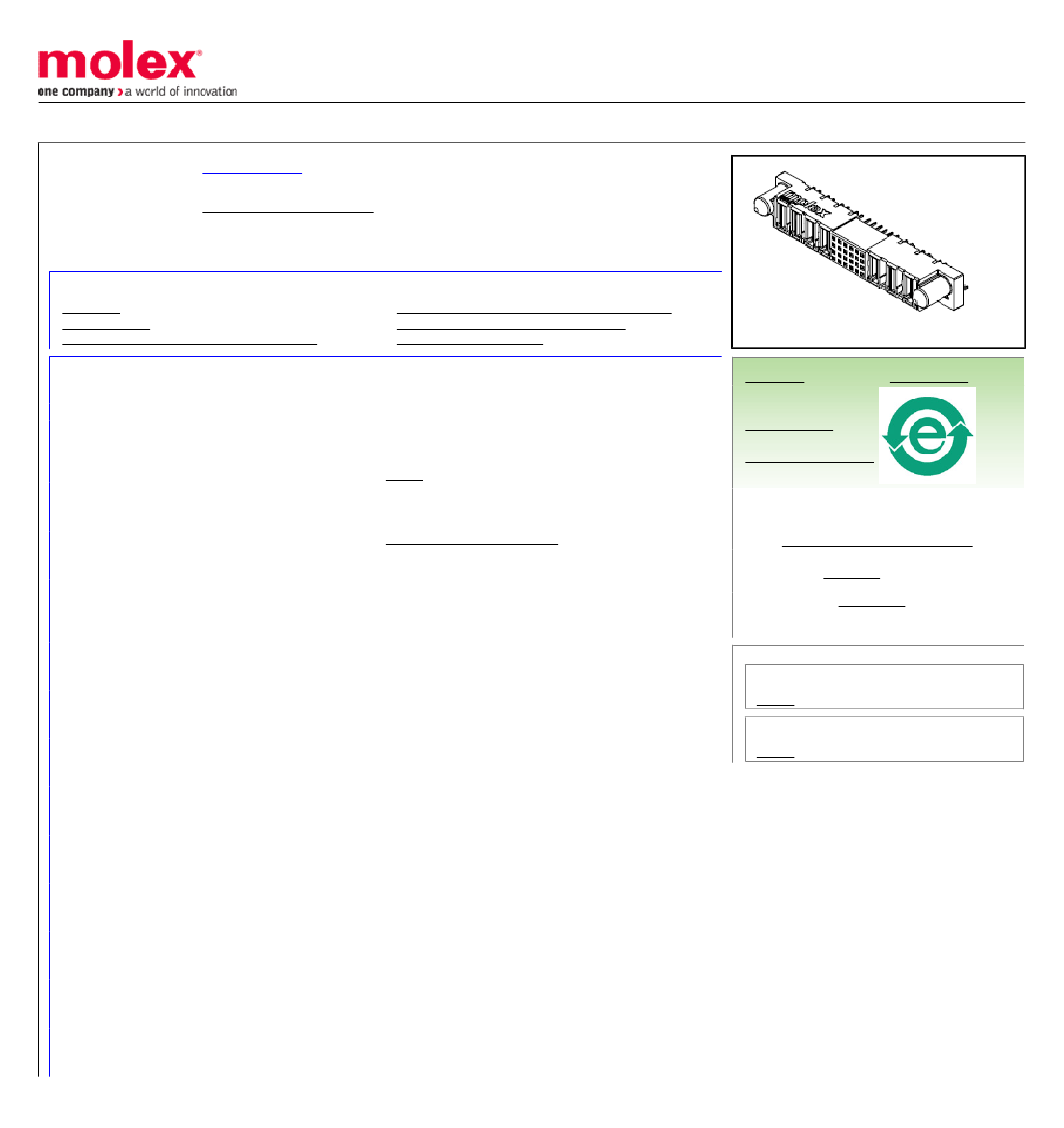

This document was generated on 07/01/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
87734-3002
Active
EXTreme PowerPlus™ (SSI)
6.35mm Pitch, Power, 2.54mm Pitch, Signal, EXTreme PowerPlus™ AC/DC
Receptacle, P(A)AC-S-P(B)DC, Through Hole, Vertical, 0.76µm Gold (Au), 31 Circuits,
with Beveled Metal Pins, Lead-Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-87663-006 (PDF)
Application Specification AS-87631-018 (PDF)
RoHS Certificate of Compliance (PDF)
Product Literature (PDF)
Series
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Low-Halogen
China RoHS
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Comments
Overview
Product Literature Order No
Product Name
UPC
PCB Receptacles
87734
Board-to-Board, Power
Recessed Power Circuit Position: A1, A3, B1, B2|Void
Signal Pin: NIL
EXTreme PowerPlus™ (SSI)
987650-3002
EXTreme PowerPlus™
822348536818
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
(p)ower-(s)ignal Configuration
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Flammability
Glow-Wire Compliant
Guide to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Polarized to PCB
Stackable
Temperature Range - Operating
4p - 24s - 3p
31
31
Black
94V-0
No
Yes
None
Copper Alloy
Gold
Tin
High Temperature Thermoplastic
15.032/g
4
Vertical
3.43mm
No
Yes
2.40mm
Tray
2.54mm, 6.35mm, 7.62mm
2.54mm, 3.18mm, 3.81mm, 5.08mm
0.762µm
2.540µm
Yes
Yes
No
-20°C to +105°C
Search Parts in this Series
87734Series
Mates With
87663 PCB Header
