110-13-314-10-002000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> 110-13-314-10-002000

Preview

110-13-314-10-002000: DescriptionIC u0026 Component Sockets 8P RELAY SKT 10u Au; CategoryThe connector socket; File Size366KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

110-13-314-10-002000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	110-13-314-10-002000	-	-	View	Buy Now

110-13-314-10-002000 Overview

IC u0026 Component Sockets 8P RELAY SKT 10u Au

110-13-314-10-002000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	RELAY SOCKET
Type of equipment used	DIP8
Shell material	PLASTIC
JESD-609 code	e4
Number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

DUAL-IN-LINE

SOCKETS

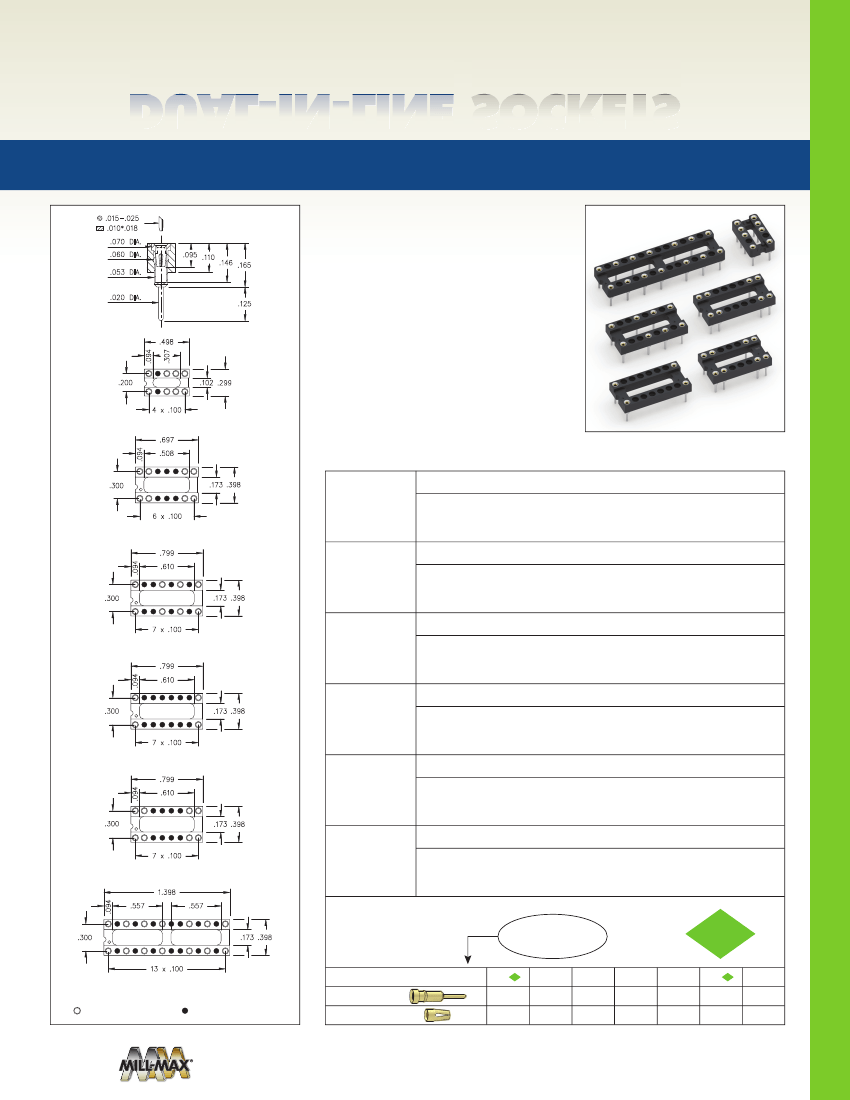

SERIES 110 • SELECTIVELY LOADED RELAY DIP SOCKET, SOLDER TAIL

.015-.025

.010*.018

.070 DIA.

.060 DIA.

.053 DIA.

.095 .110

.146 .165

•

Relay sockets accept devices with I/O pins on

.100” grid

•

Additional Relay DIP socket patterns are

available on Page 134

page 165 for details

.020 DIA.

•

Series 110 use MM #1001 receptacles. See

.125

•

Hi-Rel, 4- nger BeCu #30 contact is rated at

.498

.094

.307

3 amps. See page 253 for details

•

Insulators are high temperature thermoplastic,

.102 .299

.200

suitable for all soldering operations

Data, see page 264 for details

MM

4 x .100

•

For Electrical, Mechanical and Environmental

Fig. 1

.697

.094

.508

ORDERING INFORMATION

.173 .398

.300

Series 110...002

8 Position Relay Socket

110 XX 210 10 002000

MM

6 x .100

FIG. 1

Series 110...002

Fig. 2

.799

.094

.610

8 Position Relay Socket

110 XX 314 10 002000

FIG. 2

.173 .398

MM

.300

7 x .100

Series 110...003

8 Position Relay Socket

110 XX 316 10 003000

Fig. 3

.799

.094

.610

FIG. 3

Series 110...004

.173 .398

4 Position Relay Socket

110 XX 316 10 004000

.300

FIG. 4

Series 110...005

MM

7 x .100

Fig. 4

.799

.094

.610

8 Position Relay Socket

PAGE 135 | IC SOCKETS / TO SOCKETS

110 XX 316 10 005000

FIG. 5

.173 .398

MM

.300

Series 110...002

14 Position Relay Socket

110 XX 328 10 002000

7 x .100

Fig. 5

1.398

.094

.557

FIG. 6

.300

.173 .398

XX=Plating Code

See Below

2011/65/EU

RoHS - 2

MM

13 x .100

Fig. 6

= Loaded Position

= Empty Position

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

13

10

µ”

Au

30

µ”

Au

93

200

µ”

Sn/Pb

43

200

µ”

Sn

30

µ”

Au

30

µ”

Au

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

110-13-314-10-002000 Related Products

	110-13-314-10-002000	110-43-328-10-002000	110-43-314-10-002000	110-93-314-10-002000
Description	IC u0026 Component Sockets 8P RELAY SKT 10u Au	IC u0026 Component Sockets 14P RELAY SKT 200u SN	IC u0026 Component Sockets 8 POS RELAY SKT 200u Sn	IC u0026 Component Sockets 8P RELAY SKT 200u Sn/Pb
Is it lead-free?	Lead free	Lead free	Lead free	Contains lead
Is it Rohs certified?	conform to	conform to	conform to	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	MATTE TIN (200) OVER NICKEL (150)	MATTE TIN (200) OVER NICKEL (150)	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
Device slot type	RELAY SOCKET	RELAY SOCKET	RELAY SOCKET	RELAY SOCKET
Type of equipment used	DIP8	DIP14	DIP8	DIP8
Shell material	PLASTIC	PLASTIC	PLASTIC	PLASTIC
JESD-609 code	e4	e3	e3	e0
Number of contacts	8	14	8	8
Base Number Matches	1	1	1	1
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-
