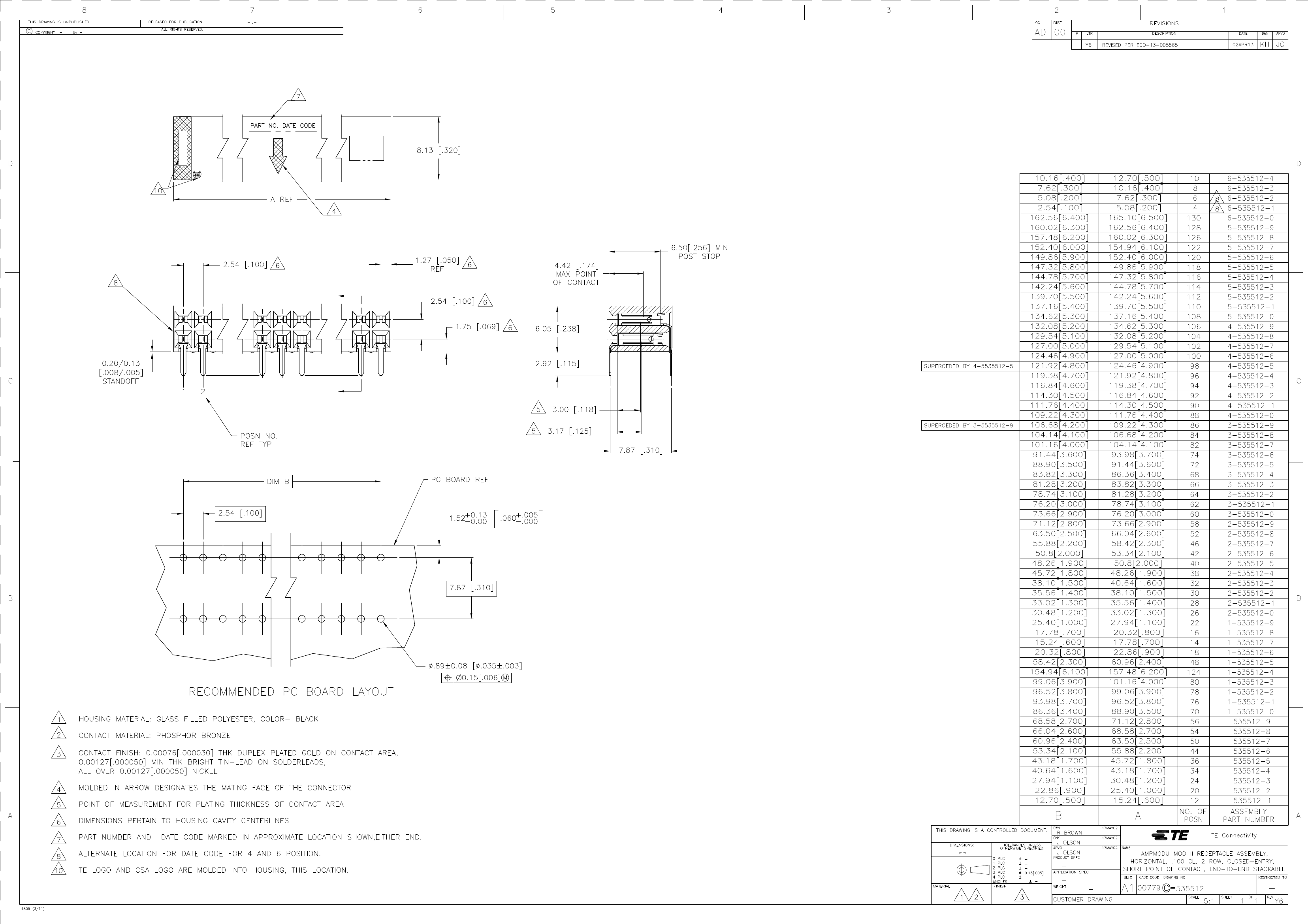

1-535512-3

Description
80 MODII HORZ DR CE EESS .100
CategoryThe connector    The connector
File Size207KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

1-535512-3 Online Shopping

Suppliers Part Number Price MOQ In stock
1-535512-3 - - View Buy Now

1-535512-3 Overview

80 MODII HORZ DR CE EESS .100

1-535512-3 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it Rohs certified?incompatible
Reach Compliance Codecompliant
body width0.238 inch
subject depth0.275 inch
body length4 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Filter functionNO
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
PCB contact patternRECTANGULAR
PCB contact row spacing7.874 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
GuidelineCSA
reliabilityCOMMERCIAL
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts80
Base Number Matches1
