43810-0211

Description
Headers u0026 Wire Housings 6 CKT RCPT HOUSING
CategoryThe connector    The connector
File Size49KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

43810-0211 Online Shopping

Suppliers Part Number Price MOQ In stock
43810-0211 - - View Buy Now

43810-0211 Overview

Headers u0026 Wire Housings 6 CKT RCPT HOUSING

43810-0211 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresMINI-FIT SMC
body width0.591 inch
subject depth0.803 inch
body length0.906 inch
Body/casing typeRECEPTACLE
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedGOLD (30) OVER NICKEL
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1500VAC V
Durability30 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
maximum insertion force6.672 N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialNYLON
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.165 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing5.5118 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)8 A
GuidelineCSA, UL
reliabilityCOMMERCIAL
Shell materialPA46
Terminal length0.123 inch
Terminal pitch4.191 mm
Termination typeSOLDER
Total number of contacts6
UL Flammability Code94V-0
Evacuation force-minimum value3.1136 N
Base Number Matches1

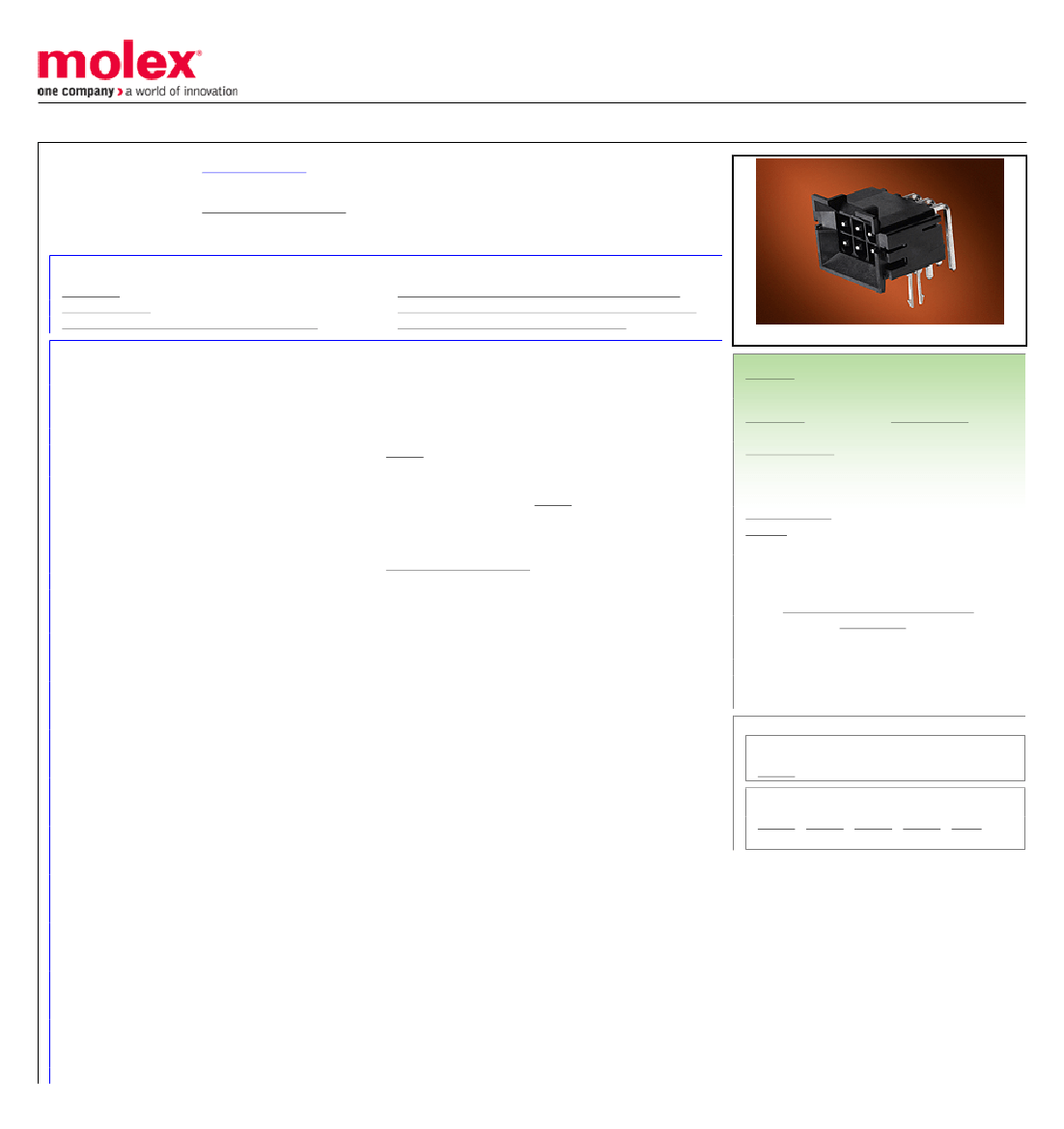

This document was generated on 10/31/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0438100211
Active
Mini-Fit BMI Connectors
Mini-Fit BMI Header, Dual Row, Right Angle, for 1.60mm PCB, 6 Circuits, Gold (Au)
Plating, 260C Wave Solderable, without Retention Clip
Documents:
3D Model
Drawing (PDF)
Product Specification PS-43810-001 (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Product Specification PS-45750-001-001 (PDF)
Packaging Specification PK-43810-001-000 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
LR19980
E29179
PCB Headers
43810
Board-to-Board, Power, Wire-to-Board
Current = 13A max. per circuit when header is mated to
a receptacle loaded with 45750 Mini-Fit Plus HCS Crimp
Terminal Crimped to 16 AWG wire., See Molex product
specification PS-45750-001 for additional current de-
rating information.
Mini-Fit BMI Connectors
Mini-Fit BMI
800754912105
No
6
6
Black
30
94V-0
No
Brass
Gold
Tin
High Temperature Thermoplastic
4.120/g
2
Right Angle
3.12mm
No
None
1.60mm
Tray
4.20mm
4.20mm
0.762µm
2.540µm
Yes
No
Fully
No
Yes
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Search Parts in this Series
43810 Series
Mates With
42385 , 42474 , 44475 , 44516 , 5557 Dual
Row
