ROHS COMPLIANT

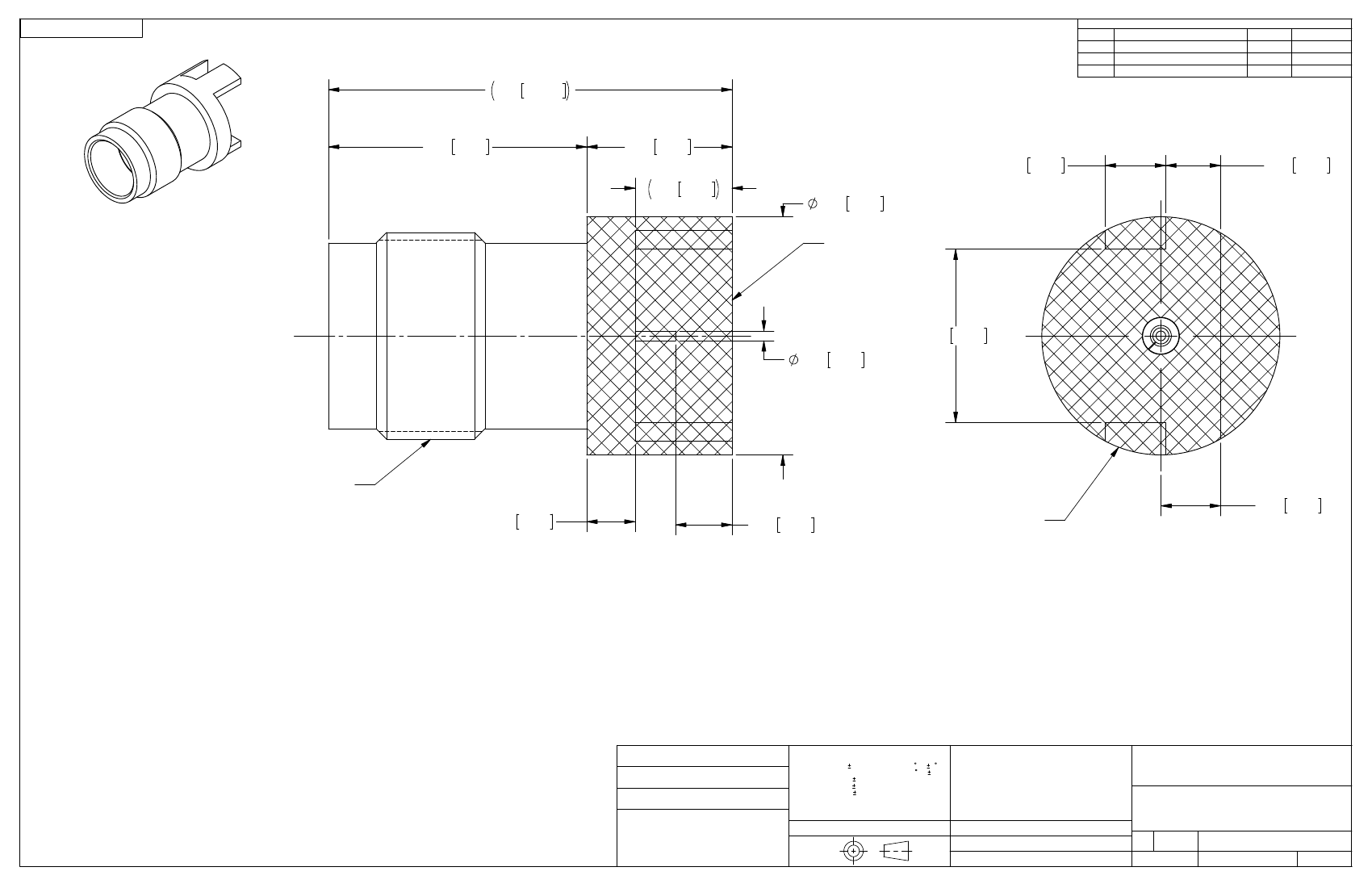

PRODUCT DATA DRAWING
.500 12.70
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
DCN 42490
07/16
DAL
.320 8.13
.180 4.57
.075 1.91
.120 3.05
.295 7.49
NOTE 2
.068 1.73
.215 5.46
.012 0.30
M7 X .75-6g
MATERIAL:
BODY &
INSERT:
.060 1.52
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
PCTFE PER ASTM D1430
NOTES:
1.
2.
3.
GOLD PER ASTM B 488, TYPE II,
CODE C, CLASS 1.27, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
MATERIAL:
FINISH:
.074 1.88
.070 1.78
NOTE 2
CONTACT:
INSULAOTR:
FINISH:
BODY,
INSERT &
CONTACT:
FOR RECOMMENDED FOOTPRINT TO YOUR SPECIFIC
PCB, CONTACT SV MICROWAVE SALES DEPARTMENT
(sales@svmicro.com, 561-840-1800)
TO BE TIN DIPPED USING Sn96 SOLDER
ALL DIMENSIONS APPLY PRIOR TO SOLDER DIPPING
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
PERFORMANCE:
FREQ.RANGE:
VSWR:
DC TO 65.0 GHz
1.33:1 MAX. DC TO 65.0 GHz.
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
1.85 MM JACK PCB MOUNT
Ø.012 PIN FOR .062" PCB
SIZE CAGE CODE DWG. NO.
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
FSG 02/10/12
STW 02/10/12
STW 02/10/12
B
95077
SCALE: 4:1
3321-60001-TD
SHEET 1 OF 1
