38720-6202: DescriptionBipolar Transistors - BJT NPN Gen Pur SS; CategoryThe connector terminals; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

38720-6202 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	38720-6202	-	-	View	Buy Now

38720-6202 Overview

Bipolar Transistors - BJT NPN Gen Pur SS

38720-6202 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Barrier Strip, 2 Contact, 9.53mm Pitch, 1 Row, 15A, 300 V
Fastening method	SCREW
Installation type	PANEL
Number of layers	1
Rows	1
Number of channels	2
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	6 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

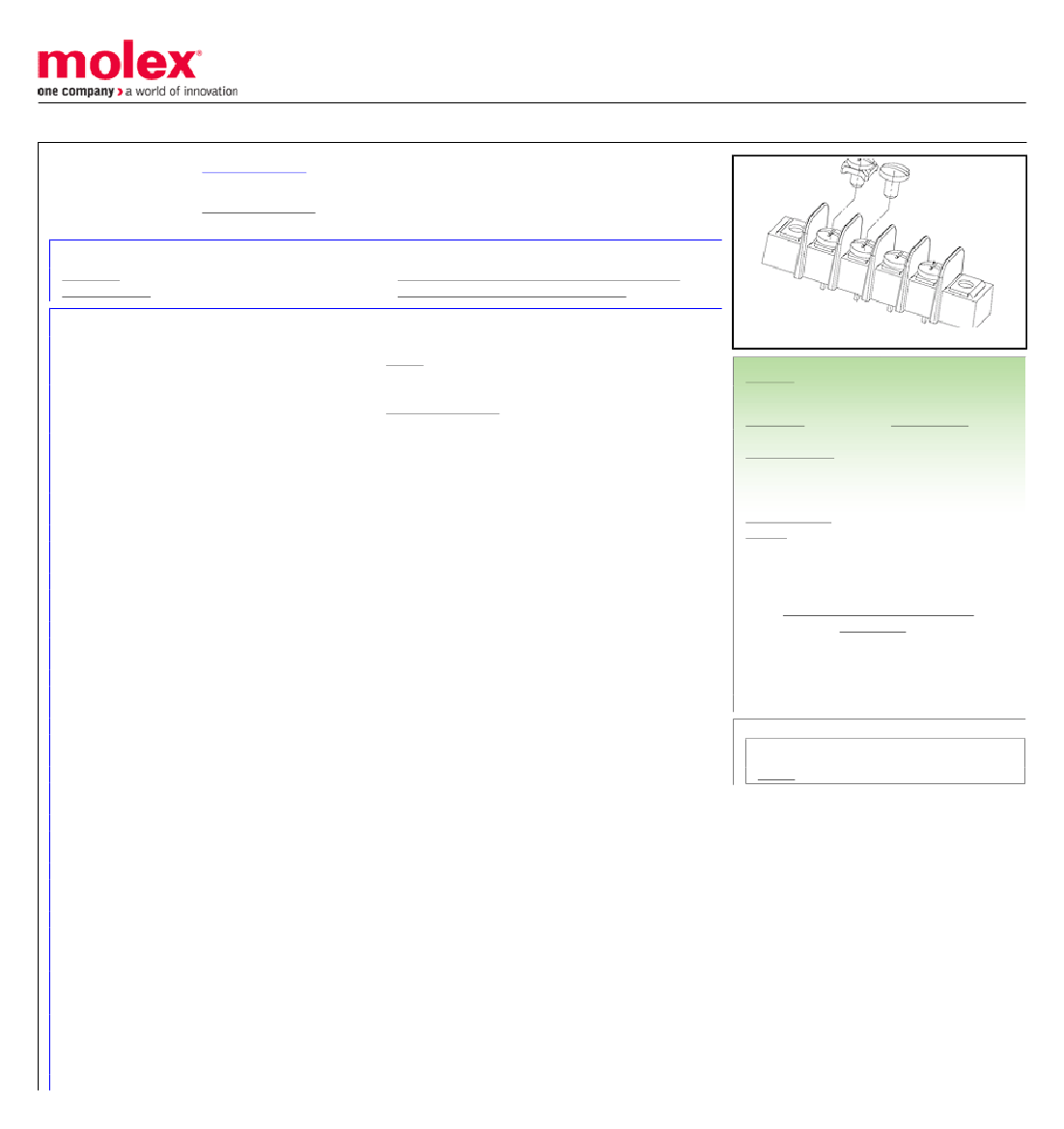

This document was generated on 10/31/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

Drawing (PDF)

General

Product Family

Series

Application

Component Type

Overview

Product Name

Type

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Entry Angle

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length

PCB Retention

PCB Thickness - Recommended

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Wire Size mm²

Electrical

Current - Maximum per Contact

Voltage - Maximum

Solder Process Data

Lead-freeProcess Capability

Process Temperature max. C

Material Info

Engineering Number

0387206202

Active

Beau Barrier Strips

9.53mm Pitch Beau PCB Terminal Strip, PC Tail, 2 Circuits

Product Specification PS-38710-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Terminal Blocks

38720

N/A

One Piece

Beau Barrier Strips

Fixed Mount Barrier

Barrier Strip

800756332475

Black

Horizontal

None

Brass

Tin

Polyester

Horizontal

4.80mm

Yes

3.18mm

9.53mm

3.810µm

Dual-Barrier

-40°C to +130°C

Screw or Lug

14, 16, 18, 20, 22

0.50-1.50

15.0A

300V

WAVE

260

72502

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

38720 Series
