384196: DescriptionERNI Electronics 48P 2.54MM RA MALE TYPE C/2 12MM SLDR; Categoryunclassified; File Size43KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

384196 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	384196	-	-	View	Buy Now

384196 Overview

ERNI Electronics 48P 2.54MM RA MALE TYPE C/2 12MM SLDR

384196 Parametric

Parameter Name	Attribute value
Product Category	ERNI Electronics
Manufacturer	ERNI
RoHS	Details
Factory Pack Quantity	30

Preview

Download Datasheet

View All

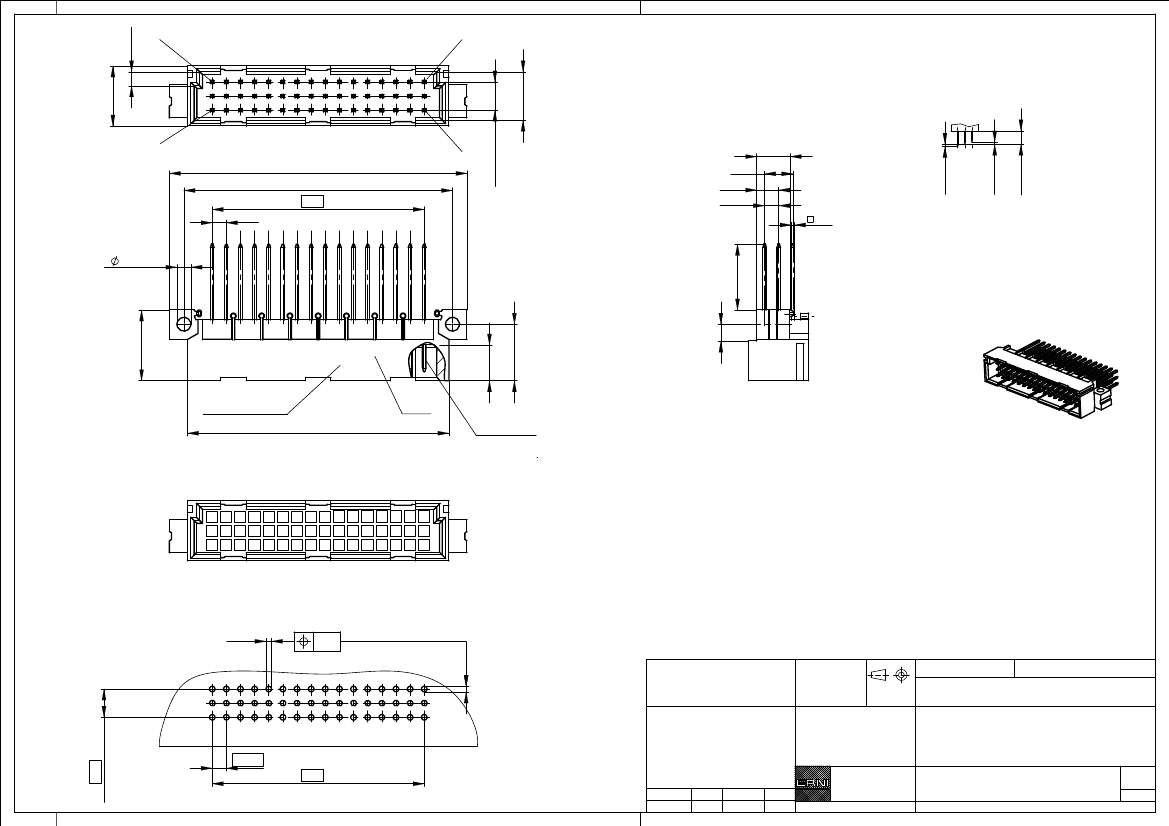

2,5

-0,2

c16

11,1 max.

8,7

+0,1

Stecklänge / mating length

ESL

±0,1

3,95

2,54

0,6

4,8

±0,2

0,8

±0,1

0,8

±0,1

2:1

5,08

a16

53,9 max.

48,26

15 x 2,54 (=38,1)

2,54

2x2,54=5,08

E =

early mate, late break

/ voreilend

S = standard

12,7

10,2

-0,2

+0,1

±0,2

2,5

+0,1

L = late mate, early break / nacheilend

Anforderungsstufe

class

Datum

date

Stecklänge

mating length

Bestückungsplan /

contact layout

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S S S S S S S

Lötanschluss 0,6x0,6mm

/ solder terminal 0,6x0,6mm

Isolierwerkstoff

/ housing material : PBT GF 30

Bauart 4 / t

ype 4

Anforderungsstufe 2 = 400 Steckzyklen

/ performance class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

6,4

-0,1

ERNI

XXXXXXX

RC 2

a b c

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Leiterplatten- Lochbild / PCB drillhole pattern

±0,1

alle Löcher /

Berduckung siehe Zeichnung 294905

marking see drawing 294905

0,05

all holes

2 x 2,54 (=5,08)

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

2,54

15 x 2,54 (=38,1)

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

26.08.2009

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste C/2 48 Löt

Male Con.C/2 48 solder

www.ERNI.com

Class

384196

STVC/2
