4-2199039-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 4-2199039-0

4-2199039-0: Description0.8FH,R19H.5,040,30/Sn,TR,SC; CategoryThe connector The connector; File Size293KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

4-2199039-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4-2199039-0	-	-	View	Buy Now

4-2199039-0 Overview

0.8FH,R19H.5,040,30/Sn,TR,SC

4-2199039-0 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Objectid	1809066898
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	5 weeks 4 days
Samacsys Description	0.8FH,R19H.5,040,30/Sn,TR,SC
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-10 19:58:25
YTEOL	7.5
subject depth	0.748 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulation resistance	2000000 Ω
Insulator color	NATURAL
MIL compliance	NO
Power Connector Ratings	.5A
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Plating thickness	30u inch
polarization key	POLARIZED
Rated current (signal)	0.5 A
Guideline	UL
Terminal pitch	0.8 mm
Termination type	SOLDER
Total number of contacts	200
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

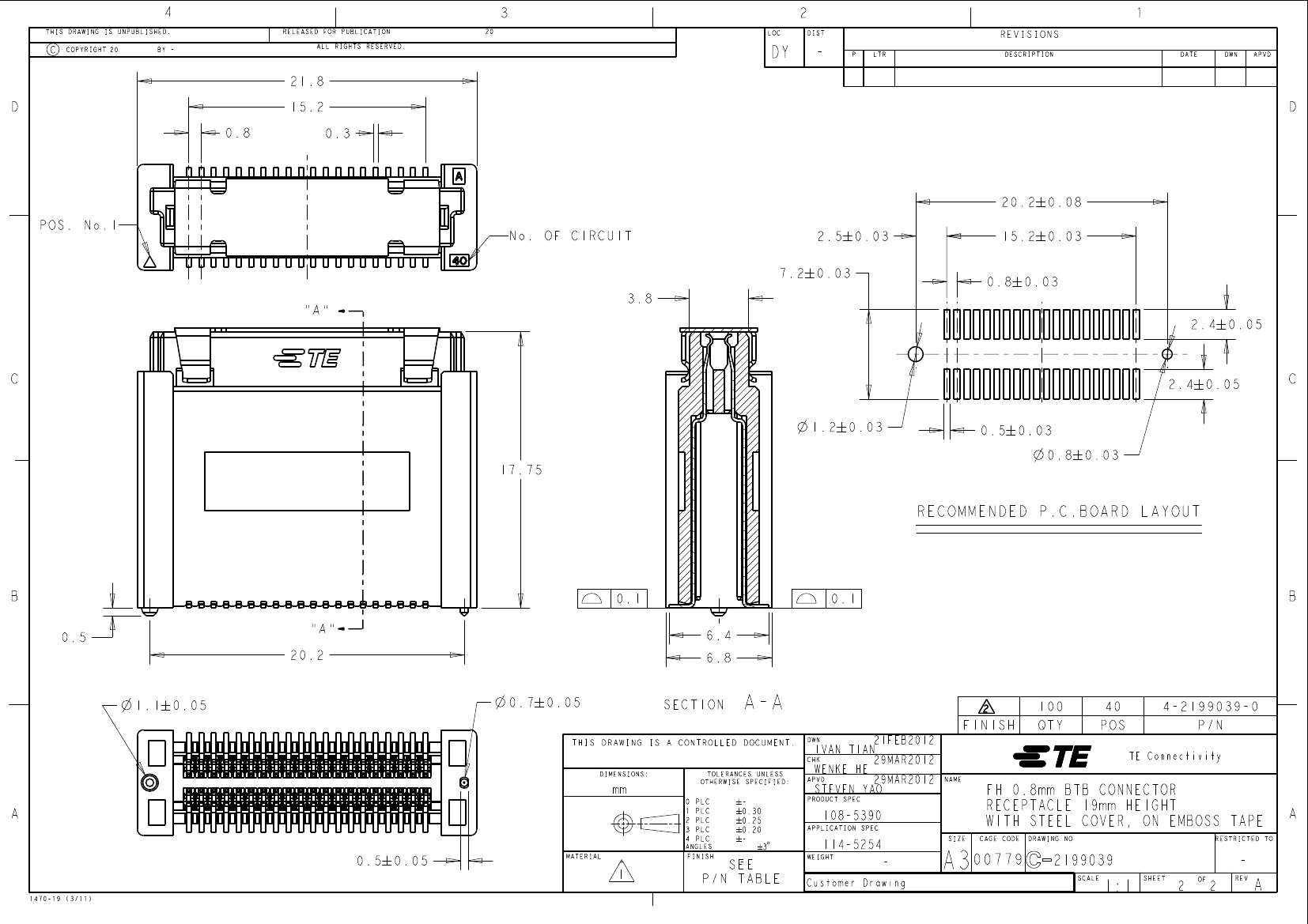

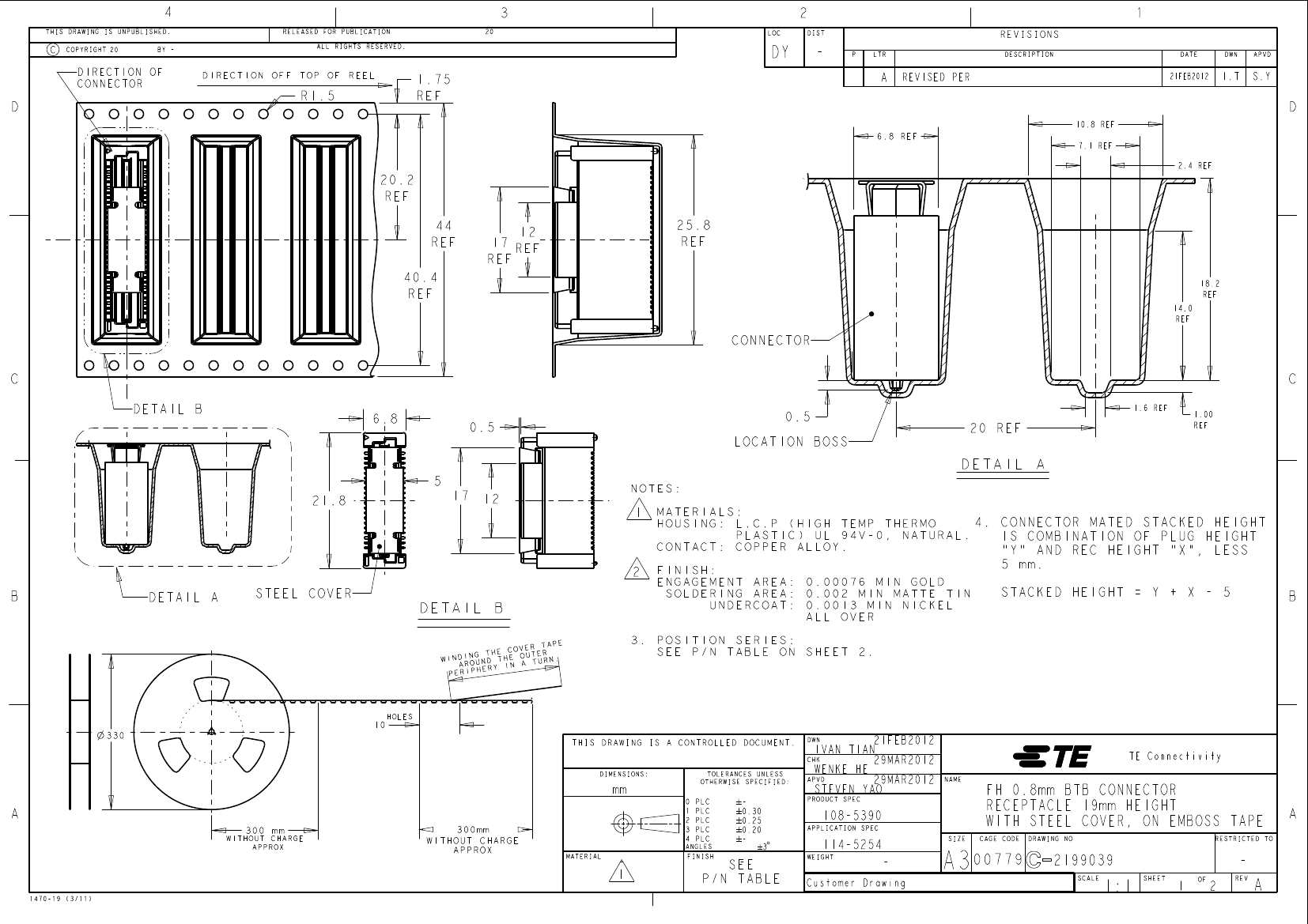

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

LTR

REVISIONS

DESCRIPTION

DATE

DWN

APVD

DIRECTION OF

CONNECTOR

DIRECTION OFF TOP OF REEL

R 1.5

1.75

REF

6.8 REF

10.8 REF

7.1 REF

2.4 REF

20.2

REF

40.4

REF

17 REF

REF

25.8

REF

14.0

REF

18.2

REF

CONNECTOR

DETAIL B

6.8

0.5

LOCATION BOSS

NOTES:

MATERIALS:

HOUSING: L.C.P (HIGH TEMP THERMO

PLASTIC) UL 94V-0, NATURAL.

CONTACT: COPPER ALLOY.

FINISH:

ENGAGEMENT AREA: 0.00076 MIN GOLD

SOLDERING AREA: 0.002 MIN MATTE TIN

UNDERCOAT: 0.0013 MIN NICKEL

ALL OVER

3. POSITION SERIES:

SEE P/N TABLE ON SHEET 2.

1.6 REF

20 REF

1.00

REF

21.8

DETAIL A

4. CONNECTOR MATED STACKED HEIGHT

IS COMBINATION OF PLUG HEIGHT

"Y" AND REC HEIGHT "X", LESS

5 mm.

STACKED HEIGHT = Y + X - 5

DETAIL A

STEEL COVER

DETAIL B

TAPE

COVER

NG THE E OUTER

WINDI

URN.

AROUND

IN A T

IPHERY

PER

330

HOLES

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

TE Connectivity

NAME

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

PRODUCT SPEC

WITHOUT CHARGE

APPROX

300 mm

300mm

WITHOUT CHARGE

APPROX

MATERIAL

ANGLES

PLC

APPLICATION SPEC

FINISH

SEE

P/N TABLE

WEIGHT

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

SCALE

SHEET

REV

1470-19 (3/11)
