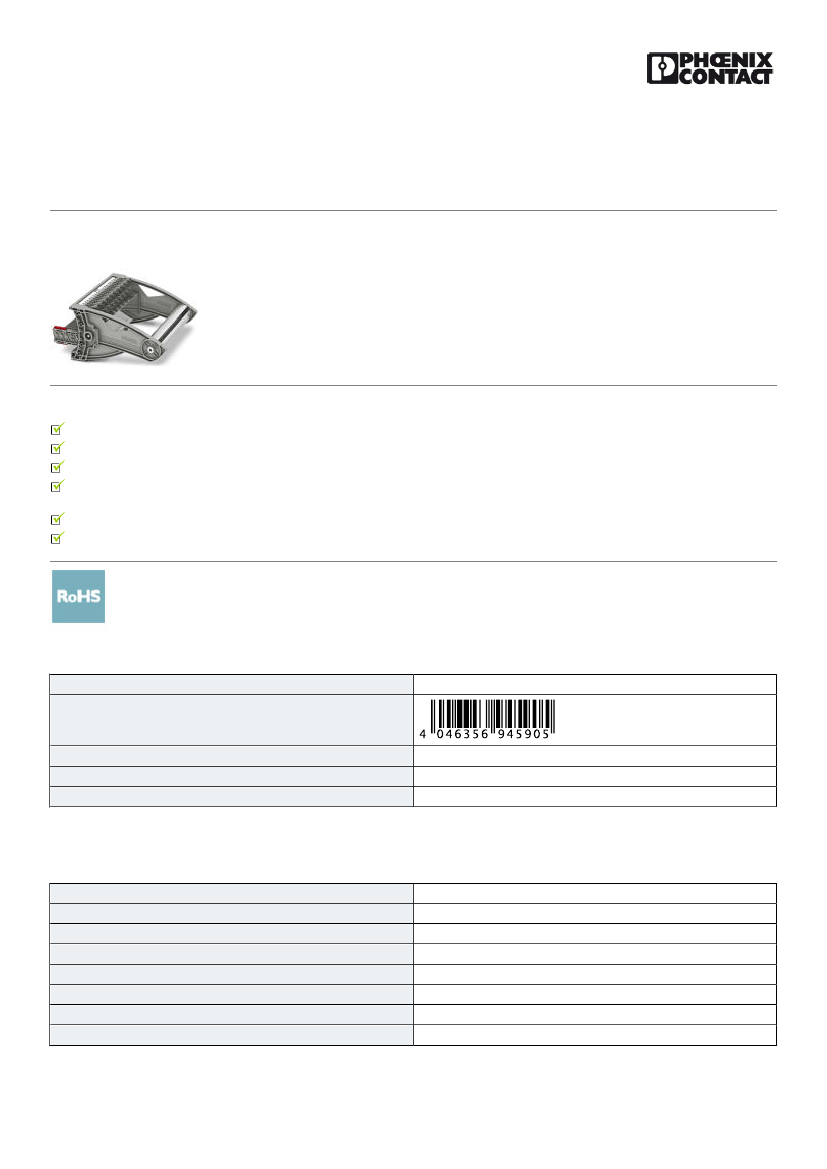

Test plug - FTP-2/G19 - 3069481
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Test plug, VDE coded type G19, Number of positions: 19, Width: 187.5 mm, Color: gray
Why buy this product
Easy and time saving, thanks to functional grouping of switching operations
Cost-effective, thanks to the tailored, modular design and use of standardized CLIPLINE complete accessories
Space saving, thanks to offset test socket arrangement
The integrated, robust switch contact is designed for the most stringent demands, and the use of high-quality materials ensures the
transmission of signal currents, even after multiple actuations
The automatically generated transformer short circuit and the shock-proof design ensure the highest degree of safety during measurement
Maximum safety with leading and automatic transformer short circuit
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356945905
85366990
Made to Order (non-returnable)
1 STK
Technical data
General
Note
Number of positions
Number of levels
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
A detailed circuit diagram can be found under Miscellaneous Downloads
19
1
19
6 mm²
gray
PA
V0
11/15/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/3069481
Test plug - FTP-2/G19 - 3069481
Technical data
General
Rated surge voltage
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
5 kV
III
I
24 A
24 A
400 V AC/DC
No
130 °C
125 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
27,5 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Pitch
187.5 mm
86 mm
8.2 mm
Connection data
Note
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
The conductor cross section depends on the cable lug used
0.5 mm²
2.5 mm²
20
14
Assembly
Mounting type
Min. tightening torque of the test socket screw:
Max. tightening torque of the test socket screw:
Insertion in base strip
0.5 Nm
0.6 Nm
Standards and Regulations
11/15/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/3069481
Test plug - FTP-2/G19 - 3069481
Technical data
Standards and Regulations
Flammability rating according to UL 94
V0

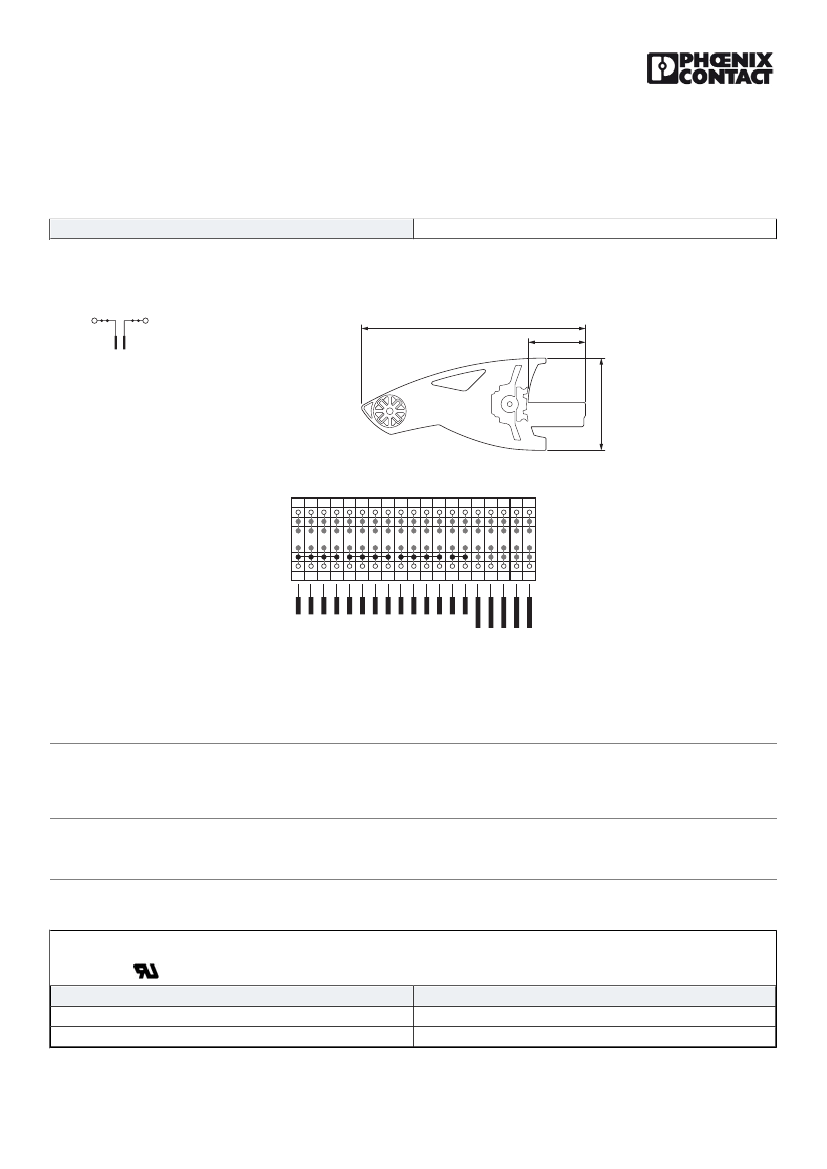

Drawings
Circuit diagram
Dimensional drawing
206,9
53,07
Circuit diagram
1b 2b 3b 4b 5b 6b 7b 8b 9b 10b11b12b13b14b
14b15b16b17b18b
19b
1a 2a 3a 4a 5a 6a 7a 8a 9a 10a 11a 12a 13a 14a 15a 16a 17a 18a 19a
Circuit diagram shows the test terminal strip with test plug inserted
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approval details
UL Recognized
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
D
10 A
300 V
11/15/2016 Page 3 / 4
85,4
https://www.phoenixcontact.com/hq/products/3069481
Test plug - FTP-2/G19 - 3069481
Approvals
cUL Recognized
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
D
10 A
300 V
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/15/2016 Page 4 / 4
