TG26-1205N1LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> TG26-1205N1LF

TG26-1205N1LF: DescriptionUSB Interface IC USB HS to Dual UART/ FIFO/SPI/JTAG/I2C; CategoryPower management transformer; File Size355KB，2 Pages; ManufacturerHALO Electronics; Environmental Compliance

Download Datasheet Parametric View All

TG26-1205N1LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TG26-1205N1LF	-	-	View	Buy Now

TG26-1205N1LF Overview

USB Interface IC USB HS to Dual UART/ FIFO/SPI/JTAG/I2C

TG26-1205N1LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	HALO Electronics
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HEIGHT DIA INCLUDES TERMINALS ALSO
application	SIGNAL
Certification	DEMKO, UL
high	5.08 mm
Insulation voltage	1500 V
length	12.7 mm
Installation features	SURFACE MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	12.7mm x 7.11mm x 5.08mm
Primary inductance	1500 µH
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	7.11 mm

Preview

Download Datasheet

View All

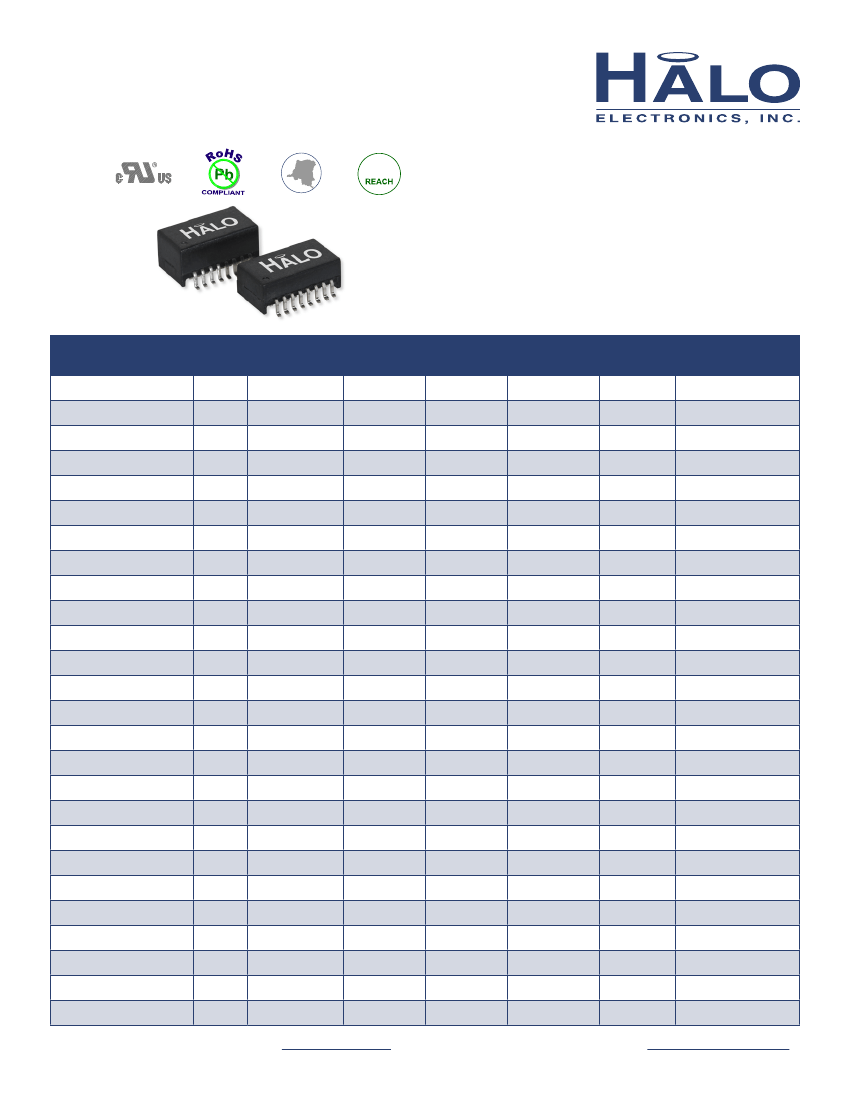

T1/E1 Isolation Modules

SMD Dual Channel T1/E1 Transformer

Conflict

FREE

Product Features:

T1/E1/CEPT/ISDN-PR

UL/EN60950 Recognized

DEMKO Recognized

100% Electrical Testing

1500Vrms Hi-Pot

Patented Open Frame Construction

Part Number

TG08-1205N1LF

TG24-1205N1LF

TG26-1205N1LF

TG27-1205N1LF

TG38-1205N1LF

TG42-1205N1LF

TG48-1205N1LF

TG63-1205N1LF

TG64-1205N1LF

TG73-1205N5LF

TG74-1205N1LF

TG80-1205N5LF

TG08-1505N5LF

TG23-1505N5LF

TG24-1505N5LF

TG26-1505N5LF

TG27-1505N5LF

TG38-1505N5LF

TG42-1505N5LF

TG48-1505N5LF

TG63-1505N5LF

TG64-1505N5LF

TG73-1505N5LF

TG74-1505N5LF

TG80-1505N5LF

TG91-1505N5LF

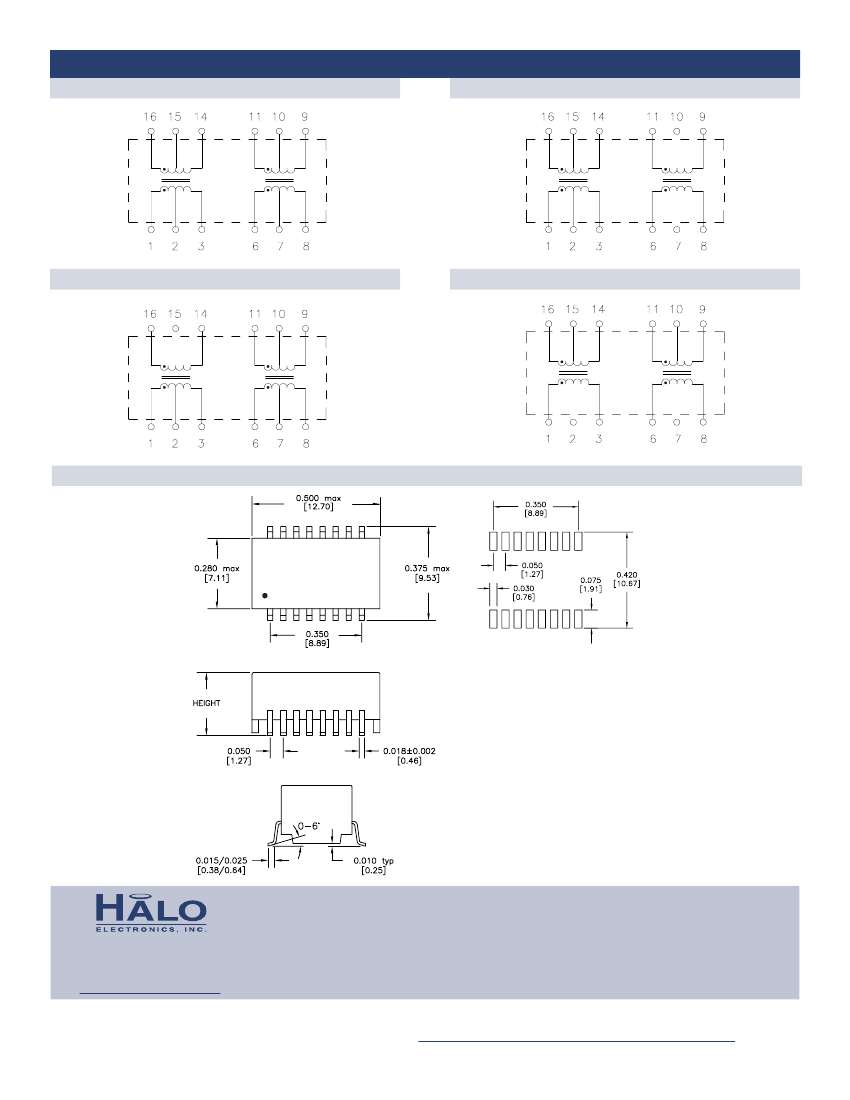

Circuit

Temp.

Range

0 to 70°C

-40 to +85°C

Turns Ratio (± 2%)

PRI : SEC

1CT:2CT

1CT:1.36CT

1CT:1.36CT 1CT:1.36CT

Package

Height (max)

0.2” (5.08)

0.250” (6.35)

0.2” (5.08)

0.250” (6.35)

PRI OCL

(typ)

1.2mH

1.5mH

Primary

Pins

1-3 & 6-8

16-14 & 6-8

1-3 & 6-8

16-14 & 6-8

1-3 & 6-8

16-14 & 6-8

1-3 & 6-8

16-14 & 6-8

1-3 & 6-8

16-14 & 6-8

1-3 & 6-8

16-14 & 6-8

1-3 & 6-8

16-14 & 6-8

1-3 & 6-8

1CT:1.15CT 1CT:1.15CT

1CT:1.41CT 1CT:1.41CT

1CT:2CT

1:1.15CT

1:1:1.26

1CT:2.3CT

1CT:1CT

1CT:2CT

1:2.42CT

1CT:2CT

1:1

1CT:2CT

1CT:1CT

1CT:2CT

1:2.42CT

1CT:2CT

1CT:2.45CT 1CT:2.45CT 0.250” (6.35)

-40 to +85°C 1CT:1.36CT 1CT:1.36CT 0.250” (6.35)

1CT:1.36CT 0.250” (6.35)

-40 to +85°C 1CT:1.15CT 1CT:1.15CT 0.250” (6.35)

-40 to +85°C 1CT:1.41CT 1CT:1.41CT 0.250” (6.35)

-40 to +85°C

-45 to +85°C

-40 to +85°C

1CT:2CT

1:1.15CT

1:1:1.26

1CT:2.3CT

1CT:1CT

1CT:2.4CT

1:1

1CT:2CT

1CT:1CT

1CT:2CT

1CT:1CT

0.250” (6.35)

-40 to +85°C 1CT:2.45CT 1CT:2.45CT 0.250” (6.35)

For additional information contact your

local representative,

or HALO’s support staff at (650) 903-3800 or

info@haloelectronics.com
