C0402C473M8PAC: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT .047UF 10.0V; CategoryPassive components capacitor; File Size54KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

C0402C473M8PAC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C0402C473M8PAC	-	-	View	Buy Now

C0402C473M8PAC Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT .047UF 10.0V

C0402C473M8PAC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 0402
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.047 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.5 mm
JESD-609 code	e3
length	1 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	Bulk
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
size code	0402
surface mount	YES
Temperature characteristic code	X5R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

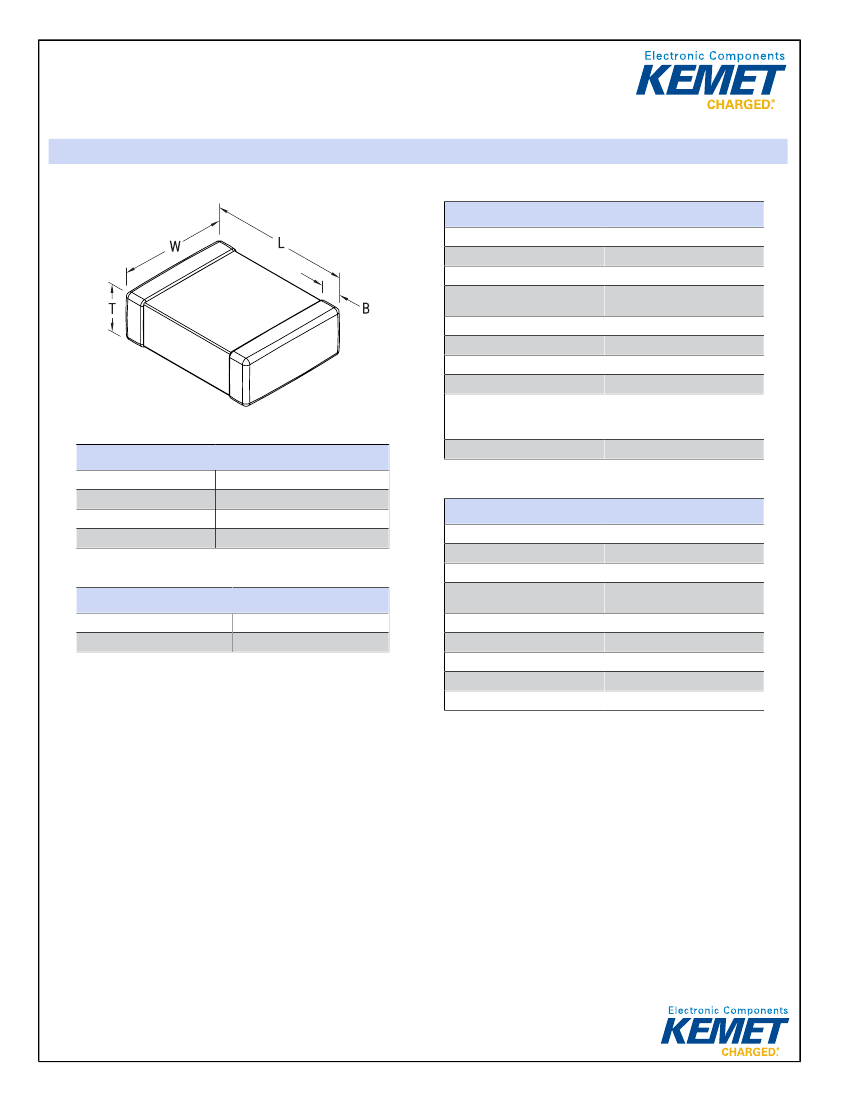

KEMET Part Number: C1206C107M9PACTU

(C1206C107M9PAC7800)

SMD Comm X5R, Ceramic, 100 uF, 20%, 6.3 VDC, X5R, SMD, MLCC, Temperature Stable, Class II, 1206

General Information

Supplier:

Series:

Style:

Description:

Features:

RoHS:

Termination:

Marking:

Miscellaneous:

KEMET

SMD Comm X5R

SMD Chip

SMD, MLCC, Temperature

Stable, Class II

Temperature Stable, Class II

Yes

Tin

No

Note: Referee time for X5R

dielectric for this part number is

48 hours

1206

Dimensions

L

W

T

B

3.2mm +/-0.2mm

1.6mm +/-0.2mm

1.6mm +/-0.20mm

0.5mm +0.35/-0.25mm

Chip Size:

Specifications

Capacitance:

Capacitance Tolerance:

Voltage DC:

Dielectric Withstanding

Voltage:

Temperature Range:

Temperature Coefficient:

Dissipation Factor:

Aging Rate:

Insulation Resistance:

100 uF

20%

6.3 VDC

15.75 V

-55/+85C

X5R

10.00% 120Hz 25C

5% Loss/Decade Hour

1 MOhms

Packaging Specifications

Packaging:

Packaging Quantity:

T&R, 180mm, Plastic Tape

2000

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 12/02/2018 - 4a608166-e1b7-40d7-95d1-c49fe8812b37
