140-LS222M1J-2230-RC datasheet, PDF

Datasheet> All Categories > Passive components> 140-LS222M1J-2230-RC

140-LS222M1J-2230-RC: DescriptionAluminum Electrolytic Capacitors - Snap In 2200 uF .1uF 25V 0.1 LS=10mm Radial; CategoryPassive components; File Size200KB，4 Pages; ManufacturerXicon Passive Components; Websitehttp://www.xicor.com

Download Datasheet Parametric Compare View All

140-LS222M1J-2230-RC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	140-LS222M1J-2230-RC	-	-	View	Buy Now

140-LS222M1J-2230-RC Overview

Aluminum Electrolytic Capacitors - Snap In 2200 uF .1uF 25V 0.1 LS=10mm Radial

140-LS222M1J-2230-RC Parametric

Parameter Name	Attribute value
Product Category	Aluminum Electrolytic Capacitors - Snap In
Manufacturer	Xicon Passive Components
RoHS	Details
Capacitance	2200 uF
Voltage Rating DC	63 VDC
Tolerance	20 %
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Number of Pins	2
Diameter	22 mm
Length	30 mm
Lead Spacing	10 mm
Life	2000 Hour
Ripple Current	2.35 A
Dissipation Factor DF	0.15
Leakage Current	1.5 mA
Product	Aluminum Electrolytic Capacitors
Factory Pack Quantity	1
Termination Style	Snap In
Test Frequency	120 Hz
Type	Snap Mount Aluminum Electrolytic Capacitors

Preview

Download Datasheet

View All

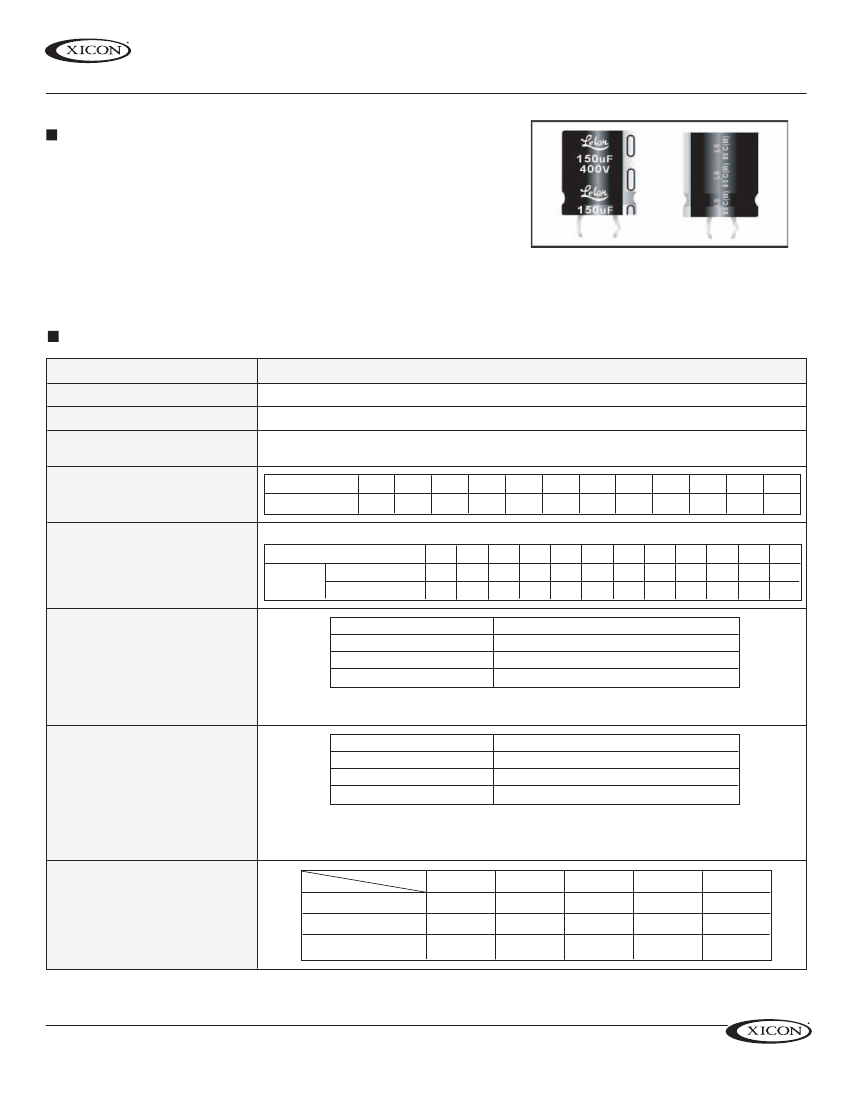

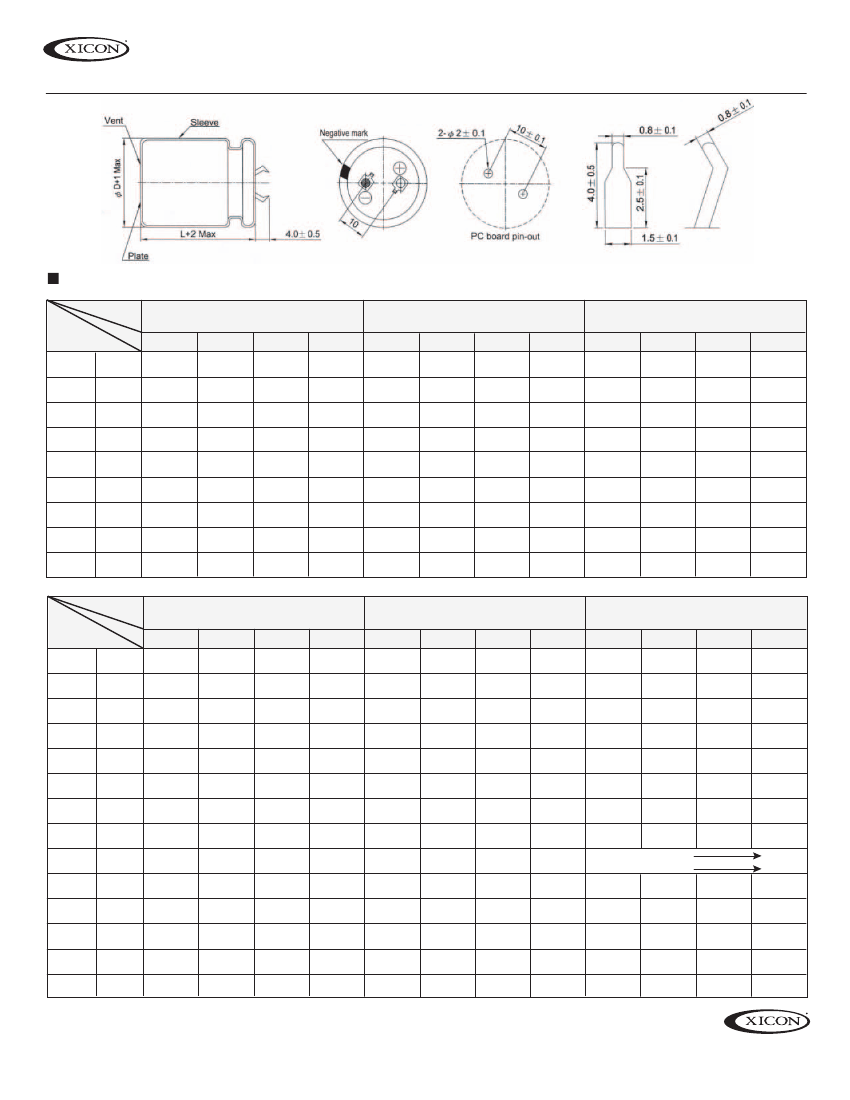

Snap Mount Aluminum Electrolytic Capacitors

Features:

• Has a snap-in terminal which can solder to PCB

directly and need not fixture to save processing time

• Suitable for electronic equipment with medium-high voltage circuits

• Printed circuit board terminal snap-in

type and lug terminal type available.

• RoHS Compliant

LS Series

Specifications:

Items

Operating Temperature Range

Capacitance Tolerance

Leakage Current (at 20˚C)

Dissipation Factor

(Tan

at 120Hz, 20˚C)

Performance

-40°C ~ +85°C

±20% (at 120Hz, 20°C)

I = 0.02CV or 1.5 mA whichever is smaller (after 5 minutes)

Where, C= rated capacitance in μF. V = rated DC working voltage in V.

Rated Voltage

Tan_(max)

0.40

0.30

0.25

0.20

0.15

100

0.15

160

0.15

200

0.15

250

0.15

350

0.20

400

0.20

450

0.20

Impedance ratio shall not exceed the values given in the table below.

Low Temperature

Characteristics (at 120 Hz)

Rated Voltage

Impedance Z(-25°C)/Z(+20°C)

Ratio

Z(-40°C)/Z(+20°C)

100

160

200

250

350

400

450

Test Time

Capacitance Change

Load Life Test

Dissipation Factor

Leakage Current

2000 Hrs

Within ±20% of initial value

Less than 200% of specified value

Within specified value

* The above specifications shall be satisfied when the capacitors are restored to 20°C

after the rated voltage applied with rated ripple current for 2000 hrs at 85°C.

Test Time

Capacitance Change

Dissipation Factor

Leakage Current

1000 Hrs

Within ±20% of initial value

Less than 150% of specified value

Within specified value

Shelf Life Test

* The above specifications shall be satisfied when the capacitors are restored to 20°C after

exposing them for 1000 hrs at 85°Cwithout voltage applied. The rated voltage shall be

applied to the capacitors before the measurements (Refer to JIS C 5102).

Freq. (Hz)

W. V.(V)

Ripple Current &

Frequecy Multipliers

0.92

0.81

0.77

120

1.00

500

1.13

1.32

1.30

1.19

1.45

1.41

10K up

1.20

1.50

1.43

Under 100

160 ~ 250

350 to up

XICON PASSIVE COMPONENTS • (800) 628-0544

XC-600176

Date Revised: 1/2/07

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
