Product compatible with RoHS directive
Halogen-free
Compatible with lead-free solders
Chip beads
For power line
Overview of MPZ1608 type
FEATURES
Noise reduction solution for power line.
Compared to the MMZ series, has low direct current resistance for compatibility with large currents, optimal for low power consumption.
Various frequency characteristics with 5 materials of different features for countermeasures against everything from general signals to
high-speed signals.
Performs well even in signal lines where low direct current resistance is required.
APPLICATION
Noise removal for mobile devices such as smartphones and tablet terminals, and various modules.
Noise removal for PCs and recorders, household appliances such as STBs, smart grids, and industrial equipment.
PART NUMBER CONSTRUCTION
MPZ
Series name
1608
L×W×T dimensions
(mm)
1.6×0.8x0.6
1608
1.6×0.8x0.8
B
Material name
S
Y
B
R
D
471
Impedance
() at 100MHz
260
26
471
470
A
Characteristic
type
A
B
T
T
Packaging style
Taping
A00
Internal code
A00
AH0
OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT
Temperature ranges
Operating
Storage
temperature
temperature
（°C）
（°C）
t=0.6mm
–55 to +125
–55 to +125
MPZ1608
t=0.8mm
–55 to +125
–55 to +125
The storage temperature range is for after the circuit board is mounted.
Type
Package quantity
Individual weight
(pieces/reel)
4,000
4,000
（mg）
3
4
RoHS Directive Compliant Product: See the following for more details.https://product.tdk.com/info/en/environment/rohs/index.html
Halogen-free: indicates that Cl content is less than 900ppm, Br content is less than 900ppm, and that the total Cl and Br content is less than 1500ppm.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20161027 / beads_commercial_power_mpz1608_en.fm
(5/11)
E M C
C o m p o n e n t s
MPZ1608 type
MATERIAL CHARACTERISTIC
B material: This type is perfectly suited for fast digital signals. By equalizing R components and X components that beads possess at a
frequency of 5MHz, it is able to suppress overshooting, undershooting and ringing of fast digital signals.
R material: For wide frequency applications calling for broad impedance characteristics. For digital signal line applications calling
requiring good waveform integrity. Impedance values selected for effectiveness at 10 to 200MHz.
S material: Standard type that features impedance characteristics similar to those of a typical ferrite core. For signal line applications in
which the blocking region is near 100MHz. Impedance values selected for effectiveness at 40 to 300MHz.
Y material: High frequency range type intended for the 100MHz region and above. For signal line applications in which the signal
frequency is far from the cutoff frequency. Impedance values selected for effectiveness at 80 to 400MHz.
D material: For applications calling for low insertion loss at low frequencies and sharply increasing impedance at high frequencies.
Designed for high impedance at high frequencies (300MHz to 1GHz) for signal line applications.

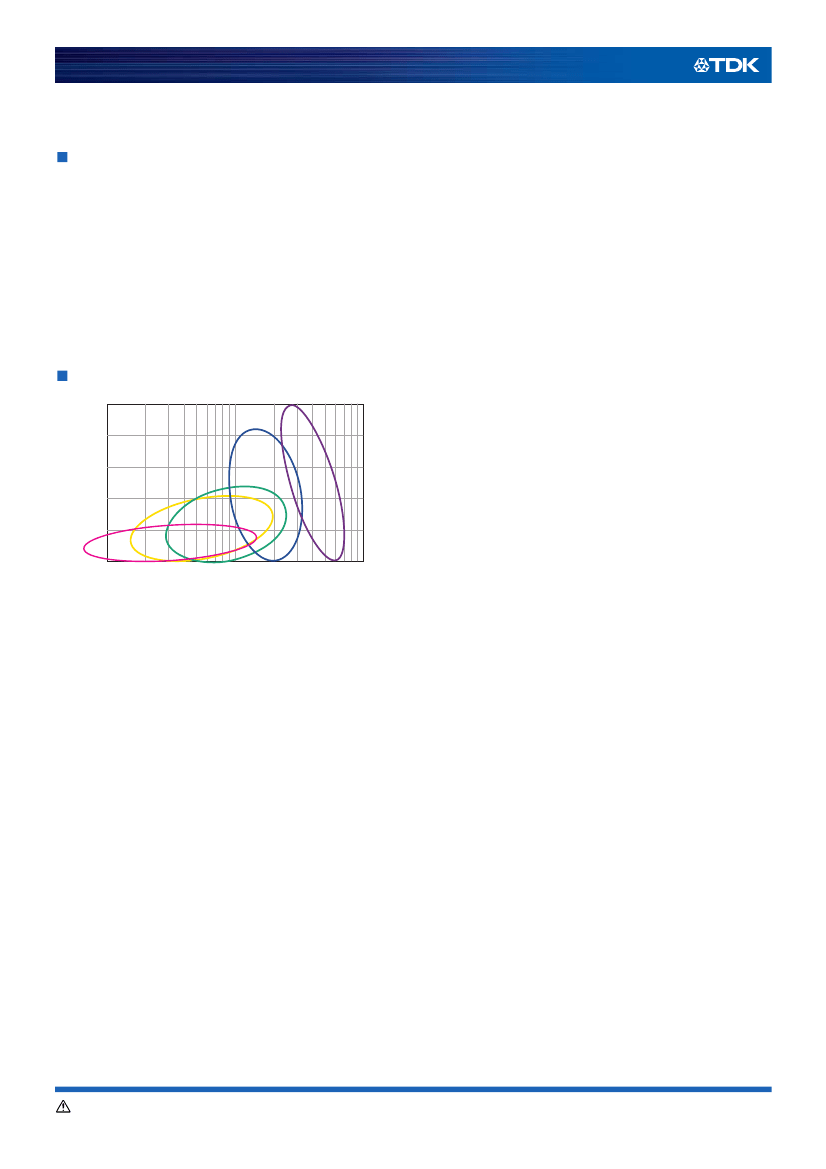

TYPICAL MATERIAL IMPEDANCE CHARACTERISTICS
2500
D
2000
Y
Impedance(
Ω
)
1500
1000
R
500
B
0
10
100
Frequency(MHz)
1000
S
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20161027 / beads_commercial_power_mpz1608_en.fm
