MULTILAYER CERAMIC CHIP CAPACITORS
CEU Series
Automotive Grade
Serial Design
Type:
CEU3 [EIA CC0603]
CEU4 [EIA CC0805]
lssue date:
Dec 2014
20141219 / mlcc_automotive_serial_en
MULTILAYER CERAMIC CHIP CAPACITORS
REMINDERS
Please read before using this product
SAFETY REMINDERS
REMINDERS
1.
2.
3.
If you intend to use a product listed in this catalog for a purpose that may cause loss of life or other damage,
you must contact our company’s sales window.
We may modify products or discontinue production of a product listed in this catalog without prior notification.
We provide “Delivery Specification” that explain precautions for the specifications and safety of each product
listed in this catalog. We strongly recommend that you exchange these delivery specifications with customers
that use one of these products.
If you plan to export a product listed in this catalog, keep in mind that it may be a restricted item according
to the “Foreign Exchange and Foreign Trade Control Law”. In such cases, it is necessary to acquire export
permission in harmony with this law.
Any reproduction or transferring of the contents of this catalog is prohibited without prior permission from our
company.
We are not responsible for problems that occur related to the intellectual property rights or other rights of our
company or a third party when you use a product listed in this catalog. We do not grant license of these rights.
This catalog only applies to products purchased through our company or one of our company’s official agencies.
This catalog does not apply to products that are purchased through other third parties.
4.
5.
6.
7.
Notice: Effective January 2013, TDK will use a new catalog number which adds product thickness and packaging
specification detail. This new catalog number should be referenced on all catalog orders going forward, and
is not applicable for OEM part number orders. Please be aware the last five digits of the catalog number will
differ from the item description (internal control number) on the product label. Contact your local TDK Sales
representative for more information.
(Example)
Catalog Issued date
Prior to January 2013
January 2013 and Later
Catalog Number
C1608C0G1E103J
C1608C0G1E103J080AA
Item Description (On Delivery Label)
C1608C0G1E103JT000N
C1608C0G1E103JT000N
Page 1
20141219 / mlcc_automotive_serial_en
MULTILAYER CERAMIC CHIP CAPACITORS
CEU Series
Serial Design
Type: CEU3 [EIA CC0603], CEU4 [EIA CC0805]

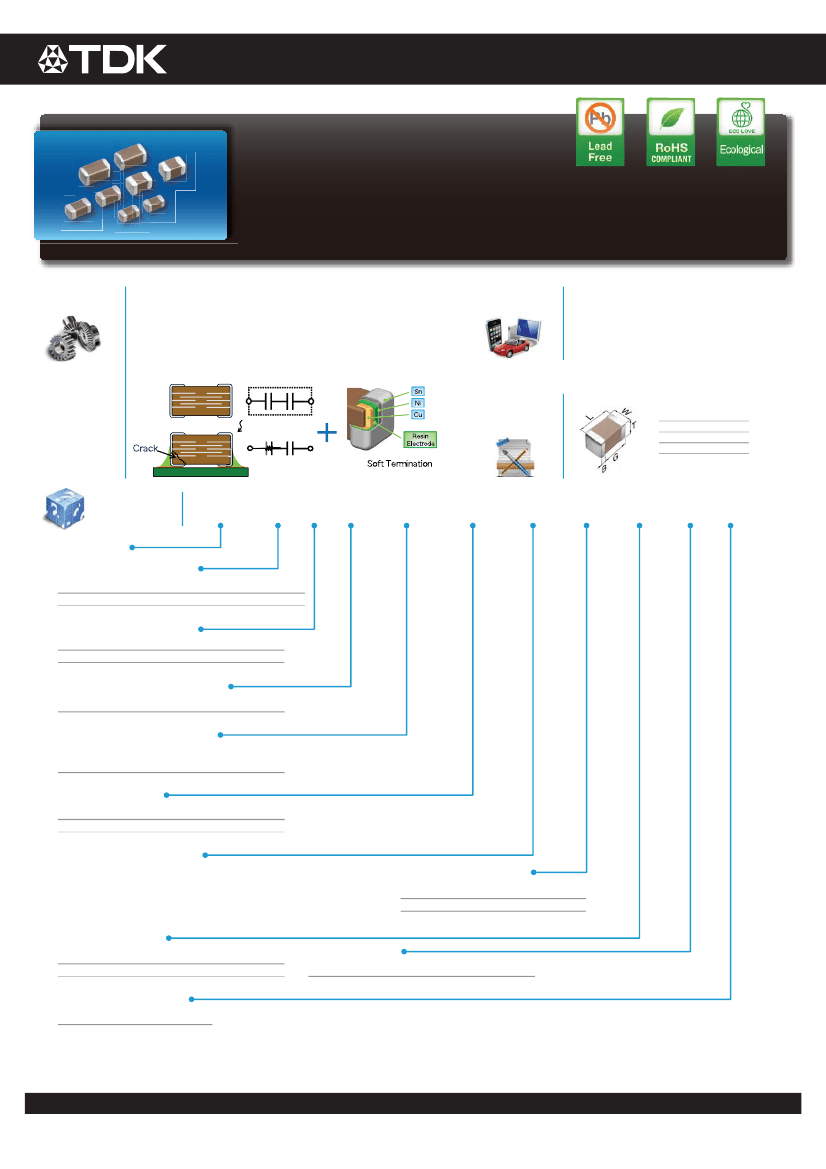

Features
• Fail-safe function with serial configuration of capacitors inside a
single product.
• Improved stress resistance.
• Improved thermal shock resistance.
• Allows for reduction of PCB space.
• Compliance with the RoHS Directive.
• AEC-Q200 compliant.
Applications
• Power supply without protective circuit
• Automotive battery line
Shape &
Dimensions
L
W
T
B
G
Body Length
Body Width
Body Height
Terminal Width
Terminal Spacing
Catalog Number
Construction
Series Name
Dimensions L x W (mm)
Code
3
4
Code
E
J
Length
1.60 ± 0.10
2.00 ± 0.20
CEU • 4 • J • 2 • X7R • 1H • 104 • K • 125 • A • E
Width
0.80 ± 0.10
1.25 ± 0.20
Terminal
0.20 min.
0.20 min.
Thickness T Code (mm)
Thickness
0.80 mm
1.25 mm
Voltage Condition for Life Test
Symbol
2
Condition
2 × R.V.
Temperature Characteristics
Temperature
Characteristics
X7R
Code
1H
2A
Capacitance
Change
± 15%
Temperature
Range
-55 to +125ºC
Rated Voltage (DC)
Voltage (DC)
50V
100V
Nominal Capacitance (pF)
The capacitance is expressed in three digit codes and in units of pico
Farads (pF). The first and second digits identify the first and second
significant figures of the capacitance. The third digit identifies the
multiplier. R designates a decimal point.
Capacitance Tolerance
Code
K
M
Tolerance
± 10%
± 20%
Nominal Thickness
Code
080
125
Thickness
0.80 mm
1.25 mm
Packaging Style
Code
B
Style
178 mm Reel, 2 mm Pitch
Special Reserved Code
Code
E
Description
Soft Termination
Page 2
• All specifications are subject to change without notice.
20141219 / mlcc_automotive_serial_en
MULTILAYER CERAMIC CHIP CAPACITORS
Capacitance
Range Chart
Capacitance Range Chart
Temperature Characteristics: X7R (±15%)
Rated Voltage: 100V (2A), 50V (1H)
Capacitance
(pF)
CEU3(1608) [EIA CC0603]
X7R
Code
Tolerance
2A
1H
(100V) (50V)
1,000
1,500
2,200
3,300
4,700
6,800
10,000
15,000
22,000
33,000
47,000
102
152
222
332
472
682
103
153
223
333
473
K ± 10%
M: ± 20%
Standard Thickness
0.80 mm
Capacitance
Range Chart
Capacitance Range Chart
Temperature Characteristics: X7R (±15%)
Rated Voltage: 100V (2A), 50V (1H)
Capacitance
(pF)
CEU4(2012) [EIA CC0805]
X7R
Code
Tolerance
2A
1H
(100V) (50V)
1,000
1,500
2,200
3,300
4,700
6,800
10,000
15,000
22,000
33,000
47,000
68,000
100,000
102
152
222
332
472
682
103
153
223
333
473
683
104
K ± 10%
M: ± 20%
Standard Thickness
1.25 mm
Page 3
• All specifications are subject to change without notice.
20141219 / mlcc_automotive_serial_en
MULTILAYER CERAMIC CHIP CAPACITORS
Capacitance
Range Table
Class 2 (Temperature Stable)
Temperature Characteristics: X7R (-55 to +125ºC, ±15%)
Capacitance
Size
1608
1 nF
2012
1608
1.5 nF
2012
1608
2.2 nF
2012
1608
3.3 nF
2012
1608
4.7 nF
2012
1608
6.8 nF
2012
1608
10 nF
2012
1608
15 nF
2012
1608
22 nF
2012
1608
33 nF
2012
1608
47 nF
2012
68 nF
100 nF
2012
2012
1.25 +0.25/-0.20
1.25 +0.25/-0.20
1.25 +0.25/-0.20
1.25 +0.25/-0.20
0.80 +0.15/-0.10
1.25 +0.25/-0.20
0.80 +0.15/-0.10
1.25 +0.25/-0.20
0.80 +0.15/-0.10
1.25 +0.25/-0.20
0.80 +0.15/-0.10
1.25 +0.25/-0.20
0.80 +0.15/-0.10
1.25 +0.25/-0.20
0.80 +0.15/-0.10
1.25 +0.25/-0.20
0.80 +0.15/-0.10
1.25 +0.25/-0.20
0.80 +0.15/-0.10
1.25 +0.25/-0.20
0.80 +0.15/-0.10
1.25 +0.25/-0.20
0.80 +0.15/-0.10
Thickness
(mm)
0.80 +0.15/-0.10
Capacitance
Tolerance
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
± 10%
± 20%
CEU4J2X7R2A153K125AE
CEU4J2X7R2A153M125AE
CEU3E2X7R1H223K080AE
CEU3E2X7R1H223M080AE
CEU4J2X7R1H223K125AE
CEU4J2X7R1H223M125AE
CEU3E2X7R1H333K080AE
CEU3E2X7R1H333M080AE
CEU4J2X7R1H333K125AE
CEU4J2X7R1H333M125AE
CEU3E2X7R1H473K080AE
CEU3E2X7R1H473M080AE
CEU4J2X7R1H473K125AE
CEU4J2X7R1H473M125AE
CEU4J2X7R1H683K125AE
CEU4J2X7R1H683M125AE
CEU4J2X7R1H104K125AE
CEU4J2X7R1H104M125AE
CEU4J2X7R2A103K125AE
CEU4J2X7R2A103M125AE
CEU3E2X7R1H153K080AE
CEU3E2X7R1H153M080AE
CEU4J2X7R2A682K125AE
CEU4J2X7R2A682M125AE
CEU3E2X7R1H103K080AE
CEU3E2X7R1H103M080AE
CEU4J2X7R2A472K125AE
CEU4J2X7R2A472M125AE
CEU3E2X7R1H682K080AE
CEU3E2X7R1H682M080AE
Catalog Number
Rated Voltage Edc: 100V
CEU3E2X7R2A102K080AE
CEU3E2X7R2A102M080AE
CEU4J2X7R2A102K125AE
CEU4J2X7R2A102M125AE
CEU3E2X7R2A152K080AE
CEU3E2X7R2A152M080AE
CEU4J2X7R2A152K125AE
CEU4J2X7R2A152M125AE
CEU3E2X7R2A222K080AE
CEU3E2X7R2A222M080AE
CEU4J2X7R2A222K125AE
CEU4J2X7R2A222M125AE
CEU3E2X7R2A332K080AE
CEU3E2X7R2A332M080AE
CEU4J2X7R2A332K125AE
CEU4J2X7R2A332M125AE
CEU3E2X7R1H472K080AE
CEU3E2X7R1H472M080AE
Rated Voltage Edc: 50V
Page 4
• All specifications are subject to change without notice.
20141219 / mlcc_automotive_serial_en
