LFSPXO027587REEL datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> LFSPXO027587REEL

LFSPXO027587REEL: DescriptionCMOS Output Clock Oscillator, 0.032768MHz Nom; CategoryPassive components oscillator; File Size590KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO027587REEL Overview

CMOS Output Clock Oscillator, 0.032768MHz Nom

LFSPXO027587REEL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8339922057
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION; TR
maximum descent time	50 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Installation features	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS
Output load	15 pF
physical size	2.6mm x 2.1mm x 0.95mm
longest rise time	50 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

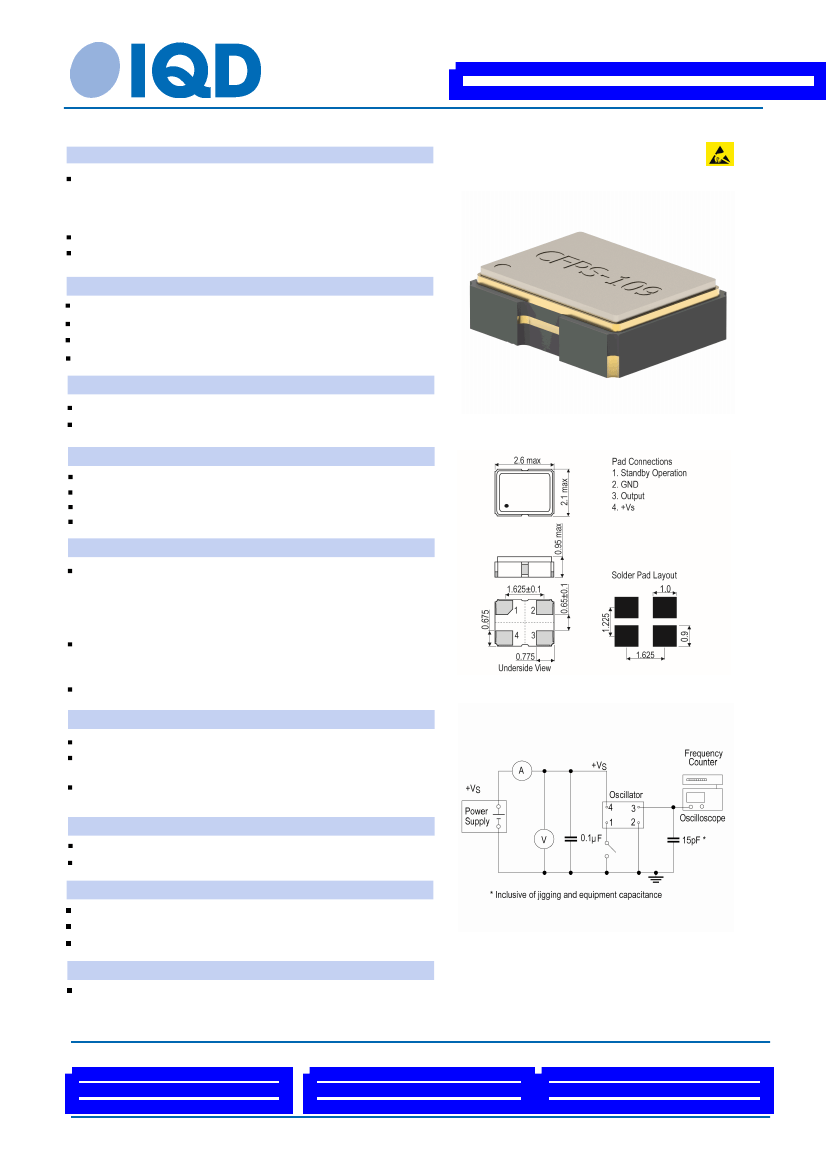

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO027587Reel

Customer Part:

Description

Suitable for real time clock applications

32.768kHz output crystal oscillators

Ceramic package with a seam sealed metal lid, hermetically

sealed

Model

CFPS-109

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

32.7680kHz

±20.00ppm

0.00 to 70.00°C

±3ppm max per year

Supply Voltage

Current Draw

Output Details

3.3V ±5%

3.500mA

Outline (mm)

Output Compatibility

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

50.0ns max

40/60%

Standby Operation:

Logic ‘1’ to pad 1 enables oscillator output

Logic ‘0’ to pad 1 disables oscillator output; when disabled the

oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Start-up Time: 35ms max

2ms typ to 90% of final amplitude (under ideal conditions @

25°C)

Standby Current: 10µA max, 1.35µA typ @ 25°C

Environmental Parameters

Test Circuit

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-883F, Method 2002.4: 1500G, 0.5ms, 3

times in each of 3 mutually perpendicular planes.

Vibration: MIL-STD-883F, Method 2007.3: 20G

(20Hz-2000Hz), 1.52mm amplitude

Manufacturing Details

RoHS Terminations

RoHS Reflow Temp

Compliance

NiAu

260degC 10s

RoHS Status (2015/863/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 7 Jun 21 3:50 using Part Data Sheet V1.0018
