CS20-5000MABJ-UT datasheet, PDF

Datasheet> All Categories > Passive components> CS20-5000MABJ-UT

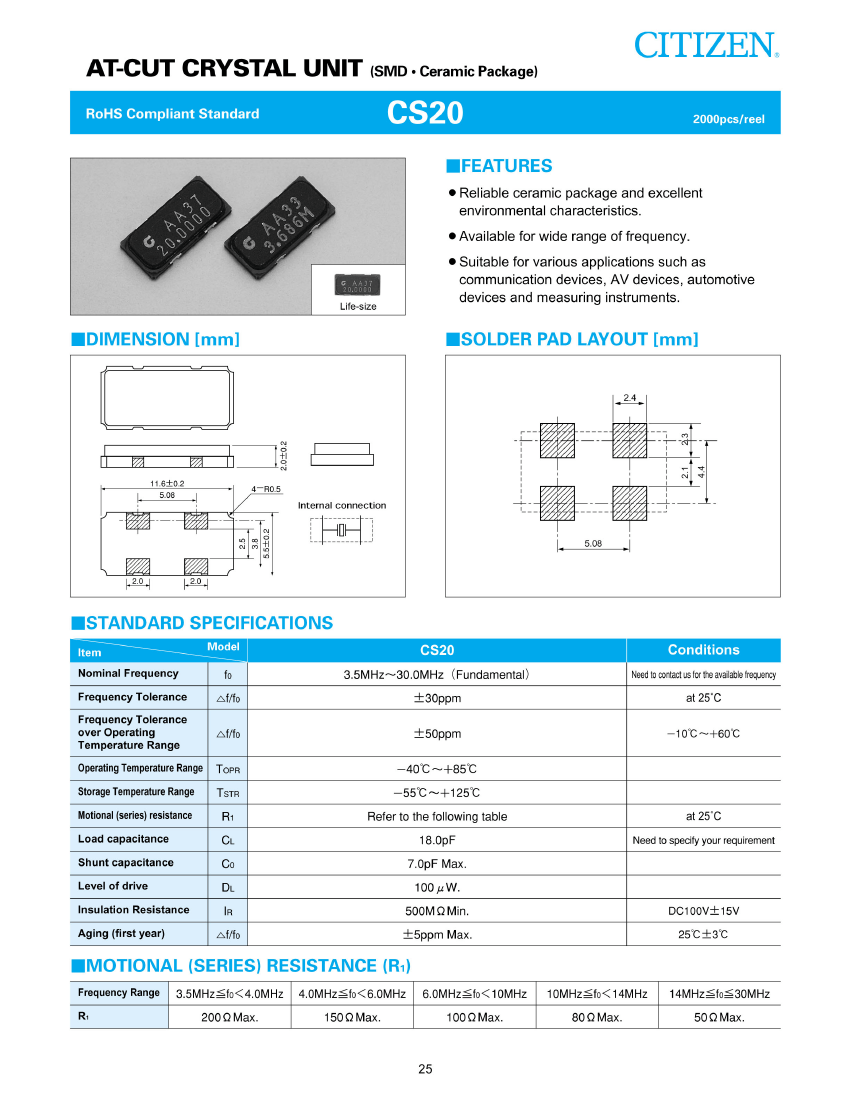

CS20-5000MABJ-UT: DescriptionCrystals 5MHz 18pF CERAMIC SMD; CategoryPassive components; File Size5MB，1 Pages; ManufacturerCITIZEN; Websitehttp://ce.citizen.co.jp/e/index.html

Download Datasheet Parametric Compare View All

CS20-5000MABJ-UT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CS20-5000MABJ-UT	-	-	View	Buy Now

CS20-5000MABJ-UT Overview

Crystals 5MHz 18pF CERAMIC SMD

CS20-5000MABJ-UT Parametric

Parameter Name	Attribute value
Product Category	Crystals
Manufacturer	CITIZEN
RoHS	Details
Termination Style	SMD/SMT
Package / Case	11.6 mm x 5.5 mm
Load Capacitance	18 pF
Frequency	5 MHz
Tolerance	30 PPM
Frequency Stability	50 PPM
Drive Level	100 uW
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	11.6 mm
Width	5.5 mm
Height	2 mm
Packaging	Cut Tape
Packaging	Reel
ESR	150 Ohms
Mounting Style	SMD/SMT
Factory Pack Quantity	2000
Type	AT-Cut Crystal

Preview

Download Datasheet

View All

Discontinued

CS20-5000MABJ-UT Related Products

	CS20-5000MABJ-UT	CS20-147456MABJ-UT	CS20-12000MABJ-UT	CS20-16000MABJ-UT	CS20-24576MABJ-UT	CS20-8000MAAE-UT	CS20-20480MABJ-UT	CS20-18432MABJ-UT	CS20-110592MABJ-UT	CS20-1431818MABJ-UT
Description	Crystals 5MHz 18pF CERAMIC SMD	Crystals 14.7456MHz 18pF CERAMIC SMD	Crystals 12MHz 18pF CERAMIC SMD	Crystals 16MHz 18pF CERAMIC SMD	Crystals 24.576MHz 18pF CERAMIC SMD	Crystals 8.000MHZ 30ppm 12pF	Crystals 20.48MHz 18pF CERAMIC SMD	Crystals 18.432MHz 18pF CERAMIC SMD	Crystals 11.0592MHz 18pF CERAMIC SMD	Crystals 14.31818MHz 18pF CERAMIC SMD
Product Category	Crystals	Crystals	Crystals	Crystals	Crystals	Crystals	Crystals	Crystals	Crystals	Crystals
Manufacturer	CITIZEN	CITIZEN	CITIZEN	CITIZEN	CITIZEN	CITIZEN	CITIZEN	CITIZEN	CITIZEN	CITIZEN
RoHS	Details	Details	Details	Details	Details	Details	Details	Details	Details	Details
Termination Style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Package / Case	11.6 mm x 5.5 mm	11.6 mm x 5.5 mm	11.6 mm x 5.5 mm	11.6 mm x 5.5 mm	11.6 mm x 5.5 mm	11.6 mm x 5.5 mm	11.6 mm x 5.5 mm	11.6 mm x 5.5 mm	11.6 mm x 5.5 mm	11.6 mm x 5.5 mm
Load Capacitance	18 pF	18 pF	18 pF	18 pF	18 pF	12 pF	18 pF	18 pF	18 pF	18 pF
Frequency	5 MHz	14.7456 MHz	12 MHz	16 MHz	24.576 MHz	8 MHz	20.48 MHz	18.432 MHz	11.0592 MHz	14.31818 MHz
Tolerance	30 PPM	30 PPM	30 PPM	30 PPM	30 PPM	30 PPM	30 PPM	30 PPM	30 PPM	30 PPM
Frequency Stability	50 PPM	50 PPM	50 PPM	50 PPM	50 PPM	30 PPM	50 PPM	50 PPM	50 PPM	50 PPM
Drive Level	100 uW	100 uW	100 uW	100 uW	100 uW	100 uW	100 uW	100 uW	100 uW	100 uW
Minimum Operating Temperature	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C
Maximum Operating Temperature	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C
Length	11.6 mm	11.6 mm	11.6 mm	11.6 mm	11.6 mm	11.6 mm	11.6 mm	11.6 mm	11.6 mm	11.6 mm
Width	5.5 mm	5.5 mm	5.5 mm	5.5 mm	5.5 mm	5.5 mm	5.5 mm	5.5 mm	5.5 mm	5.5 mm
Height	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
ESR	150 Ohms	50 Ohms	80 Ohms	50 Ohms	50 Ohms	100 Ohms	50 Ohms	50 Ohms	80 Ohms	50 Ohms
Mounting Style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Type	AT-Cut Crystal	AT-Cut Crystal	AT-Cut Crystal	AT-Cut Crystal	AT-Cut Crystal	AT-Cut Crystal	AT-Cut Crystal	AT-Cut Crystal	AT-Cut Crystal	AT-Cut Crystal
Packaging	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel
Factory Pack Quantity	2000	2000	2000	2000	2000	-	2000	2000	2000	2000
