UBX1V330MPL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> UBX1V330MPL

UBX1V330MPL: DescriptionSwitching Voltage Regulators; CategoryPassive components; File Size361KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

UBX1V330MPL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UBX1V330MPL	-	-	View	Buy Now

UBX1V330MPL Overview

Switching Voltage Regulators

UBX1V330MPL Parametric

Parameter Name	Attribute value
Product Category	Aluminum Electrolytic Capacitors - Leaded
Manufacturer	Nichicon
RoHS	Details
Termination Style	Radial
Capacitance	33 uF
Voltage Rating DC	35 VDC
Tolerance	20 %
Ripple Current	225 mA
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Diameter	10 mm
Length	12.5 mm
Lead Spacing	5 mm
Life	1000 Hour
Packaging	Bulk
Dissipation Factor DF	0.12
Leakage Current	4 uA
Product	High Temp Electrolytic Capacitors
Factory Pack Quantity	200
Unit Weight	0.052558 oz

Preview

Download Datasheet

View All

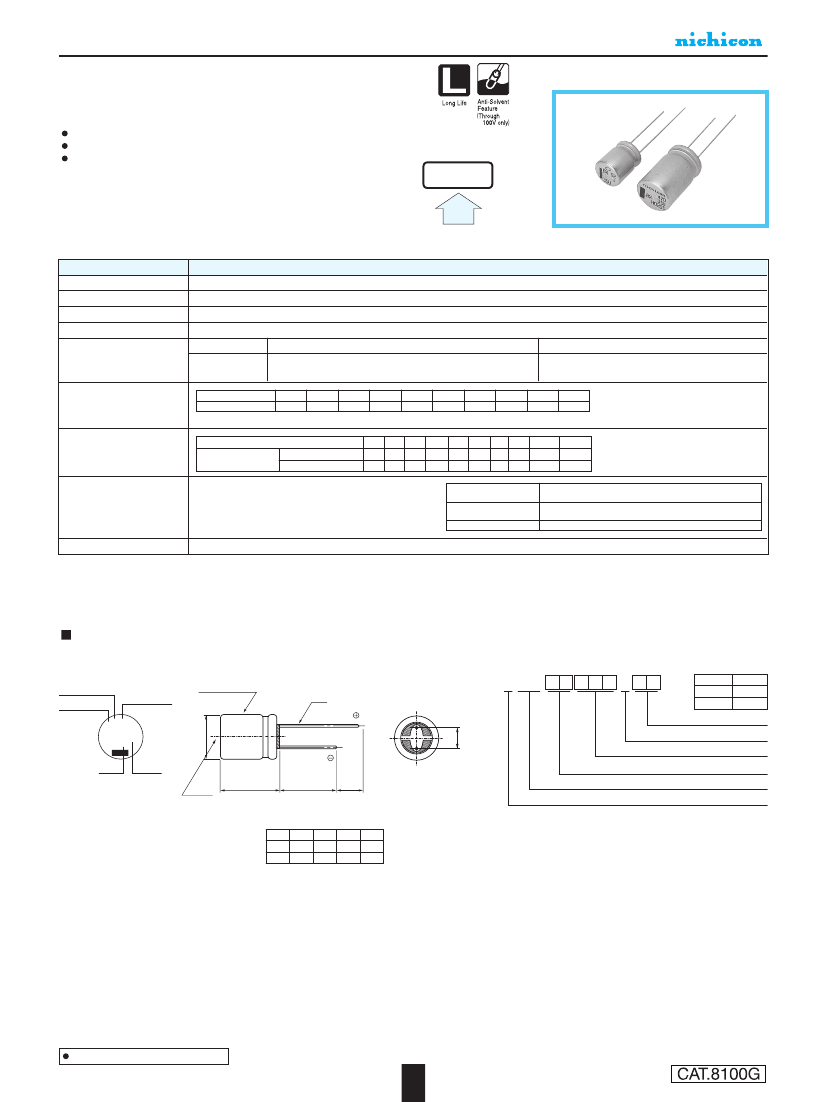

UBX

ALUMINUM ELECTROLYTIC CAPACITORS

High Temperature Range, For +150°C Use

Laminated case series.

Suited for automobile electronics where heavy duty services are indispensable.

Compliant to the RoHS directive (2011/65/EU).

UBX

High

Temperature

UBW

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Performance Characteristics

–55 to +150°C (10 to 100V), – 40 to +150°C (160

200V), –25 to +150°C (350

400V)

10 to 400V

1 to 4700µF

± 20% at 120Hz, 20°C

Rated Voltage (V)

160 to 400

< 1000 :

= 0.1CV+40 (µA) max.

CV =

After 1 minute's application of rated voltage at 20°C, leakage

Leakage current

current is not more than 0.03CV or 4 (µA), whichever is greater. CV > 1000 :

= 0.04CV+100 (µA) max.

100

Rated voltage (V)

0.20 0.16 0.14 0.12 0.10 0.10 0.08 0.08

tan

(MAX.)

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

Rated voltage (V)

Z– 25°C / Z+20°C

Impedance ratio

10 to 100

Tangent of loss angle (tan

δ)

160

200 350

400

0.20

0.24

120Hz 20°C

Stability at Low Temperature

ZT / Z20 (MAX.)

Z– 40°C / Z+20°C

80 100

160

200 350

400

120Hz

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20°C after D.C. bias plus rated

ripple current is applied for 2000 hours (1000 hours for

φD=10

and 12.5) at 150°C, the peak voltage shall not

exceed the rated voltage.

Black print on the case top.

Capacitance change

tan

Leakage current

Within ±30% of the initial capacitance value (10 to 100V)

Within ±20% of the initial capacitance value (160 to 400V)

300% or less than the initial specified value (10 to 100V)

200% or less than the initial specified value(160 to 400V)

Less than or equal to the initial specified value

Marking

Radial Lead Type

Type numbering system (Example : 10V 3300µF)

9 10 11

φD

12.5 to 18

Code

Rated Capacitance

Trade mark

nichicon

Laminated case

Rated Voltage

φD

0.5 MAX.

UB X 1 A 3 3 2 MH L

3300

BX 10V

H1001

Configuration

±0.5

Capacitance tolerance (±20%)

Rated capacitance (3300µF)

Rated voltage (10V)

Series

Lot No.

Pressure

relief vent

L+

1.5MAX.

MIN

Series name

Type

(mm)

φD

φd

5.0

0.6

12.5

5.0

0.6

7.5

0.8

7.5

0.8

•

Please refer to page 20 about the end seal configuration.

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

Dimension table in next page.
