3202E11YEL

Description
Illuminated Tactile Switches SPST YELLOW PC MOUNT
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size316KB,3 Pages
ManufacturerE-Switch
Websitehttp://www.e-switch.com
Download Datasheet Parametric View All

3202E11YEL Online Shopping

Suppliers Part Number Price MOQ In stock
3202E11YEL - - View Buy Now

3202E11YEL Overview

Illuminated Tactile Switches SPST YELLOW PC MOUNT

3202E11YEL Parametric

Parameter NameAttribute value
Product CategoryIlluminated Tactile Switches
ManufacturerE-Switch
RoHSDetails
Operating Force1.3 N
ActuatorRectangular
Current Rating25 mA
Voltage Rating DC50 VDC
Contact FormSPST
Termination StyleSolder Pin
Mounting StyleThrough Hole
Mounting DirectionVertical
ColorBlack
IlluminationLED
Illumination ColorYellow
Contact PlatingSilver
Height16 mm
Length12.4 mm
Operating Temperature Range- 20 C to + 70 C
Factory Pack Quantity1
Width12.4 mm

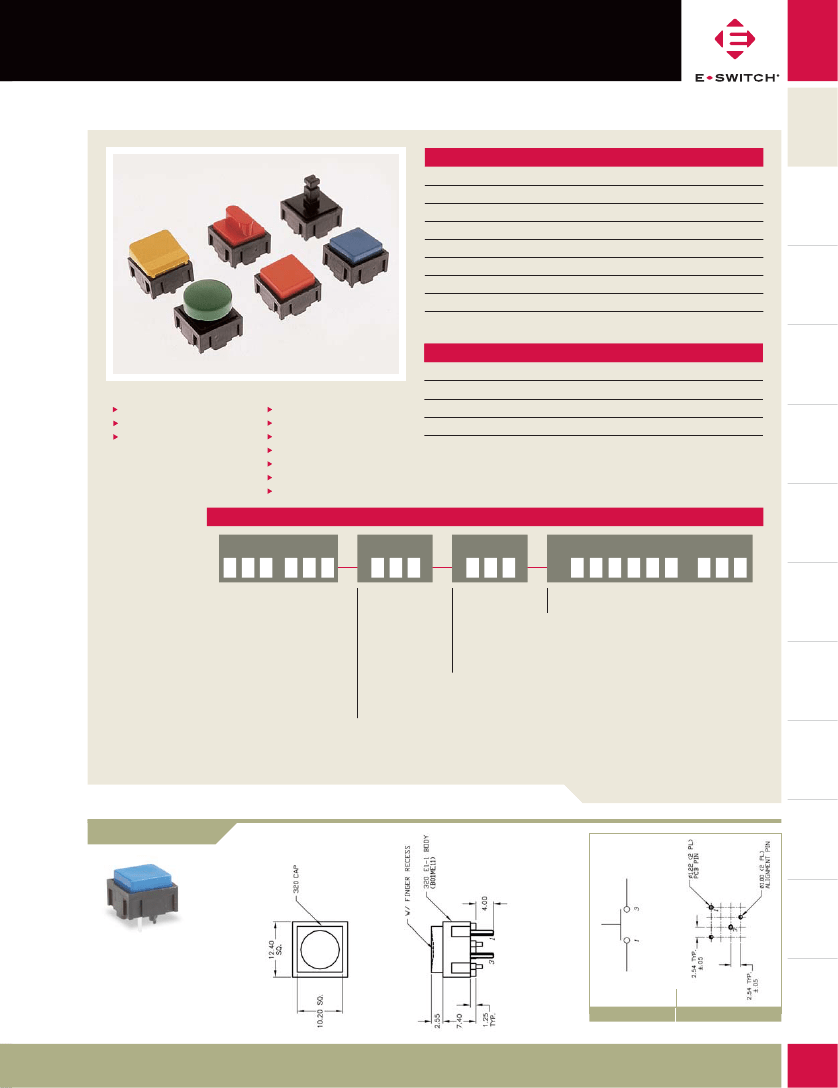

SERIES 320 SWITCHES
SPECIFICATIONS
Life Expectancy:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Actuation Force:
Travel:
1,000,000 cycles min.
50mΩ, max. initial @ 2-4 VDC, 100mA
1,000MΩ min.
>500 VAC rms at sea level
135 ± 50 gf
.6mm Typ.
PUSHBUTTON
SWITCHES
CAP
COLOR
See Cap Section
*Note: Assembled using the 320.02
plungered cap.

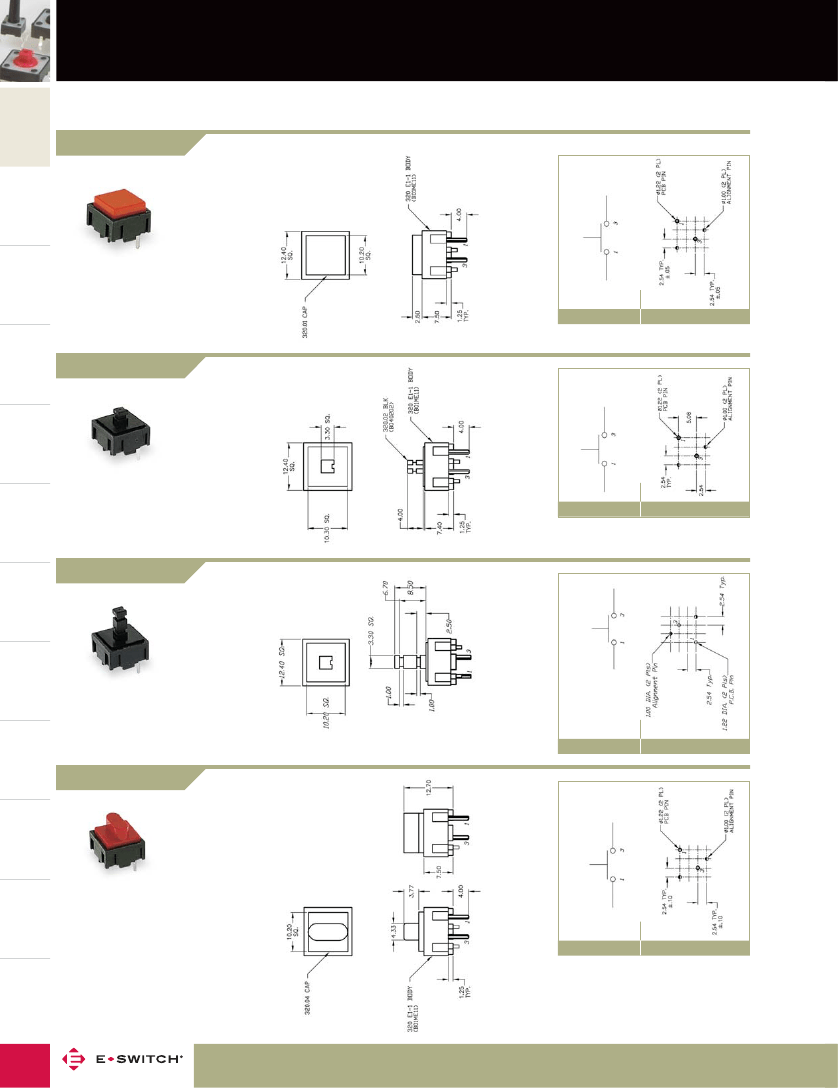

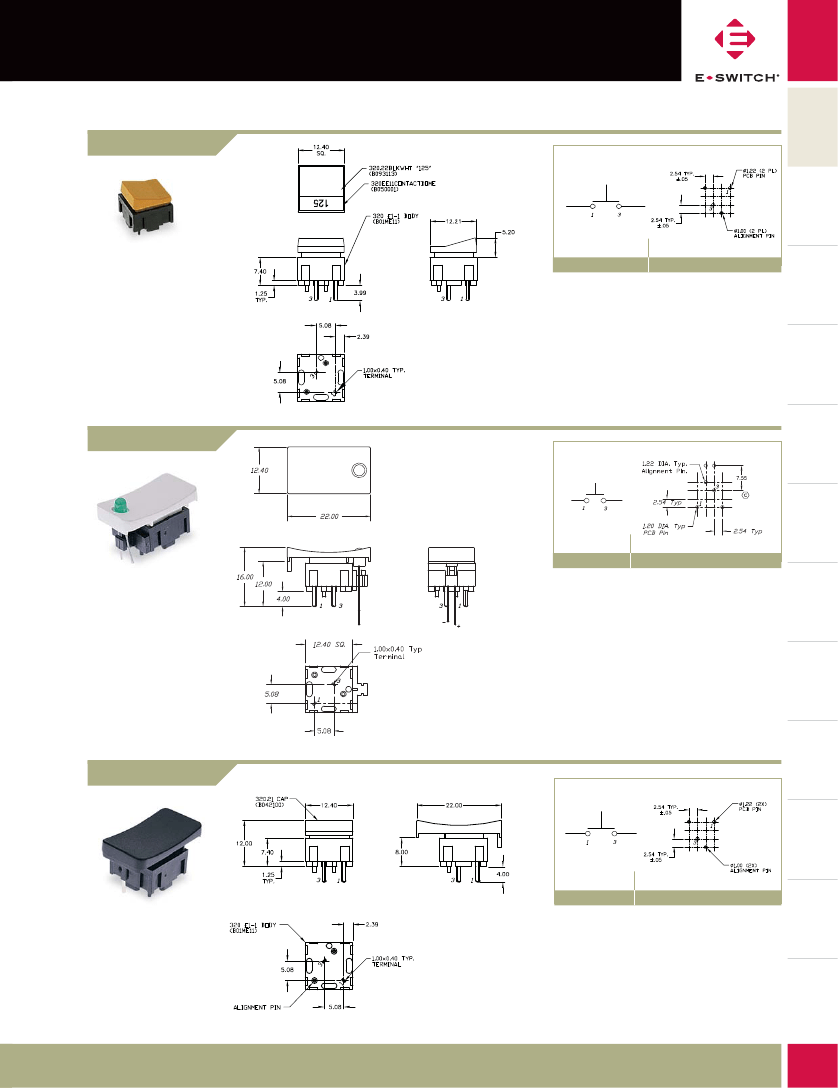

SCHEMATIC
P.C. MOUNTING
CAP
OPTIONS
DETECTOR
SWITCHES
ROTARY
SWITCHES
KEYLOCK
SWITCHES
DIP
SWITCHES
Specifications subject to change without notice.
Operating Temperature: -20°C to 70°C
MATERIALS
Housing:
Nylon 4/6
ABS or Polycarbonate
Gold over stainless steel
Silver plated copper alloy
FEATURES & BENEFITS
Multiple cap & color options
High reliability dome technology
Excellent tactile feedback
APPLICATIONS/MARKETS
Telecommunications
Networking
Computers/servers
Performance audio
Instrumentation
Low power on/off designs
External hard drives and modems
Cover/Cap:
Dome Contact:
Terminals/Contacts:
HOW TO ORDER
CAP STYLE
CIRCUIT
CAP COLOR
ADDITIONAL CAP
(Fits over cap styles 320.02 & 320.03 only.)
320
320.01
320.02
320.03
320.04
320.22
320.08*
320.09*
320.094*
320.2
320.21
E11 (SPST)
BLK = Black
GRY = Grey
YEL = Yellow
BLU = Blue
GRN = Green
WHT= White
RED = Red
Example Ordering Number
320.08_ E1-1_ YEL
320
www.e-switch.com
info
@
e-switch.com
SNAP-ACTION
SWITCHES
.
SLIDE
SWITCHES
ROCKER
SWITCHES
TOGGLE
SWITCHES
NAVIGATION
SWITCHES
Contact Rating:
25mA @ 50 VDC
TACT
SWITCHES
TACT SWITCHES
45
