M29F040-150XN3RTR datasheet, PDF

Datasheet> All Categories > storage> storage> M29F040-150XN3RTR

M29F040-150XN3RTR: Description512KX8 FLASH 5V PROM, 150ns, PDSO32, 8 X 20 MM, PLASTIC, REVERSE, TSOP-32; Categorystorage storage; File Size39KB，2 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

M29F040-150XN3RTR Overview

512KX8 FLASH 5V PROM, 150ns, PDSO32, 8 X 20 MM, PLASTIC, REVERSE, TSOP-32

M29F040-150XN3RTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	TSOP
package instruction	TSOP1-R, TSSOP32,.8,20
Contacts	32
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum access time	150 ns
Other features	100000 ERASE/PROGRAM CYCLES; 20 YEARS DATA RETENTION; BLOCK ERASE; BYTE PROGRAMMABLE
command user interface	YES
Data polling	YES
Data retention time - minimum	20
Durability	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G32
JESD-609 code	e0
length	18.4 mm
memory density	4194304 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of departments/size	8
Number of terminals	32
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
organize	512KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1-R
Encapsulate equivalent code	TSSOP32,.8,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programming voltage	5 V
Certification status	Not Qualified
reverse pinout	YES
Maximum seat height	1.2 mm
Department size	64K
Maximum standby current	0.00005 A
Maximum slew rate	0.04 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
switch bit	YES
type	NOR TYPE
width	8 mm

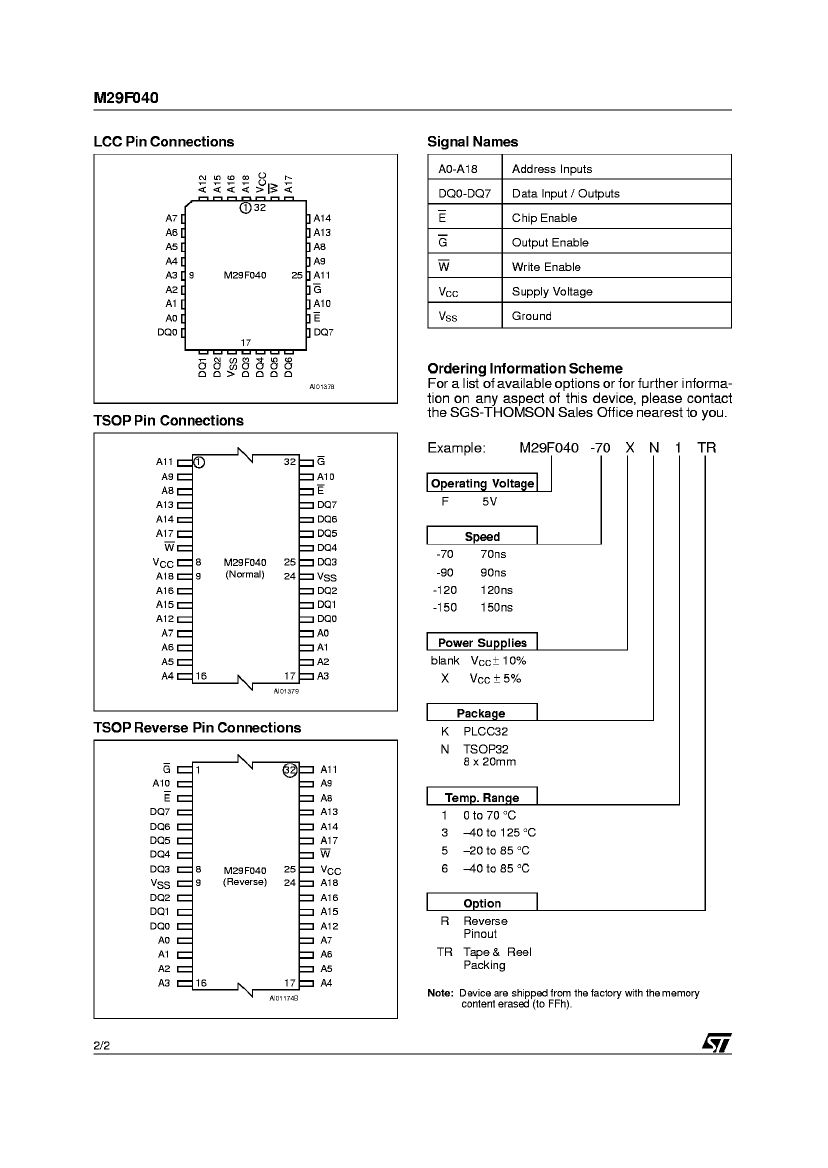

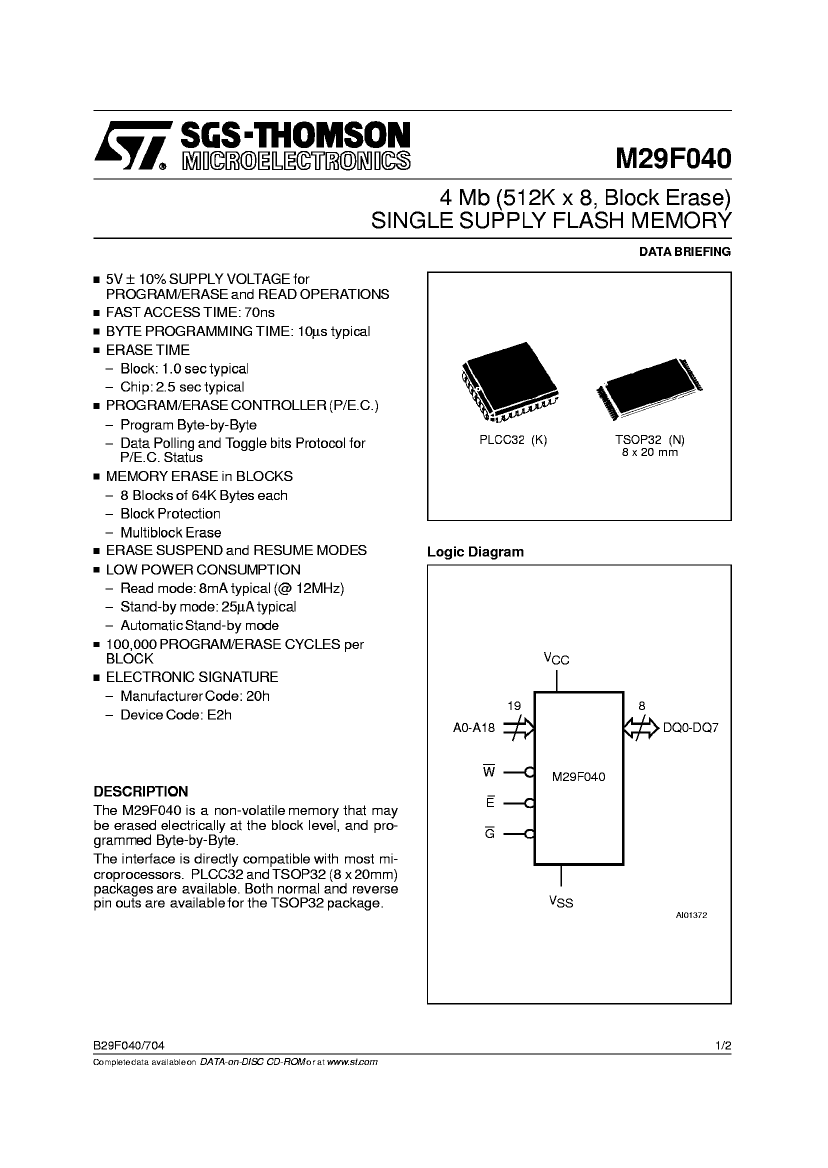

Preview
