2506-3-00-44-00-00-07-0: DescriptionHeaders u0026 Wire Housings 4 CKT 1.5mm HSG. Vertical; CategoryThe connector terminals; File Size640KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2506-3-00-44-00-00-07-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2506-3-00-44-00-00-07-0	-	-	View	Buy Now

2506-3-00-44-00-00-07-0 Overview

Headers u0026 Wire Housings 4 CKT 1.5mm HSG. Vertical

2506-3-00-44-00-00-07-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

MALE PCB

PINS

SOLDER TERMINAL TURRETS

2348

1,17 DIA.

HOLE

2348-X-00-XX-00-00-07-0

Swage mount in 1,63 hole

2301

1,17 DIA.

HOLE

V

2301-X-00-XX-00-00-07-0

Swage mount in 1,70 hole

2506

1,09 DIA.

HOLE

1,57 DIA.

2506-X-00-XX-00-00-07-0

Swage mount in 1,70 hole

Basic Part

Number

V

1,02

2,31

3,96

Board

Thickness

Length

V

1,19

1,55 DIA.

2,39 DIA.

0,84 DIA.

1,55 DIA.

0,51

0,79

1,65

3,96

1,57 DIA.

0,64

2,39 DIA.

1,17 DIA.

1,60 DIA.

1,14

V

3,18 DIA.

1,57 DIA.

2XXX-1

2XXX-2

2XXX-3

2XXX-4

0,79

1,57

2,39

3,18

1,35

2,13

2,92

3,73

2,36

2,36 DIA.

0,64

(TYP)

2310

1,30 DIA.

0,99 DIA.

1,57 DIA.

2,39 DIA.

0,99 DIA.

1,30 DIA.

2310-X-00-XX-00-00-07-0

Swage mount in 1,70 hole

2,08

0,56

2505

Basic Part

Number

Board

Thickness

Length

V

1,09 DIA.

HOLE

1,80 DIA.

3,18 DIA.

1,80 DIA.

2,46 DIA.

2505-X-00-XX-00-00-07-0

Swage mount in 1,93 hole

Basic Part

Number

V

0,89

0,69 3,18

4,75

Board

Thickness

Length

V

1,57

4,72

1,57

2310-1

2310-2

2310-3

2310-4

0,79

1,57

2,39

3,18

1,35

2,08

2,87

3,68

2505-1

2505-2

2505-3

2505-4

0,79

1,57

2,39

3,18

1,57

2,36

3,18

3,96

0,51

(TYP)

2325

1,17 DIA.

HOLE

1,78 DIA.

2,39 DIA.

0,97 DIA.

1,27 DIA.

2325-X-00-XX-00-00-07-0

Swage mount in 1,85 hole

2355

1,17 DIA.

HOLE

2355-X-00-XX-00-00-07-0

Swage mount in 1,85 hole

2365

1,17 DIA.

HOLE

2365-X-00-XX-00-00-07-0

Swage mount in 1,93 hole

1,02

1,78 DIA.

1,19

0,56

V

2,39 DIA.

0,96 DIA.

1,27 DIA.

0,56

1,70

V

1,85 DIA.

2,39 DIA.

0,99 DIA.

1,19

V

Basic Part

Number

Board

Thickness

Length

V

1,65

2,77

1,27 DIA.

0,48

4,85

1,60

1,30 DIA.

0,56

1,57

2,26

5,41

23X5-1

23X5-2

23X5-3

23X5-4

0,79

1,57

2,39

3,18

1,35

2,13

2,92

3,73

0,51

(TYP)

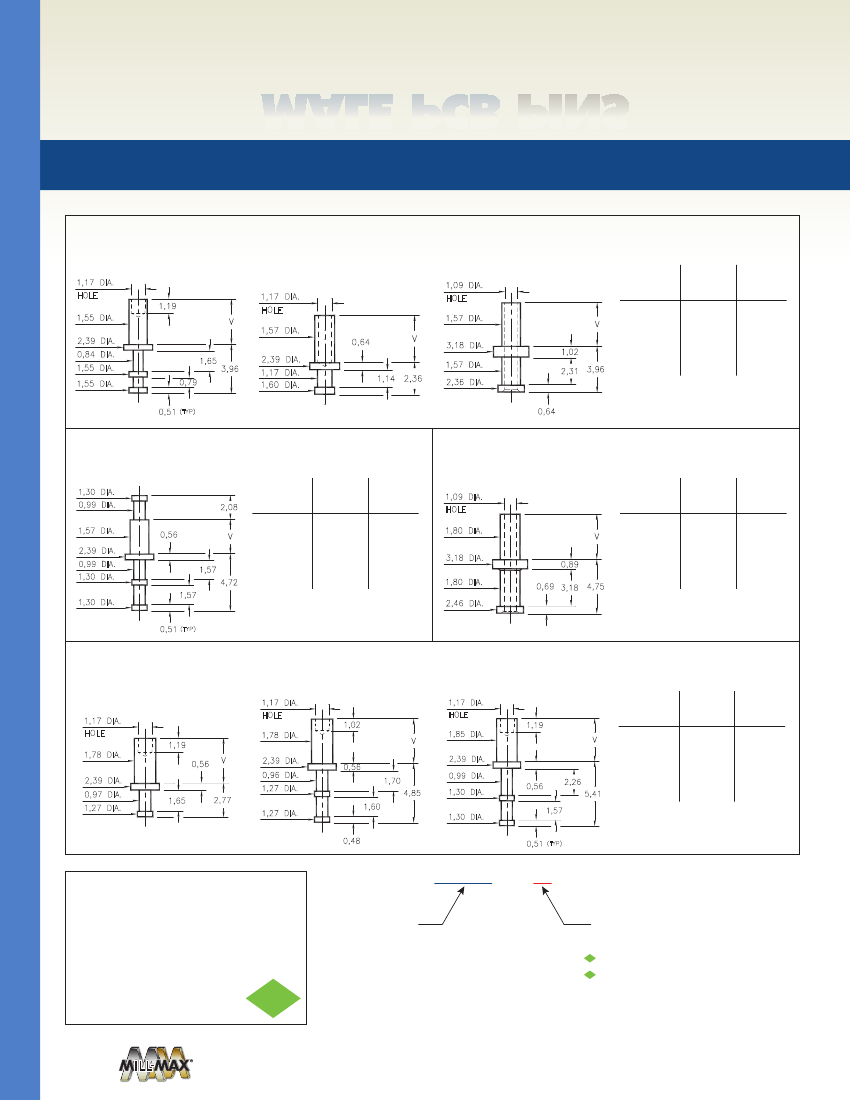

PAGE 232 | MALE PCB PINS

SPECIFICATIONS:

Pin Material:

Brass Alloy 360, 1/2 Hard

( Swage pins are annealed )

Dimensions: Millimeters

Tolerances On:

Lengths: ± 0,13

Diameters: ± 0,051

Angles:

±2°

ORDER CODE: XXXX - X - 00 -

XX

- 00 - 00 - 07 - 0

BASIC PART #

SPECIFY PIN FINISH:

01

5,08μm TIN/LEAD OVER NICKEL

80

5,08μm TIN OVER NICKEL (RoHS)

44

7,62μm SILVER OVER COPPER (RoHS)

50

7,62μm ELECTRO-SOLDER

(60/40 SnPb)

2011/65/EU

RoHS - 2

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
