KP160005

Description
Input Devices 16 Button Key Pad Blue LED Illuminated
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size1MB，4 Pages
ManufacturerLorlin
Websitehttps://www.lorlin.co.uk
Download Datasheet Parametric Compare View All

KP160005 Online Shopping

Suppliers Part Number Price MOQ In stock
KP160005 - - View Buy Now

KP160005 Overview

Input Devices 16 Button Key Pad Blue LED Illuminated

KP160005 Parametric

Parameter NameAttribute value
Product CategoryInput Devices
ManufacturerLorlin
RoHSDetails

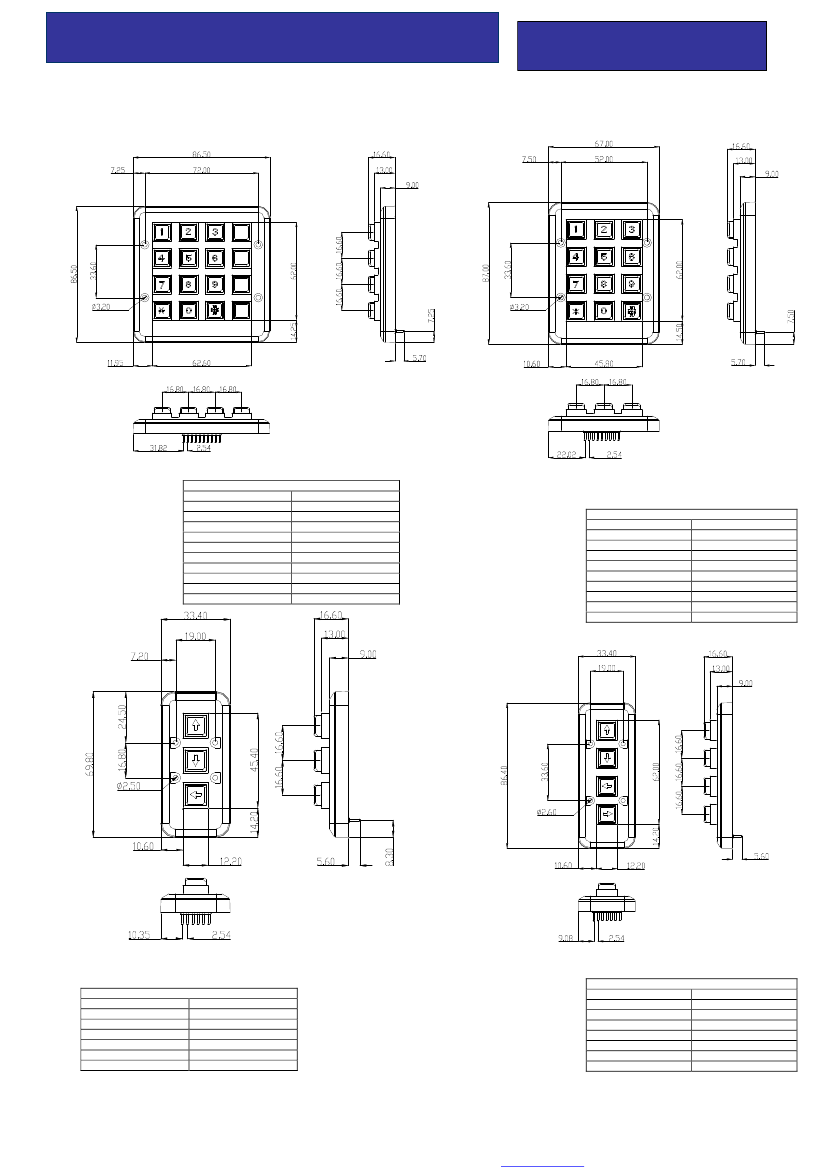

Preview

Download Datasheet

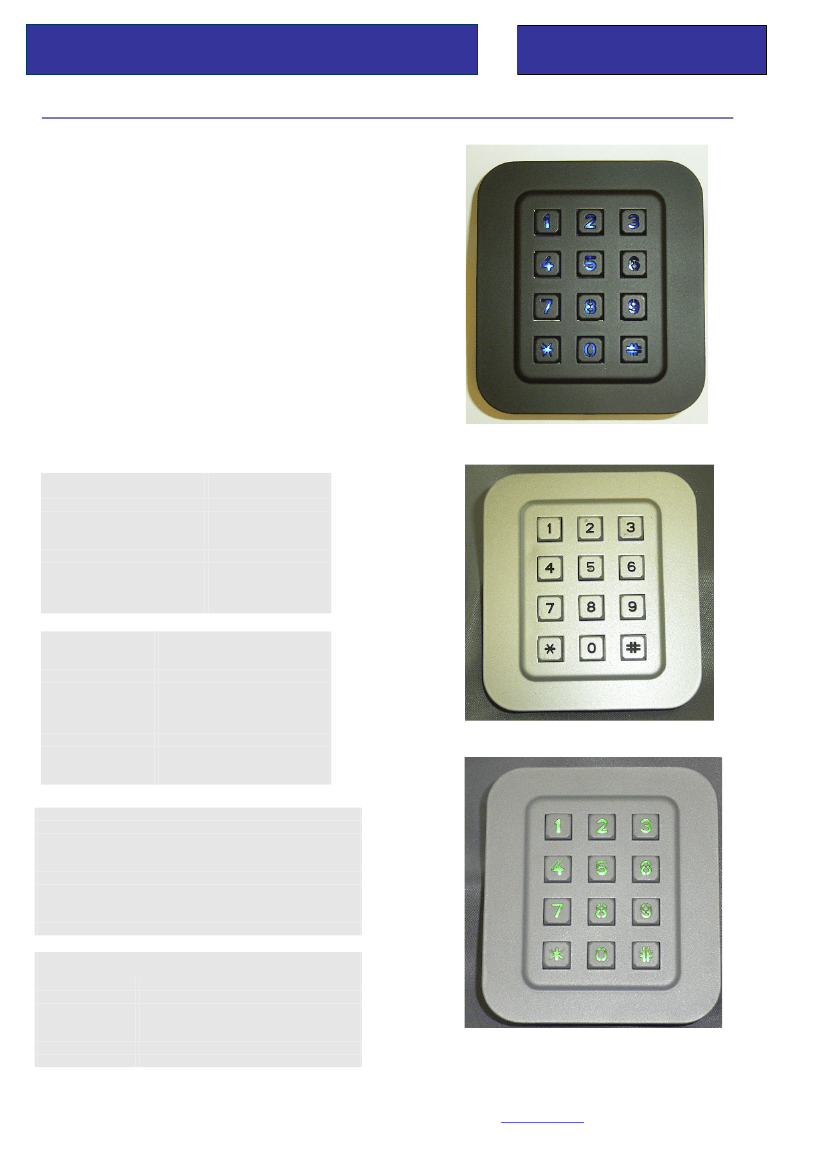

LORLIN METAL KEYPADS
RoHS COMPLIANT
GENERAL ELECTRICAL & MECHANICAL SPECIFICATION
GENERAL FEATURES
• AVAILABLE IN 1,2,3,4,12 & 16 WAY
• LED ILLUMINATED & NON-ILLUMINATED
• ROBUST RELIABLE SMOOTH KEY ACTION
• SEALED TO IP 65
• IMPACT TESTED TO IK 07
• KEY LIFE OF OVER 2 MILLION CYCLES
• FRONT OR REAR MOUNT ASSEMBLY
• FRONT BEZEL FOR HIDDEN FIXINGS
• SIMPLE CONNECTION TO MALE 0.1”PITCH
HEADER
• MATT BLACK, MATT GREY, BRUSHED CHROME
KEY – BEZEL – BASEPLATE COMBINATION
MATT BLACK with BLUE LED
ELECTRICAL
Contact Rating
Breakdown Voltage
Insulation Resistance
Contact Resistance
Contact Bounce
LED (total illuminated) Typ
(not individually switchable)
20mA @ 24Vdc (max)
500V AC (max )
50 Mohms (min)
2005 (max)
< 5ms
If = 30mA max @ 24V
(resistor dependant)
MECHANICAL
Operational Life
Key Travel (stroke)
Actuating Force
Connector
MATERIAL
Casing
Keys
Contact Circuit
ENVIRONMENTAL
Water / Dust Sealed
Operating Temp
(non-illum
)
Operating Temp
(illum)
Impact
ACCESSORIES
Bezel
Keytops Customised
IP 65
(When mounted to suitable enclosure)
-40ºC to +80 ºC (dry)
-40ºC to +80 ºC (dry)
IK 07
Powder-Coated Die Cast Zinc
Legends
Powder-Coated Die Cast Zinc
Powder-Coated Die Cast Zinc
Gold on Nickel plated FR4
>2,000,000 Cycles per key
1.5mm +/- 0.2mm
120+/-30gms
0.1” pitch, square pin, Male connector
BRUSHED CHROME NON- ILLUMINATED
CUSTOMER OPTIONS
Choose 1 option per category
1. Casing Colour
Matt Grey / Brushed Chrome / Matt Black
2. Key Format
Telephone / Calculator / Customer
3. Key Colour
Matt Grey / Brushed Chrome / Matt Black
4. Key Legends
For options contact Lorlin Sales
5. Illuminated Keys Required / NOT Required
6. Key Colours
Blue / Red / Green / White / Yellow

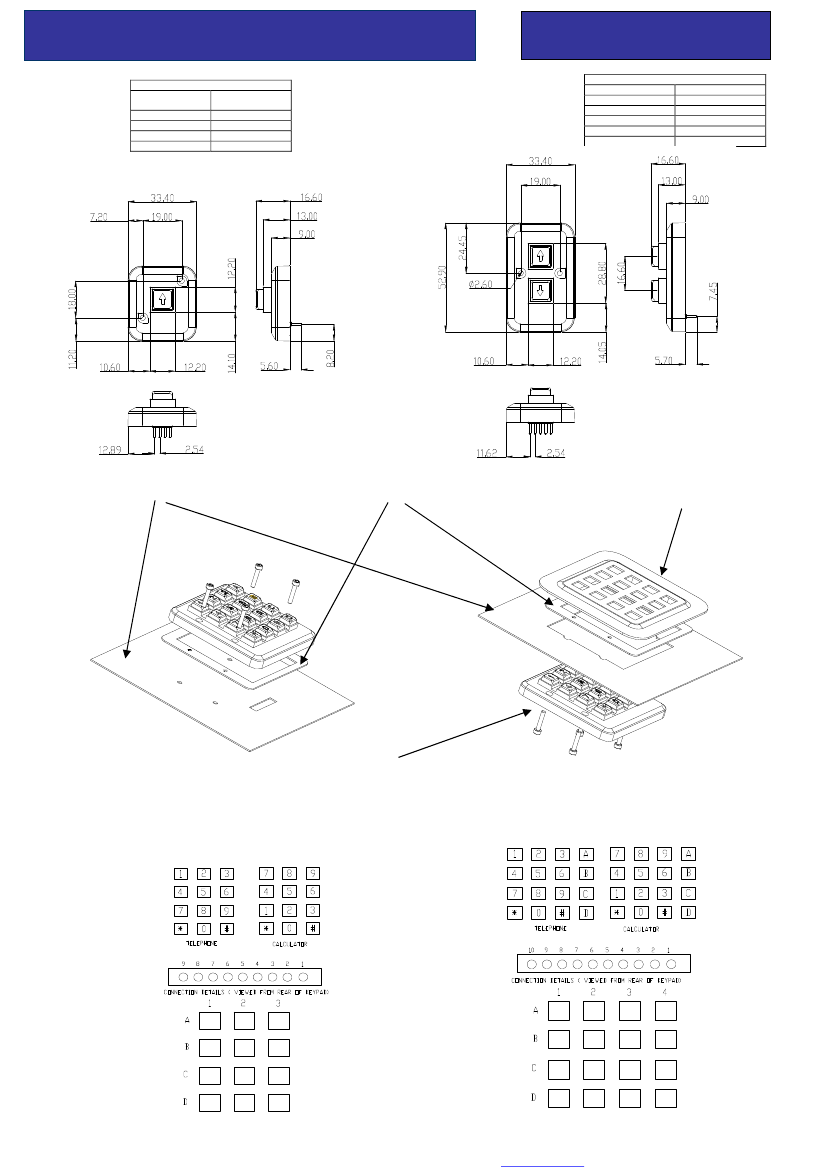

7. Rear Mounting Bezel & Gasket Part Number ---- KPF
MATT GREY with GREEN LED
Lorlin Electronics Ltd, Harwood Industrial Estate, Harwood Rd, Littlehampton, W. Sussex BN17 7AT England
Tel (+44) 01903 725121 Fax (+44) 01903 726808 E-mail
sales@lorlin.co.uk
1
