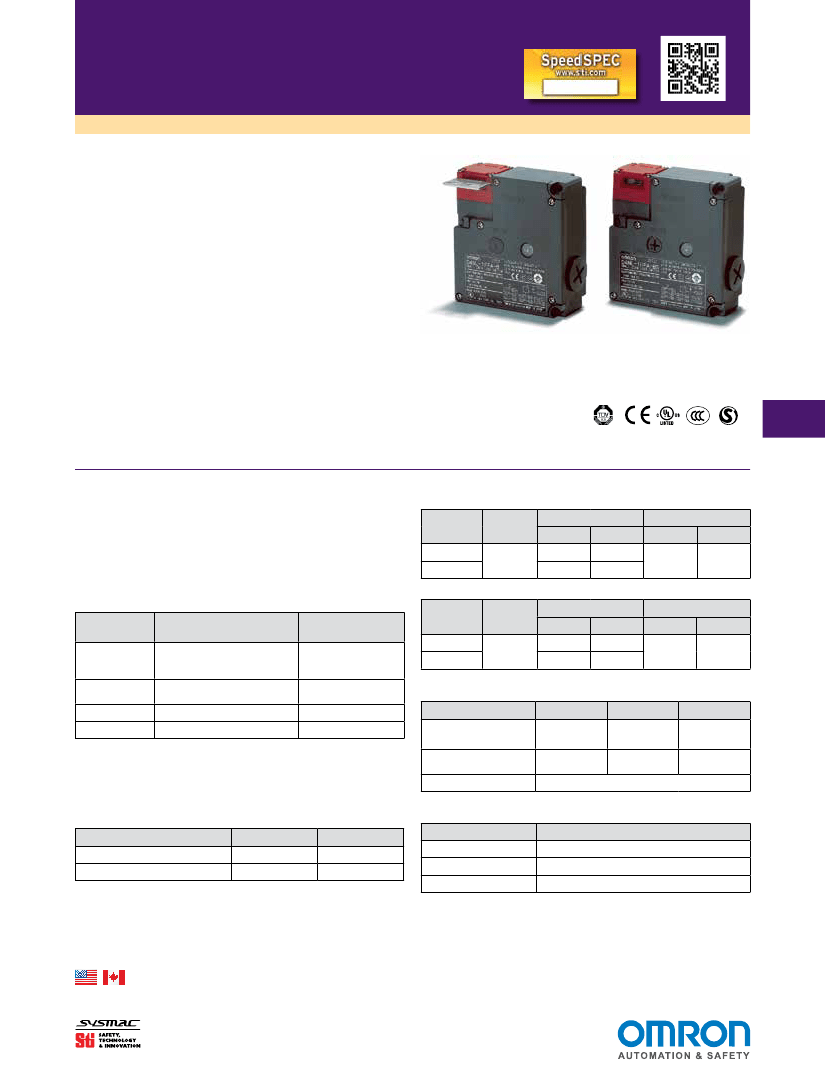

• Best-selling guard lock safety-door switch available in several
compact, multi-contact models
• Selectable Operation Key insertion direction and adjustable
mounting ensure installation flexibility
• Built-in switches with multiple-contact construction are available
• Key holding force of 1,300 N minimum
• Can be used for either standard loads or microloads
• Lineup includes models with a conduit size of M20
• IP67 degree of protection
• Variety of metallic heads available
• A Rapid Delivery Product: Select models are available for
shipment today or within 3 to 5 days
D4NL
For full product information, visit www.sti.com. Use the SpeedSpec Code or scan the QR Code for quick access to the specific web page.
S
G
Specifications
Standards and EC Directives
Conforms to the following EC Directives:
• Machinery Directive
• Low Voltage Directive
• EN 1088
• EN 60204-1
• GS-ET-19
Certified Standards
Certification
body
TÜV SÜD
UL *1
CQC (CCC)
KOSHA *2
Standard
EN 60947-5-1
(certified direct opening)
UL 508, CSA C22.2 No.14
GB14048.5
EN60947-5-1
File No.
Consult your
representative for
details.
E76675
2003010305064267
2005-196
UL/CSA (UL 508, CSA C22.2 No. 14)
A300
Rated
voltage
120 VAC
240 VAC
Q300
Rated
voltage
125 VDC
250 VDC
Carry
current
2.5 A
Current (A)
Make
0.55
0.27
Break
0.55
0.27
Volt-amperes (VA)
Make
69
Break
69
Carry
current
10 A
Current (A)
Make
60
30
Break
6
3
Volt-amperes (VA)
Make
7,200
Break
720
Solenoid Coil Characteristics
Item
Type
24 VDC
24 VDC
-15%
+10%
110 VAC
110 VAC
±10%
Approx.
50 mA
Class F (130°C max.)
230 VAC
230 VAC
±10%
Approx.
30 mA
*1. ertification for CSA C22.2 No. 14 is certified by the UL mark.
C
*2. nly certain models have been certified.
O
Rated operating
voltage (100% ED)
Current consumption
Insulation Class
Approx.
200 mA
Certified Standard Ratings
TÜV (EN 60947-5-1), CCC (GB14048.5)
Item
Utilization category
AC-15
3 A
240 V
DC-13
0.27 A
250 V
Rated operating current (Ie)
Rated operating voltage (Ue)
Indicator Characteristics
Item
Rated voltage
Current consumption
Color (LED)
Type
LED
10 to 115 VAC/VDC
Approx. 1 mA
Orange
Note: Use a 10 A fuse type gI or gG that conforms to IEC 60269 as a short-
circuit protection device. This fuse is not built into the Switch.
Select models are available for Rapid Delivery.
Visit this product on www.sti.com for details..
www.sti.com/info
G15
D4NL
Safety Interlock Switches

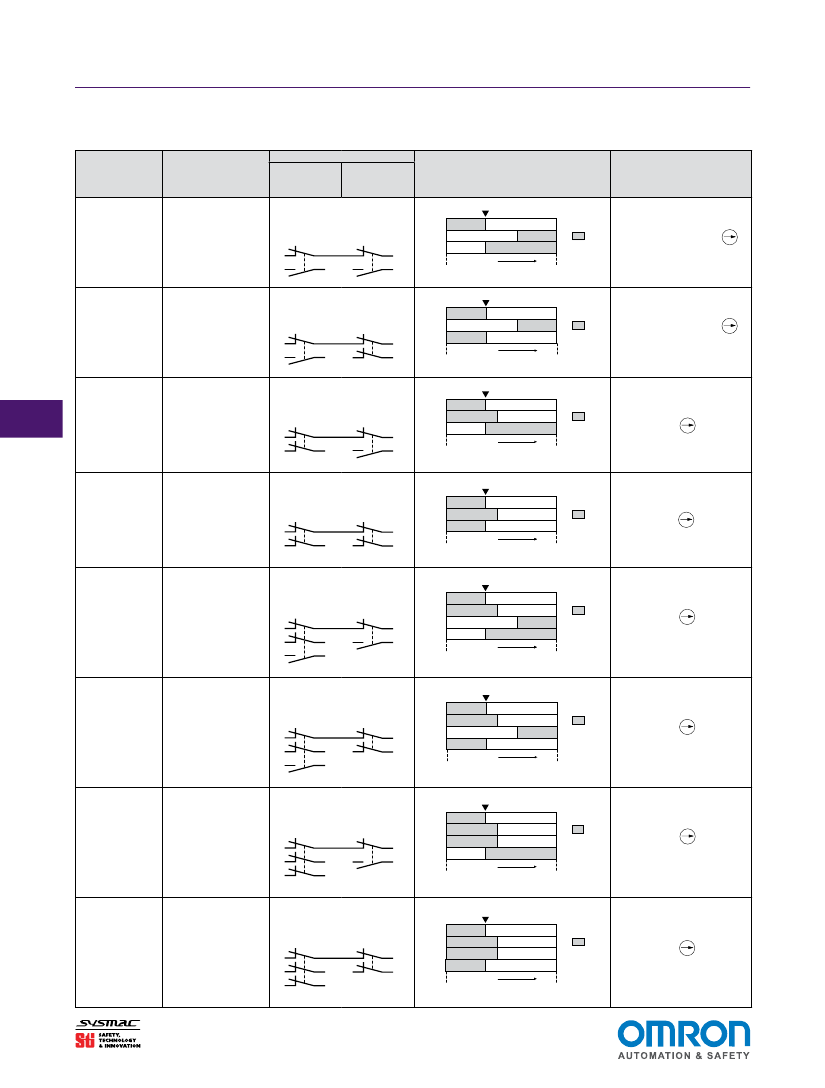

Connections
Contact Form
Indicates conditions where the Key is inserted and the lock is applied. Terminals 12 and 41 are connected internally (as per GS-ET-19).
Contact
(door open/closed
detection and lock
monitor)
Contact form
Door open/
Lock
closed
monitor
detection
Door open/
closed detection
Lock monitor
Model
Operating pattern
Lock position
Remarks
D4NL-□AF□-□
1NC/1NO + 1NC/1NO
Zb
11
33
12
34
41
53
Zb
42
54
11-42
33-34
53-54
Stroke
Operation
Key insertion
completion position
Extraction
completion
position
ON
Only NC contacts 11-12
have a certified direct
opening mechanism.
The terminals 11-42,
33-34, and 53-54 can be
used as unlike poles.
Only NC contacts 11-12
have a certified direct
opening mechanism.
The terminals 11-42,
33-34, and 51-52 can be
used as unlike poles.
Only NC contacts 11-12
and 31-32 have a
certified direct opening
mechanism.
The terminals 11-42,
31-32, and 53-54 can be
used as unlike poles.
Only NC contacts 11-12
and 31-32 have a
certified direct opening
mechanism.
The terminals 11-42,
31-32, and 51-52 can be
used as unlike poles.
Only NC contacts 11-12
and 21-22 have a
certified direct opening
mechanism.
The terminals 11-42,
21-22, 33-34, and 53-54
can be used as unlike
poles.
Only NC contacts 11-12
and 21-22 have a
certified direct opening
mechanism.
The terminals 11-42,
21-22, 33-34, and 51-52
can be used as unlike
poles.
Only NC contacts 11-12,
21-22, and 31-32 have a
certified direct opening
mechanism.
The terminals 11-42,
21-22, 31-32, and 53-54
can be used as unlike
poles.
Only NC contacts 11-12,
21-22, and 31-32 have a
certified direct opening
mechanism.
The terminals 11-42,
21-22, 31-32, and 51-52
can be used as unlike
poles.
Lock position
Door open/
closed detection
Lock monitor
D4NL-□BF□-□
1NC/1NO + 2NC
11
33
Zb
12
34
41
51
Zb
42
52
11-42
33-34
51-52
Stroke
Operation
Key insertion
completion position
Extraction
completion
position
ON
Lock position
G
Door open/
closed detection
Lock monitor
D4NL-□CF□-□
2NC + 1NC/1NO
11
31
Zb
12
32
Zb
41
53
42
54
11-42
31-32
53-54
Stroke
Operation
Key insertion
completion position
Extraction
completion
position
ON
Lock position
Door open/
closed detection
Lock monitor
D4NL-□DF□-□
2NC + 2NC
Zb
11
31
12
32
41
51
Zb
42
52
11-42
31-32
51-52
Stroke
Operation
Key insertion
completion position
Extraction
completion
position
ON
Lock position
Door open/
closed detection
Lock monitor
Zb
Zb
12
22
34
41
53
42
54
D4NL-□EF□-□
2NC/1NO + 1NC/1NO
11
21
33
11-42
21-22
33-34
53-54
Stroke
Operation
Key insertion
completion position
Extraction
completion
position
ON
Lock position
Door open/
closed detection
Lock monitor
Zb
Zb
12
22
34
41
51
42
52
D4NL-□FF□-□
2NC/1NO + 2NC
11
21
33
11-42
21-22
33-34
51-52
Operation
Key insertion
completion position
ON
Stroke
Extraction
completion
position
Lock position
Door open/
closed detection
Lock monitor
D4NL-□GF□-□
3NC + 1NC/1NO
Zb
11
21
31
12
22
32
41
53
Zb
42
54
11-42
21-22
31-32
53-54
Operation
Key insertion
completion position
ON
Stroke
Extraction
completion
position
Lock position
Door open/
closed detection
Lock monitor
Zb
Zb
12
22
32
41
51
42
52
D4NL-□HF□-□
3NC + 2NC
11
21
31
11-42
21-22
31-32
51-52
Stroke
Operation
Key insertion
completion position
Extraction
completion
position
ON
G16
www.sti.com/info
D4NL
Safety Interlock Switches

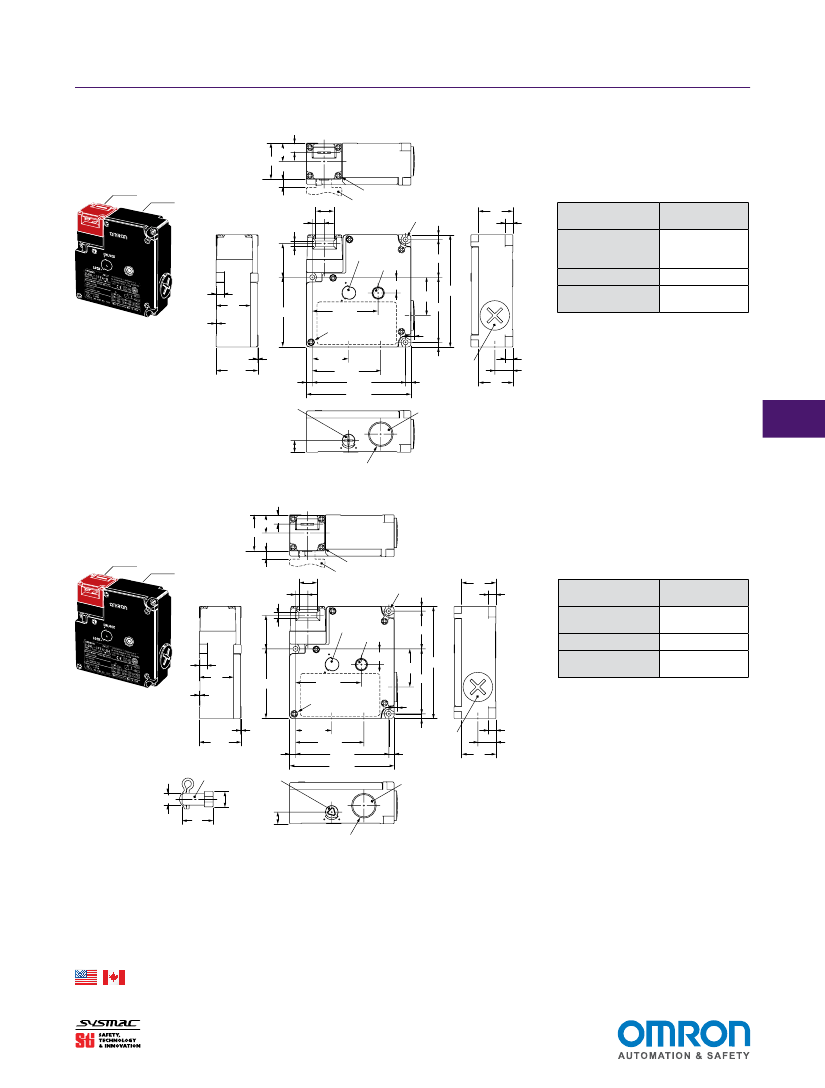

Dimensions and Operating Characteristics
Switches
D4NL-□□□□-B
15.5
30.5
Pre-travel distance
8
(mm)
Red
Black
10.0
15.3
Four, head mounting screws
Operation Key
Three, 4.3-dia. holes
4
29
6.5
Operating
characteristics
Key insertion force
Key extraction
force
Pre-travel distance
Movement before
being locked
D4NL-□□□□-
BS
15 N max.
30 N max.
9 mm max.
3 mm min.
28.5 4.4
Dummy cap
Indicator
UNLOCK
32
±0.2
6.5
29
0.5
59
(13.3)
LOCK
(55.8)
Five, cover
mounting screws
(32.3)
55
±0.2
(3)
(95)
4
0.5
35.5
5
Release key
(30.7)
(57.9)
79
±0.2
(88.5)
Conduit cap
4.5
Cap screw
29
6.5
(15.3)
G
(10)
UNLOCK
LOCK
Conduit opening
D4NL-□□□□-B4
15.5
30.5
8
Red
Pre-travel distance
Black
10.0
15.3
Four, head mounting screws
Operation Key
Three, 4.3-dia. holes
4
29
6.5
Operating
characteristics
Key insertion force
Key extraction force
Pre-travel distance
Movement before
being locked
D4NL-□□□□-
B4
15 N max.
30 N max.
9 mm max.
3 mm min.
28.5 4.4
Dummy cap
Indicator
UNLOCK
32
±0.2
6.5
29
0.5
59
(13.3)
LOCK
(55.8)
Five, cover
mounting screws
(95)
(32.3)
55
±0.2
(3)
4
Cap screw
4.5
Conduit cap
29
6.5
(15.3)
0.5
35.5
5
M8 hexagonal material
or equivalent
8
21
Releasing tool
Release key
(provided)
10.5
(10)
(30.7)
(57.9)
79
±0.2
(88.5)
UNLOCK
LOCK
Conduit opening
Notes:
1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
2. There are fluctuations in the contact ON/OFF timing for Switches with multiple poles (2NC, 2NC/1NO, or 3NC). Confirm performance before application.
Select models are available for Rapid Delivery.
Visit this product on www.sti.com for details..
www.sti.com/info
G17
D4NL
Safety Interlock Switches

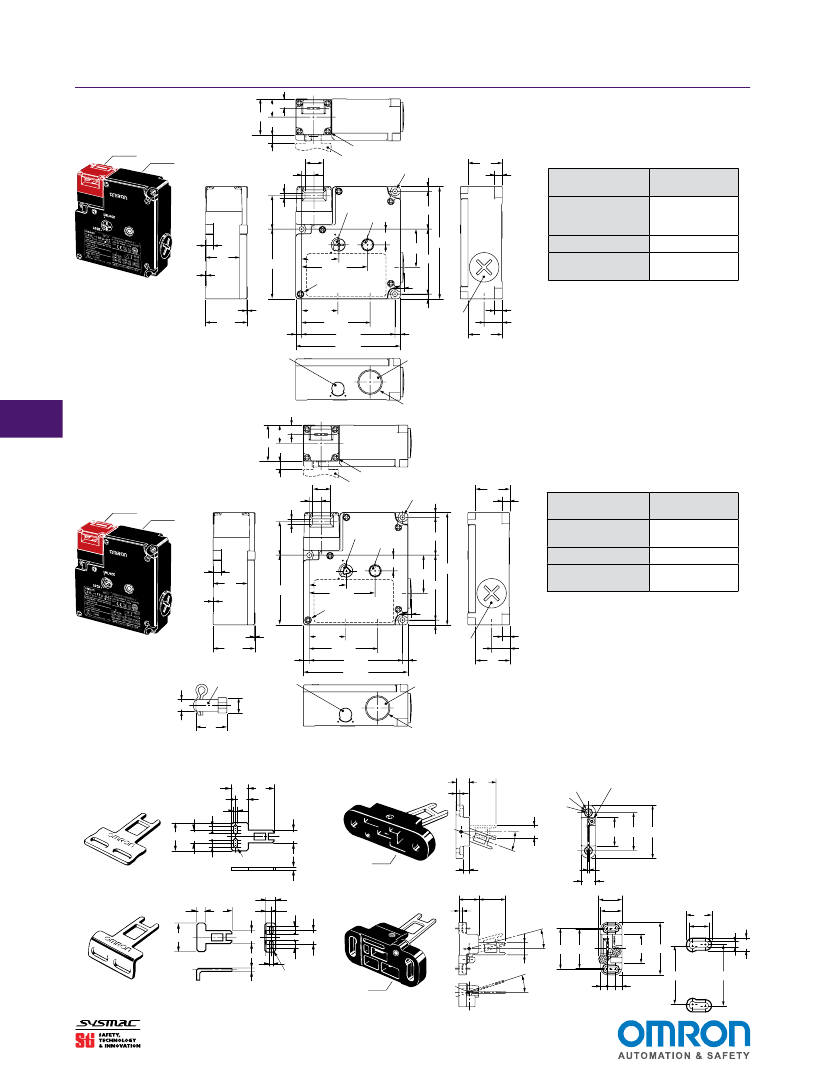

Dimensions and Operating Characteristics (continued)

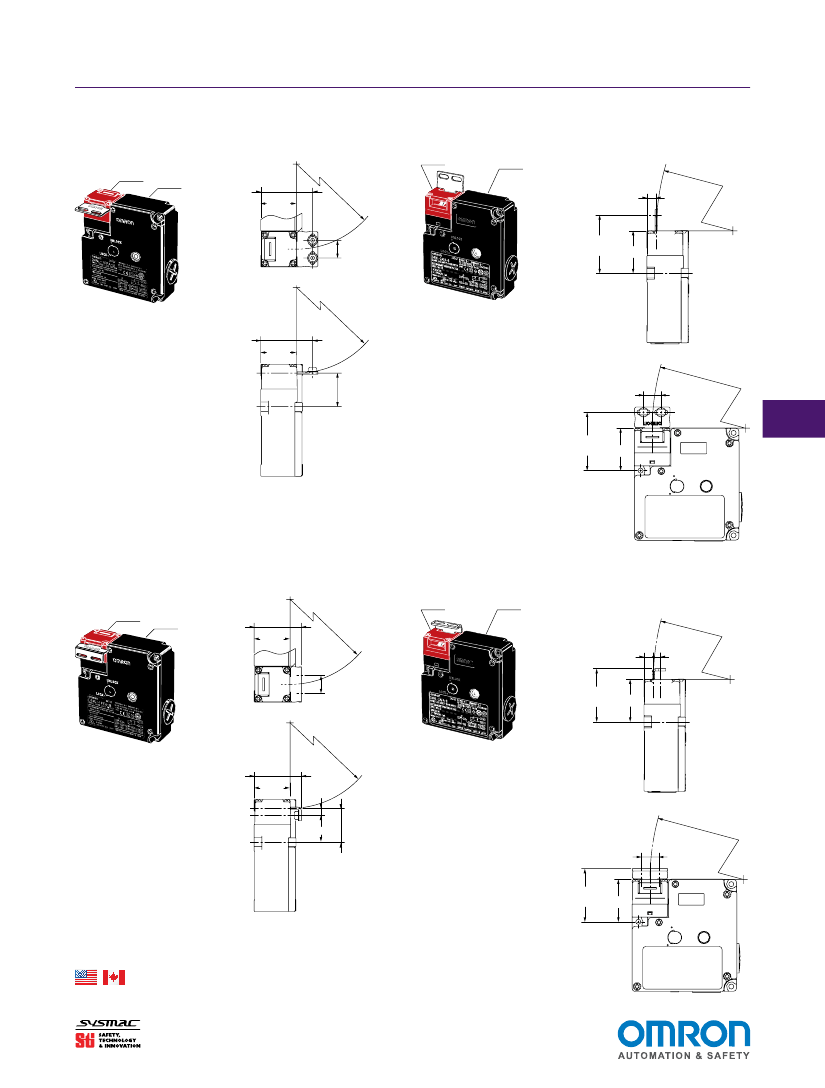

D4NL-□□□□-BS
15.5
30.5
Pre-travel distance
8
(mm)
Red
Black
10.0
15.3
Four, head mounting screws
Operation Key
Three, 4.3-dia. holes
4
29
6.5
Operating
characteristics
Key insertion force
Key extraction
force
Pre-travel distance
Movement before
being locked
D4NL-□□□□-
BS
15 N max.
30 N max.
9 mm max.
3 mm min.
28.5 4.4
Release key
Indicator
UNLOCK
32
±0.2
6.5
29
0.5
59
(13.3)
LOCK
(31.5)
(55.8)
Five, cover
mounting screws
(95)
(32.3)
55
±0.2
(3)
4
Cap screw
4.5
Conduit cap
29
6.5
(15.3)
0.5
35.5
5
Dummy cap
(30.7)
(57.9)
79
±0.2
(88.5)
UNLOCK
LOCK
Conduit opening
G
D4NL-□□□□-B4S
15.5
30.5
Pre-travel distance
8
15.3
Red
10.0
Four, head mounting screws
Operation Key
Three, 4.3-dia. holes
4
29
6.5
Black
28.5 4.4
Release key
Indicator
UNLOCK
Operating
characteristics
Key insertion force
Key extraction force
Pre-travel distance
Movement before
being locked
D4NL-□□□□-
B4S
15 N max.
30 N max.
9 mm max.
3 mm min.
32
±0.2
6.5
29
0.5
59
(13.3)
LOCK
(31.5)
(55.8)
Five, cover
mounting screws
(30.7)
(57.9)
79
±0.2
(88.5)
(32.3)
55
±0.2
(3)
(95)
4
Cap screw
4.5
Conduit cap
29
6.5
(15.3)
0.5
35.5
5
Releasing tool
Dummy
(provided)
cap
10.5
21
M8 hexagonal material
or equivalent
8
Notes:
1. Unless otherwise specified, a tolerance
of ±0.4 mm applies to all dimensions.
2. There are fluctuations in the contact
ON/OFF timing for Switches with multiple
poles (2NC, 2NC/1NO, or 3NC). Confirm
performance before application.
UNLOCK
LOCK
Conduit opening
Operation Keys
D4DS-K1
7
30
15
7
Four, 2.15R
17.5
13
4.3
13
Black
28
D4DS-K3
14
4
28
8 dia.
4.5 dia.
9 dia.
Angle adjustment bolt
13
20°
2
6.3
15
28
2
30
40
56
D4DS-K2
9
30
28
6
10.5
7
15
7
Four, 2.15R
D4DS-K5
20.9
4
24.6
22.5
Mounting Holes
(Enlargement)
17
15
4.5
8
13
15°
43
13
Black
18°
41
30
55
41
43
2 4.3
6.5
18
(7)
G18
www.sti.com/info
D4NL
Safety Interlock Switches
Dimensions and Operating Characteristics (continued)
I recently started to get involved in audio. In order to save manpower and trouble without reducing reliability, the board power supply basically uses Mean Well's switching power supply. Some models o...
[b][size=4][color=#0000ff]As lithium battery applications become more frequent, we have compiled a book on charge management chips to share with you.[/color][/size][/b] [b][size=4][color=rgb(0,0,255)]...
When STM32 writes Winbond w25X16, it reads correctly but cannot write into it. You can use your own program to read the string written by the routine, but your own program cannot write into it. /*Stri...
A year has passed in the blink of an eye, and I have to sigh that time is like flowing water, and time is like a white horse passing by. I have to wonder how people feel about the time that has passed...
Hey guys, has anyone used PIC microcontroller to code the digital tube display program of HC-SR04 ultrasonic module? I need help, please give me some advice....
TD-SCDMA (Time Division Synchronous Code Division Multiple Access) is one of the three major standards for the third generation of mobile communications. It is a communication standard with indepen...[Details]
In today's society, heart disease has seriously affected people's life safety. Many patients with sudden heart attacks are threatened because they cannot get timely treatment. Traditional ECG monito...[Details]
Digital signal processors have efficient numerical computing capabilities and can provide a good development environment, while programmable logic devices have highly flexible configurability. This...[Details]
Overview
PS pressure sensor is an electronic pressure sensor made of semiconductor diaphragm structure. It can convert the physical quantity of air pressure into electrical signals and detect ...[Details]
Designers of hearing aids have stringent requirements. Hearing aids must be small enough to fit in or behind the ear, operate on ultra-low power, and be free of noise or distortion. To meet these requ...[Details]
Overview
Bioelectric signals are very weak, and there is strong interference when detecting them. Therefore, there are many technical difficulties in designing high-quality bioelectric ampli...[Details]
The 21st century is the century of life and health. The rapid progress of life sciences continues to promote human understanding of their own health and diseases. How to develop innovative medical ele...[Details]
Currently, it is impossible to dynamically obtain patient information in medical monitoring. Once the patient's condition worsens, emergency treatment cannot be implemented in the first place, and the...[Details]
With the development of automatic control technology, the application of precision air pressure generation and control technology is becoming more and more extensive. However, the traditional valve...[Details]
JTAG Technology Introduction
One disadvantage of shrinking technology is that the complexity of testing small devices increases dramatically. When the board area is large, the board is tested...[Details]
Engineers who are new to wireless design and wireless product development need to master the basics of
RF measurement
. In many cases, this process is to enable engineers who have been engag...[Details]
0Introduction
In oil drilling, accurate measurement of wellbore posture is the premise of wellbore trajectory control. To this end, this paper fully combines the advantages of single-chip ...[Details]
Lithium-ion batteries have a high energy-to-weight and energy-to-volume ratio, no memory effect, can be recharged many times, have a long service life, and are becoming increasingly cheaper. A good...[Details]
Wireless personal area networks (or WPANs) are particularly useful for sensing, monitoring, and control applications. Cost-effective WPANs have the unique potential to implement wireless connectivi...[Details]
introduction
When we run or ride a bicycle, the vibration of our arms often makes the images displayed on the electronic devices in our hands look blurry. Long-term viewing (such as watchi...[Details]
Power technology
京公网安备 11010802033920号
EEWORLD
