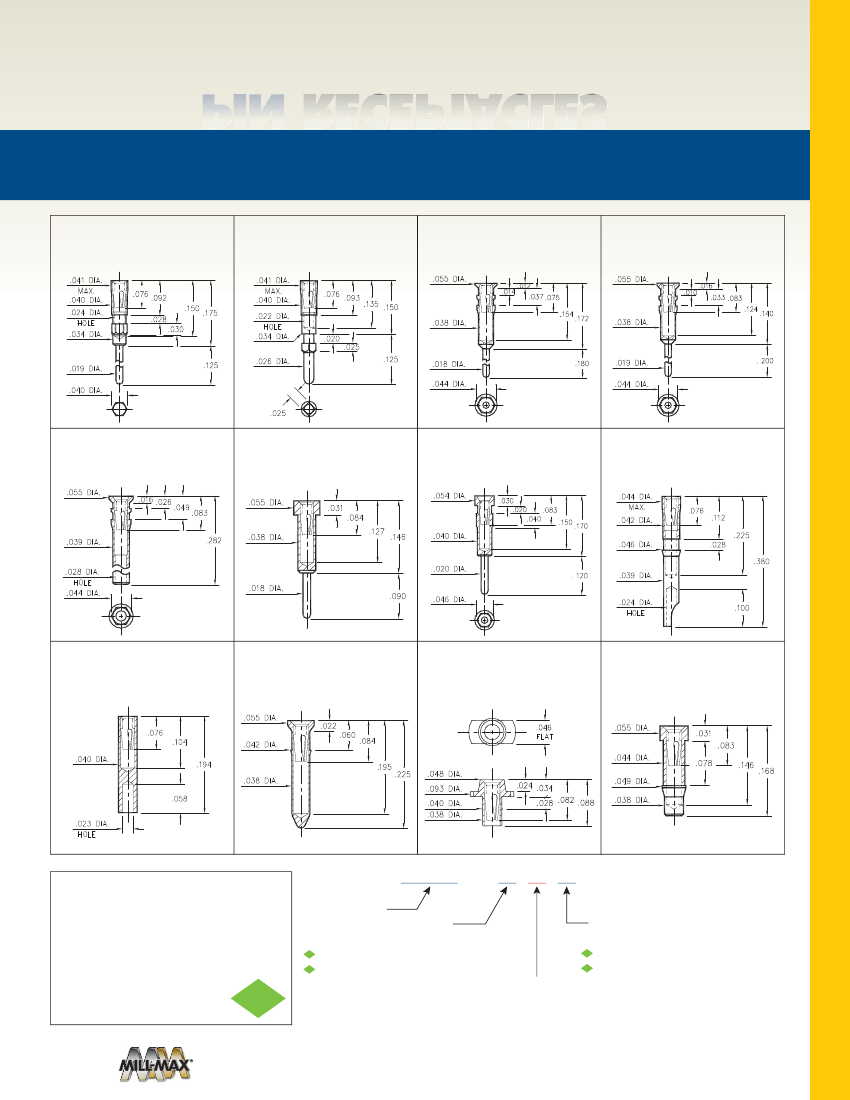

PIN
RECEPTACLES
FOR .015” - .020” DIAMETER PINS (#11 CONTACT)
AND .015” - .022” DIAMETER PINS (#21 CONTACT)
(SEE SPECIFIC CONTACT RANGE ON PAGE 251)
8467
8467-0-15-XX-21-XX-04-0
Hex press-fit in .036 plated through-hole
6192
6192-0-15-XX-21-XX-04-0
Square press-fit in .032 plated through-hole
9553
9553-0-15-XX-X1-XX-04-0
Hex press-fit in .041 plated through-hole
5531
5531-0-15-XX-21-XX-10-0
Hex press-fit in .041 plated through-hole
7553
7553-0-15-XX-11-XX-10-0
Hex press-fit in .041 plated through-hole
9407
9407-0-15-XX-11-XX-10-0
Solder mount in .040 min. mounting hole
9462
9462-0-15-XX-21-XX-04-0
Hex press-fit in .043 plated through-hole
1147
1147-0-18-XX-21-XX-10-0
Press-fit in .043 min. mounting hole
Accepts wire sizes up to .014” dia.
3061
3061-0-19-XX-21-XX-10-0
Wire Crimp Termination. Accepts wire
sizes 28 AWG Max. / 32 AWG Min.
0579
0579-0-15-XX-X1-XX-10-0
Press-fit in .040 mounting hole
8874
8874-0-15-XX-11-XX-10-0
Bottom entry surface mount
See page 152 for application details
0613
0613-0-15-XX-21-XX-10-0
Press-fit in .047 mounting hole
SPECIFICATIONS:
Shell Material:
Brass Alloy 360, 1/2 Hard
Contact Material:
Beryllium Copper Alloy 172, HT
Dimensions: Inches
Tolerances On:
Lengths:
± .005
RoHS - 2
2011/65/EU
ORDER CODE: XXXX - X - 1X - XX -
XX
- XX - XX - 0
BASIC PART #
SPECIFY SHELL FINISH:
01
200
”
TIN/LEAD OVER NICKEL
80
200
”
TIN OVER NICKEL (RoHS)
15
10
”
GOLD OVER NICKEL (RoHS)
SPECIFY CONTACT FINISH:
02
100
”
TIN/LEAD OVER NICKEL
84
100
”
TIN OVER NICKEL (RoHS)
27
30
”
GOLD OVER NICKEL (RoHS)
Diameters: ± .002
Angles:
±2°
SELECT CONTACT:
#11 or #21
CONTACT (DATA ON PAGE 251)
(For alternate contact choices, see group A on page 248)
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
PAGE 159 | PIN RECEPTACLES
