101-TS6711T1602-EV: DescriptionTactile Switches 6x6mm 160gf BROWN; CategoryTopical application Mechanical and electrical/engineering/automation; File Size72KB，1 Pages; ManufacturerMountain Switch

Download Datasheet Parametric Compare View All

101-TS6711T1602-EV Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	101-TS6711T1602-EV	-	-	View	Buy Now

101-TS6711T1602-EV Overview

Tactile Switches 6x6mm 160gf BROWN

101-TS6711T1602-EV Parametric

Parameter Name	Attribute value
Product Category	Tactile Switches
Manufacturer	Mountain Switch
RoHS	Details
Mounting Style	Through Hole
Stem Height	3.5 mm
Actuator	Round
Operating Force	1.6 N
Current Rating	50 mA
Voltage Rating DC	12 VDC
Contact Form	SPST
Termination Style	Solder Pin
Color	Black
Length	6.2 mm
Width	6.2 mm
Height	3.1 mm
Packaging	Tube
Contact Plating	Silver
Operating Temperature Range	- 25 C to + 70 C
Factory Pack Quantity	75
Unit Weight	0.009379 oz

Preview

Download Datasheet

View All

Last Update:

06-11-12

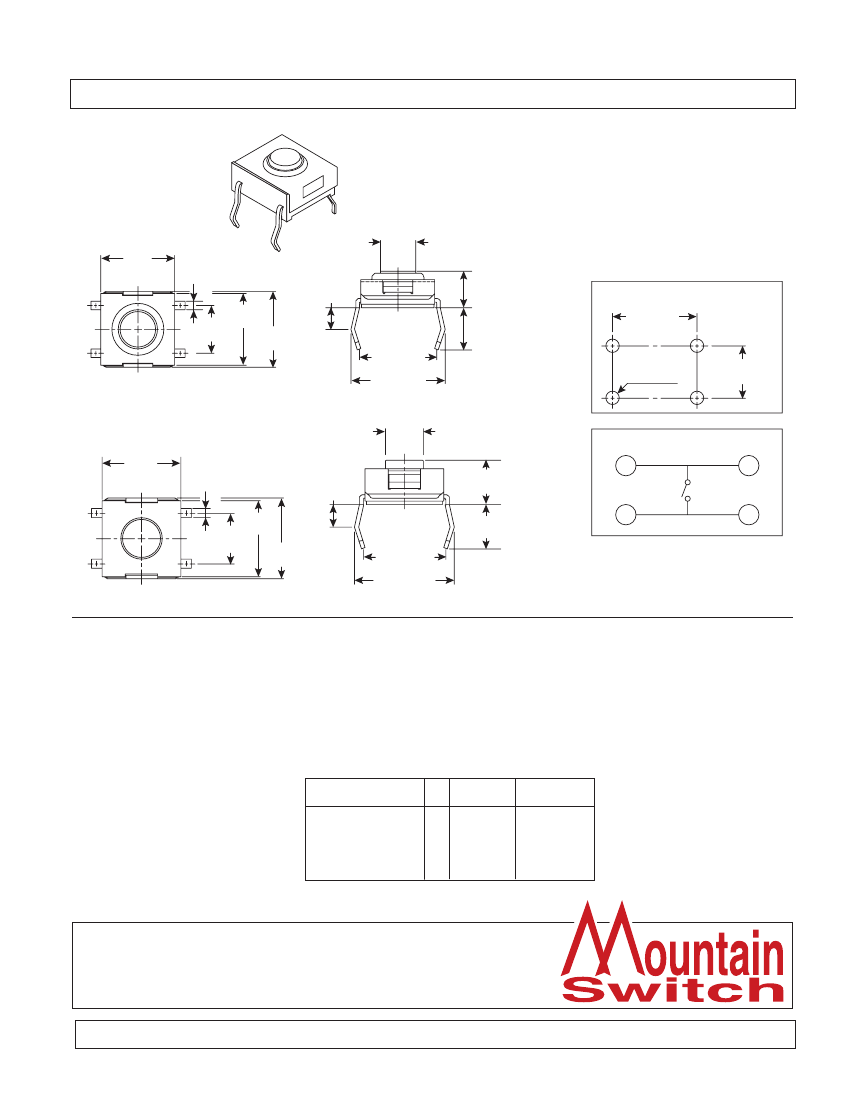

Dimensions: mm (In.)

Ref. #:

MS-100635

Fig. 1

6.20

(.244)

.70

(.027)

4 (.236)

6.30

(.157)

(.248)

ø3

(ø.118)

1.80±.50

(.071±.02)

3.10±.20

(.122±.008)

3.50±.50

(.138±.02)

6.50±.50

(.256±.02)

7.90±.50

(.311±.02)

ø3.0

(ø.118)

P.C.B. Layout

6.50±.10

(.256±.004)

4±.10

(.157±.004)

4xø1±.05

(.04±.002)

Fig. 2

6.20

(.244)

.70

(.027)

(.236)

(.157)

6.30

(.248)

1.80±.50

(.071±.02)

Circuit Diagram

3.50±.50

(.138±.02)

6.50±.50

(.256±.02)

7.90±.50

(.311±.02)

Mechanical Specifications:

•

Type: SPST

•

Operation Force:

360 ± 90gf, Transparent TS6711T2604,

TS6711T2605, TS6711T3605

260 ± 70gf Red TS6711T2603

180 ± 50gf Brown TS6711T1803

160 ± 50gf Brown TS6711T1602

•

Stop Strength: Max 3kgf vertical static load

continuously for 15 seconds

Stroke: 0.25 +0.20 / -0.1mm

0.6 ±0.2mm

0.45 ±0.2mm

Operating Temperature: -25°C to +70°C

Storage Temperature: -30°C to +80°C

Materials:

•

Cover: Stainless steel

•

Contact Disc: Phosphor bronze with silver cladding

•

Terminal: Brass with silver cladding

•

Base: Nylon hifh-temp. thermoplastic, black

•

Stem: High-temp thermoplastic nylon

•

Adhesive Tape: Resin-based

•

Metal Stem: Silicone Rubber

Note:

•

RoHS Compatible and process

compatible with 260˚ solder.

Mouser

Stock No.

101-TS6711T1602-EV

101-TS6711T1803-EV

101-TS6711T2603-EV

101-TS6711T2604-EV

101-TS6711T2605-EV

101-TS6711T3605-EV

Fig.

Height

(mm)

3.5

3.8

5.2

Electrical Life

(Cycles min)

100K

500K

Electrical Specifications:

•

Rating: 50mA/12VDC

•

Contact Resistance: 100m max.

•

Insulation Resistance: 100M min. at 500VDC

•

Dielectric Strength: 250VAC/ minute

Tactile Switches

101-TS6711T1602-EV, 101-TS6711T1803-EV

101-TS6711T2603-EV, 101-TS6711T2604-EV

101-TS6711T2605-EV, 101-TS6711T3605-EV

Available from Mouser Electronics

www.mouser.com

1-800-346-6873

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
