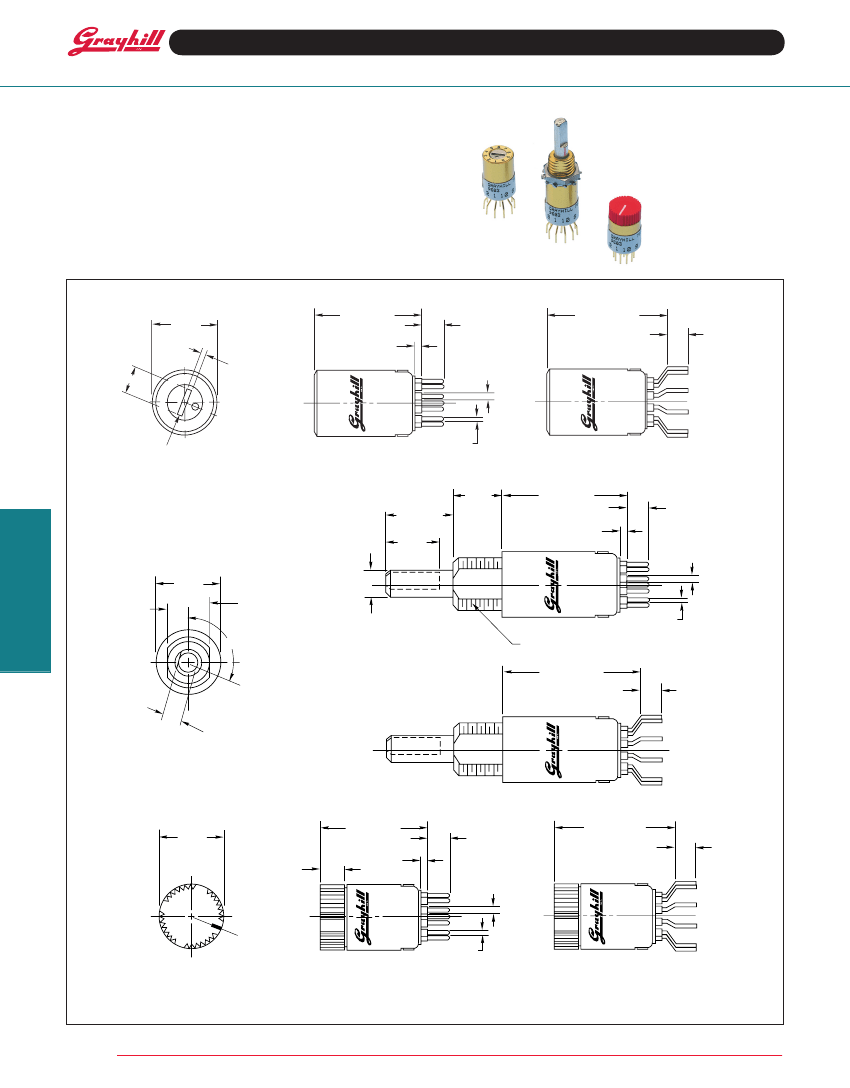

Single Deck Rotary Switches
SERIES 75
0.3" Diameter, 200 mA
FEAtuRES
• Small Size
• Flush, Shafted, or Knobbed Shaft
DIMENSIONS
in inches (and millimeters)
.298 ± .010
(7,57 ± 0,25)
DIA.
Screwdriver Actuated
.489 ± .020
(12,42 ± 0,51)
.032 (0,81)
REF.
.109 ± .010
(2,77 ± 0,25)
SHOULDER
DIAMETER
Ø .031 ± .002
(0,79 ± 0,05)
.539 ± .020
(13,69 ± 0,51)
.109 ± .010
(2,77 ± 0,25)
.125 ± .005
(3,18 ± 0,13)
5
6
7
8
9
0
1
9
10
10
9
.020 ± .005
(0,51 ± 0,13)
1
Rear view shown
on next page.
2
SCREWDRIVER SLOT
.032 ± .010
(0,81 ± 0,25) DEEP
Style AP
TERMINAL
DIAMETER
Ø .015 ± .002
(0,38 ± 0,05)
.250
± .015
(6,35
± 0,38)
Style AF
All dimensions not shown and
front views same as style AP.
.500 ± .020
(12,7 ± 0,51)
.032 (0,81)
REF.
9
2
1
Shaft Actuated
.298 ± .010
(7,57 ± 0,25)
DIA.
10
2
1
10
9
All dimensions not shown and
front views same as style BP.
Integral Knob Actuated
.298 ± .010
(7,57 ± 0,25)
DIA.
.115 ± .010
(2,92 ± 0,25)
.489 ± .020
(12,42 ± 0,51)
.032 (0,81)
REF.
9
.109 ± .010
(2,77 ± 0,25)
SHOULDER
DIAMETER
Ø .031 ± .002
(0,76 ± 0,05)
Style BF
.539 ± .020
(13,69 ± 0,51)
.109 ± .010
(2,77 ± 0,25)
2
1
10
10
9
2
C
OF
L
1
POSITION 1
Style CP
TERMINAL
DIAMETER
Ø .015 ± .002
(0,38 ± 0,05)
Style CF
All dimensions not shown and
front views same as style CP.
Grayhill part number and date code marked on label.
Customer part number marked on request.
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
2
1
2
.375 ± .015
(9,53 ± 0,38)
.250
± .015
(6,35
± 0,38)
.109 ± .010
(2,77 ± 0,25)
SHOULDER
DIAMETER
Ø .031 ± .002
(0,76 ± 0,05)
Rear view shown
on next page.
.203 ± .003
(5,16 ± 0,08)
ACROSS FLATS
OF BUSHING
108°
Ø .125 + .001/ - .002
(3,18 + 0,03/ - 0,51)
3
4
Rotary Switches
Style BP
1/4-32 UNF-2A
THREAD
.550 ± .020
(13,97 ± 0,51)
TERMINAL
DIAMETER
Ø .015 ± .002
(0,38 ± 0,05)
C
OF
L
POSITION 1
.094 ± .015
(2,39 ± 0,38)
.109 ± .010
(2,77 ± 0,25)
Rear view shown
on next page.
Rear view shown
on next page.

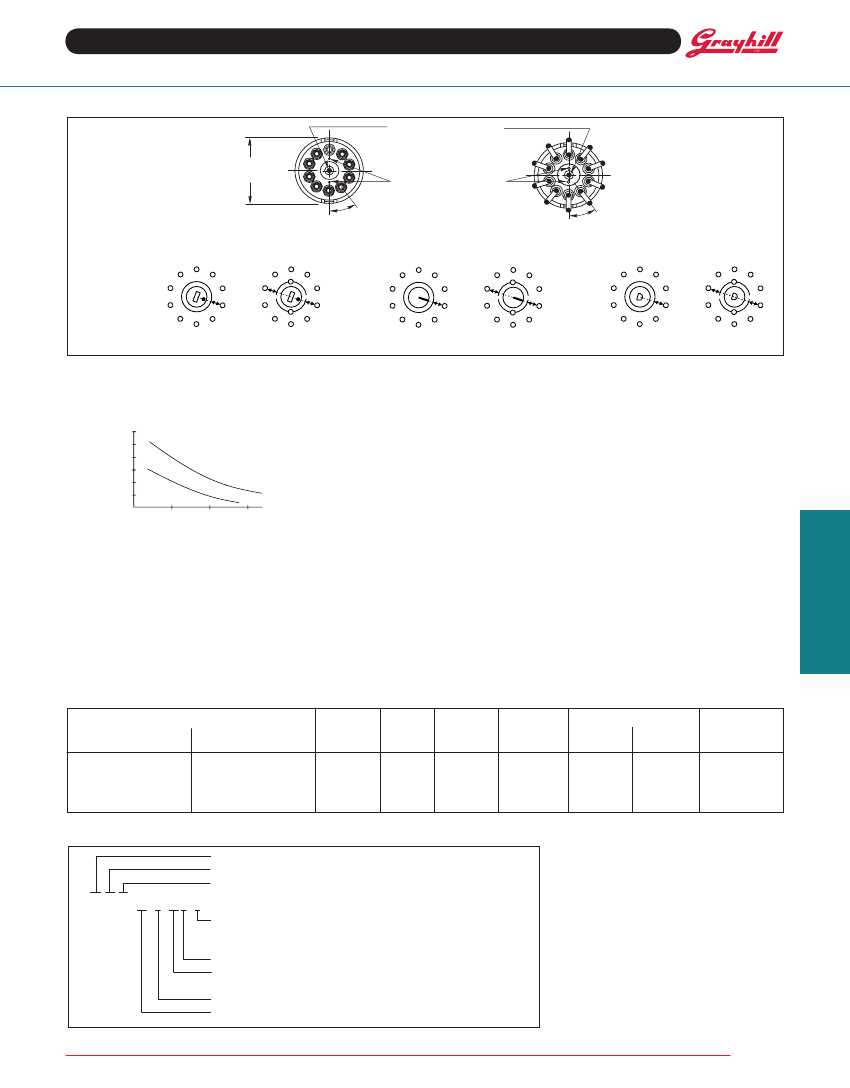

Single Deck Rotary Switches
CIRCuIt DIAgRAMS AND REAR vIEwS
Style P
Circle of terminal centers is
Ø .187 ± .010 (4,75 ± 0,25).
.298 ± .010
(7,57 ± 0,25)
COMMON LOCATION
FOR A SINGLE POLE
SWITCH
COMMON LOCATION
FOR A TWO POLE
SWITCH LOCATED ON
.064 ± .010 (1,63 ± 0,25)
DIA. CIRCLE OF CENTERS
36° ± 3°
TYP.
Style F
Circle of terminal centers is
Ø .300 ± .010 (7,62 ± 0,25).
Dot on actuator is next to contacting position of pole 1.
Screwdriver Actuated
9
10
1
6
5
4
3
7
8
Line on knob points to contacting position of pole 1.
Integral Knob Actuated
9
10
1
6
5
4
TWO POLE
36° ± 3°
TYP.
Shaft flat opposite point of contact of pole 1.
Shaft Actuated
9
10
1
6
5
4
7
36° ANgLE
OF tHROw
7
6
5
4
8
9
10
1
2
6
5
7
8
7
8
9
10
1
6
5
7
8
8
9
10
1
Switch is viewed
from actuator
end and shown in
Position 1.
3
2
4
ONE POLE
TWO POLE
ONE POLE
3
2
3
2
4
3
2
3
2
ONE POLE
TWO POLE
SPECIFICAtIONS
Electrical Ratings
Chart shown for non-shorting (break before
make) contacts, resistive load.
300
B
200
A
100
minimum between mutually insulated parts.
voltage Breakdown:
500 Vac between mutually
insulated parts.
Life Expectancy:
10,000 cycles at 200 milliamps.
One cycle is 360° rotation and a return through
all switch positions to the starting position.
Low Level Rating:
Make and break a 50 mV, 1
milliamp, resistive load for 10,000 cycles with a
maximum contact resistance of 50 milliohms.
Contact Grayhill for information if the life limiting
criteria is more critical than those listed, if the
required cycles of operation are greater than
those listed, if a larger make and break current
is required than the one listed for the desired
number of cycles, or if elevated temperatures
or reduced pressures are part of the operating
environment.
0
0
5
10
15
CYCLES x 1,000
CURVE A: 220 Vac
CURVE B: 115 Vac or 30 Vdc
One cycle is 360° rotation and a return through
all switch positions to the starting position. The
data for the curve was measured at sea level,
25°C and 68% relative humidity with the following
limiting criteria:
Contact Resistance:
50 milliohms maximum
(15 milliohms initially).
Insulation Resistance:
10,000 Mohms
Bushing: Brass, tin zinc plating
Stop Pin:
Stainless steel, passivated
Detent Balls:
Steel, nickel-plated
Detent and Contact Springs:
Tinned music
wire
Rotor Contact:
Silver cad-oxide, gold-plated
terminals and Common:
Brass, gold plate
.00002" minimum thickness over silver plate
.0003" minimum.
Shaft in Style BF or BP:
Zinc
Integral Knob and Detent Rotor in Style CF
or CP:
Red Thermoplastic
Mounting Hardware for Style BF or BP:
One
mounting nut .062" thick by .312" across flats
and one external tooth lockwasher supplied with
each switch. Mounting nut is brass, zinc plated
and lockwasher is spring steel.
CURRENT
(MILLIAMPS)
Rotary Switches
Materials and Finishes
Additional Characteristics
Switch Base:
Diallyl per MIL-M-14
Detent Cover and Detent Rotor in Styles AP,
AF, BP, and BF:
Phenolic per MIL-M-14
CHOICES AND LIMItAtIONS
Style and Designation
Ø 0.187 (4,75)
Ø 0.300 (7,62)
Circle of term.
Circle of term.
AP = Screwdriver
Actuated
BP = Shaft Operated
CP = Integral Knob
AF = Screwdriver
Actuated
BF = Shaft Operated
CF = Integral Knob
Angle
Of throw
36°
Stops
Fixed
terminal
Printed
Contact type:
Non-shorting, wiping contacts
terminals:
Switches are provided with the full
circle of terminals regardless of the number of
active positions.
Stop Strength:
8 ounce-inches minimum
Number of Decks
Non-
Shorting
Shorting
Not
Available
1
1
Poles
Per Deck
1
2
Number of
Positions/Pole
2 thru 10
2 thru 5
ORDERINg INFORMAtION
Series
Style:
Letters from Choices and Limitations Chart
Angle of throw:
36° only
75AP36–01–1–10N–C
Stop Arrangement:
The suffix C or F must be added to a
one pole per deck switch to indicate continuous rotation (C) or fixed
stop (F) between position 1 and position 10.
Available from your local
grayhill Distributor.
For prices and discounts, contact a local
Sales Office, an authorized local Distributor,
or Grayhill.
type of Contacts:
N=Non-shorting only
Positions per Pole:
requires 02 positions as a minimum to
maximum allowable dependent on the poles per deck
Poles per Deck:
1 or 2 poles available
Number of Decks:
1 deck only
