Maual Switches
Solid State LED Annunciators
AML59 CAP ASSEMBLIES
The cap assembly consists of: black cap,
color filter(s), and optional film legend;
furnished unassembled. It snaps onto
housing, flush with the housing bezel.
Filters, assembled with their matte finish
facing the LED’s, efficiently diffuse the
illumination. They are color-tinted to com-
plement the red, yellow, and green LED’s.
NOTE: Cap assembly should not be sub-
jected to the temperature and chemical
atmosphere associated with wave solder-
ing. These parts should be installed after
soldering and cleanup.
Catalog listings for AML59 cap assem-
blies are derived from the ordering guide
below. The ordering guide for AML45 LED
housings is on page
26.
CUSTOM LEGENDS
A 2:1 drawing in black ink is required for
satisfactory reproduction of custom film
legends. As an alternative, you may sub-
mit an office copy of a page from a ty-
pographic supplier catalog such as Char-
tpak, Letraset, and Zipatone. MICRO
SWITCH can also furnish graphic leg-
ends from the ‘‘Henry Dreyfus Symbol
Source Book.’’ (Custom legends require
a one-time start-up charge.)
AML59 ORDER GUIDE
AML45/59 Series
1
Viewing area inside cap:
X 1.04 min.; Y .272 min.
2

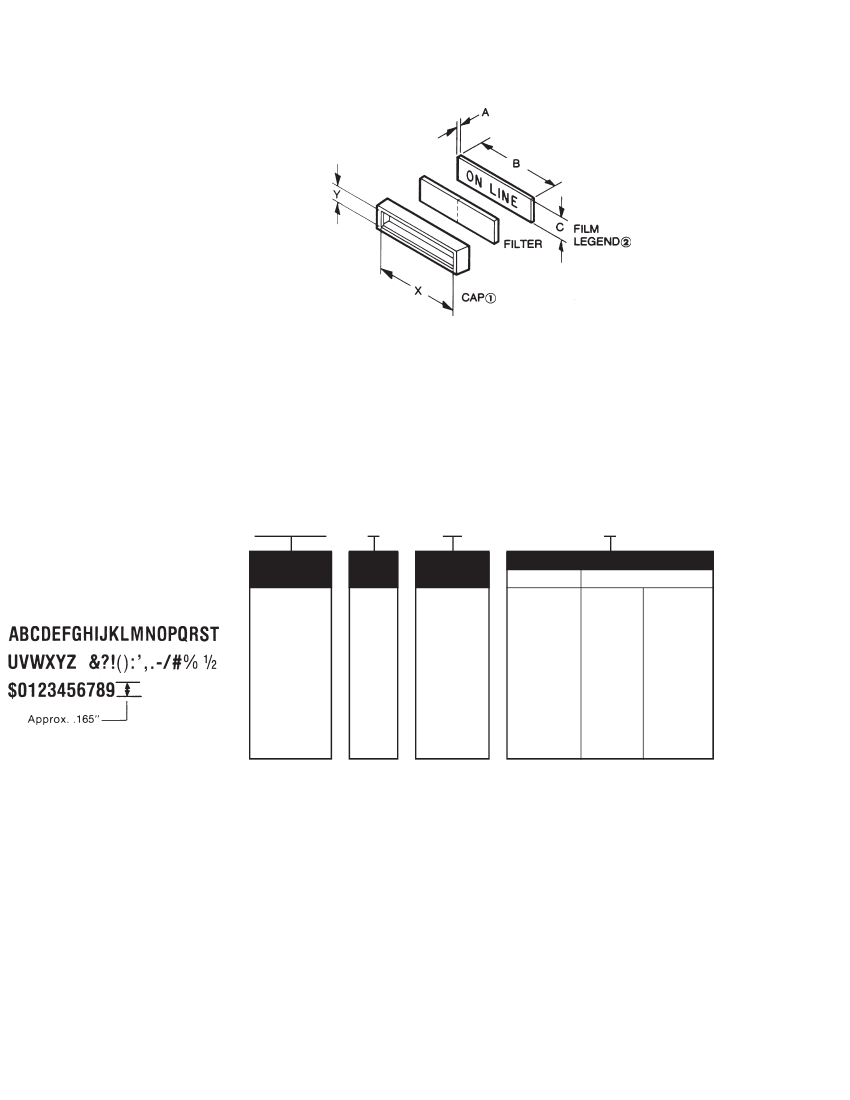

Customers ordering film legends from
commercial photographic or typeset-
ting sources should specify that the
film be precision cut, per the following
dimensions, to insure proper retention
and alignment on the face of the an-
nunciator: A
.007 max.; B
1.1
±
.010; C .300
±
.003.
STANDARD LEGENDS
AML59 Legend Sheet (see page
30)
pro-
vides ordering information for negative
and positive standard film legends in the
type style (14-point Helvetica condensed
bold) shown below. Use separate legend
sheet for each AML59 catalog listing and
attach it (them) to your purchase order.
AML59-R
Cap
Style
AML59-R
Full Screen
AML59-S
Split Screen
K
10
Legend
Type
10
No
Legend
20
Negative
Film
Legend
21
Positive
Film
Legend
Full Screen
R
Red
Y
Yellow
G
Green
R
Filter Color
Split Screen
R
Red
Y
Yellow
G
Green
R
Red
Y
Yellow
G
Green
Cap
Color
K
Black
Examples:
AML59-RK10R
Full screen style, black cap, no legend,
and red filter.
AML59-SK20RY
Split screen style, black cap, negative film
legend, red and yellow color filters.
28
Honeywell MICRO SWITCH Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
Manual Switches
Solid State LED Annunciators
AML45/59 Series
FEATURES
Messages are backlighted with LED’s
for long, reliable operating life.
Reduces service and maintenance
costs.
Low voltage and current (without
inrush), enables direct drive with
integrated circuits. Reduces cost of
interface components (and
installation), and power supply.
Low operating temperature allows
high-density, continuous operation.
Minimal heat build-up.
Inherently rugged. Resists effects of
shock and vibration (no filaments to
break).
High density message display.
Illuminates up to four legend sectors
in color, in a 0.8
×
1.2 inch area.
Dead front hides legends until
illuminated. Non-glare display with no
flickering.
UL recognized.
Manuals
AML45/59 solid state LED annunciators
are a state-of-the-art advancement over
traditional back-lighted legend displays
which utilize incandescent lamps. The
LED light source imparts the benefits of
solid state long-life and reliability, with low
power requirements. Operating life is
measured by years, instead of hours.

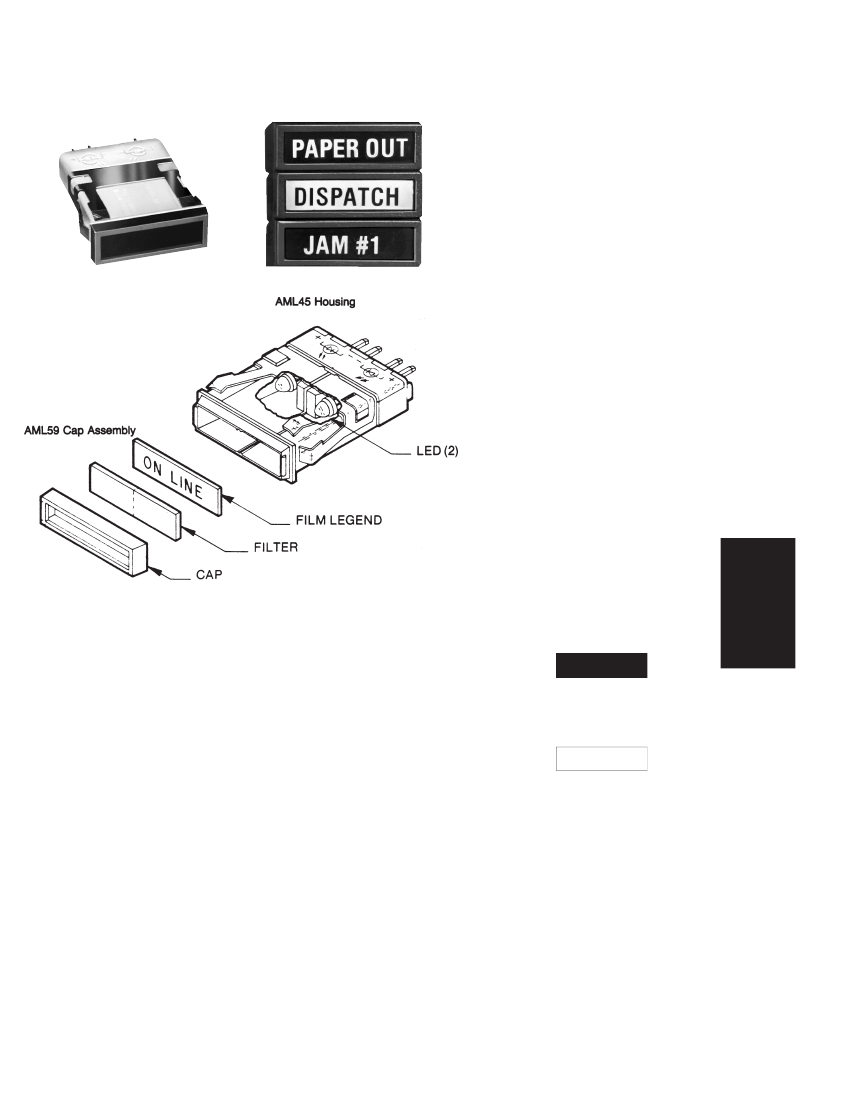

The AML45 housing has two high effi-
ciency LED’s which illuminate color filters
and film legends located in the snap-on
AML59 cap assembly. There is a choice of
full face one-color and split one-color or
two-color displays. Color options are red,
green, and yellow.
Film legends offer a choice of negative or
positive formats. (Note: human factors
engineers generally favor negative an-
nunciator messages, reserving the posi-
tive format for use if special attention is
necessary, such as ‘‘PAPER JAM.’’)
When unlighted, the legend is hidden
(dead front).
NEGATIVE
When illuminated, colored legend ap-
pear1001s against a black background.
NEGATIVE
POSITIVE
When illuminated, black legend appears
against a colored background.
POSITIVE
This annunciator is totally compatible
with other deivces in the MICRO SWITCH
AML Advanced Manual Line both in front
of, and behind the panel. Two of them fit in
the same space as a rectangular AML
indicators or switch. All terminals exit at
AML’s standard 1.7-inch depth for conve-
nient, single-level wiring.
Honeywell MICRO SWITCH Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
25
Manual Switches
Solid State LED Annunciators
AML45 LED HOUSINGS
LEDs should be specified as the same
color if a full or split screen one-color
display is desired (RR
=
red); or different
colors for a split screen two-color display
(RY
=
red/yellow). (Baffle plate inside
housing prevents light spillage from one
LED color section to the other on split
screen versions.)
LED colors should match filter colors
specified in AML59 cap assembly (see
page
28).
Spring clips on sides of the housing hold
units securely in panel. For mounting
strips of two or more units, AML61 mount-
ing hardware may be used (see page
43).
LED APPLICATION INFORMATION
Refer to page
47.
PANEL ORIENTATION
Drawing (above) indicates Side 1 and
Side 2 LED locations, with MICRO
SWITCH identifications facing UP. Con-
sider this orientation when ordering an
AML45S
housing with two different LED
AML45/59 Series
colors, such as RG (red/Side 1, green/
Side 2). Since LED’s are permanently in-
stalled, color location is specially impor-
tant to note when the device is to be termi-
nated in a printed circuit board.
AML45 ORDER GUIDE
AML45 S
Housing
Type
AML45 R
2 LED’s
(For use with
Full Screen)
AML45 S
2 LED’s
(For use with
Split Screen)
W
Color of
Housing Bezel
W
White
K
Black
A
LED
Voltage*
A
2.4 V
B
5V
C
10 V
D
15 V
F
24 V
2
Terminal
Type
2
.110
×
.020
(Solder or
Quick-Connect)
3
.025
×
.025
(Printed Circuit)
8
.110
×
.020
with diode protection
for LED’s
Side 1
R
Red
Y
Yellow
G
Green
RY
LED Color
Side 2
R
Red
Y
Yellow
G
Green
* Current draw is 20 mA. ‘‘B’’,
‘‘C’’, ‘‘D’’ and ‘‘F’’ have built-in
current limiting resistors.
Example:
AML45SWA2RY
Split screen type housing with white bezel,
2.4 V LED’s, .110
×
.020 termination, red
LED in Side 1 and yellow LED in Side 2.
26
Honeywell MICRO SWITCH Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
Manual Switches
Solid State Annunciators
SUBPANEL MOUNTING
AML61 mounting hardware may be used
for mounting strips of two or more an-
nunciators in pairs in a single cutout. This
method is most cost-effective for multi-
unit application, since it generally takes
less time to make one large hole to accept
several units than it does to make a hole
for each individual unit. Also, if the front
panel is not required for mounting sup-
port, it can be made thinner, and easier to
cut out, minimizing installed cost.
AML61 strips are factory assembled with
metal cans welded together, and mount-
ing brackets welded to the end cans. Re-
fer to page
33
for ordering information.
INSTALLATION
Each rectangular AML61 mounting can
will accommodate two annunciators, as
shown in the drawing. Panel appearance
is enhanced if a spacer .05 in./1,3 mm
thick (approx.) is installed between the
housings at the terminal end. Specify Cat-
alog Listing 30PA1-AML for a package of
10 spacers.
AML45/59 Series
Mounting centers and panel cutout di-
mensions are shown on page
52.
An in-
stallation instruction sheet PK8520 is
shipped with each order.
Order AML45/59 annunciators and
AML61 mounting hardware separately.

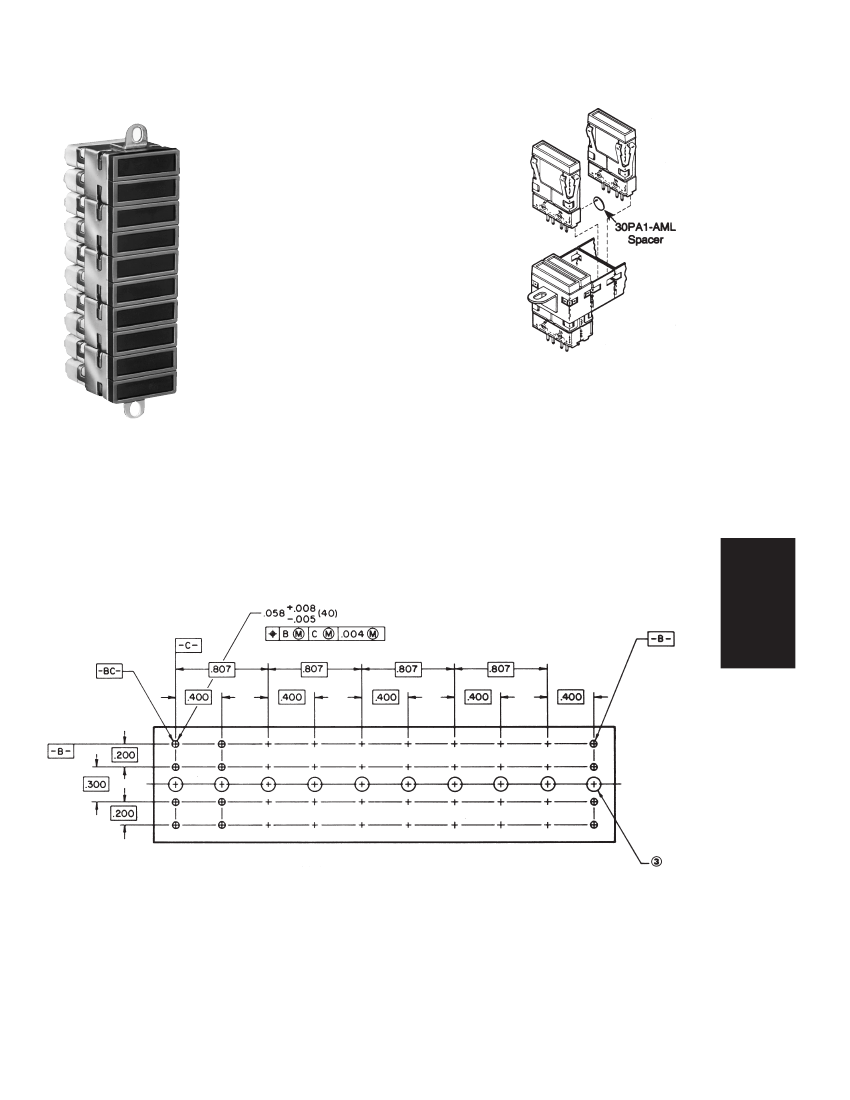

PRINTED CIRCUIT BOARD DIMENSIONS
Suggested printed circuit board layout for up
to ten AML45 units assembled in an AML61
assembly:
Manuals
3
.125 minimum diameter hole recommended to permit
access to annunciator, allowing it to be driven out
panel front should replacement become necessary.
