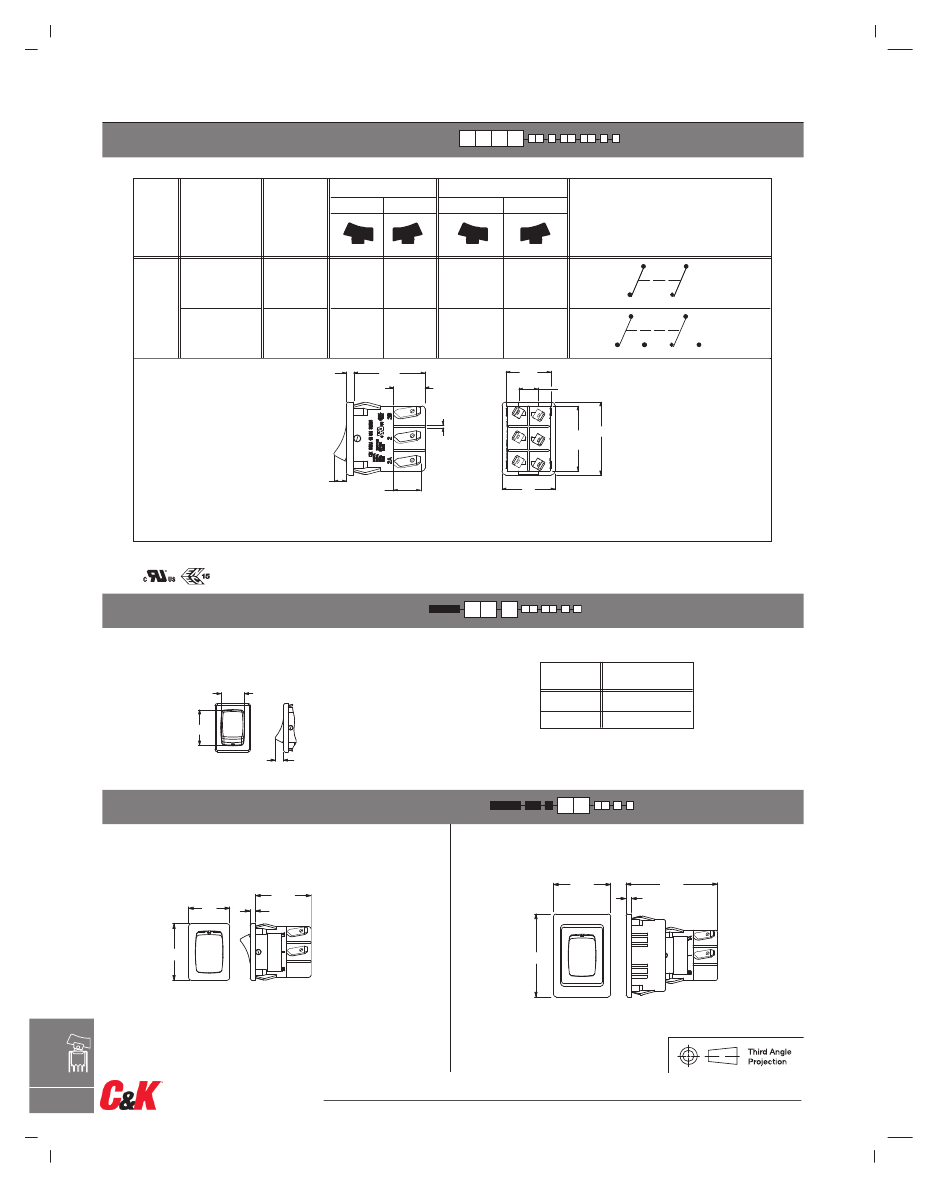

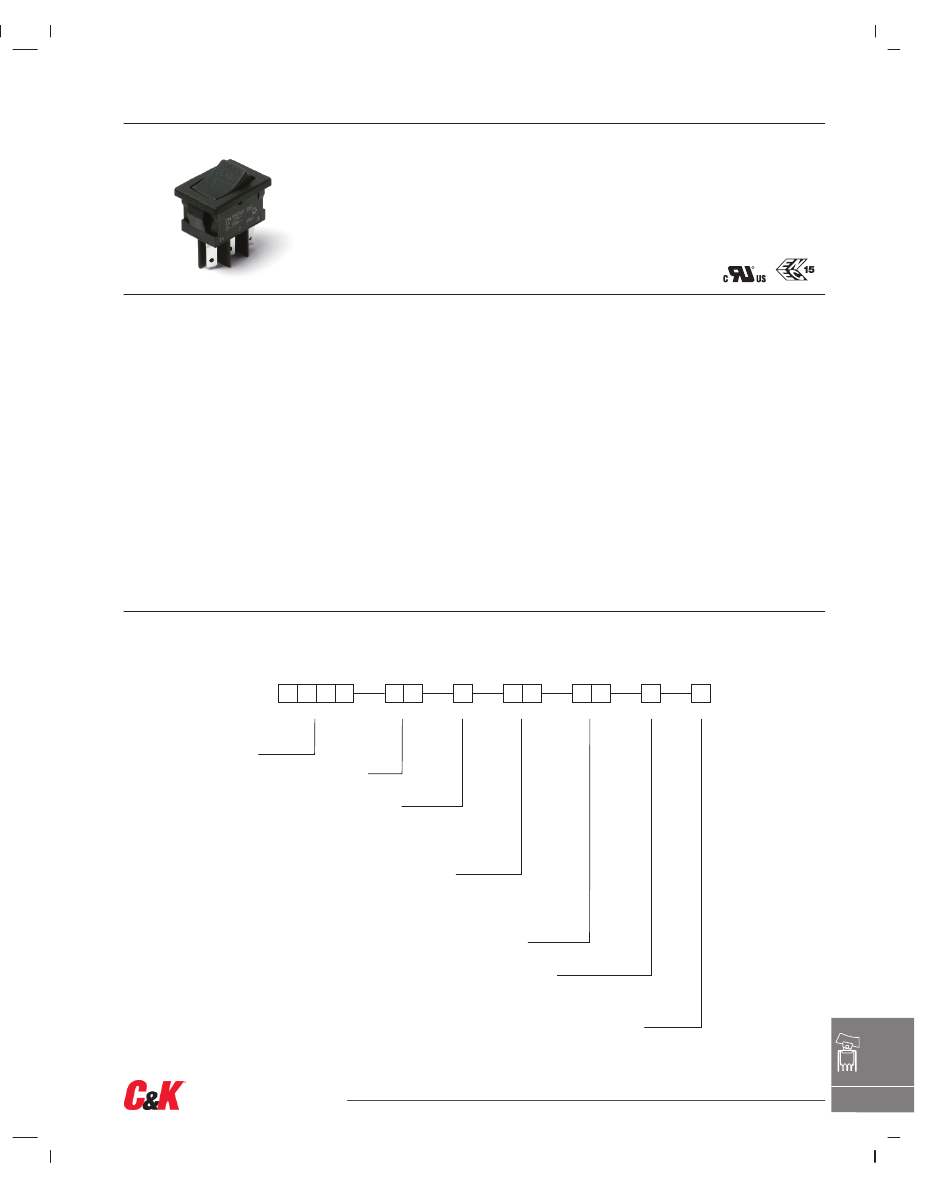

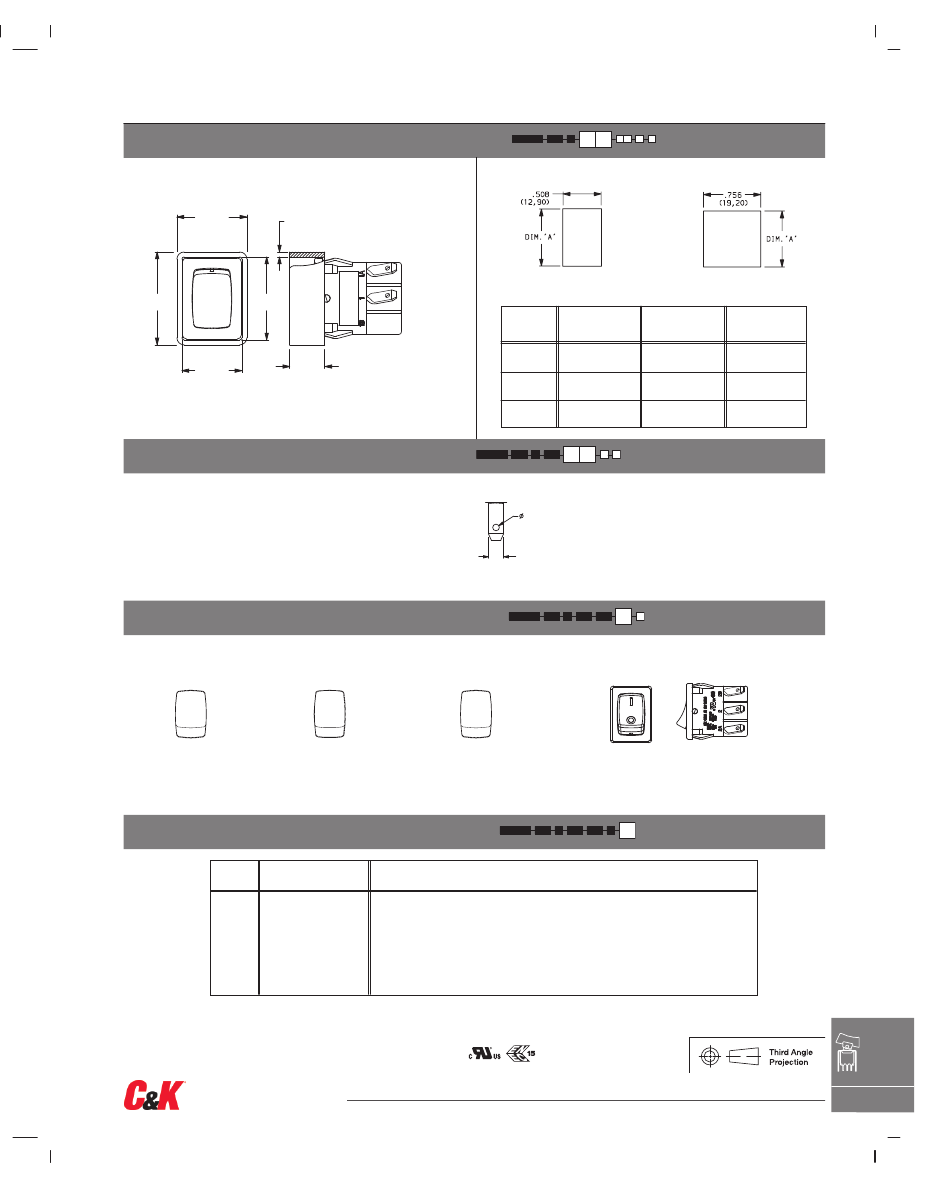

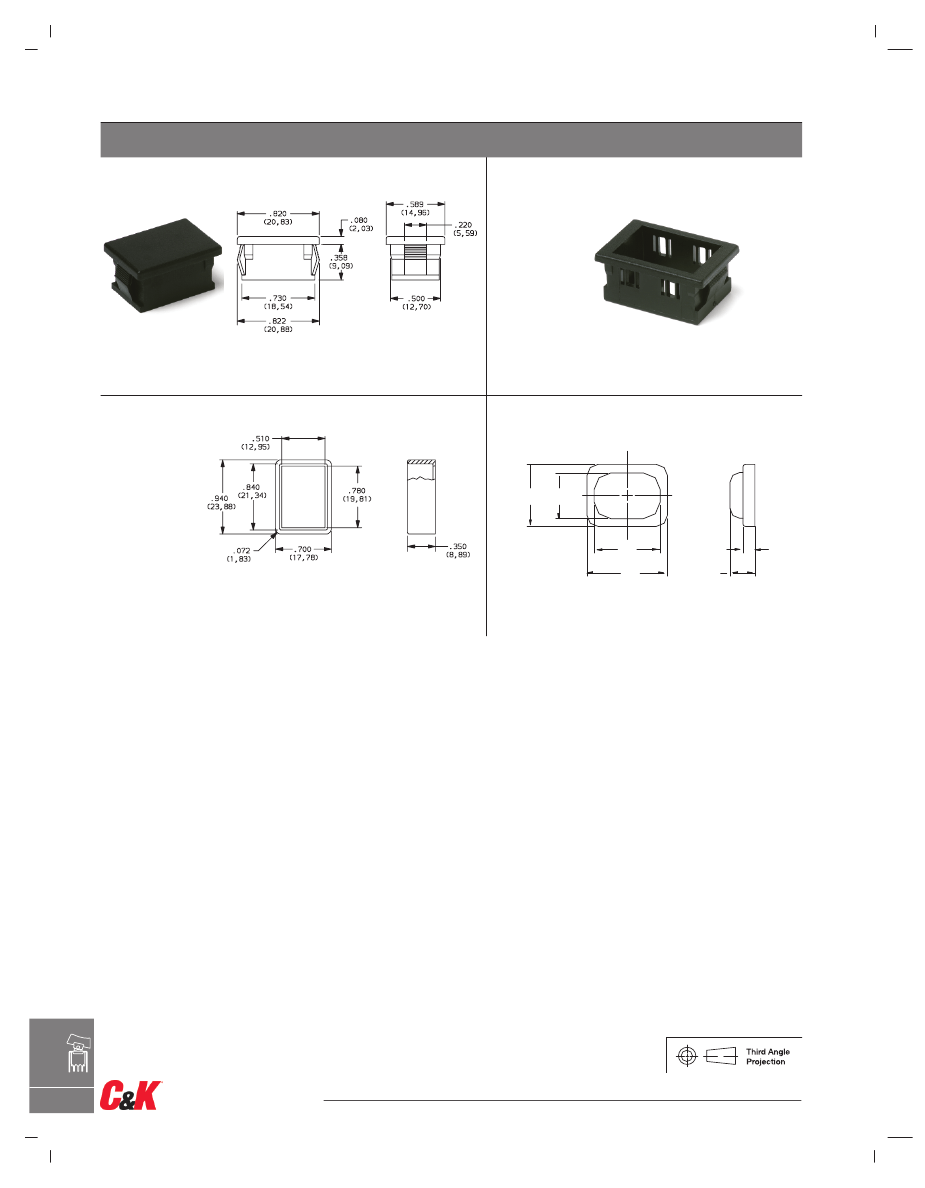

DM Series
Miniature 2 Pole Power Rocker Switches
Features/Benefits
•
3 AMPS to 10 AMPS
•
Quick connect terminals
•
Double pole in miniature size
•
Recessed bracket available—prevents
accidental actuation
Typical Applications
•
Computers
•
Appliances
•
Electric tools
•
RoHS compliant
Specifications
CONTACT RATING:
DM21, DM22:
GP (general purpose)
3 AMPS 125 VAC 50/60 Hz T85 10,000 cycles
2 AMPS 250 VAC 50/60 Hz T85 10,000 cycles
R (resistive)
3 AMPS 30 VDC T85 10,000 cycles
DM61, DM62:
GP (general purpose)
10 AMPS 125 VAC 50/60 Hz T85 10,000 cycles
5 AMPS 250 VAC 50/60 Hz T85 10,000 cycles
R (resistive)
10 AMPS 30 VDC T85 10,000 cycles
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
OPERATING TEMPERATURE: -20ºC to +65ºC
UL 61058-1
Materials
HOUSING & ACTUATOR: 6/6 nylon (UL94V-2), black.
MOVABLE CONTACTS: DM2X Models: Copper, silver plated.
DM6X Models: Coin silver, silver plated.
STATIONARY CONTACTS & TERMINALS: Copper or brass,
silver plated.
CONTACT SPRING: Music wire or stainless steel.
NOTE:
Any models supplied with Q contact material are RoHS compliant.
NOTE:
Specifications and materials listed above are for standard switches.
For information on specific and custom switches, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages G–66 and G–68. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
DM21
DPDT, On-On
DM22
DPST, On-Off
DM61
(STD.) DPDT, On-On
DM62
(STD.) DPST, On-Off
Actuator
J1
Rocker
Actuator Color
2
Black
1
White
Housing Style/Color
S2
Snap-in, black
B2
Recessed snap-in actuator guard, black
G2
Actuator guard, black
Rocker
Terminations
05
Quick connect
Actuator Markings
NONE
No marking
D
ON-OFF
H
O|
Contact Material
P
O–
Q
Silver
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
2 aug 16
G–65
www.ckswitches.com
G
DM Series
Miniature 2 Pole Power Rocker Switches
SWITCH FUNCTION
SWITCH FUNCTION
POS. 1
POS. 2
CONNECTED TERMINALS
POS. 1
POS. 2
NO.
POLES
MODEL
NO.
AMP
RATING*
3
ON
OFF
1-1A, 2-2A
OPEN
DPST
1A
1
SCHEMATIC
1
2
DM22
DM62
DP
10
3
ON
10
.080
[2,03]
.793
[20,14]
.500
[12,7]
2A
2
DM21
DM61
DPDT
ON
1-1A, 2-2A
1-1B, 2-2B
DPDT
1A
1B
2A
2B
.350
[8,89]
.220 TYP
[5,59]
2B
B
1
.028 TYP
[0,71]
2
2A
.731
[18,57]
.138
[3,51]
.301 TYP
[7,65]
.590
[15]
PART NUMBER SHOWN: DM21J1XS205Q
NOTES 1. ACTUATOR SHOWN IN POSITION 1-'ON' POSITION
RATINGS: See page G-65 for complete ratings.
UL 61058-1 tested to 30C temperature rise @ 6,000 cycles.
ACTUATOR COLOR
ACTUATOR
J1
ROCKER
ACTUATOR
.390
[9,91]
OPTION
CODE
1
A
1
.820
[20,83]
ACTUATOR
COLOR
BLACK
WHITE
2
.581
[14,76]
.138
[3,51]
1
NOTE:
Actuator finish: matte. Other colors
available, consult Customer Service Center.
HOUSING STYLE/COLOR
S2
SNAP-IN, BLACK
B2
RECESSED SNAP-IN ACTUATOR GUARD, BLACK
.590
[15]
.793
[20,14]
.080
[2,03]
.820
[20,83]
.080
[2,03]
1.308
[33,22]
Rocker
.820
[20,83]
1.200
[30,48]
NOTE:
Housing finish: matte. Other colors
available, consult Customer Service Center.
G
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
2 aug 16
G–66
www.ckswitches.com
DM Series
Miniature 2 Pole Power Rocker Switches
HOUSING STYLE/COLOR
G2
ACTUATOR GUARD, BLACK
PANEL MOUNTING
.700
[17,78]
.050
[1,27]
'S2' & 'G2' housing styles
'B2' housing style
.940
[23,88]
.840
[21,34]
NOTE:
Blank insert available for SP models only, see page H–76.
PANEL
THICKNESS
.030–.049
(0,76) (1,24)
.049–.079
(1,24) (2,01)
.079–.118
(2,01) (3,00)
DIM ‘A’
‘S2’ & ‘G2’
HOUSING STYLES
.756
(19,20)
.764
(19,41)
.780
(19,81)
DIM ‘A’
DIM ‘A’
‘G2’ OPTION
‘B2’
SP MODELS ONLY HOUSING STYLES
0.764
(19,41)
0.780
(19,81)
n/a
1.068
(27,13)
1.076
(27,33)
1.092
(27,74)
.600
[15,24]
.350
[8,89]
TERMINATIONS
05
QUICK CONNECT
.032 THICK
[0,81]
.048
[1,22]
.110
[2,79]
ACTUATOR MARKINGS
NONE
NO MARKING
D
ON-OFF
H
OI
P
O–
ON
OFF
‘D & P’ marking options: marking color white, standard for all actuator colors except white actuators. Black marking color standard for
white actuators. Consult Customer Service Center for other available marking colors.
CONTACT MATERIAL
OPTION
CODE
CONTACT AND
TERMINAL MATERIAL
SILVER 1,2
DM21, DM22:
GP (general purpose)
RATINGS
3 AMPS 125 VAC 50/60 Hz T85 10,000 cycles
2 AMPS 250 VAC 50/60 Hz T85 10,000 cycles
R (resistive)
DM61, DM62:
GP (general purpose)
3 AMPS 30 VDC T85 10,000 cycles
10 AMPS 125 VAC 50/60 Hz T85 10,000 cycles
5 AMPS 250 VAC 50/60 Hz T85 10,000 cycles
R (resistive)
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
1 MOVABLE CONTACT: DM2X Models: Copper, silver plated.
DM6X Models: Coin silver, silver plated.
2 STATIONARY CONTACTS & TERMINALS: Copper or brass, silver plated.
NOTE:
Any models supplied with Q contact material are RoHS compliant.
10 AMPS 30 VDC T85 10,000 cycles
I
O
NOTE:
Orientation of actuator
markings and terminals.
Q
Rocker
G
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
2 aug 16
G–67
www.ckswitches.com
DM Series
Miniature 2 Pole Power Rocker Switches
AVAILABLE HARDWARE
Insert
Recessed Actuator Guard
PART NO.
PART NO.
057190200
Material: Nylon 6/6
Finish: Matte
599D02000
Material: 6/6 Nylon
Finish: Matte
Actuator Guard
PART NO.
216C00000
IP65 SPLASH PROOF RUBBER BOOT
.748
(19,0)
.551
(14,0)
.787
(20,0)
.142
(3,6)
.295
(7,5)
PART NO.
.957
(24,3)
104C22000
Material: PBT thermoplastic
Finish: Matte
Rocker
G
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
2 aug 16
G–68
www.ckswitches.com

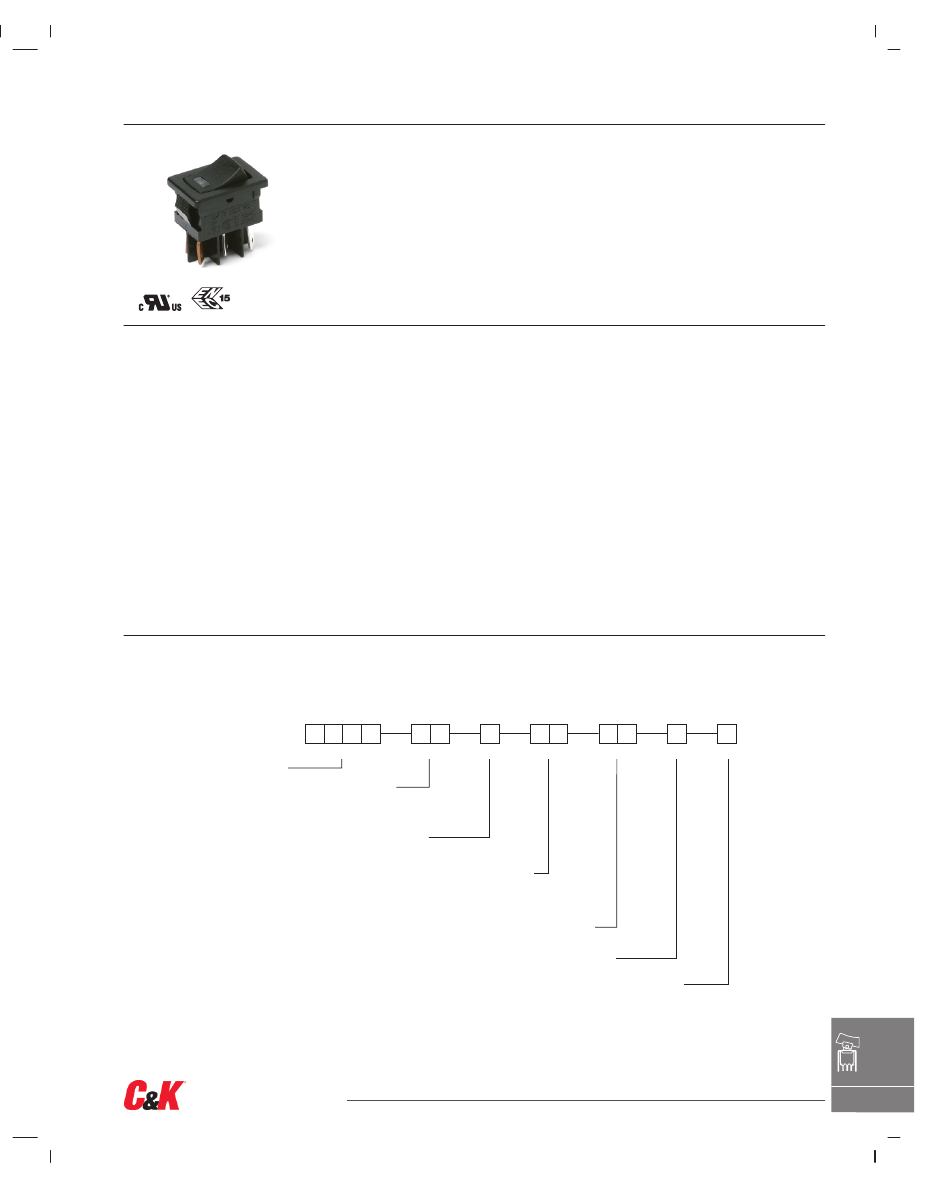

DM Series
Miniature Illuminated Power Rocker Switches
Features/Benefits
•
3 AMPS to 10 AMPS
•
Illuminated LED
•
Positive detent
•
RoHS compliant
Typical Applications
•
Instrumentation
•
Industrial
•
Office machines
UL 61058-1
Specifications
CONTACT RATING:
DM14 and DM24 Models:
GP (general purpose)
3 AMPS @ 125 V AC; 2 AMPS @ 250 V AC.
R (resistive)
3 AMPS 30 VDC 10,000 cycles
DM54 and DM64 Models:
GP (general purpose)
10 AMPS @ 125 V AC; 5 AMPS @ 250 V AC (UL).
R (resistive)
10 AMPS 30 VDC 10,000 cycles
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
Materials
HOUSING: 6/6 nylon (UL94V-2), black.
ACTUATOR: 6/6 nylon (UL94V-2), black.
MOVABLE CONTACTS: DM14 and DM24 Models: Copper,
silver plated. DM54 and DM64 Models: Coin silver, silver plated.
STATIONARY CONTACTS & TERMINALS: Copper or brass,
silver plated.
LED TERMINALS: Brass, unplated.
CONTACT SPRING: Music wire or stainless steel.
OPERATING TEMPERATURE: -20ºC to +65ºC
NOTE:
Any models supplied with Q contact material are RoHS compliant.
NOTE:
Specification and materials listed above are for standard switches.
For information on specific and custom switches, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown
and described on pages G–70 and G–72. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
DM14
SPST, 3 AMP
DM24
DPST, 3 AMP
DM54
SPST, 10 AMP
DM64
DPST, 10 AMP
Actuator
J7
Rocker with colorless
LED window
Actuator Color
2
Black
1
White
Housing Style/Color
S2
Snap-in, black
G2
Actuator guard, black
Terminations
05
Quick connect
Contact Material
Q
Silver
LED Color
3
Red
4
Amber
6
Green
Rocker
G
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
6 jul 17
G–69
www.ckswitches.com
