333-0071 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 333-0071

333-0071: DescriptionSwitch Bezels / Switch Caps SWITCH CAP; CategoryLED optoelectronic/LED photoelectric; File Size74KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric View All

333-0071 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	333-0071	-	-	View	Buy Now

333-0071 Overview

Switch Bezels / Switch Caps SWITCH CAP

333-0071 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
color	RED
Configuration	SINGLE
JESD-609 code	e0
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	1
Optoelectronic device types	SINGLE COLOR LED
total height	11.13 mm
method of packing	BULK
shape	RECTANGULAR
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

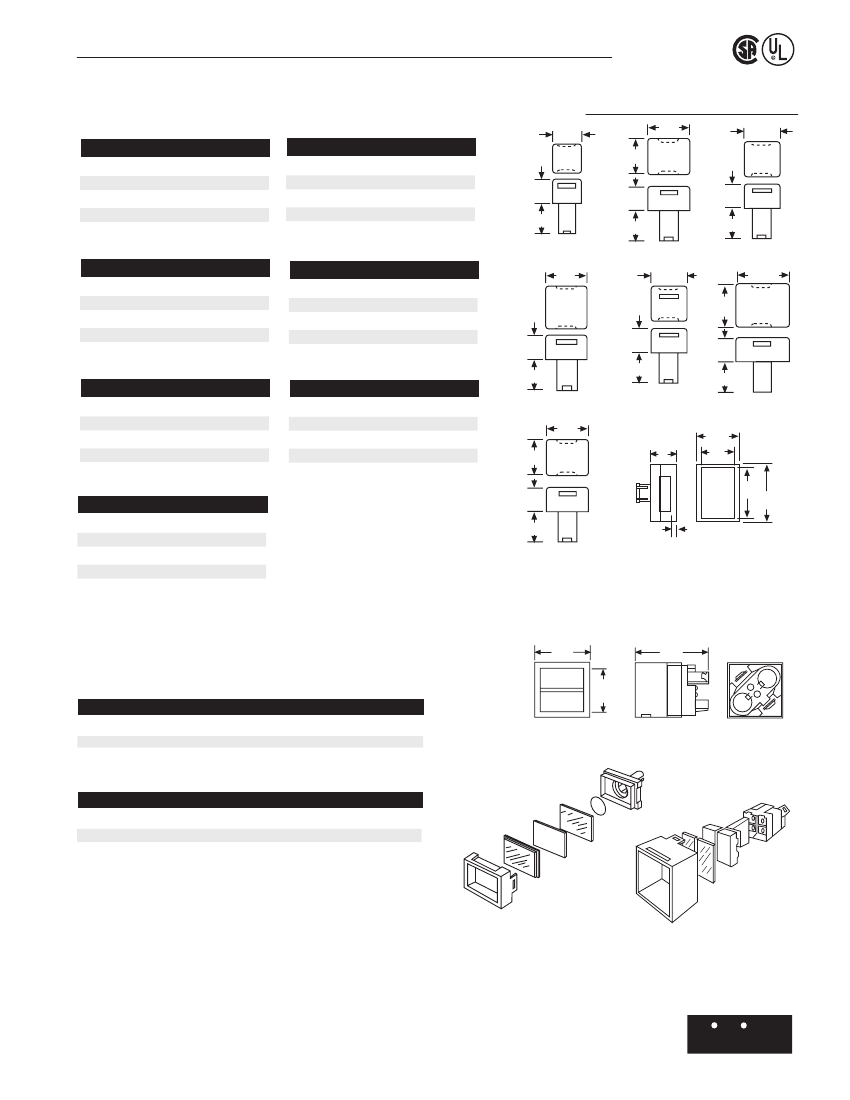

ILLUMINATED PUSHBUTTON SWITCHES & MATCHING PANEL MOUNT INDICATORS

324, 325, 326, 327, 328, 332 & 333 SERIES CAPS

1/2" SQUARE

CAP PART NO.

324-0071

324-0072

324-0073

324-0075

5/8" x 3/4" RECTANGULAR

COLOR

RED

GREEN

YELLOW

WHITE

12.85

[.506]

SQ.

18.95

[.746]

15.77

[.621]

15.77

[.621]

SQ.

FIG

CAP PART NO.

COLOR

FIG

11.13

[.438]

14.83

[.584]

333-0071*

RED

333-0072*

GREEN

333-0073*

YELLOW

333-0075*

WHITE

* Has Fingertip Grips

11.13

[.438]

14.83

[.584]

11.13

[.438]

14.83

[.584]

5/8" SQUARE

CAP PART NO.

325-0071

325-0072

325-0073

325-0075

3/4" SQUARE

COLOR

RED

GREEN

YELLOW

WHITE

Fig 1

Fig 2

15.77

[.621]

SQ.

18.57

[.731]

Fig 3

24.66

[.971]

FIG

CAP PART NO.

327-0071

327-0072

327-0073

327-0075

COLOR

RED

GREEN

YELLOW

WHITE

FIG

18.95

[.746]

SQ.

11.13

[.438]

14.83

[.584]

11.13

[.438]

14.83

[.584]

11.13

[.438]

14.83

[.584]

5/8" SQUARE LED

3/4" x 1" RECTANGULAR

CAP PART NO. LED/CAP

332-0010

332-0015

332-0020

332-0030

FIG

CAP PART NO.

328-0071

328-0072

328-0073

328-0075

COLOR

RED

GREEN

YELLOW

WHITE

FIG

Fig 4

18.95

[.746]

11.13

[.438]

RED/BLACK

RED/WHITE

GREEN/BLACK

YELLOW/BLACK

Fig 5

18.54

[.730]

13.97

[.550]

Fig 6

15.77

[.621]

5/8" x 3/4" RECTANGULAR

CAP PART NO.

326-0071

326-0072

326-0073

326-0075

COLOR

RED

GREEN

YELLOW

WHITE

FIG

11.13

[.438]

14.83

[.584]

20.07

[.790] 24.64

[.970]

1.96

[.078]

Fig 7

Fig. 8

Please contact factory for legend information available on Figures 1 thru 8.

329 & 330 SERIES CAP KITS

3/4" X 1" LEGEND KITS - SINGLE LAMP

18.57

[.731]

25.32

[.997]

REF

14.86

[.585]

SQ.

KIT PART NO.

329-0701-030

329-0701-037

329-0701-537

LENS/FILTER COLOR

RED, GREEN, AMBER, BLUE/NONE

CLEAR/NONE

CLEAR/RED, GREEN, AMBER, BLUE

FIG

Fig 9

CAP BASE

UNDERLYING

FILTER

DIFFUSING

LENS

LEGEND

PLATE

BLACK

FRAME

3/4" LEGEND KITS - DUAL LAMP

KIT PART NO. LENS/FILTER COLOR

FIG

330-0100-100 RED, GREEN, AMBER, BLUE, WHITE/NONE 9

330-0255-155 (2) WHITE/RED, GREEN, AMBER, BLUE

Legends provided by Dialight Stocking Distributors

Material: Cap, High Temperature Scratch-Resistant Plastic

BLACK

BARRIER

DIFFUSER

LENS

CAP

BASE

329-0701-537 SHOWN

330-0100-100 SHOWN

FRAME

Dialight Corporation • 1501 State Route 34 • Farmingdale, NJ 07727 • TEL: (732) 919-3119 • FAX: (732) 751-5778 • www.dialight.com
