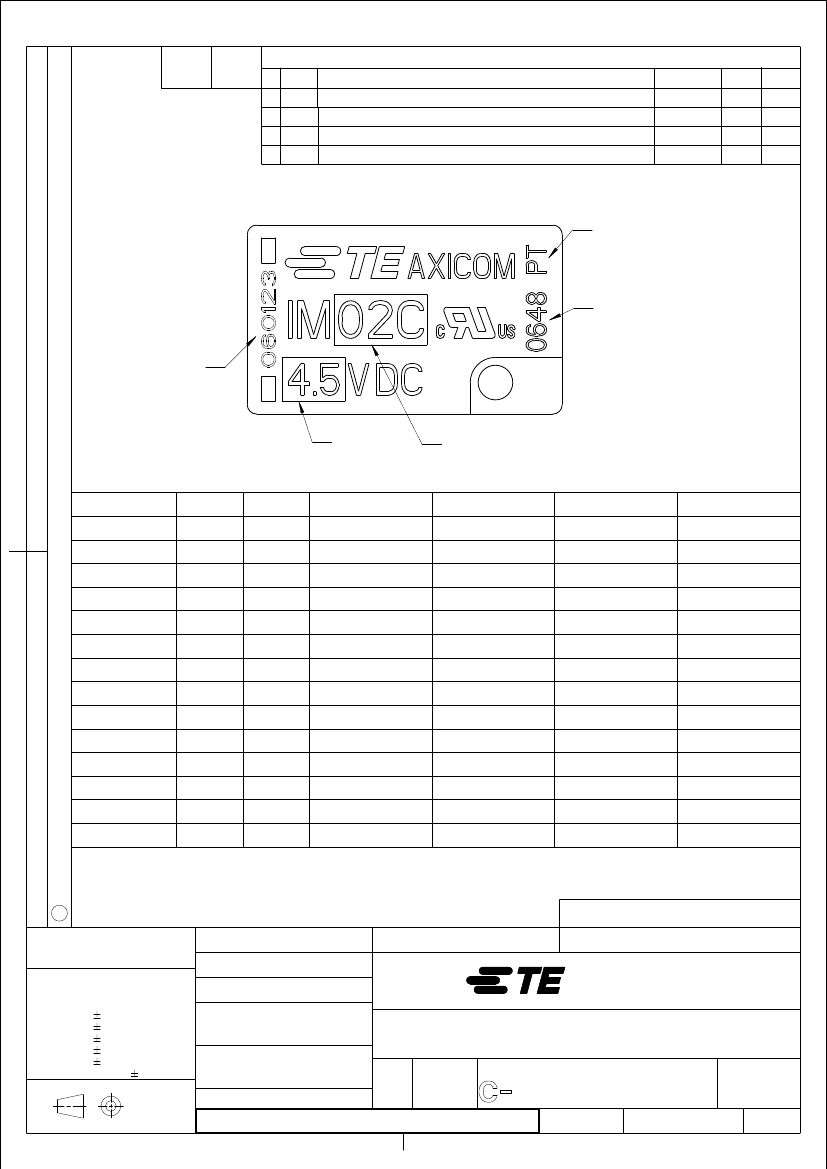

IM41TS=IM RELAY 100 MW 3 V BIS
| Parameter Name | Attribute value |
| Relay type | IM relay |
| Terminal switch load (minimum) | .1mA @ .0001V |
| Terminal limit breaking current (A) | 2 |
| Terminal Voltage Rating (VAC) | 250 |
| Terminal Voltage Rating (VDC) | 220 |
| Coil Power Rating (DC) (mW) | 100 |
| Coil Voltage Rating (VAC) | 3 |
| Coil Voltage Rating (VDC) | 3 |
| Terminal switching voltage (max) (VDC) | 220 |
| Terminal switching voltage (max) (VAC) | 250 |
| Coil excitation system | bistable, 1 coil |
| Coil type | bistable |
| Terminal limit continuous current (A) | 2 |
| Coil resistance (Ω) | 90 |
| Terminal limit closing current (A) | 2 |
| Insulation initial resistance (MΩ) | 1000000 |
| Initial dielectric between adjacent terminals (Vrms) | 1000 |
| Voltage standing wave ratio (high frequency parameter) | 1.06 @ 100MHz, 1.49 @ 900Mhz |
| Initial dielectric type for insulation between coils/terminals | 1500 V – 2500 VA |
| Initial dielectric between terminal and coil (Vrms) | 1800 |
| Terminal limit short-time current (A) | 2 |
| Open terminal insulation initial dielectric (Vrms) | 1000 |
| Drive System | DC |
| Coil power rating class | 50 – 300 mW |
| Isolation (high frequency parameters) | -18.8dB @ 900MHz, -37dB @ 100MHz |
| Insertion loss (high frequency parameters) | -.03dB @ 100MHz, -.33dB @ 900MHz |
| weight | .75 g [ .026 oz ] |
| Insulating properties | 2500 V initial surge withstand voltage between terminals and coil |
| Terminal type | PCB-THT |
| Terminal Current Rating (A) | 2 |
| Terminal arrangement | 2 Form C (2 CO) |
| Terminal material | Palladium ruthenium + gold |
| Number of terminal poles | 2 |
| Terminal characteristics | Bifurcated/double contacts |
| Terminal current type | 0 – 2 A |
| Terminal plating materials | gold |
| Termination type | Through hole |
| Installation type | A printed circuit board |
| Dimensions (L x W x H) (approximate) | 10 x 6 x 5.65 mm [ .393 x .236 x .222 in ] |
| Height category (machinery) | 0 – 6 mm |
| Length (in) | 10 |
| Length category (mechanical) | 0 – 10 mm |
| high | 5.65 mm [ .228 in ] |
| width | 6 mm [ .222 in ] |
| Width category (machinery) | 0 – 6 mm |
| Environmental Protection Category | RTV |
| Ambient temperature category | 70 – 85°C |
| Ambient temperature (maximum) | 85 °C [ 185 °F ] |
| Operating temperature range (°C) | -40 – 85 |
| Performance type | standard |
| Encapsulation method | Tube |
