GK SERIES CHART 4

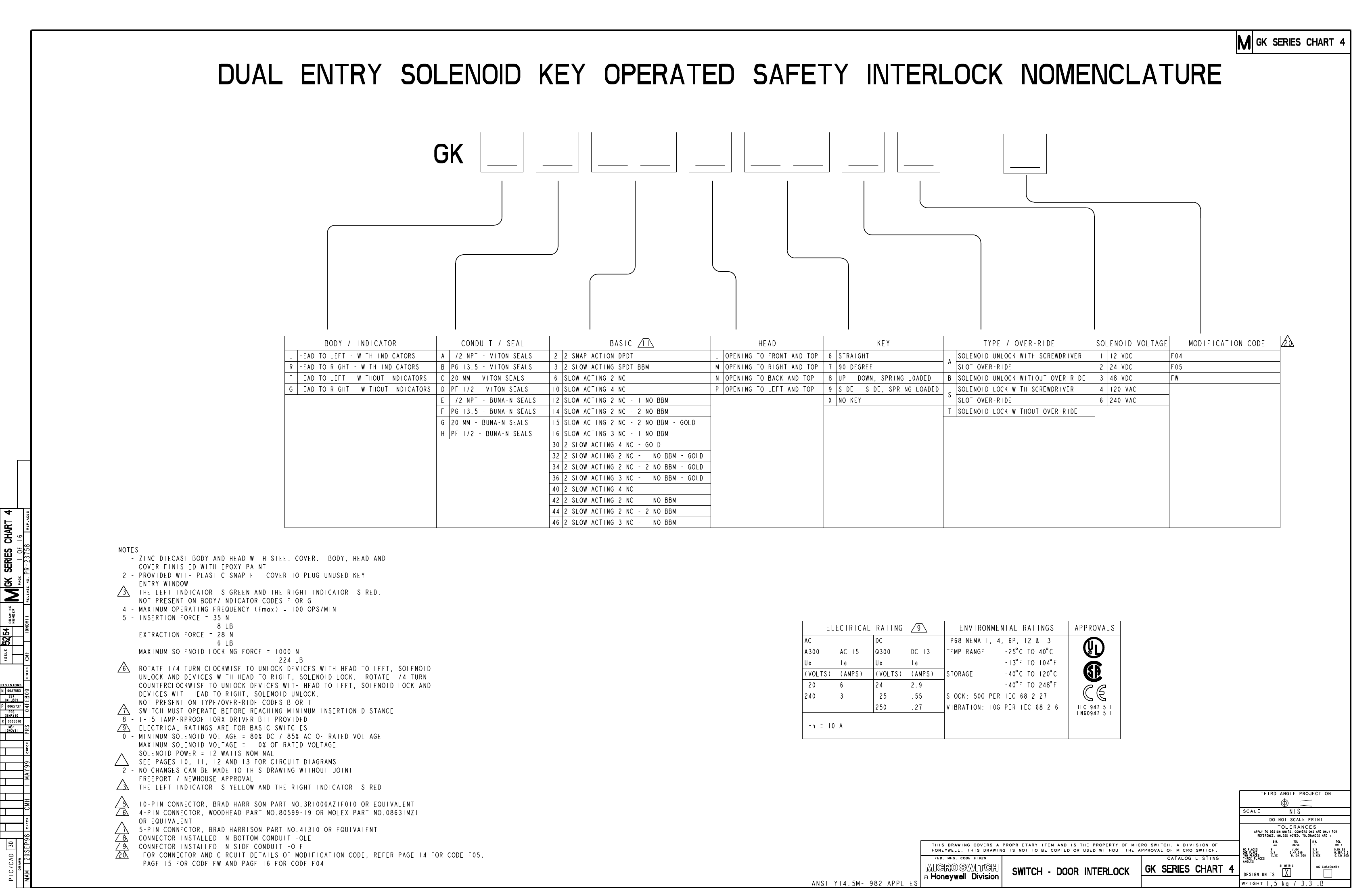

DUAL ENTRY SOLENOID KEY OPERATED SAFETY INTERLOCK NOMENCLATURE
GK
BODY / INDICATOR

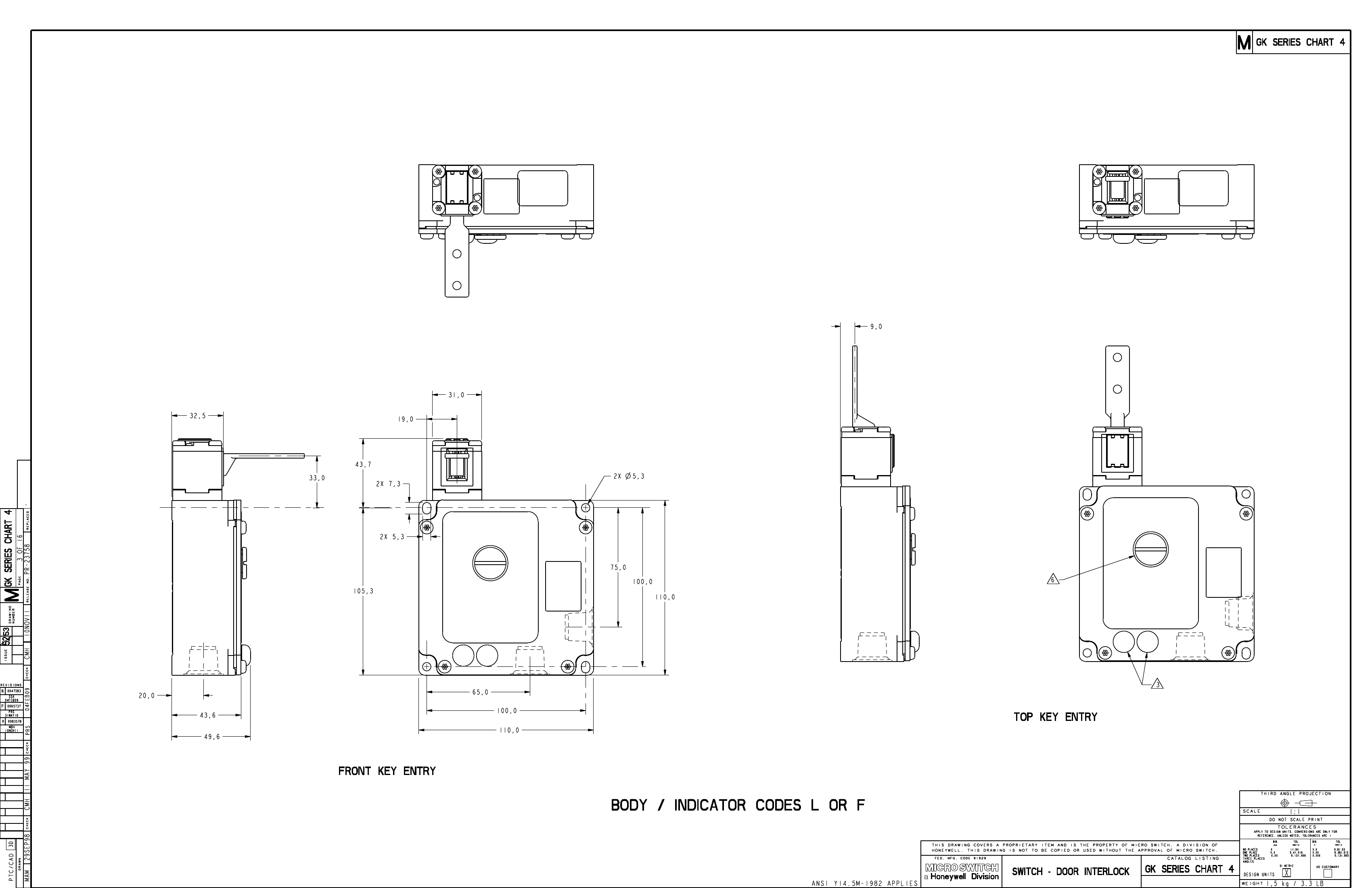

L HEAD TO LEFT - WITH INDICATORS

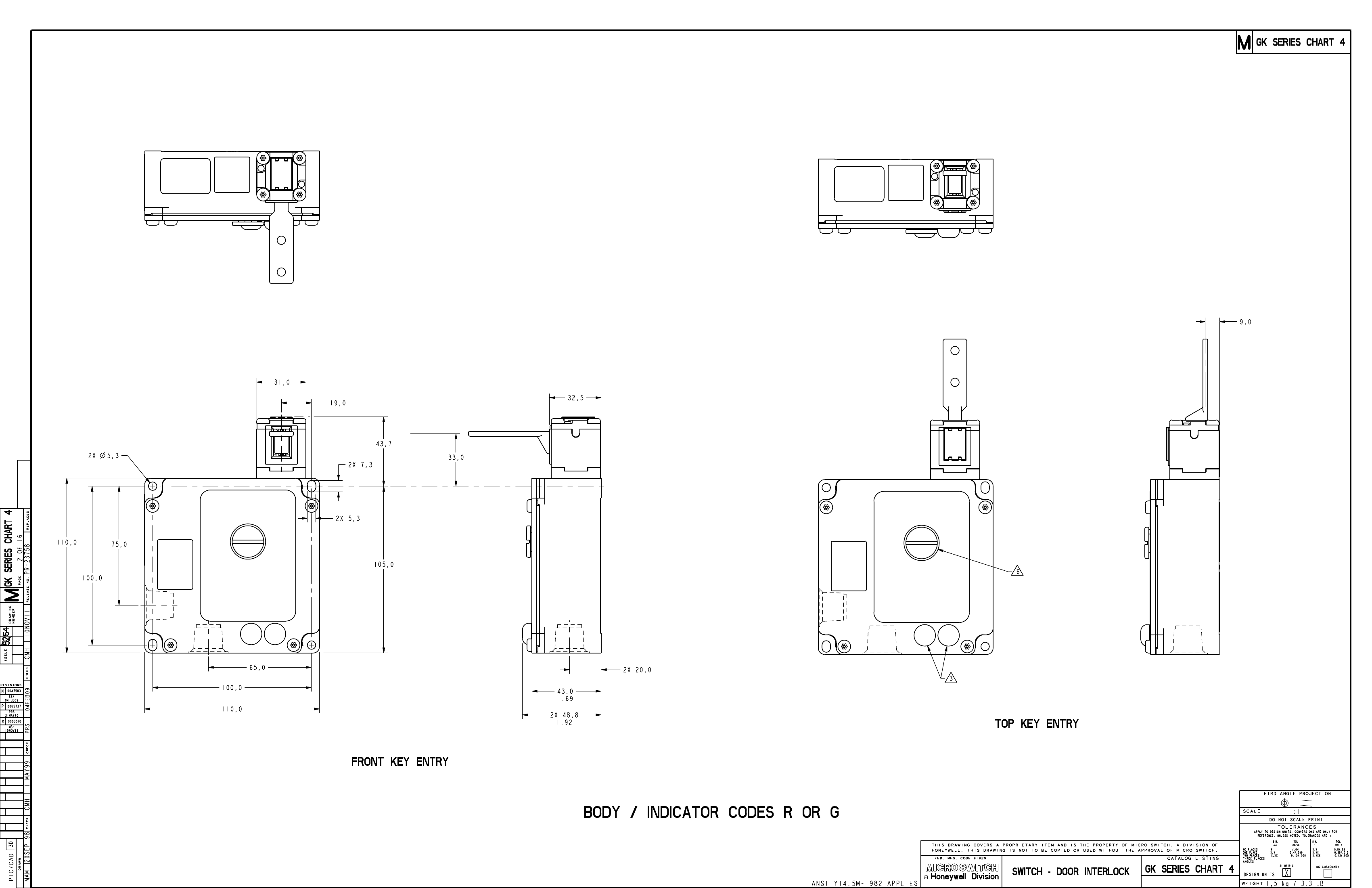

R HEAD TO RIGHT - WITH INDICATORS
F HEAD TO LEFT - WITHOUT INDICATORS
G HEAD TO RIGHT - WITHOUT INDICATORS
CONDUIT / SEAL
A 1/2 NPT - VITON SEALS
B PG 13.5 - VITON SEALS
C 20 MM - VITON SEALS
D PF 1/2 - VITON SEALS
E 1/2 NPT - BUNA-N SEALS
F PG 13.5 - BUNA-N SEALS
G 20 MM - BUNA-N SEALS
H PF 1/2 - BUNA-N SEALS
BASIC
2 2 SNAP ACTION DPDT
11
HEAD

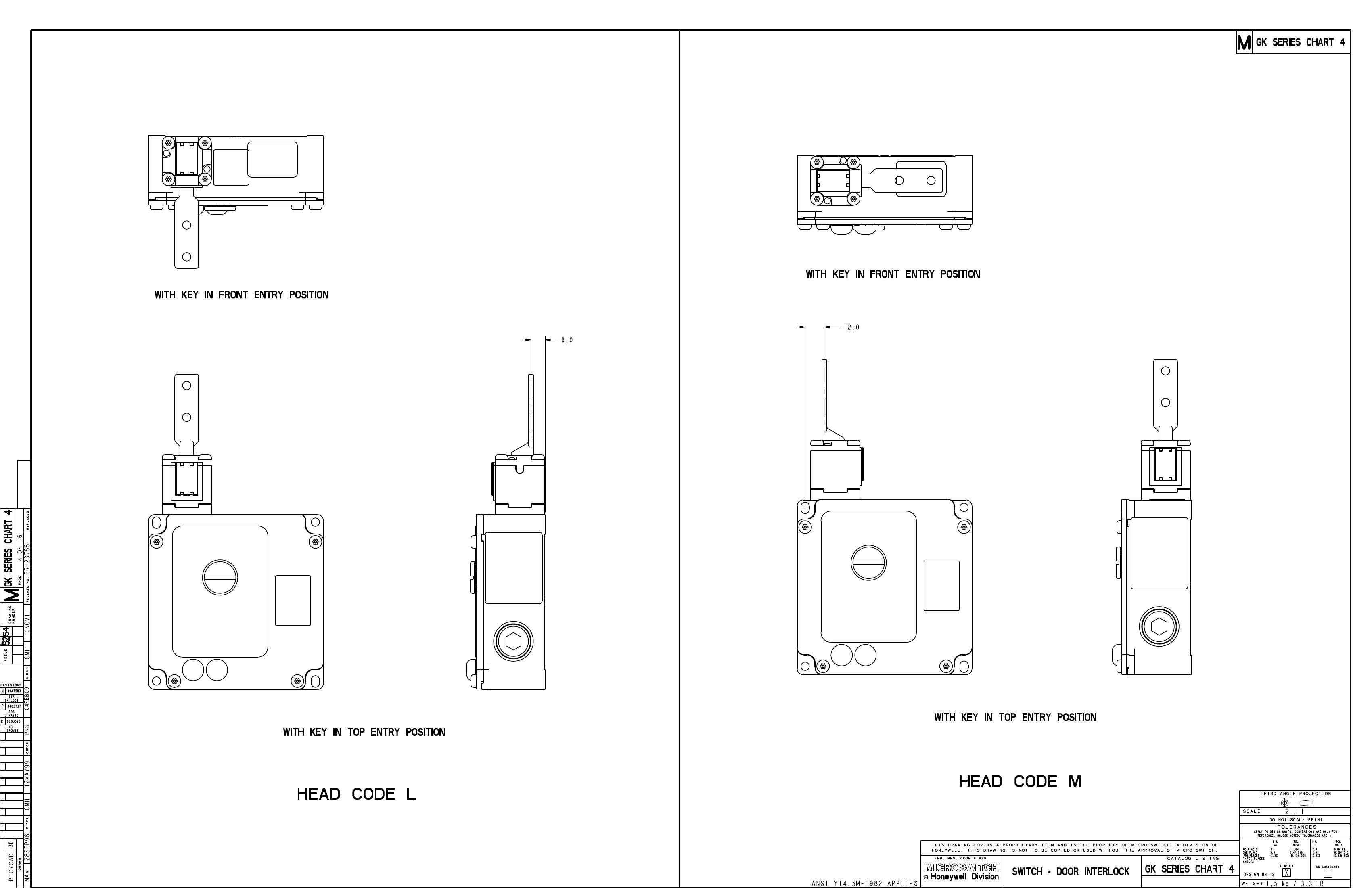

L OPENING TO FRONT AND TOP
M OPENING TO RIGHT AND TOP

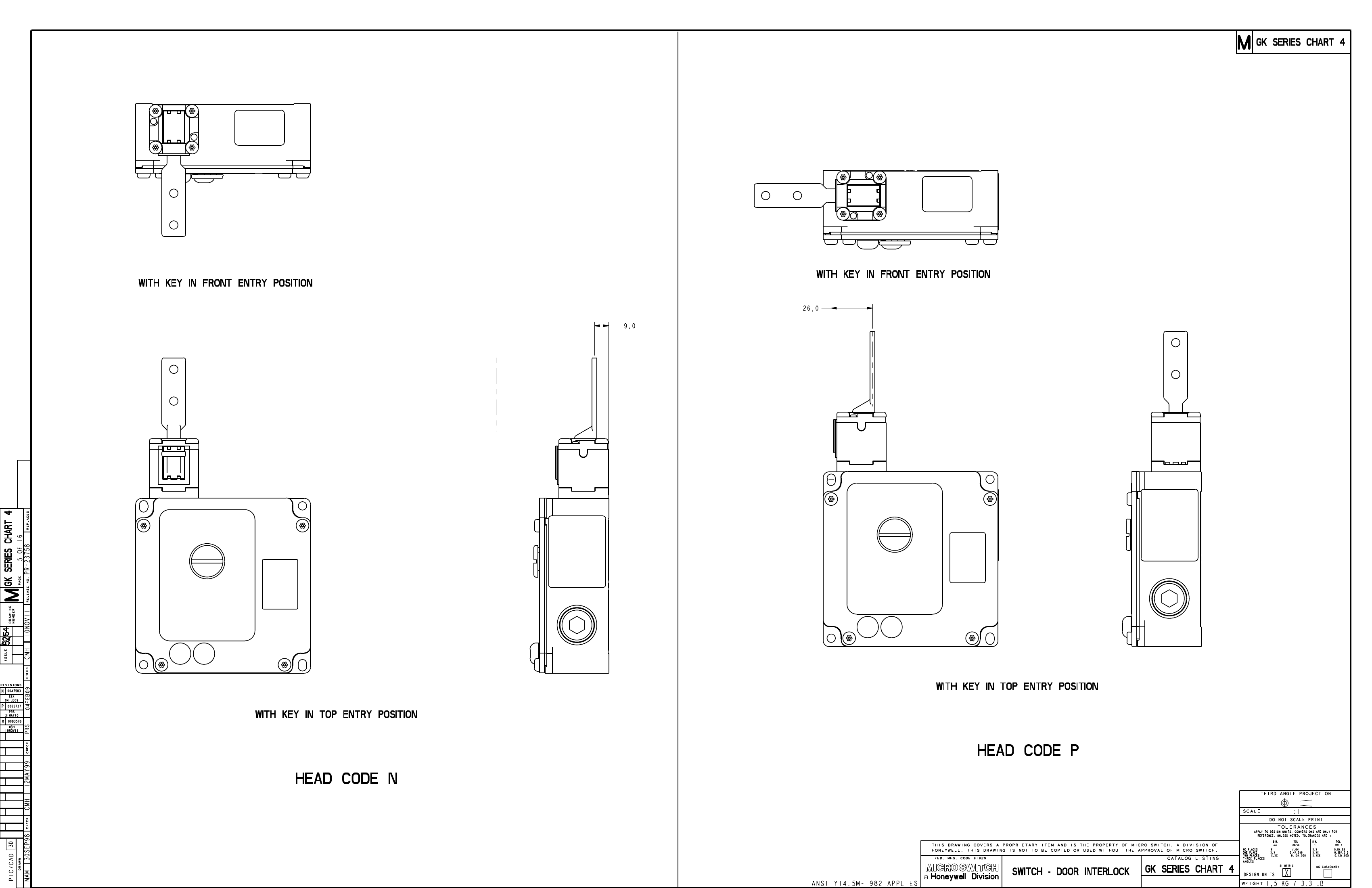

N OPENING TO BACK AND TOP
P OPENING TO LEFT AND TOP
6 STRAIGHT
7 90 DEGREE
KEY
A
B
S
T
TYPE / OVER-RIDE
SOLENOID UNLOCK WITH SCREWDRIVER
SLOT OVER-RIDE
SOLENOID UNLOCK WITHOUT OVER-RIDE
SOLENOID LOCK WITH SCREWDRIVER
SLOT OVER-RIDE
SOLENOID LOCK WITHOUT OVER-RIDE
SOLENOID VOLTAGE
1 12 VDC
2 24 VDC
3 48 VDC
4 120 VAC
6 240 VAC
F04
F05
FW
MODIFICATION CODE
20
3 2 SLOW ACTING SPDT BBM
6 SLOW ACTING 2 NC
10 SLOW ACTING 4 NC
12 SLOW ACTING 2 NC - 1 NO BBM
14 SLOW ACTING 2 NC - 2 NO BBM
15 SLOW ACTING 2 NC - 2 NO BBM - GOLD
16 SLOW ACTING 3 NC - 1 NO BBM
30 2 SLOW ACTING 4 NC - GOLD
32 2 SLOW ACTING 2 NC - 1 NO BBM - GOLD
34 2 SLOW ACTING 2 NC - 2 NO BBM - GOLD
36 2 SLOW ACTING 3 NC - 1 NO BBM - GOLD
40 2 SLOW ACTING 4 NC
42 2 SLOW ACTING 2 NC - 1 NO BBM
44 2 SLOW ACTING 2 NC - 2 NO BBM
46 2 SLOW ACTING 3 NC - 1 NO BBM
8 UP - DOWN, SPRING L0ADED
9 SIDE - SIDE, SPRING LOADED
X NO KEY
GK SERIES CHART 4
1 OF 16
PR-23758
REPLACES
-
REVISIONS
04FEB09
N
0047583
SSK
04FEB09
P
0065737
PRS
31MAY10
R
0083578
MBH
10NOV11
NOTES
1 - ZINC DIECAST BODY AND HEAD WITH STEEL COVER. BODY, HEAD AND
COVER FINISHED WITH EPOXY PAINT
2 - PROVIDED WITH PLASTIC SNAP FIT COVER TO PLUG UNUSED KEY
ENTRY WINDOW
3
THE LEFT INDICATOR IS GREEN AND THE RIGHT INDICATOR IS RED.
NOT PRESENT ON BODY/INDICATOR CODES F OR G
4 - MAXIMUM OPERATING FREQUENCY (Fmax) = 100 OPS/MIN
5 - INSERTION FORCE = 35 N
8 LB
EXTRACTION FORCE = 28 N
6 LB
MAXIMUM SOLENOID LOCKING FORCE = 1000 N
224 LB
6
ROTATE 1/4 TURN CLOCKWISE TO UNLOCK DEVICES WITH HEAD TO LEFT, SOLENOID
UNLOCK AND DEVICES WITH HEAD TO RIGHT, SOLENOID LOCK. ROTATE 1/4 TURN
COUNTERCLOCKWISE TO UNLOCK DEVICES WITH HEAD TO LEFT, SOLENOID LOCK AND
DEVICES WITH HEAD TO RIGHT, SOLENOID UNLOCK.
NOT PRESENT ON TYPE/OVER-RIDE CODES B OR T
7
SWITCH MUST OPERATE BEFORE REACHING MINIMUM INSERTION DISTANCE
8 - T-15 TAMPERPROOF TORX DRIVER BIT PROVIDED
9
ELECTRICAL RATINGS ARE FOR BASIC SWITCHES
10 - MINIMUM SOLENOID VOLTAGE = 80% DC / 85% AC OF RATED VOLTAGE
MAXIMUM SOLENOID VOLTAGE = 110% OF RATED VOLTAGE
SOLENOID POWER = 12 WATTS NOMINAL
11
SEE PAGES 10, 11, 12 AND 13 FOR CIRCUIT DIAGRAMS
12 - NO CHANGES CAN BE MADE TO THIS DRAWING WITHOUT JOINT
FREEPORT / NEWHOUSE APPROVAL
13
THE LEFT INDICATOR IS YELLOW AND THE RIGHT INDICATOR IS RED
15
16
17
18
19
20
10-PIN CONNECTOR, BRAD HARRISON PART NO.3R1006AZ1F010 OR EQUIVALENT
4-PIN CONNECTOR, WOODHEAD PART NO.80599-19 OR MOLEX PART NO.08631MZ1
OR EQUIVALENT
5-PIN CONNECTOR, BRAD HARRISON PART NO.41310 OR EQUIVALENT
CONNECTOR INSTALLED IN BOTTOM CONDUIT HOLE
CONNECTOR INSTALLED IN SIDE CONDUIT HOLE
FOR CONNECTOR AND CIRCUIT DETAILS OF MODIFICATION CODE, REFER PAGE 14 FOR
PAGE 15 FOR CODE FW AND PAGE 16 FOR CODE F04
PAGE
DRAWING
NUMBER
10NOV11
RELEASE NO.
52
54
ELECTRICAL RATING
AC
A300
Ue
(VOLTS)
120
240
AC 15
Ie
(AMPS)
6
3
DC
Q300
Ue
(VOLTS)
24
125
250
1th = 10 A
9
DC 13
Ie
(AMPS)
2.9
.55
.27
ENVIRONMENTAL RATINGS
IP68 NEMA 1, 4, 6P, 12
TEMP RANGE
STORAGE
-25
-13
-40
-40
& 13
C TO 40 C
$
$
F TO 104 F
$
$
C TO 120 C
$
$
F TO 248 F
$
$
APPROVALS
ISSUE
CHECK
CMH
SHOCK: 50G PER IEC 68-2-27
VIBRATION: 10G PER IEC 68-2-6
IEC 947-5-1
EN60947-5-1
11MAY99
CHECK
PRS
THIRD ANGLE PROJECTION
CMH
SCALE
NTS
DO NOT SCALE PRINT
CHECK
TOLERANCES
APPLY TO DESIGN UNITS. CONVERSIONS ARE
REFERENCE. UNLESS NOTED, TOLERANCES
DIM.
TOL
mm/in
ONLY FOR
ARE
+
-
29SEP98
3D
DIM.
in
TOL
mm/in
THIS DRAWING COVERS A PROPRIETARY ITEM
AND IS THE PROPERTY OF MICRO SWITCH.
OPIED OR USED WITHOUT THE APPROVAL OF
A DIVISION OF
MICRO SWITCH.
NO PLACES
ONE PLACE
TWO PLACES
THREE PLACES
ANGLES
mm
PTC/CAD
DRAWN
CODE F05,
HONEYWELL. THIS DRAWING IS NOT TO BE C
FED. MFG. CODE 91929
CATALOG LISTING
X
X,X
X,XX
1/.04
0.4/.016
0.15/.006
X.X
X.XX
X.XXX
0.8/.03
0.38/.015
0.13/.005
MAM
ANSI Y14.5M-1982 APPLIES
Honeywell Division
SWITCH - DOOR INTERLOCK
GK SERIES CHART 4
SI METRIC
US CUSTOMARY
DESIGN UNITS
WEIGHT
X
1,5 kg / 3.3 LB
