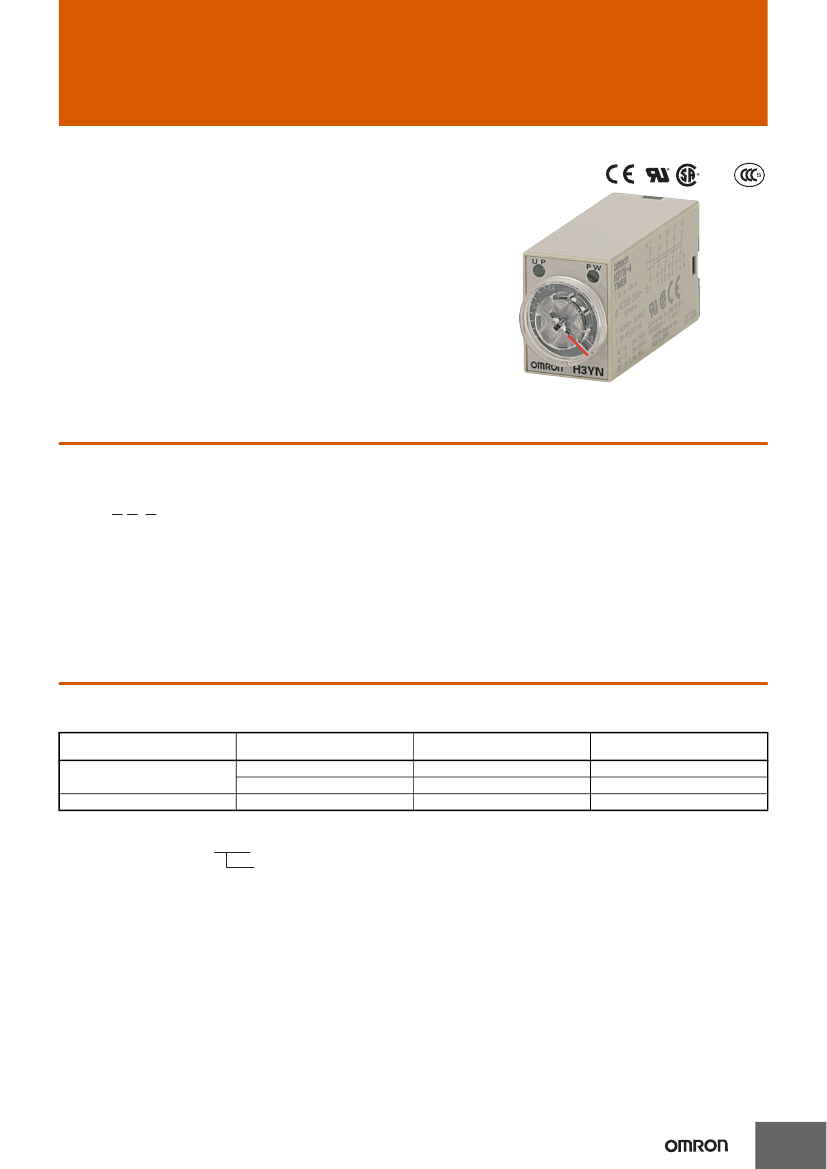

Solid-state Timer
H3YN
CSM_H3YN_DS_E_8_1
Miniature Timer with Multiple Time Ranges and
Multiple Operating Modes
• Minimizes stock.
• Pin configuration compatible with MY Power Relay.
• Standard multiple operating modes and multiple time ranges.
• Conforms to EN61812-1 and IEC60664-1 for Low Voltage, and EMC
Directives.
LR
Model Number Structure
■
Model Number Legend
H3YN-@@-@
1 2
3
1. Output
2: DPDT
4: 4PDT
2. Time Range
None: Short-time range (0.1 s to 10 min)
1:
Long-time range (0.1 min to 10 hrs)
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
3. Contact Type
None: Single contact
Z:
Twin contacts
Ordering Information
■
List of Models
Supply voltage
24, 100 to 120, 200 to 230 VAC;
12, 24, 48, 100 to 110, 125 VDC
24 VDC
DPDT
4PDT
4PDT (Twin contacts)
Time-limit contact
Short-time range model
(0.1 s to 10 min)
H3YN-2
H3YN-4
H3YN-4-Z
Long-time range model
(0.1 min to 10 h)
H3YN-21
H3YN-41
H3YN-41-Z
Note:
Specify
both
the model number and supply
voltage when
ordering.
Example: H3YN-2 24
VAC
Supply
voltage
Note: 1.
Sockets and Hold-down Clips are not included with the H3YN. They must be ordered separately.
2.
Only models with 24-VDC power supply are available.
3.
Use the H3YN-4 or H3YN-41 Series when switching micro loads, and use the H3YN-4-Z or H3YN-41-Z Series when switching even
smaller loads.
1
H3YN
■
Accessories (Order Separately)
Adapter, Mounting Plate, Clip
Name/specification
Flush mounting adapter
Mounting Plate for Socket
Clip
For 1 Socket
For 18 Sockets
For PYF@A
For PY@ and PYF@M
Model
Y92F-78
PYP-1
PYP-18
Y92H-3
Y92H-4
Note:
For details, refer to NTLP×REFERENCE
Socket and DIN Track Products.
Socket
Timer
Contact
Model
Pin
Connection
Square Sockets
Terminal
DIN track mounting
DPDT
H3Y-2
H3YN-2@
8-pin
Front Connecting
DIN track mounting
(Finger-safe tyape)
Screw mounting
Back Connecting
H3Y-4
H3YN-4@
Front Connecting
Back Connecting
Solder terminal
DIN track mounting
4PDT
14-pin
DIN track mounting
(Finger-safe tyape)
Solder terminal
Model
PYF08A
PYF08A-E
PYF08F
PY08
PYF14A
PYF14A-E
PY14
Note: 1.
Cannot be used with the H3Y-@-0 (PCB terminals).
2.
The PYF@@A-E has a finger-protection structure. Round crimp terminals cannot be used. Use forked crimp terminals.
3.
For details, refer to
Socket and DIN Track Products.
2
H3YN
Specifications
■
Ratings
Item
Time ranges
Rated supply voltage (See note 5, 6.)
Pin type
Operating mode
Operating voltage range
Reset voltage
Power consumption
H3YN-2/-4/-4-Z
0.1 s to 10 min (1 s, 10 s, 1 min, or 10 min max.
selectable)
H3YN-21/-41/-41-Z
0.1 min to 10 h (1 min, 10 min, 1 h, or 10 h max.
selectable)
24, 100 to 120, 200 to 230 VAC (50/60 Hz) (See note 1.)
12, 24, 48, 100 to 110, 125 VDC (See note 2.)
Plug-in
ON-delay, interval, flicker OFF start, or flicker ON start (selectable with DIP switch)
85% to 110% of rated supply voltage (12 VDC: 90% to 110% of rated supply voltage)
(See note 3.)
10% min. of rated supply voltage (See note 4.)
100 to 120 VAC: Relay ON: Approx. 1.8 VA (1.6 W) at 120 VAC, 60 Hz
Relay OFF: Approx. 1 VA (0.6 W) at 120 VAC, 60 Hz
200 to 230 VAC: Relay ON: Approx. 2.2 VA (1.8 W) at 230 VAC, 60 Hz
Relay OFF: Approx. 1.5 VA (1.1 W) at 230 VAC, 60 Hz
24 VAC:
Relay ON: Approx. 1.8 VA (1.4 W) at 24 VAC, 60 Hz
Relay OFF: Approx. 0.3 VA (0.2 W) at 24 VAC, 60 Hz
12 VDC:
Relay ON: Approx. 1.1 W at 12 VDC
Relay OFF: Approx. 0.1 W at 12 VDC
24 VDC:
Relay ON: Approx. 1.1 W at 24 VDC
Relay OFF: Approx. 0.1 W at 24 VDC
48 VDC:
Relay ON: Approx. 1.2 W at 48 VDC
Relay OFF: Approx. 0.3 W at 48 VDC
100 to 110 VDC: Relay ON: Approx. 1.6 W at 110 VDC
Relay OFF: Approx. 0.4 W at 110 VDC
125 VDC:
Relay ON: Approx. 1.6 W at 125 VDC
Relay OFF: Approx. 0.4 W at 125 VDC
DPDT:
5 A at 250 VAC, resistive load (cosφ = 1)
The minimum applicable load is 1 mA at 5 VDC (P reference value).
Contact materials: Ag
4PDT:
3 A at 250 VAC, resistive load (cosφ = 1)
H3YN-4/-41 series: The minimum applicable load is 1 mA at 1 VDC (P reference value).
H3YN-4-Z/-41-Z series: The minimum applicable load is 1 mA at 1 VDC (P reference value).
Contact materials: Au-clad + Ag-alloy
Control outputs
Note: 1.
Do not use the output from an inverter as the power supply. Refer to
Safety Precautions for All Times
for details.
2.
Single-phase, full-wave-rectified power supplies can be used.
3.
When using the H3YN continuously in any place where the ambient temperature is in a range of 45°C to 50°C, supply 90% to 110% of
the rated supply voltages (supply 95% to 110% with 12 VDC type).
4.
Set the reset voltage as follows to ensure proper resetting.
100 to 120 VAC: 10 VAC max.
200 to 230 VAC: 20 VAC max.
100 to 110 VDC: 10 VDC max.
5.
Refer to
Safety Precautions for All Timers
when combining the Timer with an AC 2-wire proximity sensor.
6.
A diode to prevent reverse voltages is provided only on models with a DC power supply.
3
H3YN
■
Characteristics
Item
Accuracy of operating time
Setting error
Reset time
Influence of voltage
Influence of temperature
Insulation resistance
Dielectric strength
±10%±50
ms FS max.
Min. power-opening time: 0.1 s max. (including halfway reset)
±2%
FS max.
±2%
FS max.
100 MΩ min. (at 500 VDC)
2,000 VAC, 50/60 Hz for 1 min (between current-carrying terminals and exposed non-current-carrying
metal parts) (see note 1)
2,000 VAC, 50/60 Hz for 1 min (between operating power circuit and control output)
2,000 VAC, 50/60 Hz for 1 min (between different pole contacts; 2-pole model)
1,500 VAC, 50/60 Hz for 1 min (between different pole contacts; 4-pole model)
1,000 VAC, 50/60 Hz for 1 min (between non-continuous contacts)
Destruction: 10 to 55 Hz, 0.75-mm single amplitude for 1 h each in 3 directions
Malfunction: 10 to 55 Hz, 0.5-mm single amplitude for 10 min each in 3 directions
Destruction: 1,000 m/s
2
Malfunction: 100 m/s
2
Operating:
Storage:
Operating:
−10°C
to 50°C (with no icing)
−25°C
to 65°C (with no icing)
35% to 85%
H3YN-2/-21/-4/-41
±1%
FS max. (1 s range:
±1%±10
ms max.)
Vibration resistance
Shock resistance
Ambient temperature
Ambient humidity
Life expectancy
Mechanical: 10,000,000 operations min. (under no load at 1,800 operations/h)
Electrical:
DPDT:
500,000 operations min. (5 A at 250 VAC, resistive load at 1,800 operations/h)
4PDT:
200,000 operations min. (H3YN-4-Z/-41-Z: 100,000 operations min.)
(3 A at 250 VAC, resistive load at 1,800 operations/h) (see note 2)
Between power terminals:
3 kV for 100 to 120 VAC, 200 to 230 VAC, 100 to 110 VDC, 125 VDC
1 kV for 12 VDC, 24 VDC, 48 VDC, 24 VAC
Between exposed non-current-carrying metal parts:
4.5 kV for 100 to 120 VAC, 200 to 230 VAC, 100 to 110 VDC, 125 VDC
1.5 kV for 12 VDC, 24 VDC, 48 VDC, 24 VAC
±1.5
kV, square-wave noise by noise simulator (pulse width: 100 ns/1
μs,
1-ns rise)
Destruction: 8 kV
Malfunction: 4 kV
IP40
Approx. 50 g
(EMI)
Emission Enclosure:
Emission AC Mains:
(EMS)
Immunity ESD:
Immunity RF-interference:
Immunity Burst:
Immunity Surge:
Immunity Conducted Disturbance:
Immunity Voltage Dip/Interruption:
EN61812-1
EN55011 Group 1 class A
EN55011 Group 1 class A
EN61812-1
IEC61000-4-2
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
IEC61000-4-6
IEC61000-4-11
Impulse withstand voltage
Noise immunity
Static immunity
Degree of protection
Weight
EMC
Approved standards
UL508, CSA C22.2 No. 14, Lloyds, CCC
Conforms to EN61812-1 and IEC60664-1. (2.5 kV/2 for H3YN-2/-21, 2.5 kV/1 for H3YN-4/-41, H3YN-
4-Z/-41-Z)
Output category according to EN60947-5-1.
Note: 1.
Terminal screw sections are excluded.
2.
Refer to the
Life-test Curve.
4
H3YN
■

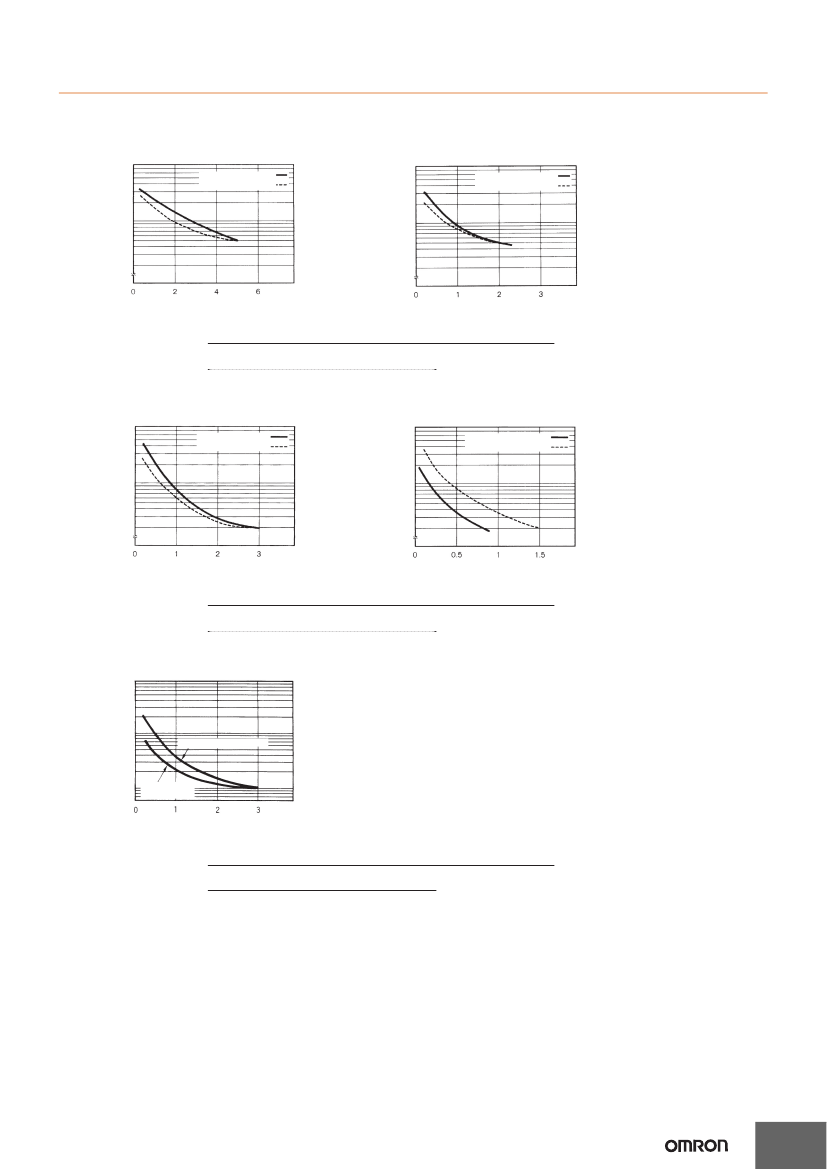

Life-test Curve (Reference Value)
H3YN-2/-21
Switching operations (x 10
3
)
5,000
250
VAC,
cosφ = 1
24
VDC,
cosφ = 1
Switching operations (x 10
3
)
5,000
250
VAC,
cosφ = 0.4
24
VDC,
L/R = 7 ms
1,000
500
200
1,000
500
200
Load current (A)
Load current (A)
Reference: A maximum current of 0.6 A can
be
switched at 125
VDC
(cosφ = 1).
Maximum current of 0.2 A can
be
switched if L/R is 7 ms. In
both
cases,
a life of 100,000 operations can
be
expected.
The minimum applicable load is 1 mA at 5
VDC
(P reference
value).
H3YN-4/-41
Switching operations (x 10
3
)
5,000
250
VAC,
cosφ = 1
24
VDC,
cosφ = 1
Switching operations (x 10
3
)
5,000
250
VAC,
cosφ = 0.4
24
VDC,
L/R = 7 ms
1,000
500
200
1,000
500
200
Load current (A)
Load current (A)
Reference: A maximum current of 0.5 A can
be
switched at 125
VDC
(cosφ = 1).
Maximum current of 0.2 A can
be
switched if L/R is 7 ms. In
both
cases,
a life of 100,000 operations can
be
expected.
The minimum applicable load is 1 mA at 1
VDC
(P reference
value).
H3YN-4-Z/-41-Z
Switching operations (x 10
3
)
5,000
1,000
500
250
VAC,
resistive load
100
60
24
VDC,
resistive load
Load current (A)
Reference: A maximum current of 0.5 A can
be
switched at 125
VDC
(cosφ = 1).
Maximum current of 0.2 A can
be
switched if L/R is 7 ms. In
both
cases,
a life of 100,000 operations can
be
expected.
The minimum applicable load is 0.1 mA at 1
VDC
(P reference
value).
5
