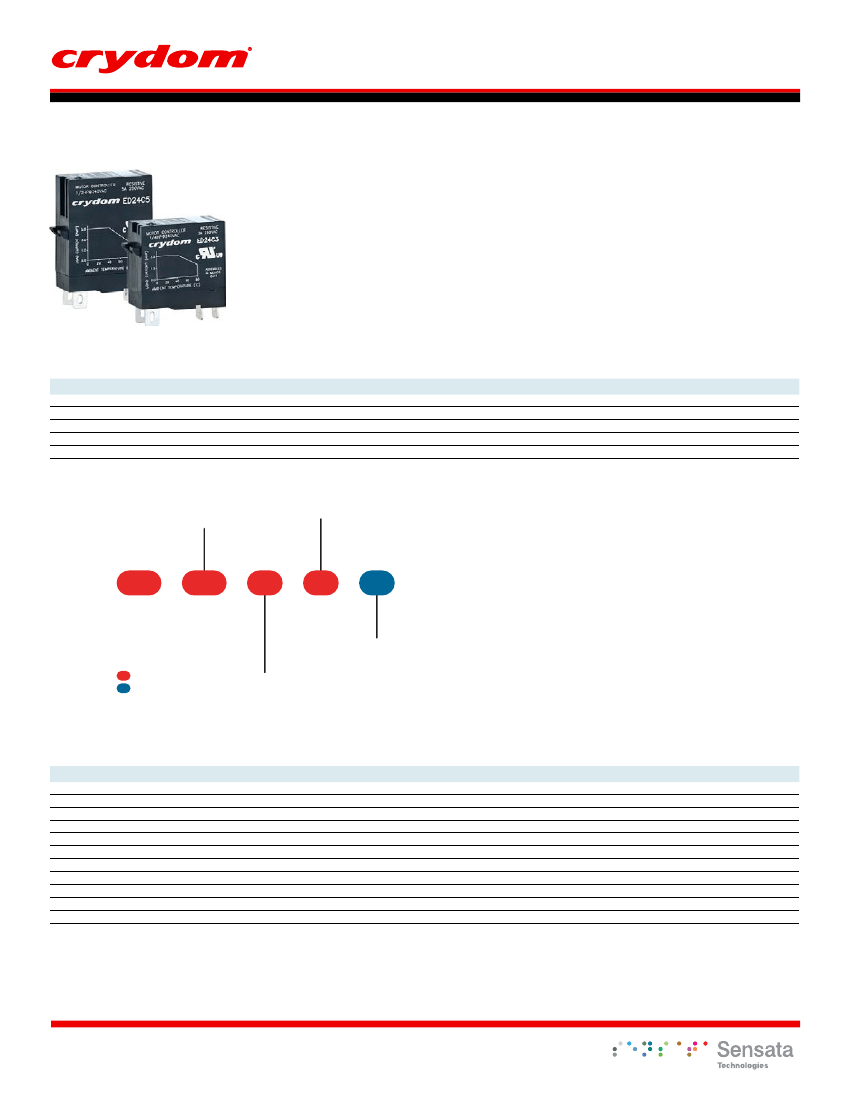

ED Series
•
AC output Solid State Relay in an Industry standard
EMR plug in package
•
Ratings of 1, 3 & 5 Amps
•
Load voltage range of 24-280VAC
•
Fits standard DIN rail & PCB mountable sockets
•
LED input status indicator
•
AC or DC control
•
cUL Recognized, IEC Rated, CE & RoHS Compliant
•
Horsepower Rated, Pilot Duty Rated
Plug-in
PRODUCT SELECTION
Control Voltage
3-15 VDC Control
18-32 VDC Control
48-72 VDC Control
18-36 VAC Control
90-140 VAC Control
1A
ED24D1
ED24C1
3A
ED24D3
ED24C3
ED24F3
5A
ED24D5
ED24C5
ED24F5
ED24E5
ED24B5
AVAILABLE OPTIONS
Operational Current
1:
1 Amp (not available with B,E & F suffixes)
3:
3 Amps (not available with B & E suffixes)
5:
5 Amps
Output Voltage
24:
24-280 VAC
Series
ED
24
C
3
R
Switching Mode
Blank:
Zero Voltage Turn-On
R:
Random Turn-On
Required for valid part number
For options only and not required for valid part number
Control Voltage
B:
90-140 VAC
C:
18-32 VDC
D:
3-15 VDC
E:
18-36 VAC
F:
48-72 VDC
OUTPUT SPECIFICATIONS AC Output
(1)
Description
Operating Voltage (47-63Hz) [Vrms]
Transient Overvoltage [Vpk]
Maximum Resistive Load Current UL 508/ IEC 62314 LC-A [Arms, FLA]
(2)
Minimum Load Current [Arms]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec]
(3)
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Maximum Surge Current (50/60 Hz, 1 cycle) [Apk]
Maximum I²t for Fusing (50/ 60 HZ, 1/2 cycle) [A² sec]
UL 508 HP/IEC 62314 LC-B Rating @ 240V, 40°C [HP/KW]
Minimum Power Factor (with Maximum Load)
1A
24-280
600
1.5
0.025
0.1
500
1.1
38/40
7/6
NA
0.5
3A
24-280
600
3
0.15
0.1
500
1.1
240/250
285/260
0.25 / 0.37
0.5
5A
24-280
600
5
0.15
0.1
500
1.1
600/625
1780/1620
0.5 / 0.55
0.5
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
DataSheet
INPUT SPECIFICATIONS
(1)
Description
Control Voltage Range
Minimum Turn-On Voltage
Minimum Turn-Off Voltage
Maximum Reverse Voltage
Minimum Input Current [mA]
Maximum Input Current [mA]
Nominal Input Impedance [ohms]
Maximum Turn-On Time [msec]
(4)
Maximum Turn-Off Time [msec]
Plug-in
ED24Bx
90-140 VAC
90 VAC
20 VAC
N/A
3.2
4.9
28K
20
30
ED24Dx
3-15 VDC
3 VDC
1.9 VDC
6 VDC
3.8
33.8
500
8.33
8.33
ED24Cx
18-32 VDC
18 VDC
10.0 VDC
6 VDC
3.8
6.9
4.8K
8.33
8.33
ED24Fx
48-72 VDC
48 VDC
24 VDC
6 VDC
3.8
5.8
12.5K
8.33
8.33
ED24Ex
18-36 VAC
18 VAC
8 VAC
N/A
3.8
8.5
4.5K
20
30
GENERAL SPECIFICATIONS
(1)
Description
Dielectric Strength, Input/Output (50/60Hz)
Minimum Insulation Resistance (@ 500 V DC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Maximum Humidity
Housing Material
Terminals Material
1)
All parameters at 25°C unless otherwise specified.
2)
Based on 17mm (5A model) and 13mm (3A model) spacing minimum between parts.
3)
Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
4)
Turn-On time for Random turn-on versions is 0.1ms for DC control and 5ms for AC control.
Parameters
3750 Vrms
10 9 Ohms
10 pF
-30ºC to 80ºC
-40ºC to 125ºC
1.06 oz. (30 g)
85% non-condensing
Polyamide Class V0 (UL94)
Copper w/Sulfamet Nickel finish
GENERAL NOTES
MECHANICAL SPECIFICATIONS
Tolerances: ±0.02 in / 0.5 mm
All dimensions are in: inches [millimeters]
AC Output: 5 Amps
.99
[25.0]
1.10
[27.9]
AC Output: 1 & 3 Amps
1.47
[37.4]
.82
[20.8]
.02
[0.5]
.30
[7.6]
.24
[6.1]
.20
[5.1]
.19
[4.8]
.10
[2.5]
1
5
2
4
3
.21
[5.3]
.12
[3.0]
.39
[9.9]
1.14
[29.0]
.50
[12.7]
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
DataSheet
WIRING DIAGRAM
-DC
1/A1
Plug-in
3
Trigger
Circuit
LOAD
A
AC
AC
1/A1
1
Current
Limiter
LOAD
A
AC
AC/DC
Converter
B
Trigger
Circuit
B
4
+DC
5/A2
LOAD
AC
AC
5/A2
2
LOAD
AC
Current
Limiter
LOAD CAN BE WIRED IN POSITION A or B
THERMAL DERATE INFORMATION
6.0
Load Current (Amps)
5.0
4.0
3.0
2.0
1.0
0
10
20
30
40
50
60
70
80
5 Amps
3 Amps
1 Amp
Ambient Temperature (ºC)
Above curve is based on a minimum spacing between parts of 17mm for ED24X5 and 13mm for ED24x3. Maximum current @
0mm spacing is 2.7A for ED24x5 and 2.3A for ED24x3 @ 40°C.
Derating Value: ED24x5 = 0.135A per mm
ED24x3 = 0.054A per mm
Derating based on Relay air gap:
Example: 10mm spacing with a ED24D5 SSR
1.- Subtract spacing from the minimum required spacing
of the part (17mm) to get the correction value.
17-10=7
2.- Multiply air gap derating value found above with correction value
0.135 x 7 = 0.945A
Now using this final number we can figure out what the maximum current the relay can
carry with 10mm spacing @ 60°C Ambient.
3.- using the Ambient Derating Curve above find the current for the
5A model @ 60°C. In this case that calue is 3A.
4.- Subtract the value above (0.945A) from 3A.
3-0.945 = 2.055A
The maximum current you can switch with the ED24D5 with a 10mm air gap
between relays @ 60°C ambient is 2.055A
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
DataSheet
AGENCY APPROVALS
Designed in accordance with the requirements of IEC 62314
Pilot Duty Rated C300
IEC 61000-4-2 : Electrostatic Discharge Level 3 – Criteria A
IEC 61000-4-4 : Electrically Fast Transients Level 3 – Criteria B
IEC 61000-4-5 : Electrical Surges Level 3 – Criteria A
Plug-in
E116949

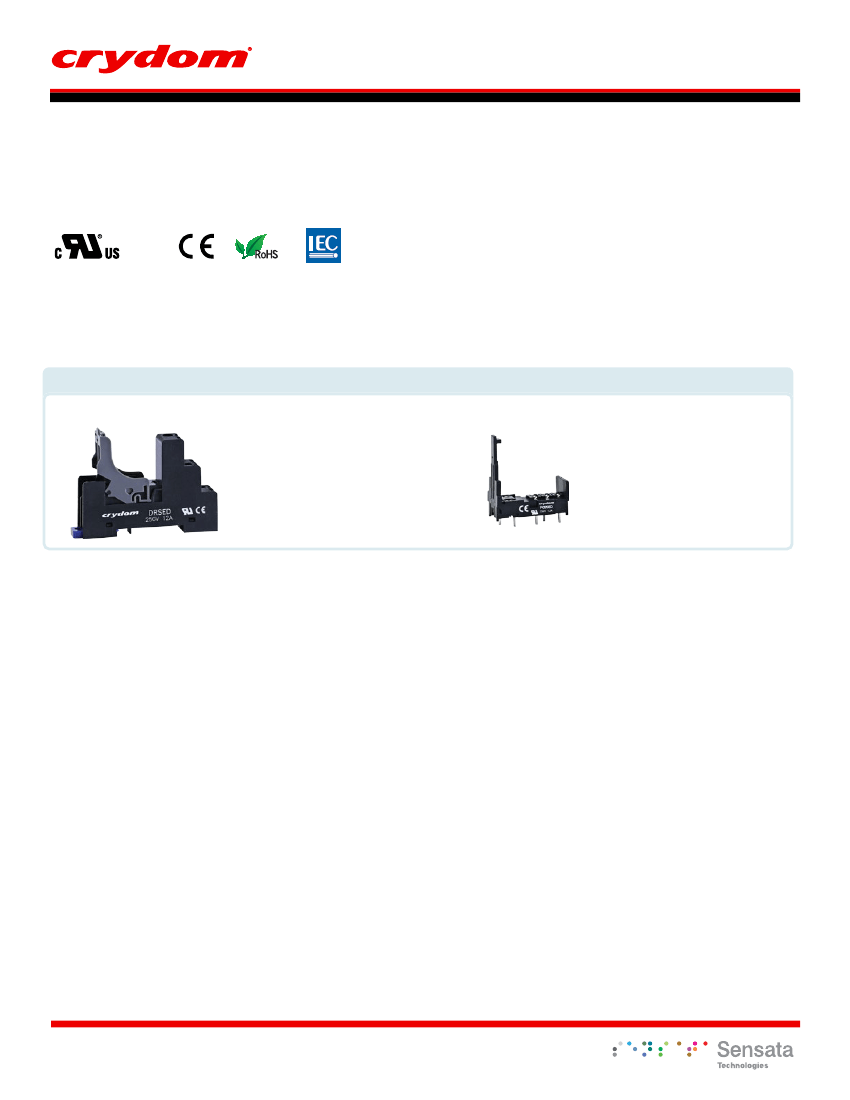

ACCESSORIES
ED Series Accessories
DRSED
DIN Rail Mountable Socket
Part no.: DRSED
Fingersafe IP10 DIN rail mountable socket to
mount ED series relays onto standard 35 mm
DIN rail. Rated at 250 V AC/DC, 12 Amps. The
DRSED includes M3 Combo screws.
PCBSED
PC Board Mountable Socket
Part no.: PCBSED
PC Board mountable socket for ED series
relays. Rated at 250 V AC/DC, 12 Amps.
Suggested Pin-out hole diameter: 1.0 mm
Rev 073015
