38DSP14BDM1QT Overview

MOSFET N-CH 30V 0.87 mOhm logic level MOSFET

38DSP14BDM1QT Parametric

Parameter Name	Attribute value
Product Category	Pushbutton Switches
Manufacturer	Grayhill
RoHS	Details
Product	Standard Switches
Contact Form	SPDT
Switch Function	ON - OFF - ON
Current Rating	6 A
Voltage Rating AC	250 VAC
Voltage Rating DC	28 VDC
Mounting Style	Through Hole
Mounting Type	Bushing
Termination Style	Solder Lug
Actuator	Round
Cap Color	White
Color	Red
Contact Plating	Silver
Flammability Rating	UL 94 V-0
Height	18.35 mm
Housing Material	Diallyl Phthalate (DAP)
Length	12.7 mm
Life	50000 Cycles
Material	Nylon, Glass Filled
Factory Pack Quantity	40
Terminal Seal	Epoxy
Width	6.86 mm

Preview

Download Datasheet

View All

Alternate Action Pushbutton Switches

SerieS 38d

alternate action

Pushbutton Switches

FeatureS

•

SPDT, DPDT, 3PDT, 4PDT Circuitry

•

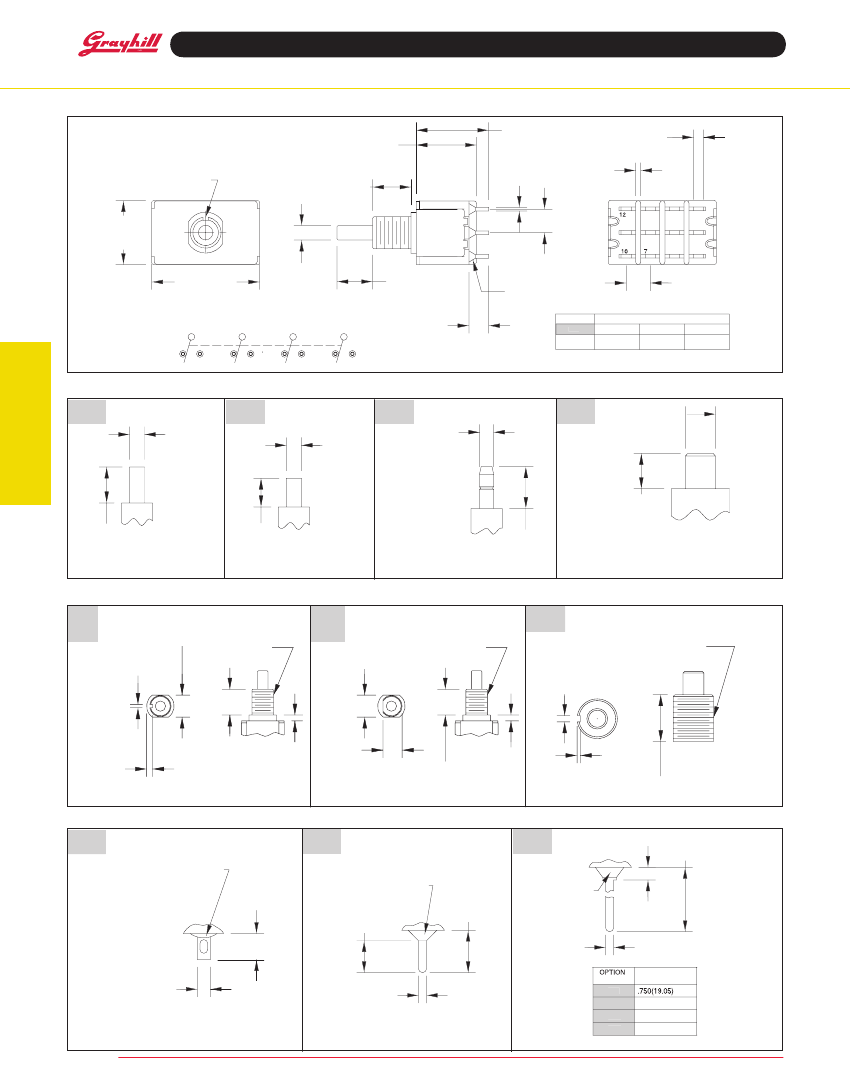

Choice of Plunger Length, Bushings,

and Terminations

•

UL Recognized

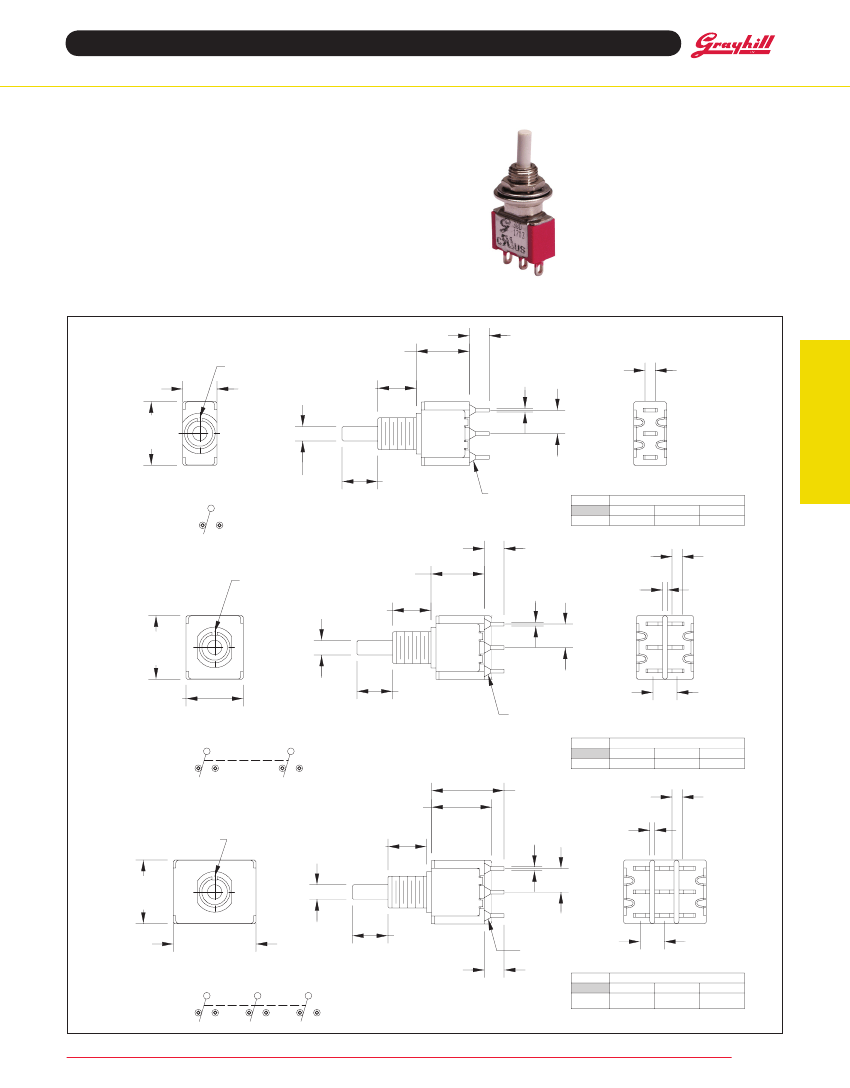

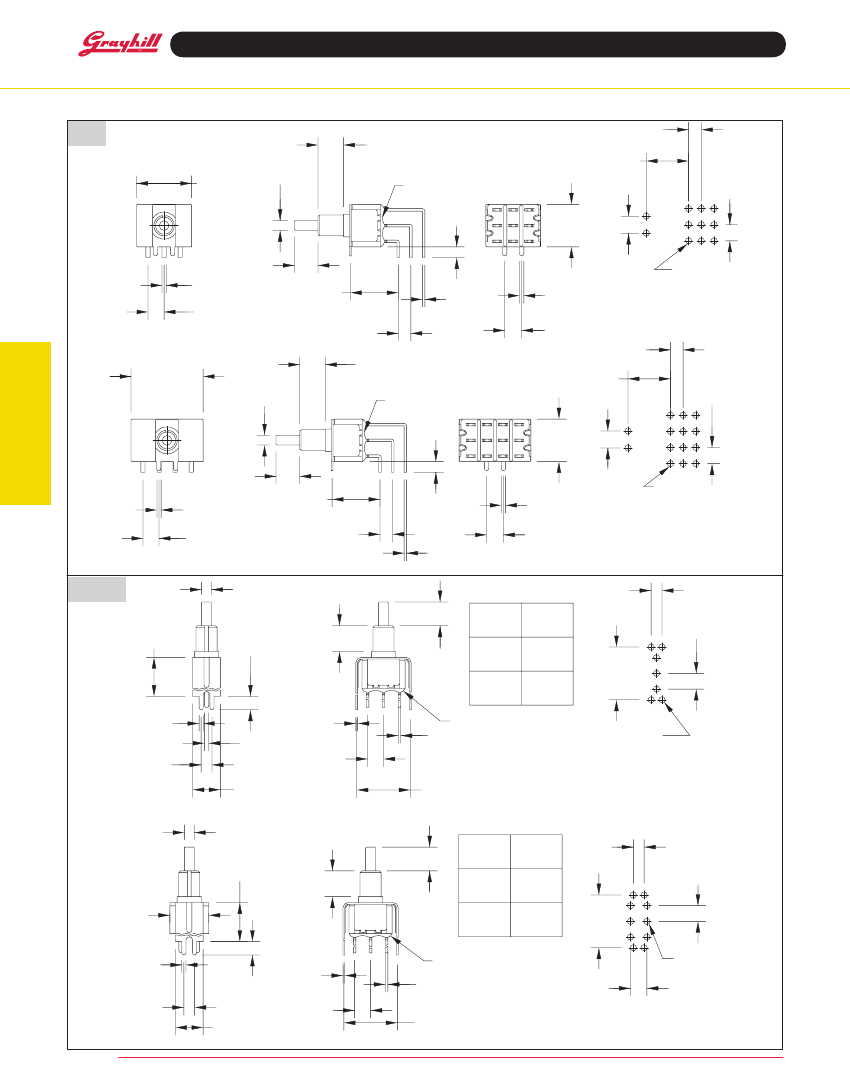

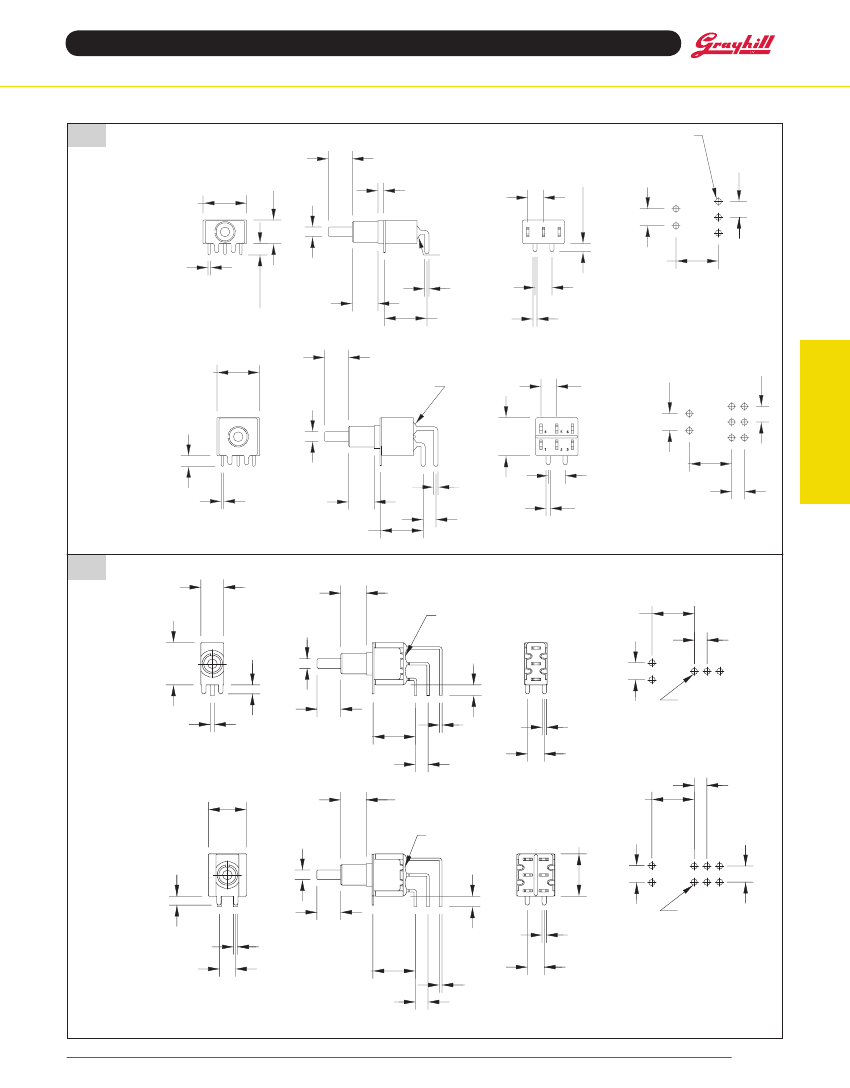

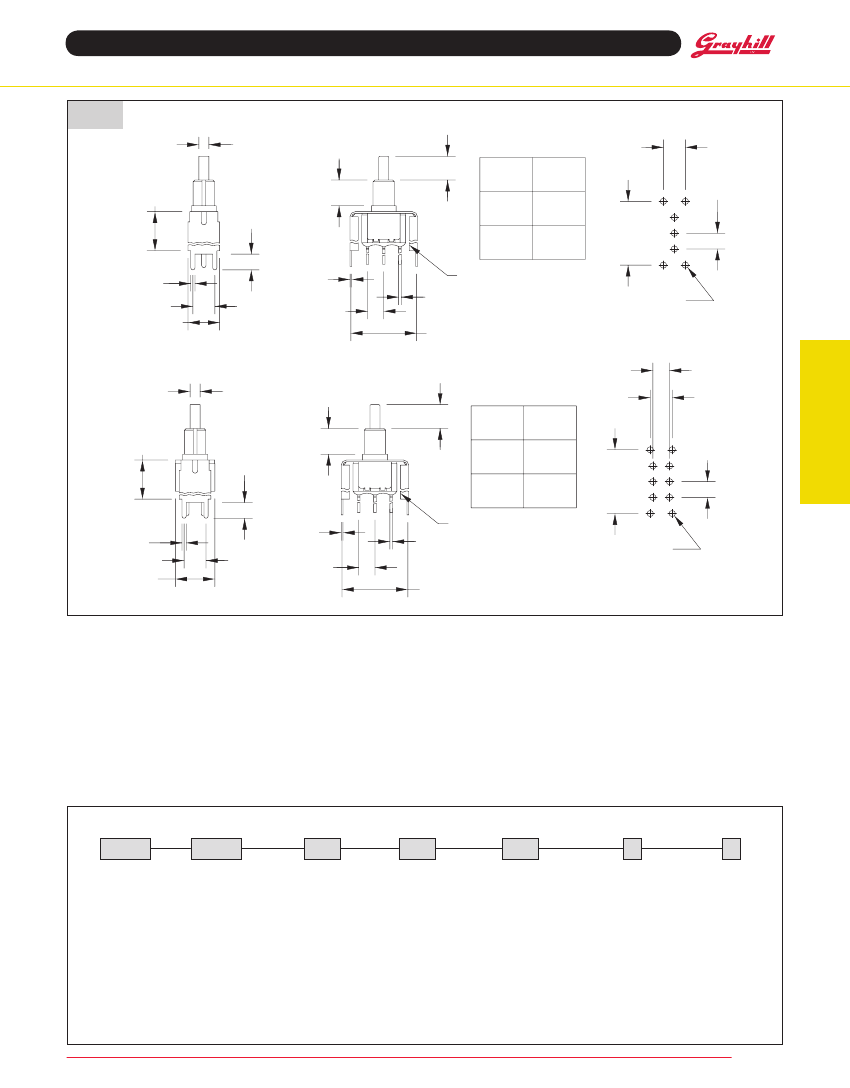

diMenSiOnS

in inches (and millimeters)

SPdt

KEYWAY

.270

(6.86)

.500

(12.7)

.419

(10.65)

.303

(7.70)

.156

(3.96)

.030

(0.76)

.080

(2.03)

Pushbutton Switches

02COMM.

SCHEMATIC

Ø.114

(Ø2.90)

.280

(7.11)

.185

(4.70)

EPOXY

SEAL

MODEL NO.

SP1

TERM. COMM.

2-3

SWITCH POSITION

NONE

OPEN

2-1

dPdt

KEYWAY

.419

(10.65)

.303

(7.70)

.156

(3.96)

.030

(0.76)

.080

(2.03)

.040

(1.02)

.500

(12.7)

Ø.114

(Ø2.90)

.280

(7.11)

.185

(4.70)

EPOXY

SEAL

MODEL NO.

DP1

TERM. COMM.

.450

(11.43)

02COMM.

.190

(4.83)

SWITCH POSITION

NONE

2-3,5-6

OPEN

05COMM.

SCHEMATIC

2-1,5-4

.475

(12.06)

KEYWAY

.303

(7.70)

.571

(14.50)

.030

(0.76)

.080

(2.03)

.040

(1.02)

.500

(12.7)

3Pdt

.650

(16.51)

02COMM.

05COMM.

Ø.114

(Ø2.90)

.280

(7.11)

.156

(3.96)

.185

(4.70)

EPOXY SEAL

MODEL NO.

3P1

TERM. COMM.

.190

(4.83)

SWITCH POSITION

NONE

2-3,5-6

OPEN

8-9

2-1,5-4

8-7

08COMM.

SCHEMATIC

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
