Non-Washable Tactile Switches
SErIES 95c
FEaturES
6mm Square, Non-washable
applIcatIONS
• Ultraminiature and Lightweight
Structure Suitable for High Density
Mounting
Used in applications such as consumer
electronics, audio equipment, PCs,
VCRs, cable boxes, modems,
communications equipment, controls,
security and alarm equipment, and test
and measurement equipment.
• Excellent Tactile Feedback
• Thru-hole, Gull Wings, and Right
Angle Versions
• Surface Mount Versions Compat-
ible with SMT Assembly Including
Infrared and Vapor Phase

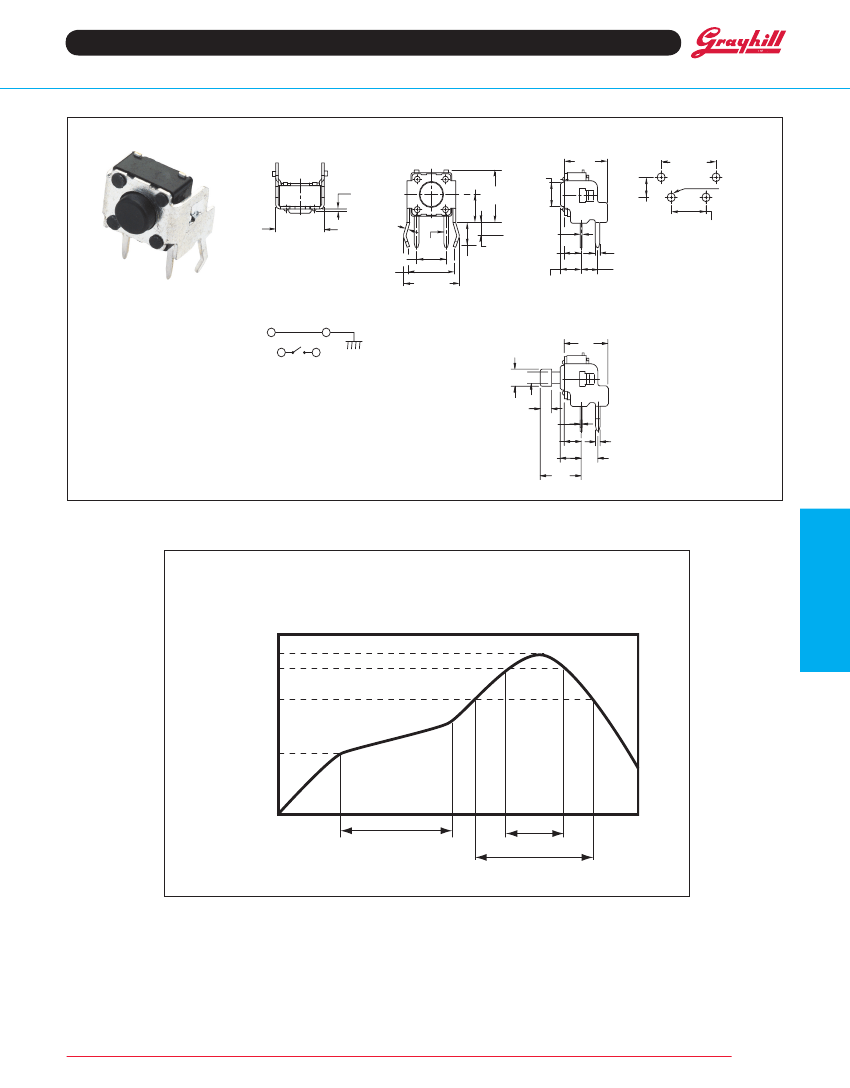

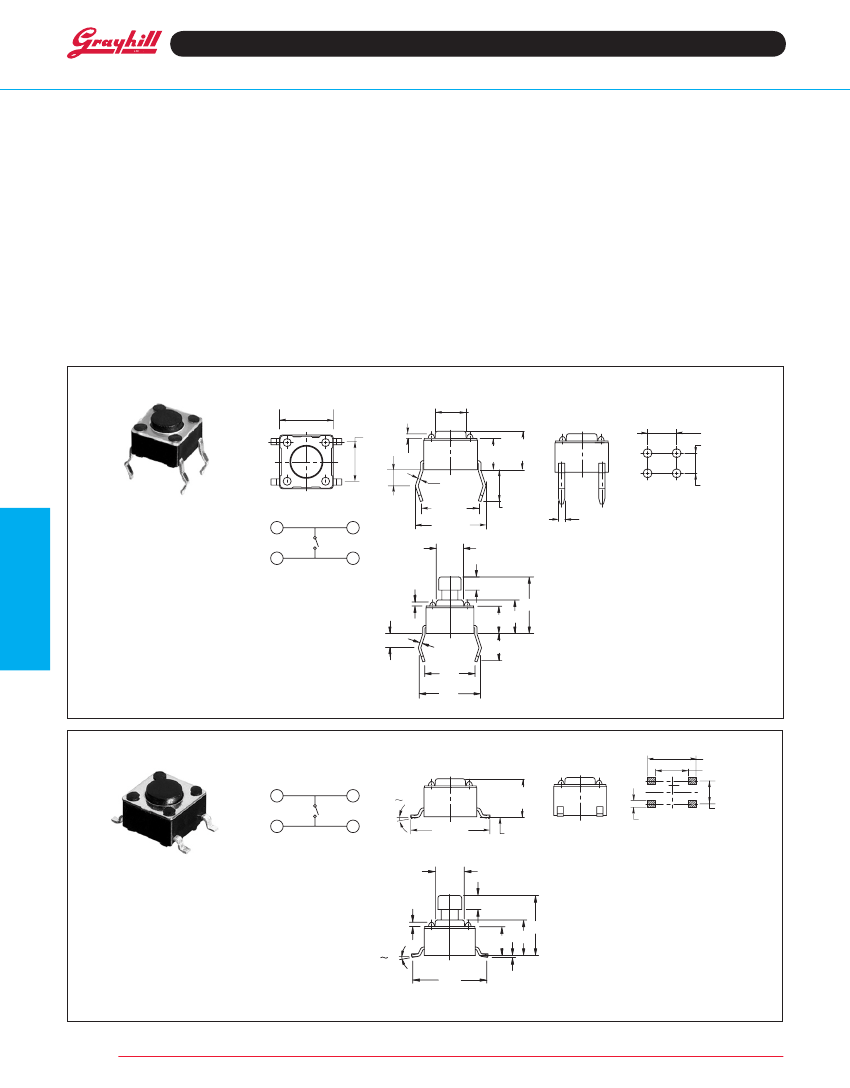

DIMENSIONS: Non-Washable Switches
in inches (and millimeters)
Top View
.244 (6,20)
C
L
Thru-hole
.020
(0,50) MAX.
.177
(4,50)
C
L
Front View
Ø.138 (Ø3,50)
C
L
"H" DIM.
.138 See Ordering
(3,50) Information
.012 (0,30)
Side View
.256
±.004
(6,50
±
0,10)
.177
±.004
(4,50
±
0,10)
C
L
4xØ .040
±.002
(4xØ 1,00
±0,05)
.138
±.020
(3,50
±0,50)
P.C.B. LAYOUT
.028 (0,70)
thru-Hole
T1
T2
.071
+0-0.02
(1,80
+0,0-0,5)
.256
±.020
(6,50
±0,50)
.311
±.020
(7,90
±0,50)
.138
DIA.
C
L
T3
T4
Tact Switches
Gull Wing
.020 MAX.
.067
.287
.138
.170
.012
.071
+.000
-.020
.256
±.020
.311
±.020
.138±.020
Actuactor Style "F"
for use with decorative caps. See page C-7
Gull Wing
T1
T2
0˚
10˚
C
L
"H" DIM.
See Ordering
Information
C
L
.374 (9,50)
.252 (6,40)
.177 (4,50)
.051 (1,30)
P.C.B. LAYOUT
T3
T4
.354 (9,00)
Front View
.138
DIA.
C
L
.008
±.004
(0,20
±0,10)
.020 MAX.
.067
.287
.138
.170
Actuactor Style "F"
for use with decorative caps. See page C-7
0˚
10˚
.354
.008±.004
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
Non-Washable Tactile Switches
OrDErING INFOrMatION: Non-Washable Switches
thru-Hole and Gull Wing
95c06a2GWrt
right angle
Series
Size:
06 = 6mm Square
Height (“H”):
A = .169 (4,29), B = .197 (5,00), C = .276 (7,01), D = .374 (9,50), E = .512 (13,00)
F = .287 (7,29) for use with decorative caps
roHS compliant
packaging:
Blank = Tube or bulk, R = Tape and Reel (see pkg note)
terminal Style:
Blank = Thru-hole, GW = Gull Wing
Operating Force (actuator color):
2 = 100g (Black), 3 = 160g (Brown), 4 = 260g (Red),
5 = 320g (Orange), 6 = 520g (Yellow)
Series
Size:
06 = 6mm Square
Height (“H”):
A = .124 (3,14), B = .152 (3,86), C = .230 (5,84), D = .329 (8,36), E = .467 (11,86)
F = .242 (6,15) for use with decorative caps
roHS compliant
terminal Style:
RA = Right Angle
Operating Force (actuator color): 2 = 100g (Black), 3 = 160g (Brown), 4 = 260g (Red)
95c06a2rat
packaging
Thru-Hole: Bulk,1000 pcs/bag. Surface Mount: 77 pcs/tube, 1000 pcs/reel (.169” height), 900 pcs/reel (.197” height), 500 pcs/reel
(.276” and .287” height), 380 pcs/reel (.374” height). Right Angle: Bulk, 1000 pcs/bag.
SpEcIFIcatIONS:
Non-Washable Switches
Materials
Base:
UL94V-0 Nylon thermoplastic
cover: Stainless steel, tin-plated steel
actuator:
UL94V-0 Nylon thermoplastic
terminal: Brass with silver-plating
contact: Stainless steel with silver-plating
cap: Thermoplastic ABS
Dielectric Strength: No dielectric breakdown
after 250V for one minute
contact arrangement: single pole, single
throw
Soldering process
Environmental
Electrical
Tact Switches
rating:
50mA, 12 Vdc
life: 100g, 160g: 1,000,000 cycles;
260g: 500,000 cycles
320g, 520g, 300,000 cycles
actuator travel:
.010” + .008”/ - .004”
contact resistance: 100 mΩ max.
Insulation resistance: 100 MΩ min.
at 500Vdc
Operating temp. range: -25 to 70°C
Storage temp. range:
-30 to 80°C
Mechanical Shock:
MIL-STD-202F, Method
213B, Test Condition A. Gravity: 50G’s (peak
value), 11 msec. Direction and times: 6 sides
and 3 times in each direction. High reliability.
Vibration:
MIL-STD-202F, Method 201A.
Passed 6 hours (2 hours in each) of three
perpendicular planes at a cycle of 10-55-10Hz/
minute. High reliability.
Hand Soldering:
Use a soldering iron of
30 watts, controlled at 350°C for 5 seconds
maximum while applying solder.
reflow Soldering
(surface mount versions
only): Peak temperature 260°C (500°F).
Wave Soldering:
260C° (500°F) maximum
for 5 seconds subject to PCB .063 in. (1,6mm)
thickness.
available from your local Grayhill
component Distributor.
For prices and discounts, contact a local
Sales Office, an authorized local distributor,
or Grayhill.
DEcOratIVE capS
(for use with “F” style square actuators)
"B"
B'
PART
NUMBER
95CAP-000
.217
.217
SWITCH
SIZE
6mm
6mm
6mm
6mm
6mm
6mm
6mm
6mm
6mm
6mm
6mm
6mm
6mm
6mm
SHAPE
SQUARE
SQUARE
SQUARE
SQUARE
SQUARE
SQUARE
ROUND
ROUND
ROUND
ROUND
ROUND
ROUND
ROUND
COLOR
YELLOW
BLUE
RED
BLACK
GREEN
ORANGE
YELLOW
BLUE
RED
NATURAL
BLACK
GREEN
ORANGE
FIGURE
1
1
1
1
1
1
1
2
2
2
2
2
2
2
95CAP-001
95CAP-002
95CAP-003
"B"
SEC "B-B"
.157
B
SQUARE NATURAL
SEC B-B'
95CAP-004
95CAP-005
95CAP-006
95CAP-010
95CAP-011
95CAP-012
95CAP-013
95CAP-014
95CAP-015
95CAP-016
"A"
"A"
,
A
A'
.177
DIA.
.110
.110
6mm SQUARE
SEC "A-A"
6mm ROUND
figure 1
figure 2
