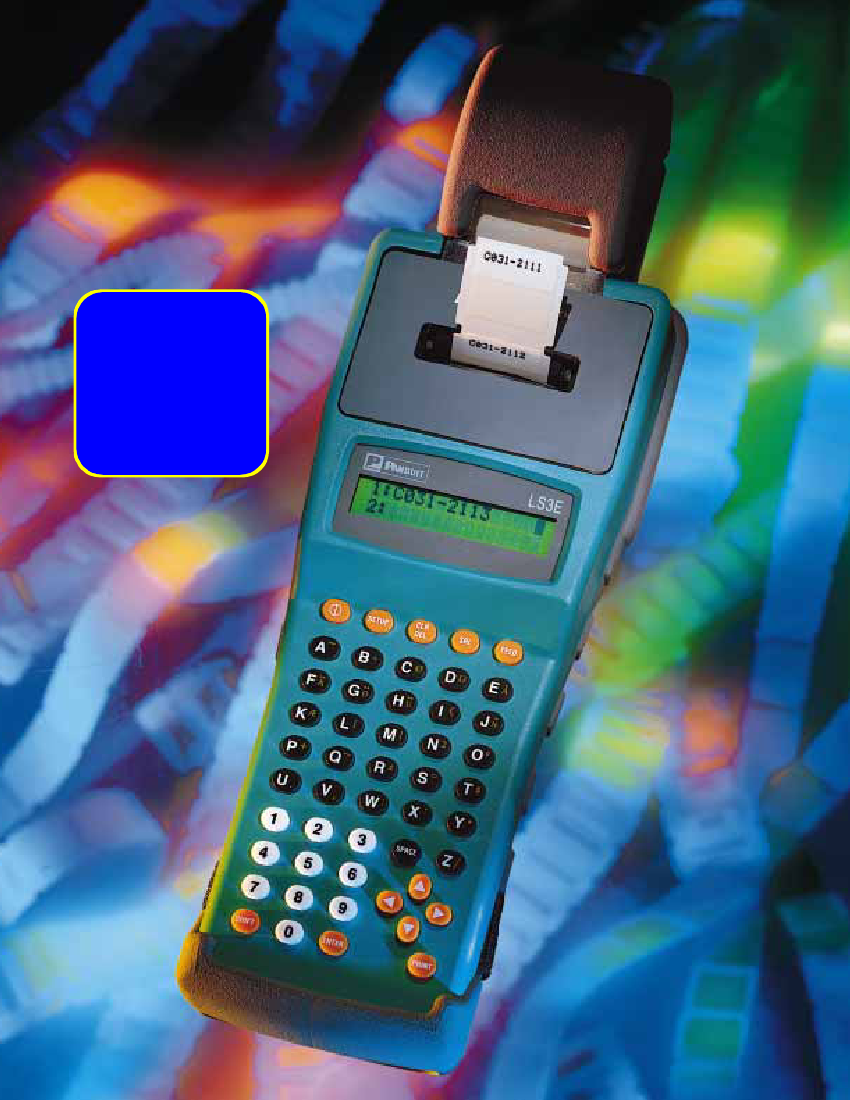

Enhanced
Pan-Quik
™
LS3E Printer
Key Features
Easy ribbon
loading
Prints 24 combinations of
fonts, sizes and densities
Optical sensor provides
exact label registration
Full label feed, reverse feed
or micro-feed
Automatic
alpha-numeric
serialization
of labels
Quick-change battery
pack and optional
AC Adapter for
reduced downtime
Finally, there’s a fast, reliable hand-
held printer that creates crisp, clear
legends in a variety of sizes, is simple
to use, easy to load and offers long
battery life. All at an affordable price!
The
Pan-Quik
LS3E printer lets you
quickly create custom or serialized
labels, wire markers, heat shrink
markers, component labels, and
network labels, all for greater time
savings and convenience. You can
save and retrieve files so its easy to
produce labels with frequently used
formats and legends. Labels are
available with widths from 0.25" to
1.50" (6.4 mm to 38.1 mm) in a
variety of materials. It’s the versatile,
easy way to identify wires, cables,
modular jacks, faceplates, terminal
blocks and patch panels.
It’s perfect for on-site project locations
and quick maintenance applications.
2

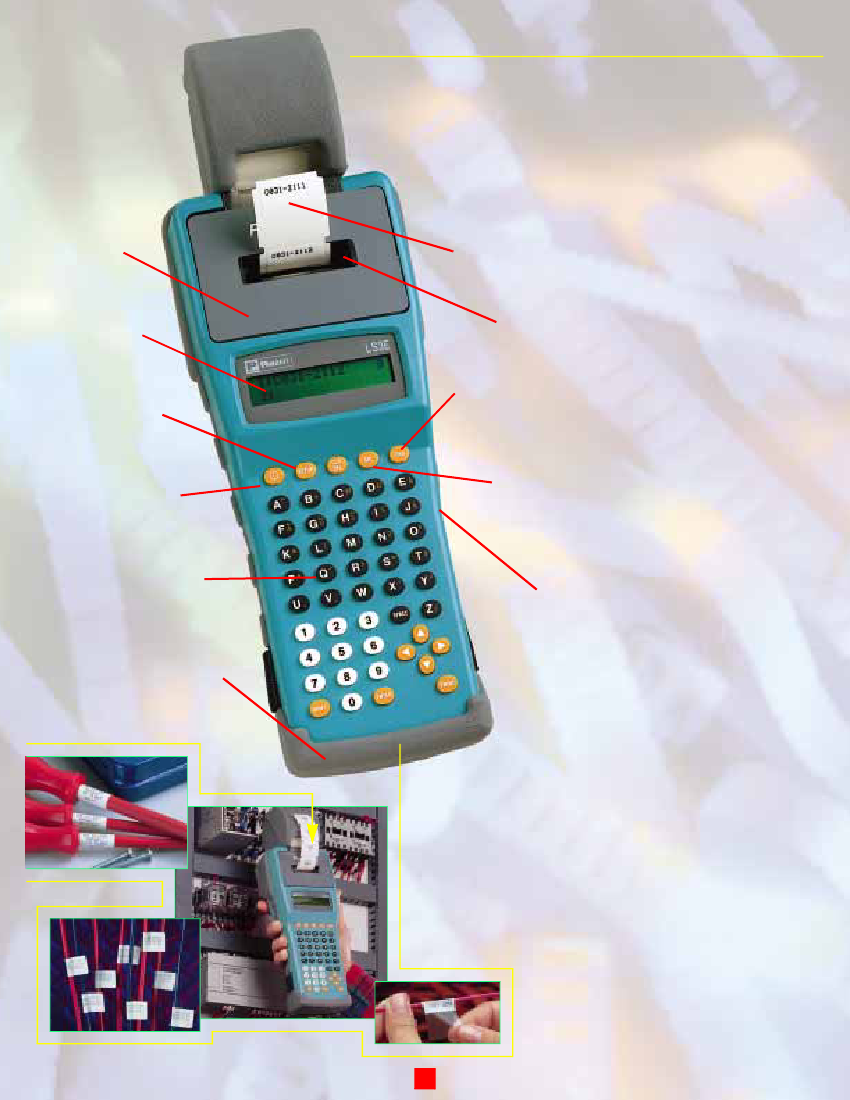

Easy-to-see
LCD Screen
Save and
retrieve files
5 minute
auto shut-off
Quik-Key
™
Fast Label
Formatting System
Shock absorbent
rubber casing
protects the printer
during field use
Printing That Outperforms The Competition
Features
•
Instant Labels
•
Print Head Travels Only as Far as Legend Requires
•
Express Formatting Option to Set all Print
Characteristics at One Time
•
Quik-Key
™
Fast Label Formatting System
•
Automatic Recall of Last Label Entered
•
Save and Retrieve Files
•
Multi-Language Screen Prompts
Benefits
•
Prints custom labels in a matter of seconds.
•
Labels with shorter legends print even faster!
•
Eliminate formatting set-up time for frequently used
label formats such as wire marking, component
identification and patch panel labeling.
•
Fast set-up for: text font, size, case and position;
print density; and label format.
•
No need to reenter information after shut-off or
recharging battery pack.
•
Save time when printing frequently used labels.
•
Choose from English, German, French, Italian,
Dutch, Spanish and Portuguese language screen
prompts as needed.
•
Produce top-quality labels with clear, crisp legends.
•
Run type horizontal or rotated, whichever best meets
your need.
•
Separates headings or emphasizes words.
•
More lines per lineal inch.
•
Serialize in Numeric or Alphabetic sequence. Saves
time when printing a series of labels.
•
Able to print wire markers quickly and efficiently.
Saves time when printing duplicate labels.
•
Able to go anywhere. Can go on-site easily to every
job. No AC power required.
•
Increased efficiency with more labels produced
between battery charges.
•
Less downtime for changeover.
•
Printed legends are easy to read. More pins for
faster speed and better print quality.
•
Makes unit truly hand-held.
•
Provides perfect label registration; minimizes set-up
time and wasted labels.
•
Less operator fatigue. Easy to handle and use.
•
Stands up in industrial environment.
•
Print more labels without having to recharge battery.
•
Just-in-time labels. Create the label you want, when
you want it.
•
One printer to print vinyl cloth wire markers,
self-laminating wire markers, heat shrink wire
markers, component labels and network labels.
•
Reduces inventory carrying costs.
•
No lead time on custom labels.
•
No special training required. Anyone can make
labels.
•

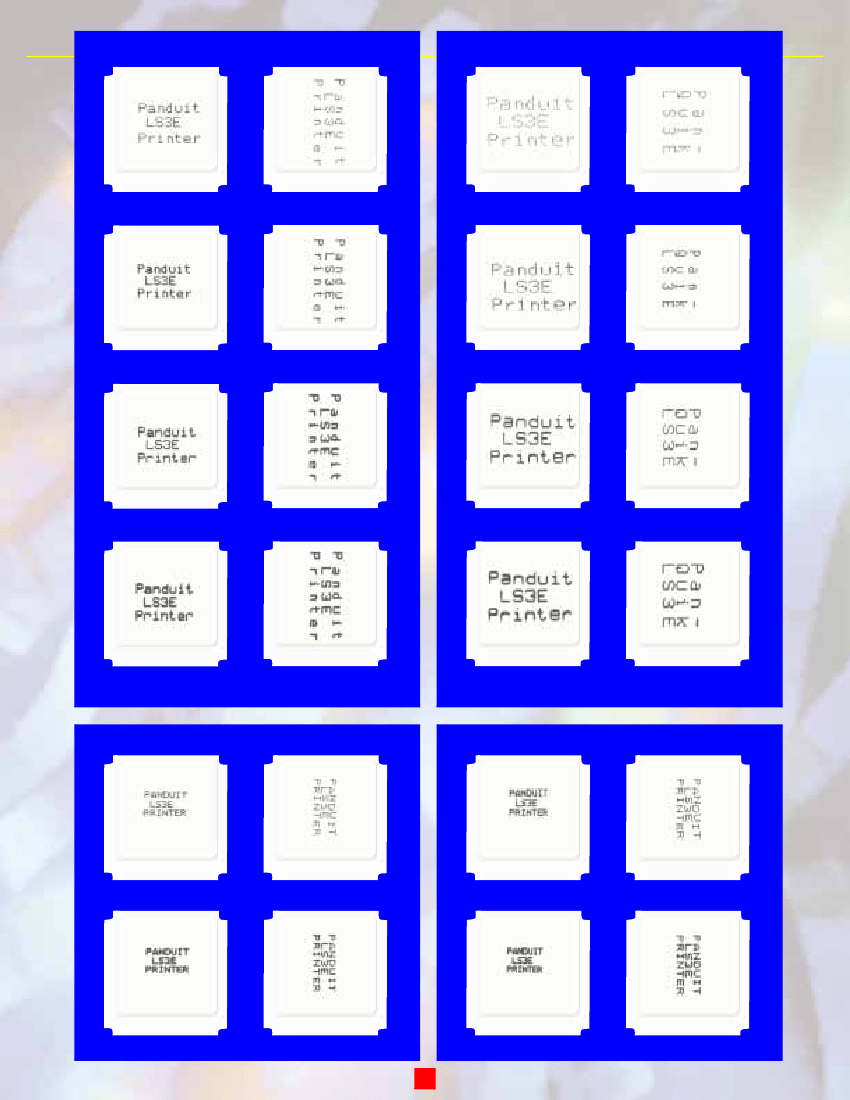

Letter Quality Font
•
Rotated Text
•
Underline Text
•
Small Text Size
•
Automatic Serialization of Labels
•
Automatic Repeat of Legend
•
Portable / Battery-Operated
•
Long Battery Life
•
Easy Loading
•
9-Pin Dot-Matrix Print Head
•
Compact Design
•
Optical Sensor
•
Lightweight
•
Durable
•
AC Adapters and Battery Belt Packages Available
•
On-Demand Printing
•
Versatile
•
Custom Markers at Lower Cost
•
Cost Effective
•
Easy to Use / User Friendly
4
Enhanced
Pan-Quik
™
LS3E Hand-Held Printer
Quik-Key
™
Fast Label Formatting System
Allows you to immediately override the default label parameters without going thru the Setup Menu. By
entering a single character in the
Quik-Key
Mode, you are able to adjust the text font, text size, print density,
and a variety of other LS3E print characteristics listed below. For example, to print a label in Letter Quality,
Rotated Font in Large Text Size, simply enter the letters “Q, R, L” while in
Quik-Key
Mode.
Print
Characteristic
Text Font:
Code
K
Q
R
V
S
N
L
O
P
A
B
Print Mode
Standard •
Letter Quality
Rotated
Compressed Text
Small Text
Normal Text •
Large Text
Lower Case
Upper Case •
Normal •
Bold
Print
Characteristic
Horizontal Text
Position:
Vertical Text
Position:
Label Format:
Code
E
F
G
H
I
J
C
M
T
W
D
U
Print Mode
Horizontal Left
Horizontal Right
Horizontal Center •
Vertical Top
Vertical Bottom
Vertical Center •
Component Label •
Strip Label (2 labels across)
Terminal Label
Wire Marker Label
Demo Print
Underlined Text
Text Size:
Text Case:
Print Density:
• Indicates default setting
Other Options:
Printer Mechanical Information
Print Method:
Size:
9-pin dot-matrix print head
Height:
3.6"
(92 mm)
Width:
4.2"
(108 mm)
Length:
13.2"
(337 mm)
Weight:
2.7 lb
(1.2 kg)
Display:
Two-line x 16 character liquid crystal display
Keyboard:
49 color-coded keys with ergonomically designed keypad
Power Source:
12 VDC, 1200 mAh rechargeable Ni-Cad Battery Pack (Included)
Printer
Part
Number
LS3E
LS3E-JS
LS3E-KS
LS3E-PS
LS3E-ES
LS3E-NE
LS3E-AE
LS3E-FE
LS3E-DE
LS3E-IE
LS3E-PE
LS3E-EE
LS3E-AU
LS3E-CA
Australian 240
LS3E-AA
* Order number of printers required in multiples of Std. Pkg. Qty.
English
U.K. 240
Includes Printer,
Battery Pack,
Battery Charger,
Printer Ribbon,
Wrist Strap and
Operator’s Manual
North American 120
Description
Plug Type
Operator’s
Manual
Language
English
Japanese
Korean
Portuguese
Spanish
Dutch
English
French
Euro 230
German
Italian
Portuguese
Spanish
English
Chinese
1
Std.
Pkg.
Qty.*
5
