Zelio
®
Plug-In Relays
RXM, RPM, RUM, RPF, RSB
Class 8501
Catalog
8501CT0601R1/08
08
CONTENTS
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page
Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
RXM Miniature Relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
RPM Miniature Power Relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
RUM Universal Relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
RPF Power Relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
RSB Interface Relays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
General Technical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Catalog Number Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Zelio
®
Plug-in Relays
Selection Guide
RXM Miniature Relays
(page 4)

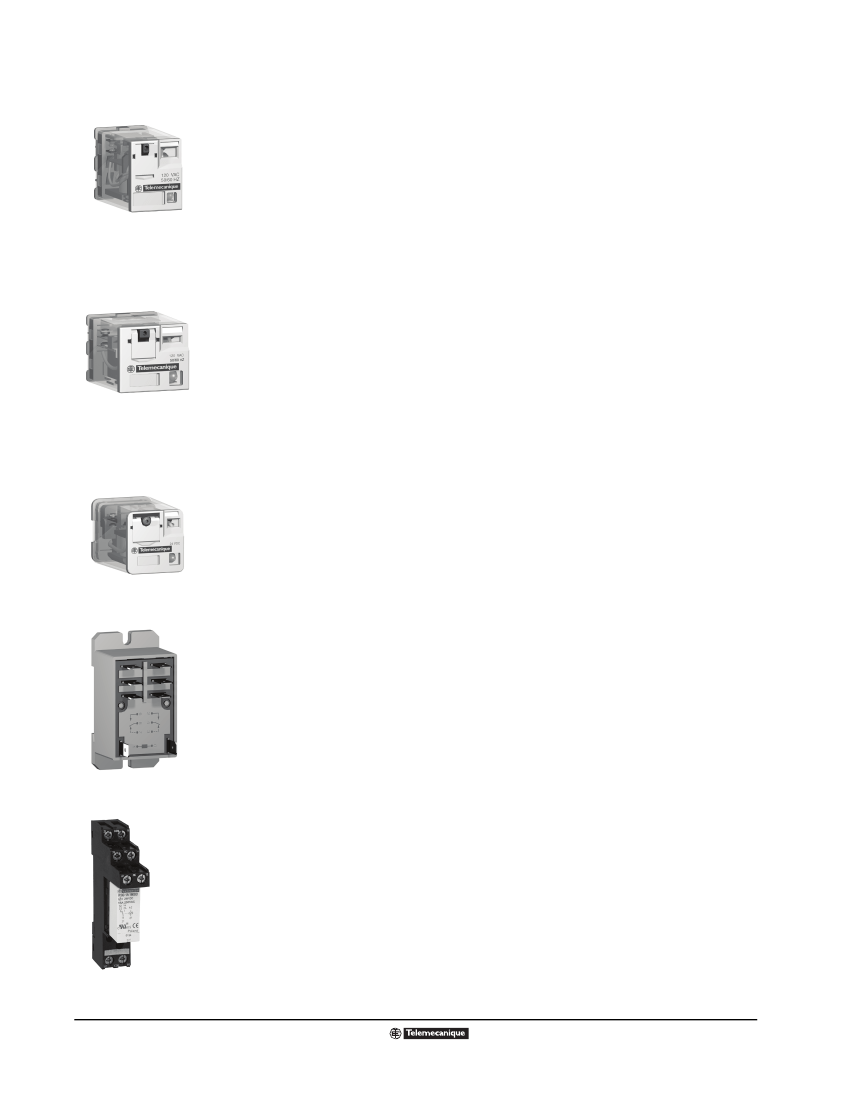

2 pole relays; 12 A, 1/2 hp (IEC rating = 12 A)
3 pole relays; 10 A, 1/3 hp (IEC rating = 10 A)
4 pole relays; 8 A, 1/3 hp (IEC rating = 6 A)
4 pole relays; 3 A (low level), 1/16 hp (IEC rating = 3 A)
RXMpAB2F7
•
•
•
•
Mechanical “relay status” indicator on all relays
Pilot light option available
Manual operator optional for all relays
Built-in marking area
RPM Miniature Power Relays
(page 13)
1 pole relays; 15 A, 1/2 hp (IEC rating = 15 A)
2 pole relays; 15 A, 1/2 hp (IEC rating = 15 A)
3 pole relays; 15 A, 1/2 hp (IEC rating = 15 A)
4 pole relays; 15 A, 1/2 hp (IEC rating = 15 A)
RPM32F7
•
•
•
•
Mechanical “relay status” indicator on all relays
Pilot light option available
Manual operator optional for all relays
Built-in marking area
RUM Universal Relays
(page 21)
2 pole relays; 8-pin, tube type; 16 A, 1/3 hp (IEC rating = 10 A)
3 pole relays; 11-pin, tube type; 16 A, 1/3 hp (IEC rating = 10 A)
2 pole relays; 8 blade type; 16 A, 1/3 hp (IEC rating = 10 A)
3 pole relays; 11 blade type; 16 A, 1/3 hp (IEC rating = 10 A)
RUMppAB2B7
•
•
•
•
Mechanical “relay status” indicator on all relays
Pilot light option available
Manual operator optional for all relays
Built-in marking area
RPF Power Relays
(page 30)
Two Form C contacts; 30 A
Two Normally Open contacts; 30 A
RPF2Bpp
•
•
DIN track mountable
Can be mounted directly to a panel
RSB Interface Relays
(page 33)
Two Form C contacts; 8 A
One Form C contact; 12 A
One Form C contact; 16 A
General Technical Information
(page 38)
Relay contact types
Utilization categories
Protection categories
Protection modules
RSB1A160BD
+ RSZE1S48M
3
01/2008
© 2005–2008 Schneider Electric All Rights Reserved
Zelio
®
Plug-in Relays
Product Description
Product Description
7
2
RXM Miniature Relays
The RXM miniature relay range consists of:
1. 12 A relays with DPDT contacts, 10 A relays with 3PDT contacts,
6 A relays with 4PDT contacts, and 3 A “low level” relays with 4PDT
contacts. All of these relays have the same dimensions.
2. Sockets with mixed or separate contact terminals.
1
3. Protection modules (diode, RC circuit or varistor). All these modules are
common to all sockets.
4
or
5
4. A metal hold-down clip for all sockets.
5. A plastic hold-down clip for all sockets.
6. A 2-pole bus jumper that can be used on sockets with separate contact
terminals to simplify wiring when creating a jumper between the coil
terminals.
7. Clip-in markers for all the sockets except RXZ E2M114.
6
3
8
1
2
3
4
7 6
9
5
10
9
Relay Description

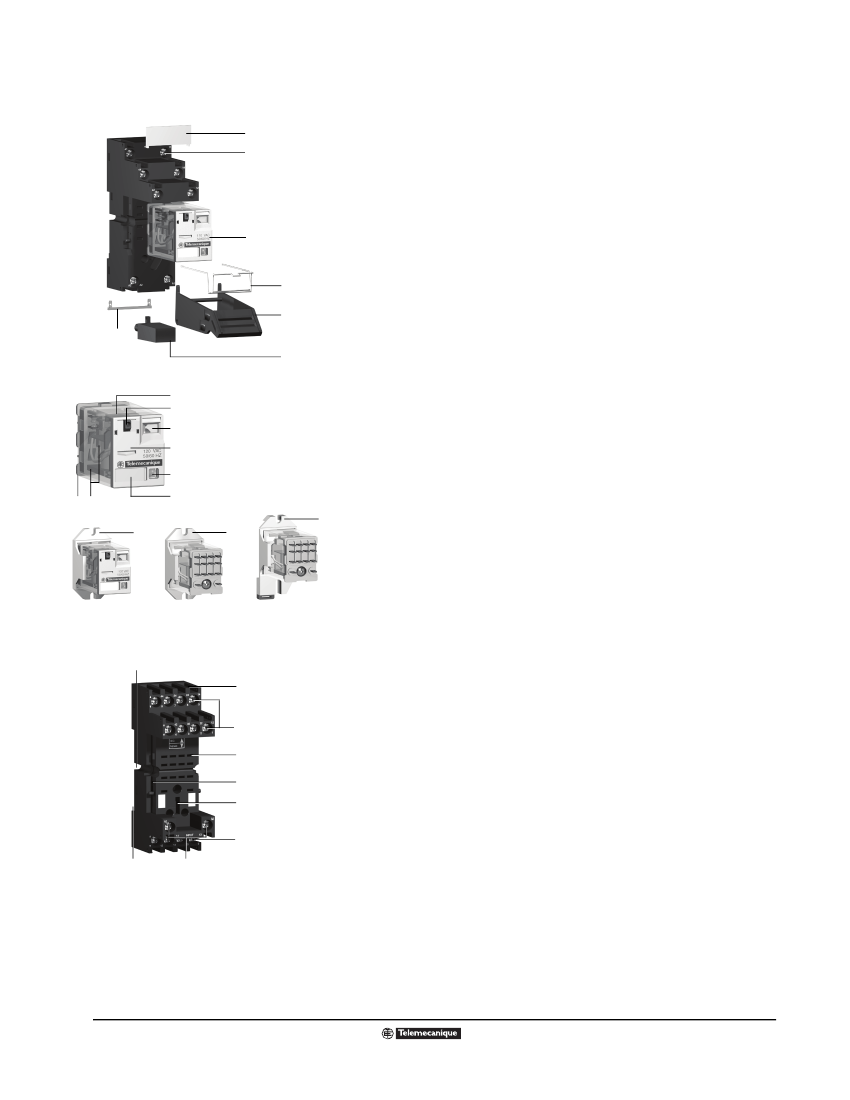

1. Spring return push button for testing the contacts (green: DC, red: AC).
2. Mechanical “relay status” indicator.
3. Optional removable lock-down door and push button, enabling forced
maintaining of the contacts for test or maintenance purposes. During
operation, this lock-down door must always be in the closed position.
4. Bipolar LED (depending on version) indicating the relay status.
5. Removable marker for relay identification.
6. Four notches for DIN rail mounting adapter or panel mounting adapter.
7. Eight, eleven, or fourteen pins.
8. Area by which the product can be easily gripped.
9. Mounting adapter enabling direct mounting of the relay on a panel.
10. Mounting adapter enabling direct mounting of the relay on a DIN rail.
6
1
Socket Description
Sockets with Mixed Contact Terminals
1. Connection by screw clamp terminals or box lug connector.
Outputs
2
4
3
2. Fourteen female contacts for the relay pins.
3. Location for protection modules.
4. Locking components for plastic and metal hold-down clips.
5. Locating slot for mounting on DIN rail.
6. Two or four mounting holes for panel mounting.
NOTE: The inputs are mixed with the relay coil terminals, with the outputs
being located on the opposite side of the socket.
Inputs
5
Coil Terminals
4
© 2005–2008 Schneider Electric All Rights Reserved
01/2008
RXM Miniature Relays
Sockets with Separate Contact Terminals
1
Inputs
Zelio
®
Plug-in Relays
Specifications and Characteristics
6
1. Box lug connector.
2. Eight, eleven, or fourteen female contacts for the relay pins.
3. Location for protection modules.
4. Locking components for plastic and metal hold-down clips.
5. Locating slot for mounting on DIN rail.
6. Two mounting holes for panel mounting.
7. Location for bus jumpers (see mounting on sockets on page 11).
NOTE: The inputs and outputs are separated from the relay coil terminals.
Outputs
2
4
3
5 7
Coil Terminals
General characteristics
Conforming to standards
Product certifications
Ambient air temperature
around
the device
Vibration resistance
Degree of protection
Shock resistance
conforming to IEC/EN 60068-2-27
Protection category
(see page 38)
Mounting position
Storage
Operation
Conforming to IEC/EN 60068-2-6
Conforming to IEC/EN 60529
Opening
Closing
IEC/EN 61810-1 (iss. 2), UL 508, CSA C22-2 n° 14
cULus File E164862 CCN NLDX, NLDX7; cURus File E164862 CCN NLDX2, NLDX8;
CSA pending; CE; RoHS compliant
-40
–
185 °F (-40
–
85 °C)
-40
–
131 °F (-40
–
55 °C)
> 6 gn (10–50 Hz)
IP 40
10 gn
5 gn
RT I
Any
Insulation characteristics
Rated insulation voltage
(Ui)
Rated impulse withstand voltage
(Uimp)
Between coil and contact
Dielectric strength
(rms voltage)
Between poles
Between contacts
250 V (IEC), 300 V (UL, CSA)
3.6 kV (1.2/50
μs)
2,500 Vac
2,500 Vac
1,500 Vac
Contact characteristics
Relay type
Number and type of contacts
(see page 12)
Contact materials
Conventional thermal
current
(Ith)
For ambient
temperature
y
131 °F (55 °C)
Conforming to IEC
in utilization category
AC-1
N.O.
N.C.
RXM2ABppp
DPDT
AgNi
12 A
12 A
6A
10 A
10 A
5A
10 A, 1/3 hp
6A
6A
3A
8 A, 1/3 hp
RXM3ABppp
3PDT
RXM4ABppp
4PDT
RXM4GBppp
4PDT
AgAu–Bifurcated
3A
2A
1A
3 A, 1/16 hp
Rated operational current
Conforming to UL
12 A, 1/2 hp
Resistive @277 Vac, hp @120 Vac
Maximum operating rate
In operating cycles/hour
Switching voltage
Switching capacity
Utilization coefficient
Mechanical durability
in millions of operating cycles
Electrical durability
in millions of operating cycles
Resistive load
No load
Under load
Maximum
Minimum
Maximum
18,000
1,200
250 Vac/Vdc
10 mA on 17 V
3,000 VA
20%
10
0.1
2 mA on 5 V
2,500 VA
1,500 VA
750 VA
5
01/2008
© 2005–2008 Schneider Electric All Rights Reserved
