500DLAA200M000ACF datasheet, PDF

Datasheet> All Categories > Passive components> 500DLAA200M000ACF

500DLAA200M000ACF: DescriptionStandard Clock Oscillators 200.0MHZ LVDS 2.5V 150PPM (NCNR); CategoryPassive components; File Size1MB，8 Pages; ManufacturerSilicon Laboratories

Download Datasheet Parametric Compare View All

500DLAA200M000ACF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	500DLAA200M000ACF	-	-	View	Buy Now

500DLAA200M000ACF Overview

Standard Clock Oscillators 200.0MHZ LVDS 2.5V 150PPM (NCNR)

500DLAA200M000ACF Parametric

Parameter Name	Attribute value
Product Category	Standard Clock Oscillators
Manufacturer	Silicon Laboratories
RoHS	Details
Product	Standard Clock Oscillators
Package / Case	5 mm x 3.2 mm
Length	5 mm
Width	3.2 mm
Packaging	Cut Tape
Moisture Sensitive	Yes
Factory Pack Quantity	75
Type	Differential Oscillator Silicon Oscillators
Unit Weight	0.001764 oz

Preview

Download Datasheet

View All

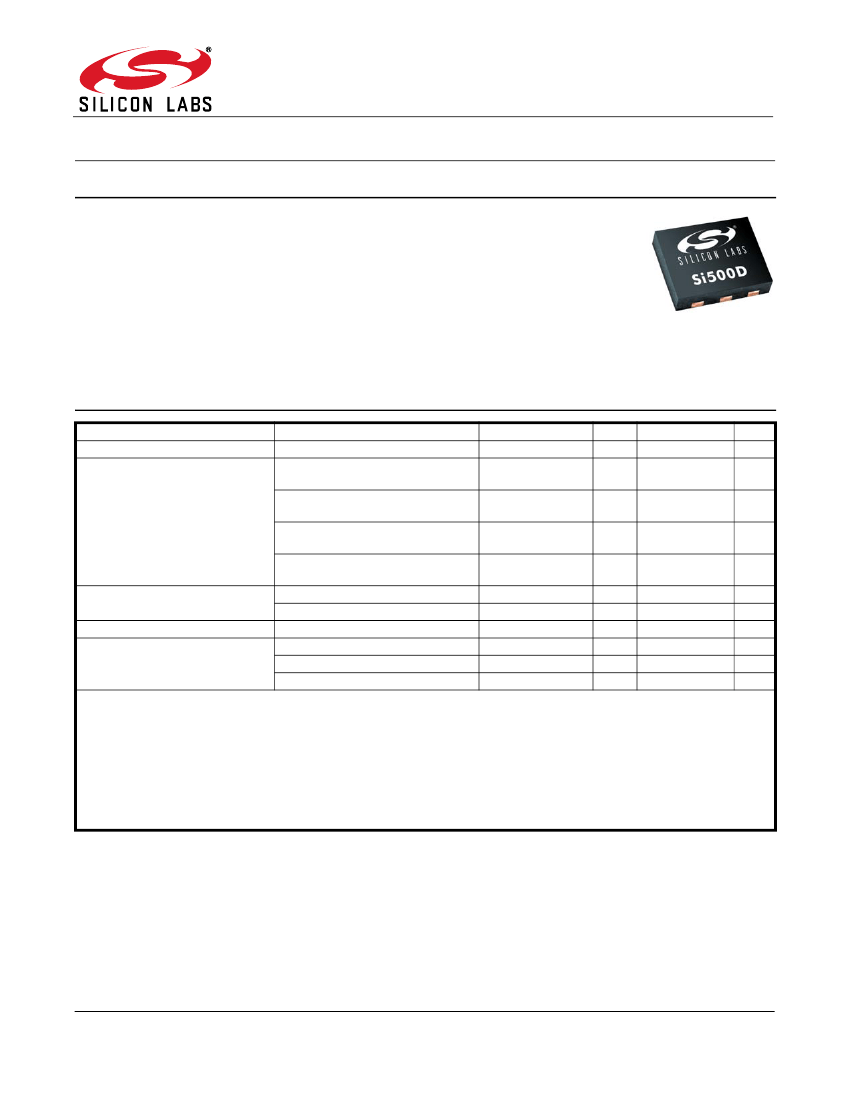

Si500D

IFFERENTIAL

UTPUT

I L I C O N

SCILLATOR

Features



Quartz-free, MEMS-free, and PLL-free all-silicon

oscillator

Any output frequencies from 0.9 to 200 MHz

Short lead times

Excellent temperature stability (±20 ppm)

Highly reliable startup and operation

High immunity to shock and vibration

Low jitter: <1.5 ps rms

0 to 85 °C operation includes 10-year aging in hot

environments



Footprint compatible with industry-

standard 3.2 x 5.0 mm XOs

CMOS, SSTL, LVPECL, LVDS, and HCSL

versions available

Driver stopped, tri-state, or powerdown

operation

RoHS compliant

1.8, 2.5, or 3.3 V options

Low power

More than 10x better fit rate than

competing crystal solutions

Specifications

Parameters

Frequency Range

Temperature stability,

0 to +70 °C

Temperature stability,

0 to +85 °C

Total stability,

0 to +70 °C operation

Total stability,

0 to +85 °C operation

Commercial

Extended commercial

1.8 V option

2.5 V option

3.3 V option

Condition

Min

0.9

—

–55

1.71

2.25

2.97

Typ

—

±10

±20

—

Max

200

—

±150

±250

+125

1.98

2.75

3.63

Units

MHz

ppm

°C

Frequency Stability

Operating Temperature

Storage Temperature

Supply Voltage

Notes:

Inclusive of 25 °C initial frequency accuracy, operating temperature range, supply voltage change, output load change,

first-year aging at 25 °C, shock, vibration, and one solder reflow.

Inclusive of 25 °C initial frequency accuracy, operating temperature range, supply voltage change, output load change,

ten-year aging at 85 °C, shock, vibration, and one solder reflow.

See “AN409: Output Termination Options for the Si500S and Si500D Silicon Oscillators” for further details regarding

output clock termination recommendations.

= .5 x V

= .45 x V

Rev. 1.1 10/11

Si500D

500DLAA200M000ACF Related Products

	500DLAA200M000ACF	500DAAA150M000ACF	500DBAC156M250ABF	500DBAC161M133ABF	500DSAA200M000ACF
Description	Standard Clock Oscillators 200.0MHZ LVDS 2.5V 150PPM (NCNR)	Standard Clock Oscillators Diff. Silicon Osc. LVPECL, 3.3V (NCNR)	Standard Clock Oscillators Diff. Silicon Osc. LVPECL, 3.3V (NCNR)	Standard Clock Oscillators SI500 LP LVPECL 3.3V 1 161.133MHZ (NCNR)	Standard Clock Oscillators Programmable XO,1.8V 6 pad, 3.2mm x 5mm
Product Category	Standard Clock Oscillators	Standard Clock Oscillators	Standard Clock Oscillators	Standard Clock Oscillators	Standard Clock Oscillators
Manufacturer	Silicon Laboratories	Silicon Laboratories	Silicon Laboratories	Silicon Laboratories	Silicon Laboratories
RoHS	Details	Details	Details	Details	Details
Product	Standard Clock Oscillators	Standard Clock Oscillators	Standard Clock Oscillators	Standard Clock Oscillators	Standard Clock Oscillators
Packaging	Cut Tape	Cut Tape	Cut Tape	Cut Tape	Cut Tape
Factory Pack Quantity	75	75	75	75	75
Package / Case	5 mm x 3.2 mm	-	4 mm x 3.2 mm	4 mm x 3.2 mm	5 mm x 3.2 mm
Length	5 mm	-	4 mm	4 mm	5 mm
Width	3.2 mm	-	3.2 mm	3.2 mm	3.2 mm
Moisture Sensitive	Yes	-	-	Yes	Yes
Type	Differential Oscillator Silicon Oscillators	Differential Oscillator Silicon Oscillators	Differential Oscillator Silicon Oscillators	Differential Oscillator Silicon Oscillators	-
Unit Weight	0.001764 oz	0.001052 oz	-	-	0.001764 oz
Frequency	-	150 MHz	156.25 MHz	161.133 MHz	-
