LD11-0366FLF: DescriptionTest Plugs u0026 Test Jacks BANANA JACK BLACK BU-31602-0; CategoryPassive components; File Size342KB，2 Pages; ManufacturerHALO Electronics

Download Datasheet Parametric View All

LD11-0366FLF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LD11-0366FLF	-	-	View	Buy Now

LD11-0366FLF Overview

Test Plugs u0026 Test Jacks BANANA JACK BLACK BU-31602-0

LD11-0366FLF Parametric

Parameter Name	Attribute value
Product Category	Common Mode Chokes / Filters
Manufacturer	HALO Electronics
RoHS	Details
Termination Style	Radial
Inductance	36 uH
Impedance	-
Tolerance	-
Maximum DC Current	-
Maximum DC Resistance	0.25 Ohms
Self Resonant Frequency	-
Operating Temperature Range	- 40 C to + 85 C
Package / Case	DIP-8
Length	10.16 mm
Width	10.16 mm
Height	6.99 mm
Packaging	Tube
Core Material	-
Diameter	-
Lead Diameter	0.51 mm
Lead Spacing	2.54 mm
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Mounting Style	Through Hole
Product	Common Mode Filters
Q Minimum	-
Shielding	Shielded
Factory Pack Quantityyxzeysxdrffxvdeqzutsbxat	50
Test Frequency	-
Type	CMC Filters 8 Pin DIL

Preview

Download Datasheet

View All

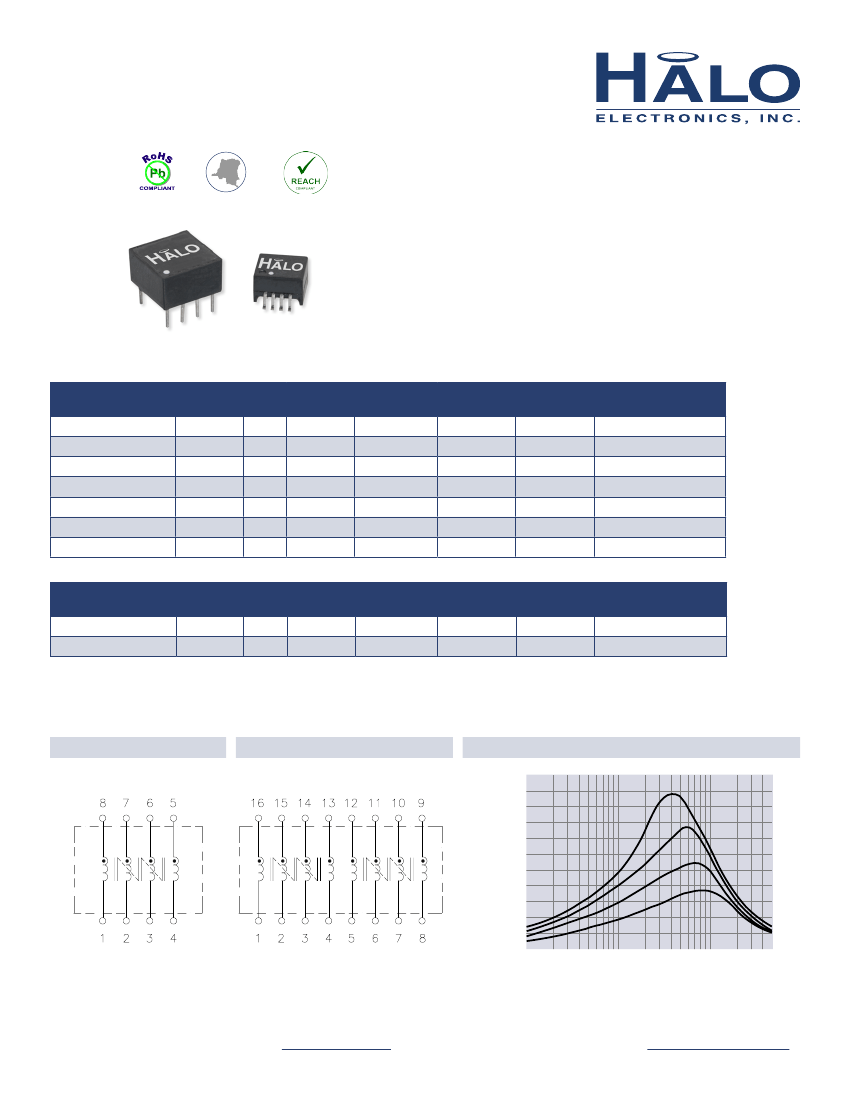

1:1:1:1

CMC Filters

8 Pin DIL and 8 & 16 Pin SMD Packages

Conflict

FREE

Product Features:

CMC Filters for Data Communications and Telecom

Applications

Compatible with IEEEE 802.3 and 802.5

Hi-Pot 500Vrms

Turns Ratio (±3%): 1:1:1:1

UL Recognized Components

Single

Part Number

LD11-0086FLF

LD11-0166FLF

LD11-0246FLF

LD11-0366FLF

LG11-0246NTLF

LG11-0366NTLF

LG11-RP36NTLF

Package

DIL

NT

PoE

N

Y

OCL

(µH typ.)

8

16

24

36

24

36

OCL

(µH typ.)

35

36

LL

(µH max.)

0.10

0.15

0.20

0.25

0.20

LL

(µH max.)

0.20

Cw/w

(pF max.)

10

15

18

20

18

20

Cw/w

(pF max.)

25

20

DCR

(Ω max.)

0.20

0.25

0.40

0.45

0.40

DCR

(Ω max.)

0.30

0.45

Impedance/Freq.

Curve (typ.)

A

B

C

D

C

D

C

Impedance/Freq.

Curve (typ.)

C

D

Dual

Part Number

LG11-0346N1LF

LG11-0366N1LF

Package

N1

PoE

N

Notes:

1. Pb-Free parts are RoHS 6/6 compliant. RoHS (7a) parts contain lead per exemption 7a which is set to expire in July 2016.

2. Please contact the factory or representative for individual datasheets or additional information.

3. Parts on this datasheet can be used in -40 to +85°C applications.

F/NT Schematic

N1 Schematic

2.5K

IMPEDANCE ( )

2K

1.5K

1K

0.5K

0

1

Impedance/Freq. Curve

D

C

B

A

FREQUENCY (MHz)

10

100

500

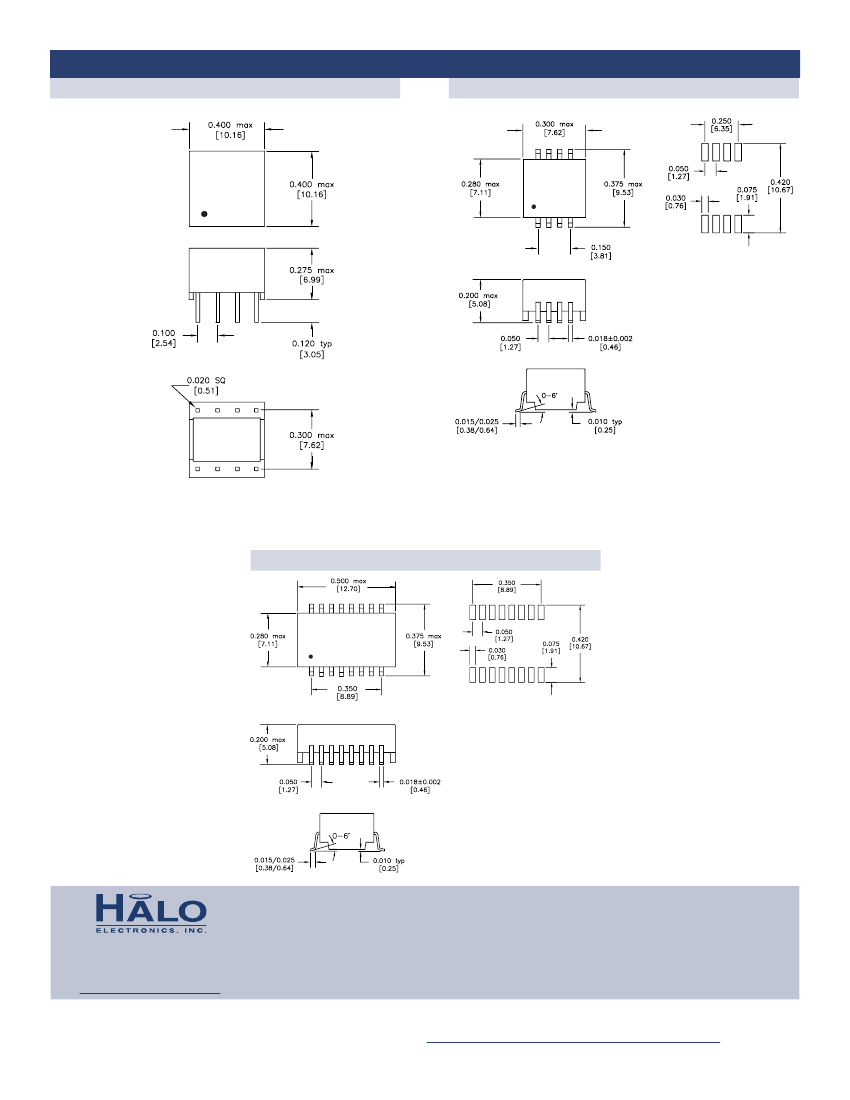

For additional information contact your

local representative,

or HALO’s support staff at (650) 903-3800 or

info@haloelectronics.com
