3290W-1-222

Description
Trimmer Resistors - Through Hole 3/8" 2.2Kohms Sealed Vertical Adjust 5%
CategoryPassive components
File Size178KB,1 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Download Datasheet Parametric View All

3290W-1-222 Online Shopping

Suppliers Part Number Price MOQ In stock
3290W-1-222 - - View Buy Now

3290W-1-222 Overview

Trimmer Resistors - Through Hole 3/8" 2.2Kohms Sealed Vertical Adjust 5%

3290W-1-222 Parametric

Parameter NameAttribute value
Product CategoryTrimmer Resistors - Through Hole
ManufacturerBourns
RoHSDetailsdbcdftcfar
Termination StylePin
ProductMultiturn
Resistance2.2 kOhms
AdjustmentTop Crossed
Power Rating1 W
Tolerance5 %
Operating Temperature Range- 65 C to + 150 C
Element TypeWirewound
Maximum Operating Temperature+ 150 C
Minimum Operating Temperature- 65 C
MountingPCB Mount
Factory Pack Quantity50
TaperLinear
TypeTrimmers
Unit Weight0.025000 oz
M
PL
IA
N
Features
Multiturn/ Wirewound / Industrial / Sealed
Listed on the QPL
for style
RT24
per
For trimmer applications/processing
T
guidelines,
click here
*R
oH
S
CO
MIL-R-27208 and
RTR24
per
High-Rel MIL-R-39015
Panel mount option available
RoHS compliant*

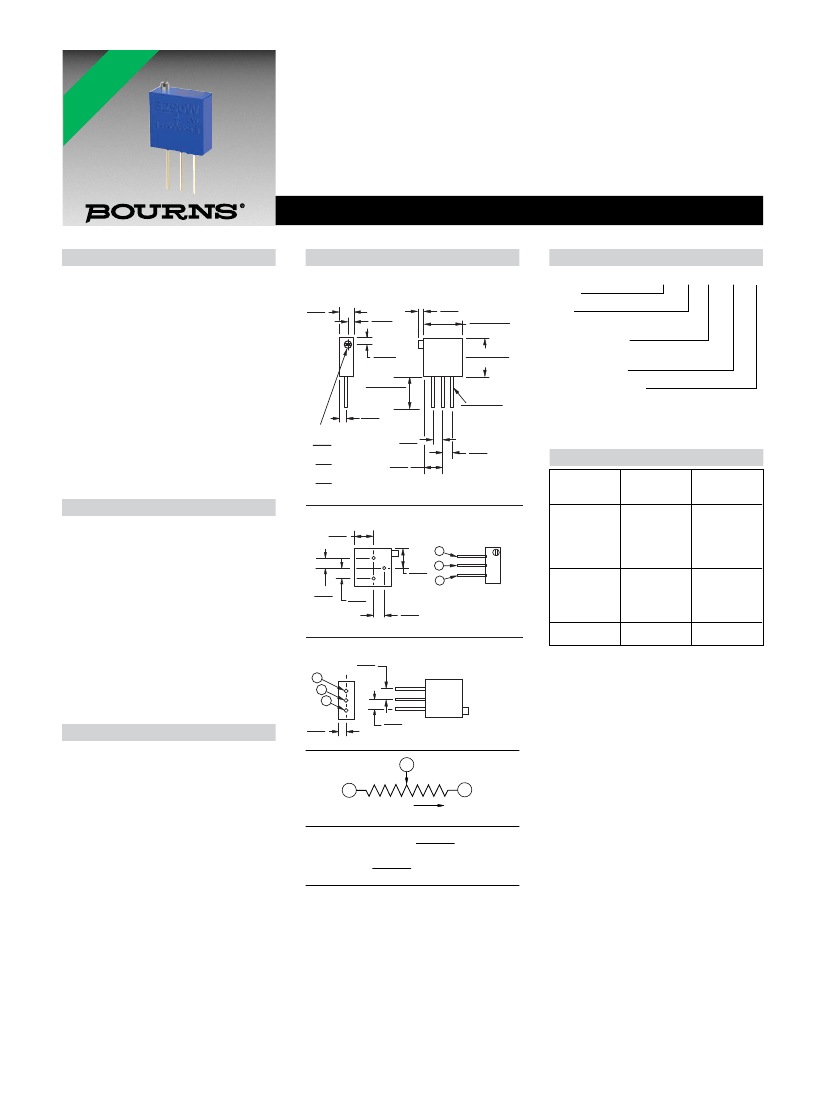

3290 - 3/8 ” Square Trimpot
®
Trimming Potentiometer
Electrical Characteristics
Standard Resistance Range
.................................. 10 to 50K ohms
(see standard resistance table)
Resistance Tolerance ............. ±5 % std.
(tighter tolerance available)
Absolute Minimum Resistance
.......................... 0.1 % or 1 ohm max.
(whichever is greater)
Noise .....................100 ohms ENR max.
Resolution
...........(see standard resistance table)
Insulation Resistance ............... 500 vdc.
1,000 megohms min.
Dielectric Strength
Sea Level............................. 1,000 vac
80,000 Feet ............................ 350 vac
Adjustment Travel .............25 turns nom.
Environmental Characteristics
Power Rating @ 85 °C ............... 1.0 watt
Power Rating @ 150 °C ................ 0 watt
Temperature Range ... -65 °C to +150 °C
Temperature Coefficient ..... ±50 ppm/°C
Seal Test ...................... 85 °C Fluorinert
Humidity .......MIL-STD-202 Method 106
96 hours (2 %
ΔTR;
100 Megohms IR)
Vibration ......................................... 30 G
(1 %
ΔTR;
0.5 % + resolution
ΔVR)
Shock ........................................... 100 G
(1 %
ΔTR;
0.5 % + resolution
ΔVR)
Load Life ..1,000 hours 1.0 watt @ 85 °C
(2 %
ΔTR;
500 ohms ENR)
Rotational Life .......................200 cycles
(2 %
ΔTR;
500 ohms ENR)
Physical Characteristics
Torque............................. 5.0 oz-in. max.
Mechanical Stops ................. Wiper idles
Terminals Solderable printed circuit pins
Weight ..................................... 0.025 oz.
Marking.........Manufacturer’s trademark,
resistance code, wiring diagram,
date code, manufacturer’s model
number and style
Wiper ............... 50 % (Actual TR) ±10 %
Flammability ..........................U.L. 94V-0
Standard Packaging .....50 pcs. per tube
Adjustment Tool..............................H-90
Product Dimensions
3290H
Common Dimensions
3.81
(.150)
1.27**
(.050)
1.52**
(.060)
How To Order
3290 H - 1 - 103 M
Model
1.02
(.040)
9.53 ±.38**
(.375 ±.015)
Style
Standard or Modified
Product Indicator
-1 = Standard Product
Resistance Code
Optional Suffix Letter
M = Panel Mount
(Factory Installed)
Consult factory for other available options.
9.53 ±.38**
(.375 ±.015)
3 2 1
8.00 ±.38
(.315 ±.015)
TYP.**
1.91
(.075)
.51 ±.03
(.020 ±.001)
DIA. TYP.**
2.54
(.100)
ADJ. SLOT
1.52 DIA.
(.060)
.51
WIDE
X
(.020)
.64
DEEP
X
(.025)
2.54
(.100)
4.75
(.187)
Standard Resistance Table
Resistance
(Ohms)
10
20
50
100
200
500
1,000
2,000
5,000
10,000
20,000
25,000
50,000
Resistance
Code
100
200
500
101
201
501
102
202
502
103
203
253
503
Nominal
Resolution
(Percent)
1.11
0.93
0.62
0.60
0.54
0.42
0.33
0.26
0.20
0.17
0.14
0.13
0.11
**Common dimensions
3290P
4.75
(.187)
1
4.75
(.187)
2.54
(.100)
2.54
(.100)
2
3
2.54
(.100)
3290W
2.54
(.100)
Popular values listed in boldface. Special
resistances available.
3
2
1
1.91
(.075)
2.54
(.100)
2
CCW
WIPER
1
CLOCKWISE
3
CW
DIMENSIONS:
TOLERANCES: ±
0.25
(.010)
MM
(INCHES)
EXCEPT WHERE NOTED
REV. 04/14
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
“Trimpot” is a registered trademark of Bourns, Inc.
†“Fluorinert” is a registered trademark of 3M Co.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
