Features
■
Available in E6 series
■
Unit height of 4.3 mm
■
Current up to 5.4 A
Applications
■
Input/output of DC/DC converters
■
Power supplies for:
*R
oH
S
CO
T
101
■
RoHS compliant*
•
•
•
•
Portable communication equipment
Camcorders
LCD TVs
Car radios

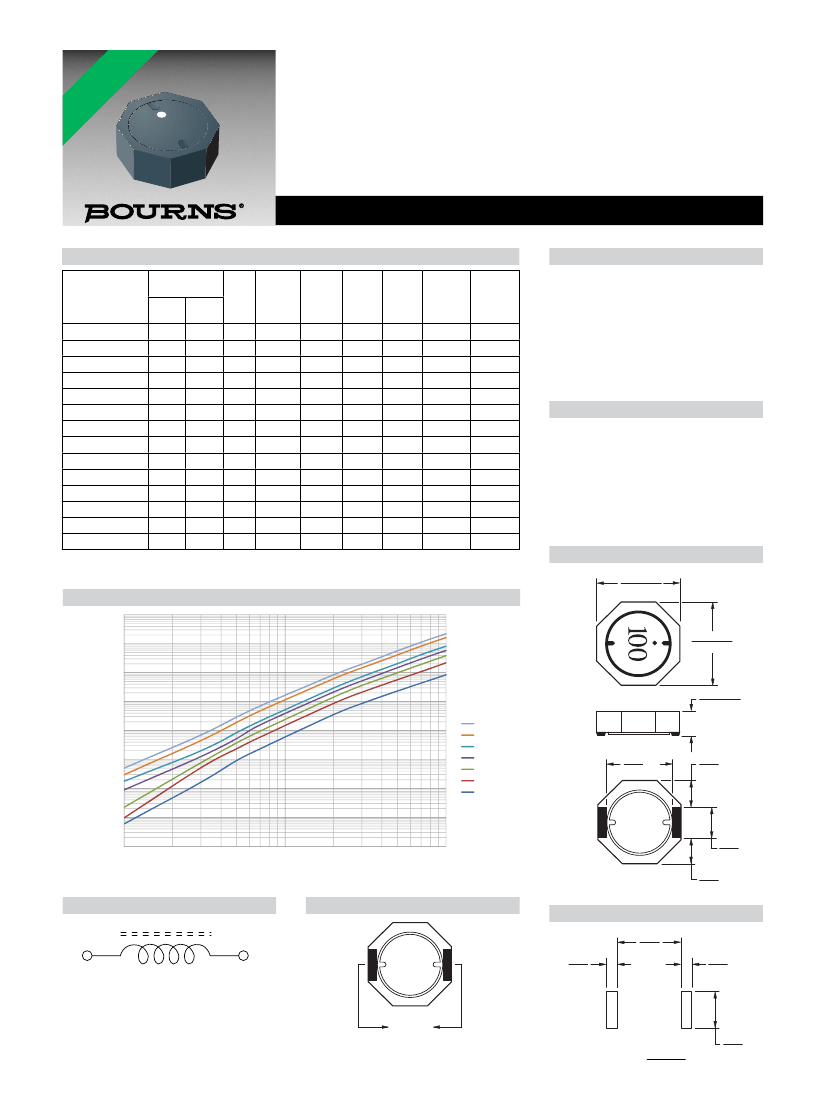

SRU8043 Series - Shielded SMD Power Inductors
Electrical Specifications
Inductance
100 KHz
Bourns
Part No.
(µH)
Tol.
%
Q
Ref.
Test
Freq.
(MHz)
SRF
Min.
(MHz)
Irms
Max.
(A)
Isat
Typ.
(A)
General Specifications
Test Voltage .......................................1 V
Reflow Soldering .. 230 °C, 50 sec. max.
Operating Temperature
................................-40 °C to +125 °C
(Temperature rise included)
Storage Temperature
................................-40 °C to +125 °C
Resistance to Soldering Heat
............................... 260 °C for 10 sec.
Materials
Core ....................Ferrite DR and RI core
Wire ............................Enameled copper
Terminal ....................................Ag/Ni/Sn
Rated Current
...................Ind. drop 35 % typ. at Isat
Temperature Rise
.....................40 °C max. at rated Irms
Packaging .................. 1000 pcs. per reel
Product Dimensions
8.0 ± 0.3
(.315 ± .012)
RDC
(mΩ)
**K-
Factor
SRU8043-2R2Y
SRU8043-3R9Y
SRU8043-4R7Y
SRU8043-6R8Y
SRU8043-100Y
SRU8043-120Y
SRU8043-150Y
SRU8043-180Y
SRU8043-220Y
SRU8043-270Y
SRU8043-330Y
SRU8043-470Y
SRU8043-680Y
SRU8043-101Y
2.2
3.9
4.7
6.8
10
12
15
18
22
27
33
47
68
100
± 30
± 30
± 30
± 30
± 30
± 30
± 30
± 30
± 30
±30
± 30
±30
±30
±30
15
15
13
12
27
15
26
15
24
17
21
21
20
50
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
65.0
42.0
36.0
30.0
20.0
15.0
15.0
15.0
12.0
12.0
11.0
9.0
7.0
6.0
11.2
14.6
17.0
22.4
30.0
39.0
46.0
62.0
72.5
84.0
100.0
120.0
192.0
287.0
5.40
4.80
4.60
3.80
3.50
2.80
2.70
2.30
2.20
1.80
1.70
1.50
1.20
1.00
5.20
4.00
3.60
3.10
2.70
2.20
2.00
1.70
1.70
1.55
1.40
1.20
1.00
0.80
250
191
171
141
120
110
98
87
79
73
66
55
44
38
**K-Factor: To calculate core flux density, Bp-p (gauss) = K x L(µH) x
Δ
I (peak-to-peak ripple current, A),
determine core loss from
Core Loss vs. Flux Density
plot.
Core Loss vs. Flux Density
10000
1000
100
10
1
0.1
0.01
0.001
0.0001
10
100
1000
1 MHz
800 KHz
500 KHz
400 KHz
300 KHz
200 KHz
100 KHz
8.0 ± 0.3
(.315 ± .012)
Core Loss (mW)
4.3 ± 0.3
(.169 ± .012)
6.0
TYP.
(.236)
2.5
(.098)
TYP.
2.8
(.110)
TYP.
2.5
TYP.
(.098)
Flux Density Bp-p (gauss)
Electrical Schematic
Inductor Connection
Recommended Layout
5.8
(.228)
REF.
* RoHS Directive 2002/95/EC Jan. 27, 2003 including
annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data
sheet can and do vary in different applications and
actual device performance may vary over time.
Users should verify actual device performance in their
specific applications.
2.0
(.079)
REF.
2.0
(.079)
REF.
LCR METER
DIMENSIONS:
MM
(INCHES)
3.2
(.126)
REF.
SRF0504 Series - -Line Filter SMD Power Inductors
SRU8043 Series Shielded

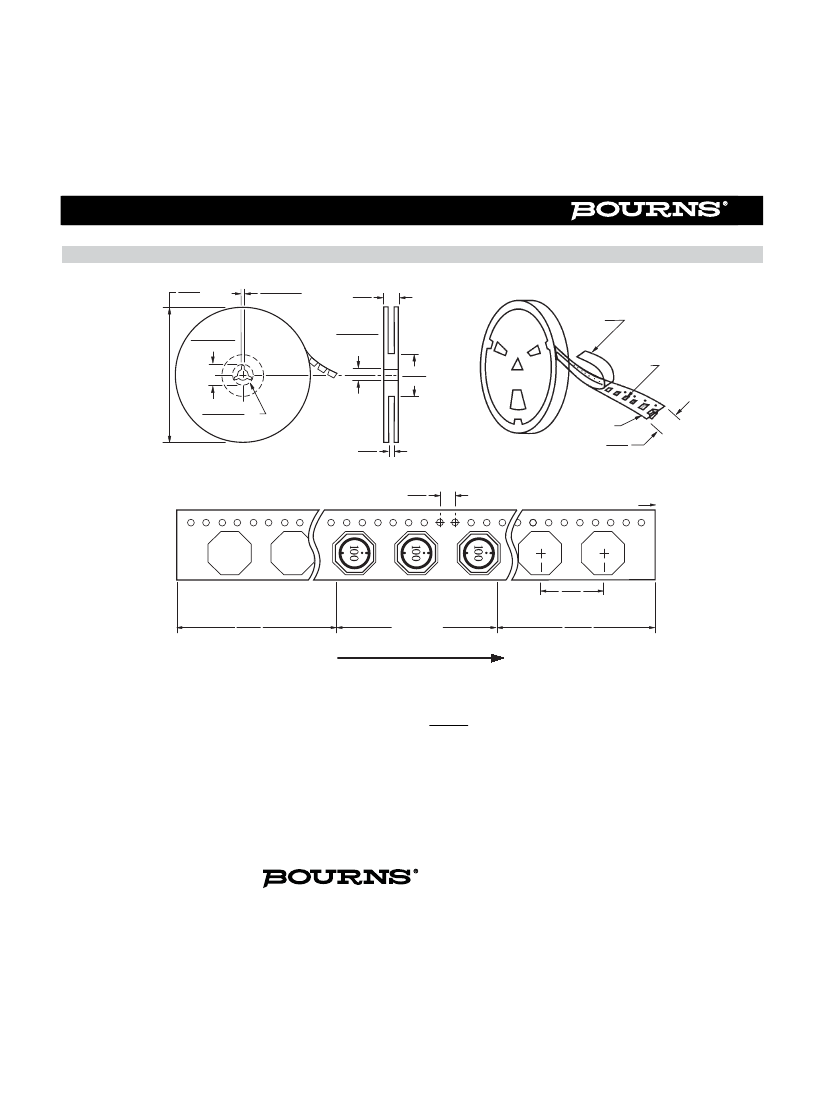

Packaging Specifications
330
DIA.
(12.99)
2.0 ± 0.5
(.079 ± .020)
22.4
(.882)
13.0 ± 0.5
(.512 ± .020)
DIA.
50.0
(1.969)
13.0 ± 0.5
DIA.
(.512 ± .020)
18
(.709)
COVER
TAPE
EMBOSSED
CAVITY
21.0 ± 0.8
(.827 ± .031)
EMBOSSED
CARRIER
16.0
(.630)
END
4
(.157)
START
12
(.472)
NO COMPONENT
NO COMPONENT
COMPONENTS
160
(6.299)
400
(15.748)
USER DIRECTION OF FEED
QTY: 1000 PCS. PER REEL
DIMENSIONS:
MM
(INCHES)
